Dodge Caliber. Manual - part 297





5.

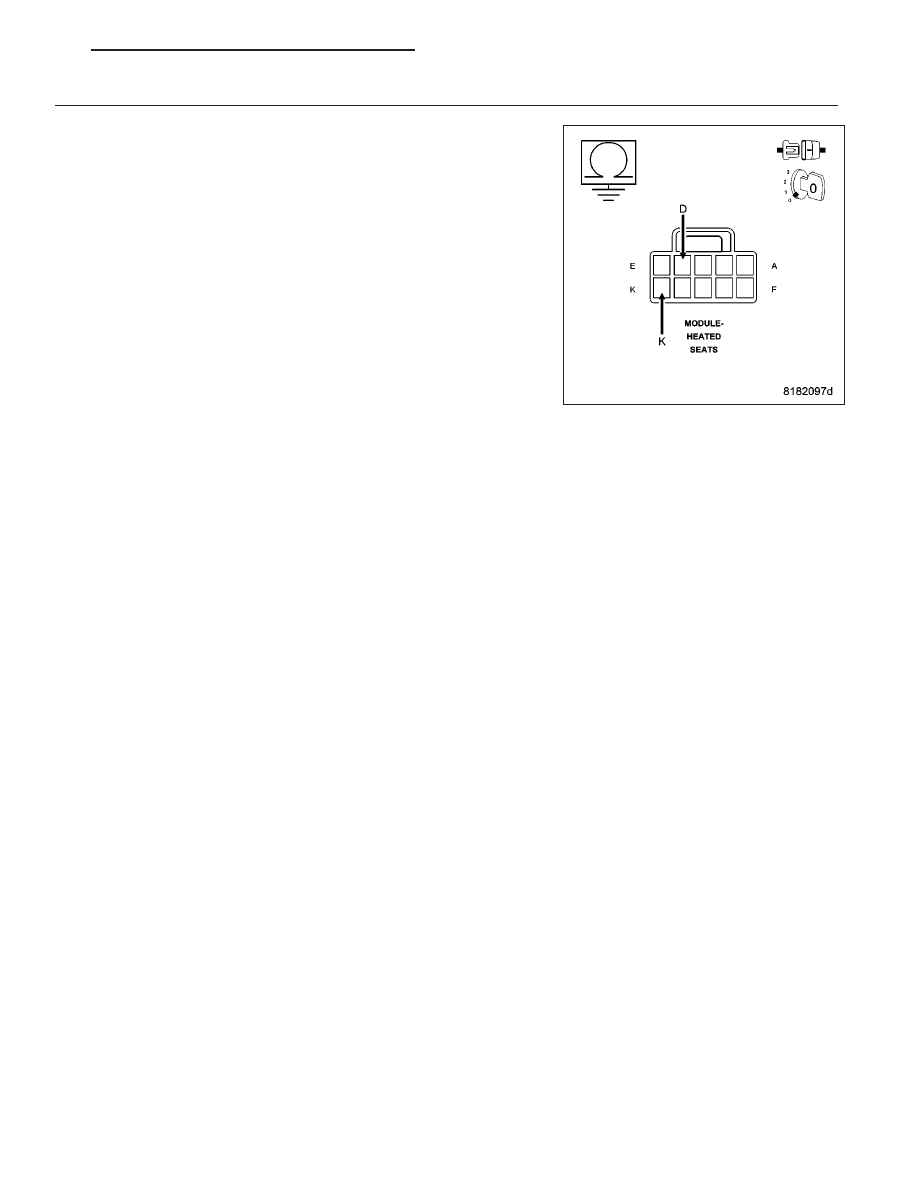

CHECK THE (P188) RIGHT SEAT HEATER B(+) DRIVER CIRCUIT FOR A SHORT TO GROUND

Ensure the Right Seat Cushion Heater 2–way connector is still discon-
nected.

Disconnect the Heated Seat Module connector.

NOTE: Check connectors - Clean and repair as necessary.
Measure the (P188) Right Seat Heater B(+) Driver circuit cavity K for
(LHD) or D for (RHD) at the HSM connector to ground.

Is the resistance below 5.0 ohms?

Yes

>> Repair the (P188) Right Seat Heater B(+) Driver circuit for a

short to ground.

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST – VER 1).

No

>> Replace the Heated Seat Module.

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST – VER 1).

PM

HEATED SEATS - ELECTRICAL DIAGNOSTICS

8G - 43

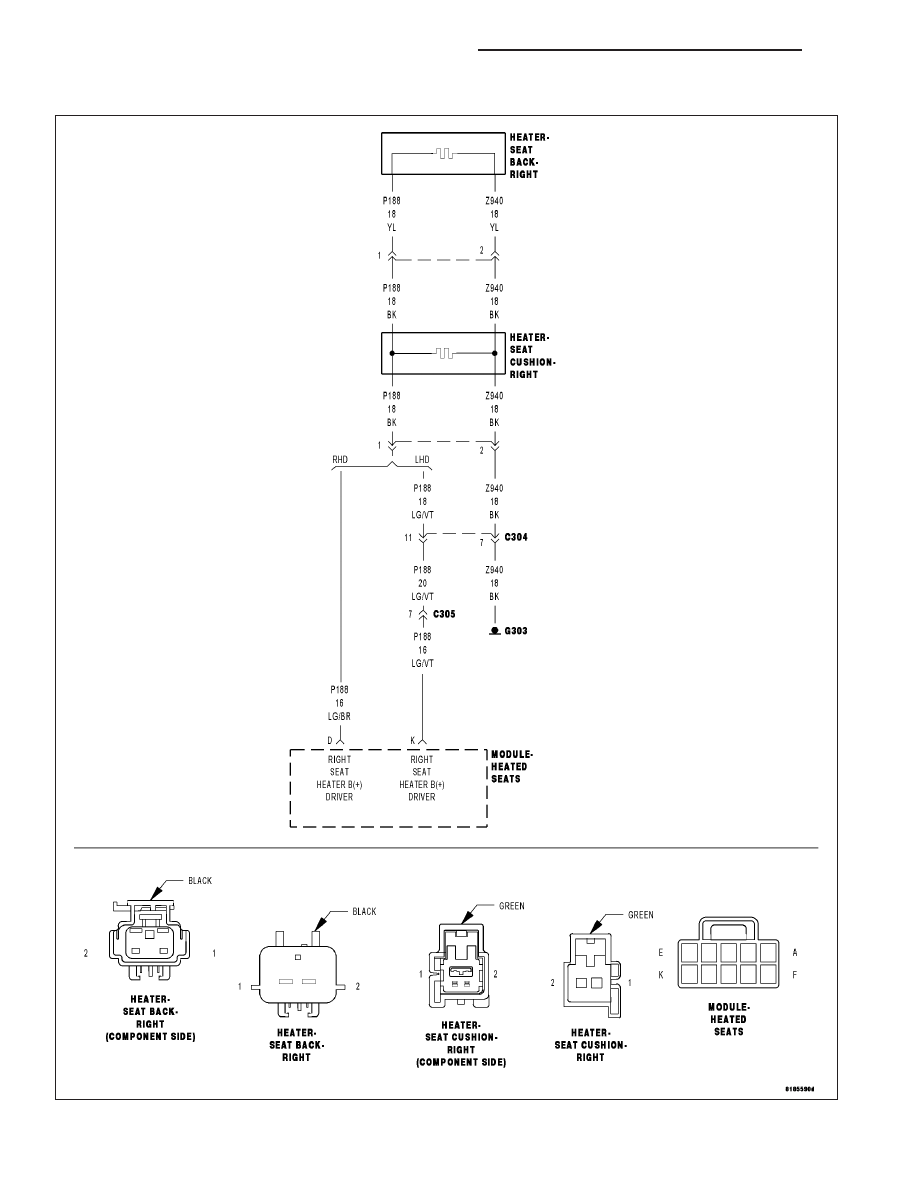

B1098-FRONT RIGHT SEAT HEATER CONTROL CIRCUIT OPEN

For a complete wiring diagram Refer to Section 8W.

8G - 44

HEATED SEATS - ELECTRICAL DIAGNOSTICS

PM

When Monitored:
Ignition on, during the heated seat operation.

Set Condition:
This code is set immediately after the Heated Seat Module detects an open in the seat heater B(+) driver
circuit.

Possible Causes

(P188) RIGHT SEAT HEATER B(+) DRIVER WIRE OPEN

(Z940) GROUND WIRE OPEN

SEAT CUSHION HEATER ELEMENT OPEN

SEAT BACK HEATER ELEMENT OPEN

HEATED SEAT MODULE

Diagnostic Test

1.

VERIFY THAT DTC B1098-FRONT RIGHT SEAT HEATER CONTROL CIRCUIT OPEN IS ACTIVE

With the scan tool, record and erase DTC’s.

Operate the Heated Seat Switch in both positions several times.

With the scan tool, read DTC’s.

Does the DTC B1098 FRONT RIGHT SEAT HEATER CONTROL CIRCUIT OPEN reset?

Yes

>> Go To 2

No

>> The conditions that caused this code to set are not present at this time. Using the wiring diagram/sche-

matic as a guide, inspect the wiring and connectors.

Perform BODY VERIFICATION TEST – VER 1. (Refer to BODY VERIFICATION TEST – VER 1).

2.

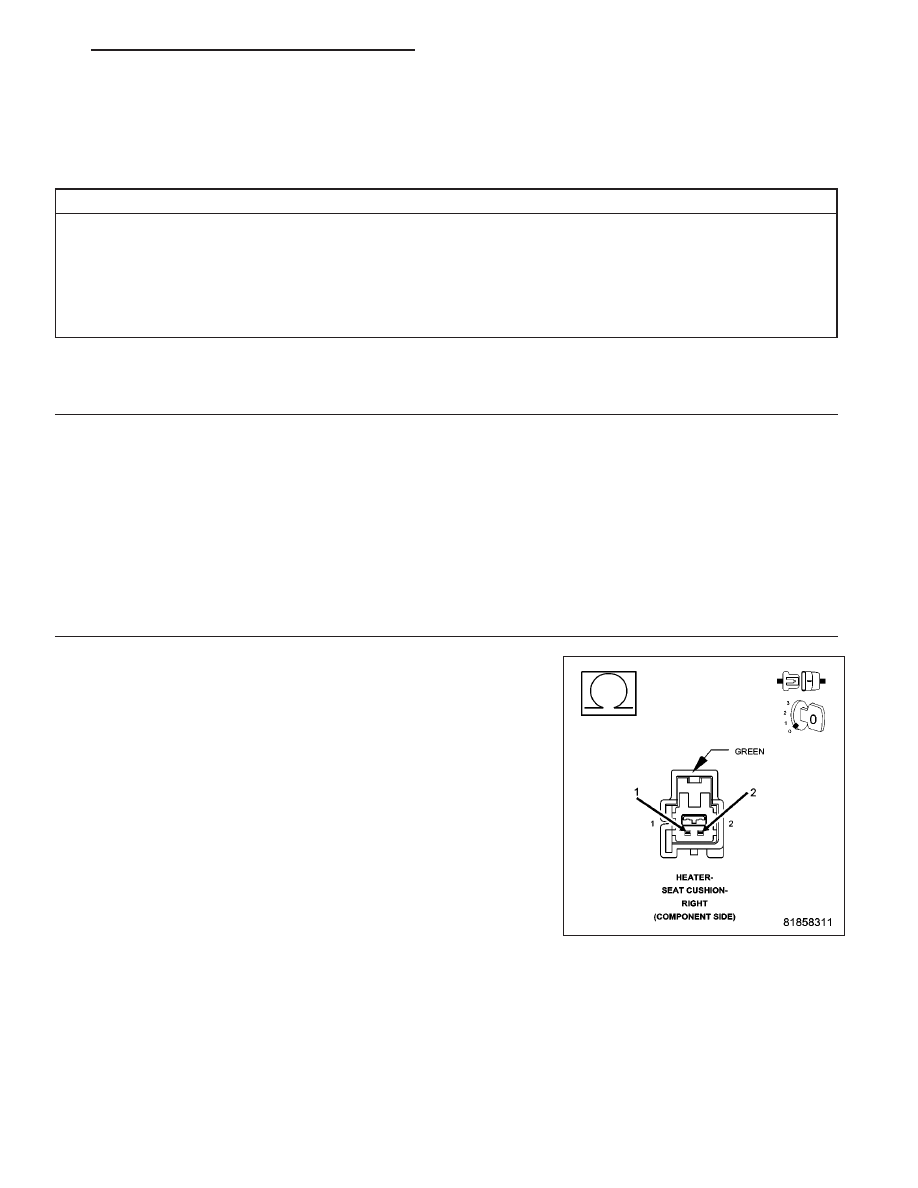

CHECK FOR AN OPEN SEAT HEATER ELEMENT

Disconnect the Right Seat Cushion Heater 2–way connector.

NOTE: Check connectors - Clean and repair as necessary.
Measure the total resistance of the cushion and seat back heater ele-
ments at the Right Seat Cushion 2–way connector (component side).

Is the total resistance 2.5 to 3.5 ohms + or – .5 ohms?

Yes

>> Go To 4

No

>> Go To 3

PM

HEATED SEATS - ELECTRICAL DIAGNOSTICS

8G - 45

3.

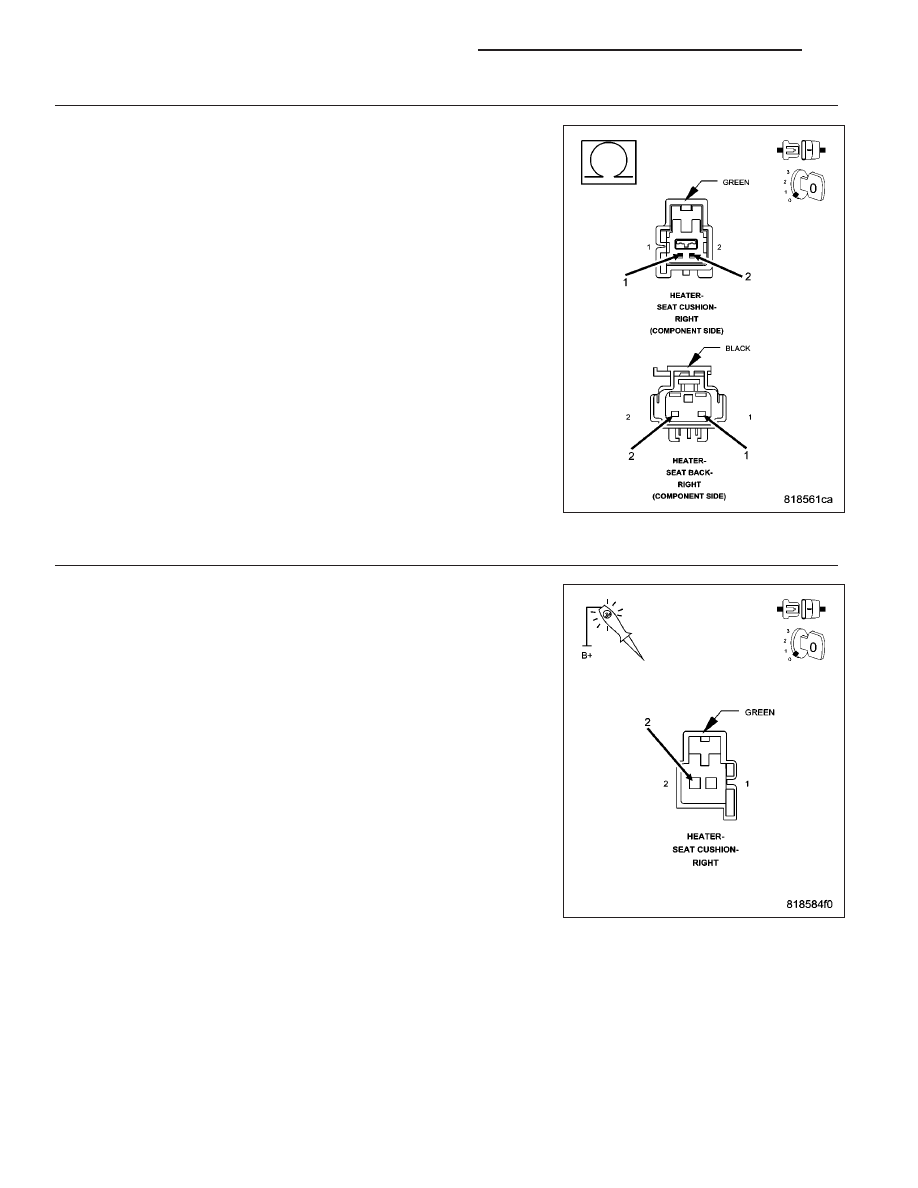

CHECK THE RIGHT SEAT HEATER ELEMENT RESISTANCE

Gain access to and disconnect the seat cushion and seat back heater
connectors.

NOTE: Check connectors - Clean and repair as necessary.
Measure each of the heater elements by measuring between the (P188)
Right Seat Heater B(+) Driver and the Ground circuit at the seat cush-
ion and seat back heater connectors.

For the seat cushion element, the resistance value is 3 to 5.5 ohms.

For the seat back element, the resistance value is 4 to 6 ohms.

Is the resistance correct for each heater element?

Yes

>> Check for an open in the pigtail harness and repair as nec-

essary.

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST – VER 1).

No

>> Replace the heater element as necessary.

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST – VER 1).

4.

CHECK THE SEAT HEATER GROUND CIRCUIT

Using a 12-volt test light connected to 12-volts, check the (Z940)
Ground circuit at the Right Seat Cushion Heater 2–way connector (har-
ness side).

Does the test light illuminate brightly?

Yes

>> Go To 5

No

>> Repair the (Z940) Ground circuit for an open.

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST – VER 1).

8G - 46

HEATED SEATS - ELECTRICAL DIAGNOSTICS

PM
