Dodge Caliber. Manual - part 206





When Monitored:

Amplifier BUS wake-up. Amplifier reset with scan tool.

Set Condition:

The amplifier detects an open condition on the speaker output circuit.

Possible Causes

(X205) AMPLIFIED LEFT REAR SHELF SPEAKER (+) CIRCUIT OPEN

(X295) AMPLIFIED LEFT REAR SHELF SPEAKER (-) CIRCUIT OPEN

LEFT REAR SHELF SPEAKER

AMPLIFIER

Diagnostic Test

1.

CHECK FOR AN INTERMITTENT CONDITION

Turn the ignition on.

Turn the radio on.

With the scan tool, erase Amplifier DTCs.

With the scan tool, reset the amplifier.

With the scan tool, read Amplifier DTCs.

Does the scan tool display active: B1477-CHANNEL 5 AUDIO SPEAKER OUTPUT CIRCUIT OPEN?

Yes

>> Go To 2

No

>> The conditions that caused this code to set are not present at this time. Using the wiring diagram/sche-

matic as a guide, inspect the wiring and connectors.

Perform BODY VERIFICATION TEST VER-1.

2.

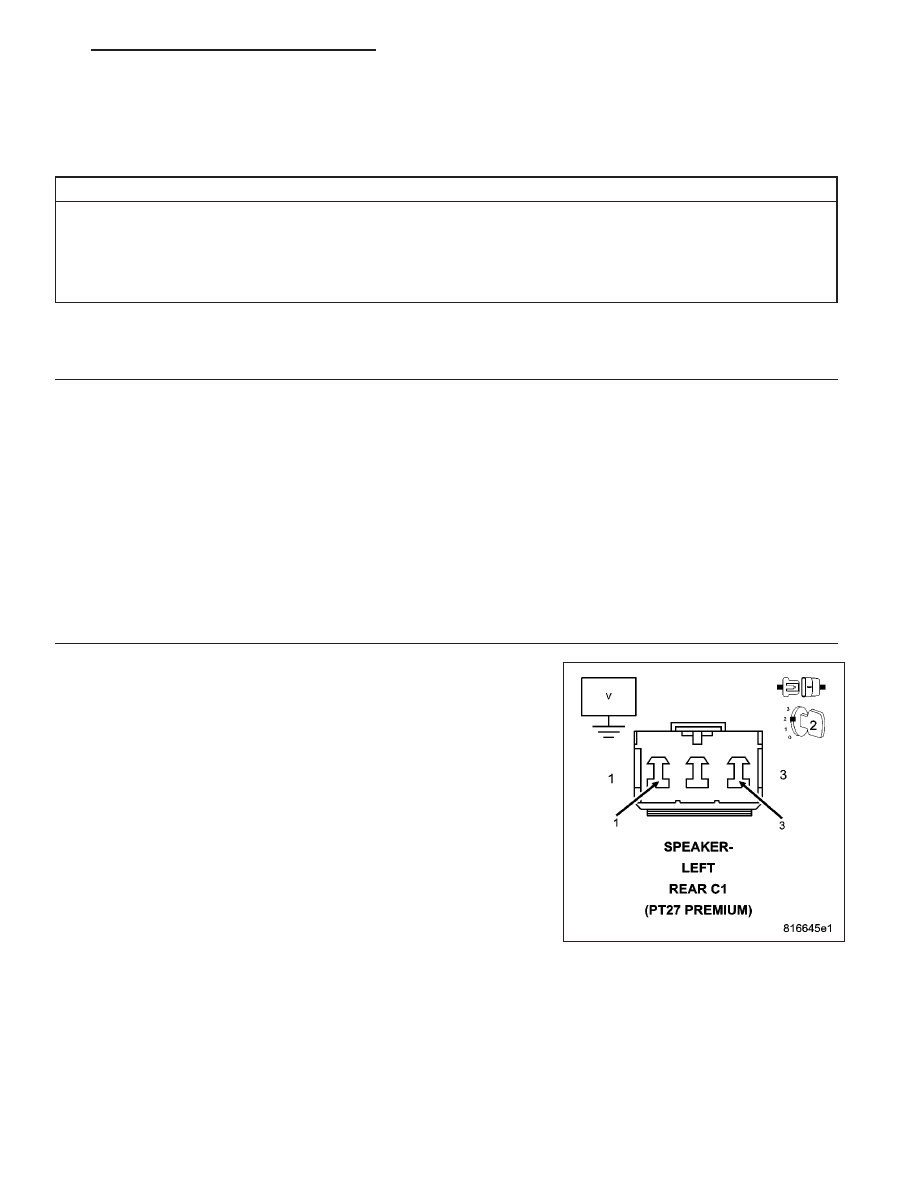

CHECK THE OPERATION OF THE LEFT REAR SHELF SPEAKER

Disconnect the Left Rear Shelf Speaker harness connector.

Turn the radio on and turn the volume to mid level.

With a voltmeter set to read in A/C voltage, measure the voltage of the
Amplified Left Rear Shelf Speaker circuits in the Amplified Left Rear
Shelf Speaker harness connector.

Is the voltage present greater than 1 volt?

Yes

>> Replace the Amplified Left Rear Shelf Speaker in accor-

dance with the service information.

Perform BODY VERIFICATION TEST VER-1.

No

>> Go To 3

PM

AUDIO/VIDEO SYSTEMS- ELECTRICAL DIAGNOSIS

8A - 97

3.

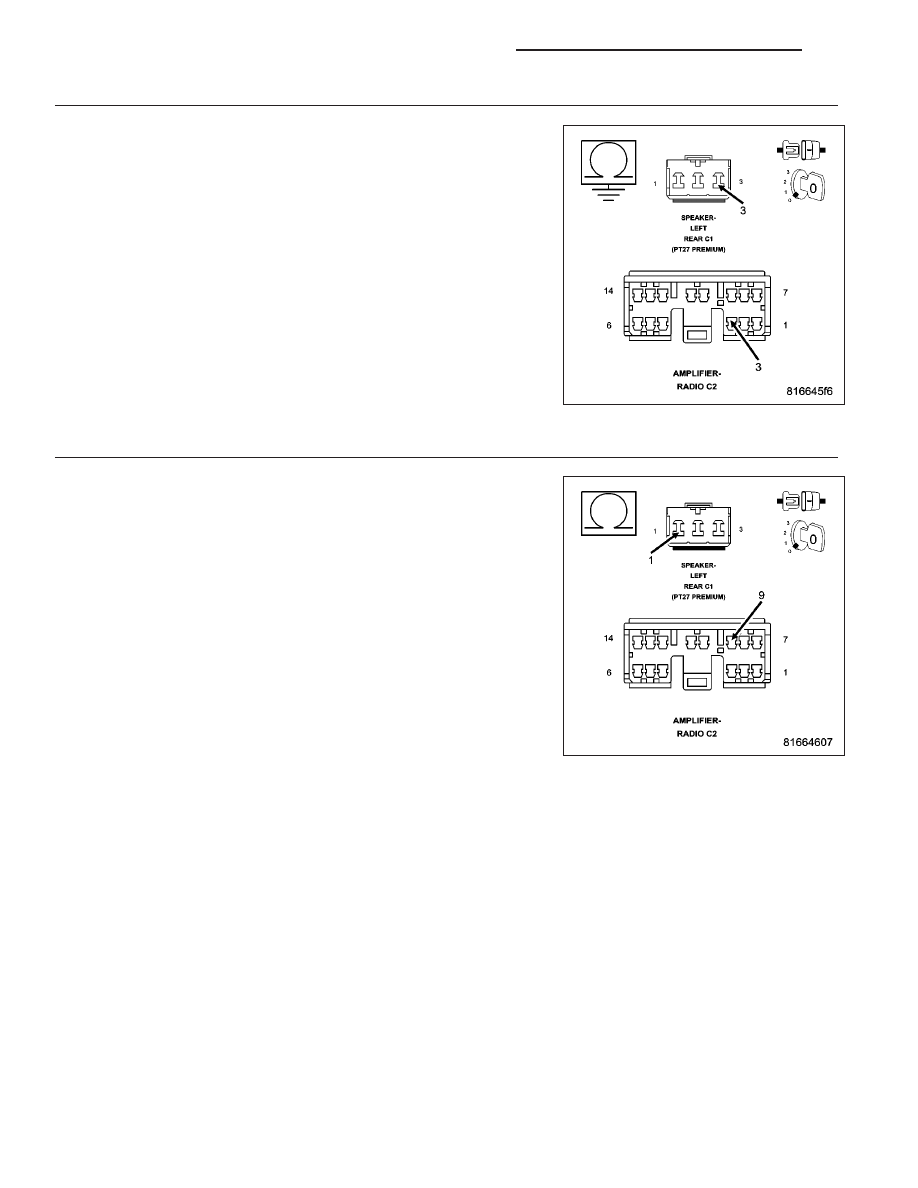

CHECK THE (X205) AMPLIFIED LEFT REAR SHELF SPEAKER (+) CIRCUIT FOR AN OPEN

Turn the ignition off.

Disconnect the Amplifier C2 harness connector.

Measure the resistance of the (X205) Amplified Left Rear Shelf Speaker
(+) circuit between the Amplifier C2 harness connector and the Ampli-
fied Left Rear Shelf Speaker harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Go To 4

No

>> Repair the (X205) Amplified Left Rear Shelf Speaker (+) cir-

cuit for an open.

Perform BODY VERIFICATION TEST VER-1.

4.

CHECK THE (X295) AMPLIFIED LEFT REAR SHELF SPEAKER (-) CIRCUIT FOR AN OPEN

Turn the ignition off.

Disconnect the Amplifier C2 harness connector.

Measure the resistance of the (X295) Amplified Left Rear Shelf Speaker
(-) circuit between the Amplifier C2 harness connector and the Amplified
Left Rear Shelf Speaker harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Replace the amplifier in accordance with the service infor-

mation.

Perform BODY VERIFICATION TEST VER-1.

No

>> Repair the (X295) Amplified Left Rear Shelf Speaker (-) cir-

cuit for an open.

Perform BODY VERIFICATION TEST VER-1.

8A - 98

AUDIO/VIDEO SYSTEMS- ELECTRICAL DIAGNOSIS

PM

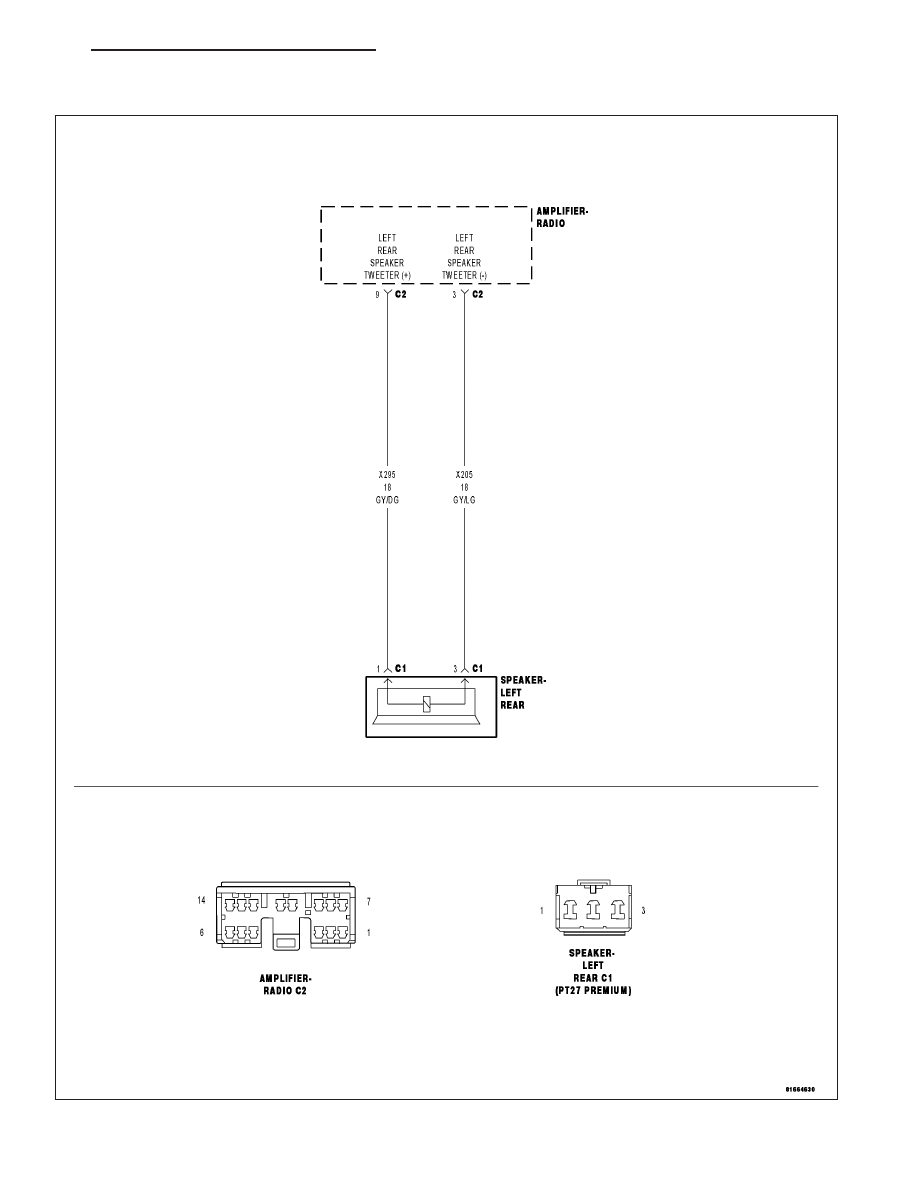

B1478-CHANNEL 5 AUDIO SPEAKER OUTPUT CIRCUIT SHORTED TOGETHER

For a complete wiring diagram Refer to Section 8W.

PM

AUDIO/VIDEO SYSTEMS- ELECTRICAL DIAGNOSIS

8A - 99

When Monitored:

With the ignition on. Radio volume at 25 or higher.

Set Condition:

The amplifier detects that the output circuits are shorted together.

Possible Causes

(X205) AMPLIFIED LEFT REAR SHELF SPEAKER (+) CIRCUIT SHORTED TO THE (X295) AMPLIFIED LEFT
REAR SHELF SPEAKER (-) CIRCUIT

AMPLIFIED LEFT REAR SHELF SPEAKER

AMPLIFIER

Diagnostic Test

1.

CHECK FOR AN INTERMITTENT CONDITION

Turn the ignition on, then off, and then on again.

With the scan tool, erase Amplifier DTCs.

Turn the radio on.

Turn the volume level to 25.

With the scan tool, read Amplifier DTCs.

Does the scan tool display active: B1478-CHANNEL 5 AUDIO SPEAKER OUTPUT CIRCUIT SHORTED
TOGETHER?

Yes

>> Go To 2

No

>> The conditions that caused this code to set are not present at this time. Using the wiring diagram/sche-

matic as a guide, inspect the wiring and connectors.

Perform BODY VERIFICATION TEST VER-1.

2.

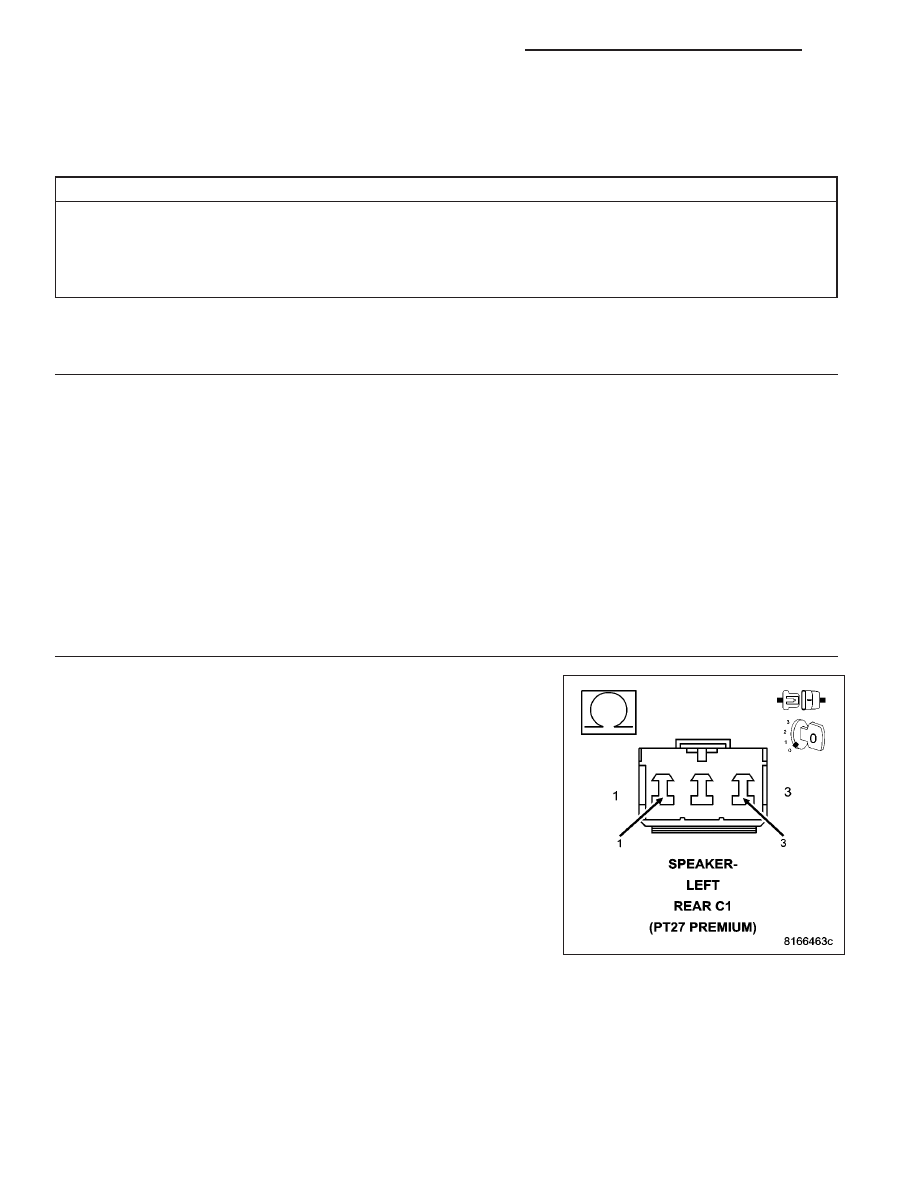

CHECK THE OPERATION OF THE AMPLIFIED LEFT REAR SHELF SPEAKER

Disconnect the Amplified Left Rear Shelf Speaker.

Measure the resistance of the speaker between the two terminals.

Is the resistance of the speaker less than 1 ohm?

Yes

>> Replace the Amplified Left Rear Shelf Speaker in accor-

dance with the service information.

Perform BODY VERIFICATION TEST VER-1.

No

>> Go To 3

8A - 100

AUDIO/VIDEO SYSTEMS- ELECTRICAL DIAGNOSIS

PM
