When Monitored:

Amplifier BUS wake-up. Amplifier reset with scan tool.

Set Condition:

The amplifier detects an open condition on the speaker output circuit.

Possible Causes

(X209) AMPLIFIED LEFT I/P SPEAKER (+) CIRCUIT OPEN

(X299) AMPLIFIED LEFT I/P SPEAKER (-) CIRCUIT OPEN

LEFT FRONT I/P SPEAKER

AMPLIFIER

Diagnostic Test

1.

CHECK FOR AN INTERMITTENT CONDITION

Turn the ignition on.

Turn the radio on.

With the scan tool, erase Amplifier DTCs.

With the scan tool, reset the amplifier.

With the scan tool, read Amplifier DTCs.

Does the scan tool display active: B1463-CHANNEL 1 AUDIO SPEAKER OUTPUT CIRCUIT OPEN?

Yes

>> Go To 2

No

>> The conditions that caused this code to set are not present at this time. Using the wiring diagram/sche-

matic as a guide, inspect the wiring and connectors.

Perform BODY VERIFICATION TEST VER-1.

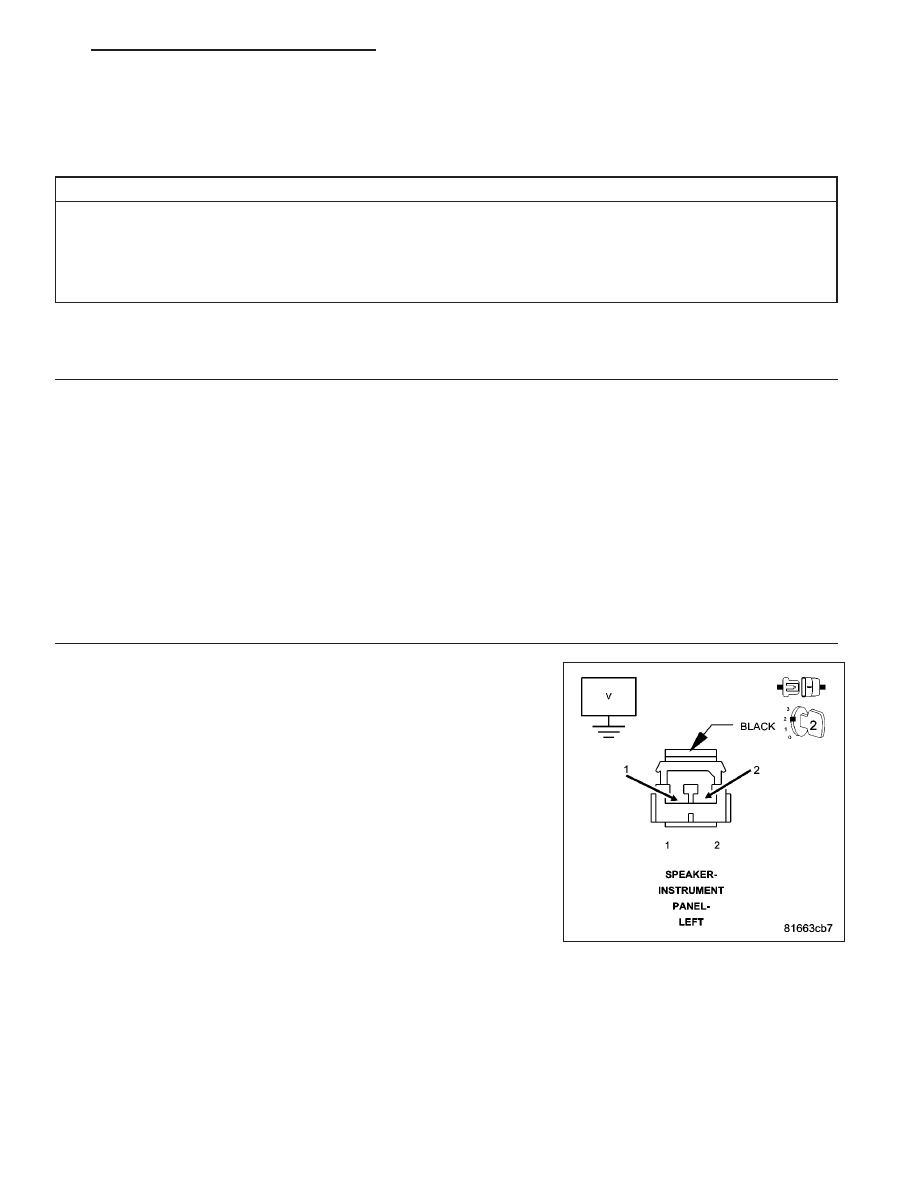

2.

CHECK THE OPERATION OF THE LEFT FRONT I/P SPEAKER

Disconnect the Left I/P Speaker harness connector.

Turn the radio on and turn the volume to mid level.

With a voltmeter set to read in A/C voltage, measure the voltage of the
Amplified Left I/P Speaker circuits in the Amplified Left I/P Speaker har-
ness connector.

Is the voltage present greater than 1 volt?

Yes

>> Replace the Amplified Left I/P Speaker in accordance with

the service information.

Perform BODY VERIFICATION TEST VER-1.

No

>> Go To 3

PM

AUDIO/VIDEO SYSTEMS- ELECTRICAL DIAGNOSIS

8A - 45

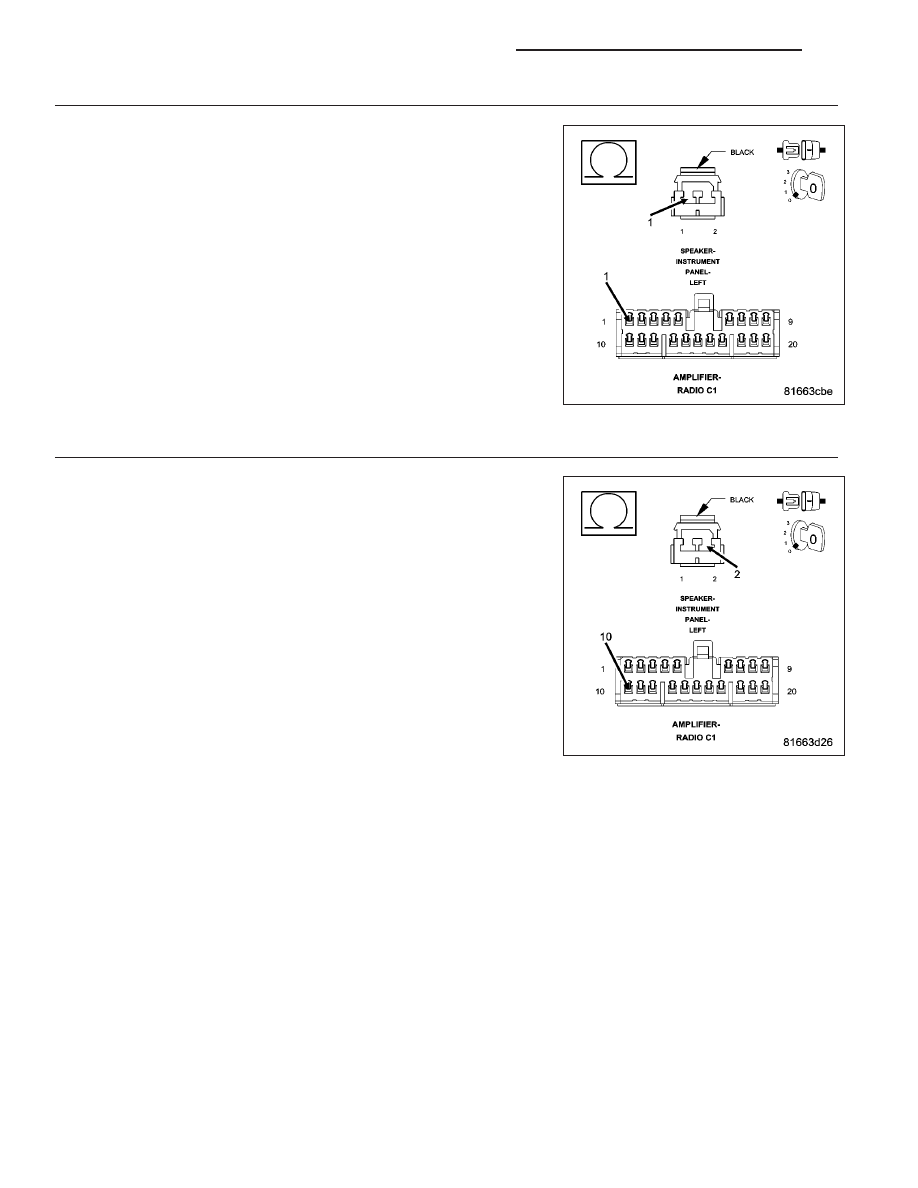

3.

CHECK THE (X209) AMPLIFIED LEFT I/P SPEAKER (+) CIRCUIT FOR AN OPEN

Turn the ignition off.

Disconnect the Amplifier C1 harness connector.

Measure the resistance of the (X209) Amplified Left I/P Speaker (+) cir-
cuit between the Amplifier C1 harness connector and the Amplified Left
I/P Speaker harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Go To 4

No

>> Repair the (X209) Amplified Left I/P Speaker (+) circuit for

an open.

Perform BODY VERIFICATION TEST VER-1.

4.

CHECK THE (X299) AMPLIFIED LEFT I/P SPEAKER (-) CIRCUIT FOR AN OPEN

Turn the ignition off.

Disconnect the Amplifier C1 harness connector.

Measure the resistance of the (X299) amplified Left I/P Speaker (-) cir-
cuit between the Amplifier C1 harness connector and the Amplified Left
I/P Speaker harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Replace the Amplifier in accordance with the service infor-

mation.

Perform BODY VERIFICATION TEST VER-1.

No

>> Repair the (X299) Amplified Left I/P Speaker (-) circuit for

an open.

Perform BODY VERIFICATION TEST VER-1.

8A - 46

AUDIO/VIDEO SYSTEMS- ELECTRICAL DIAGNOSIS

PM

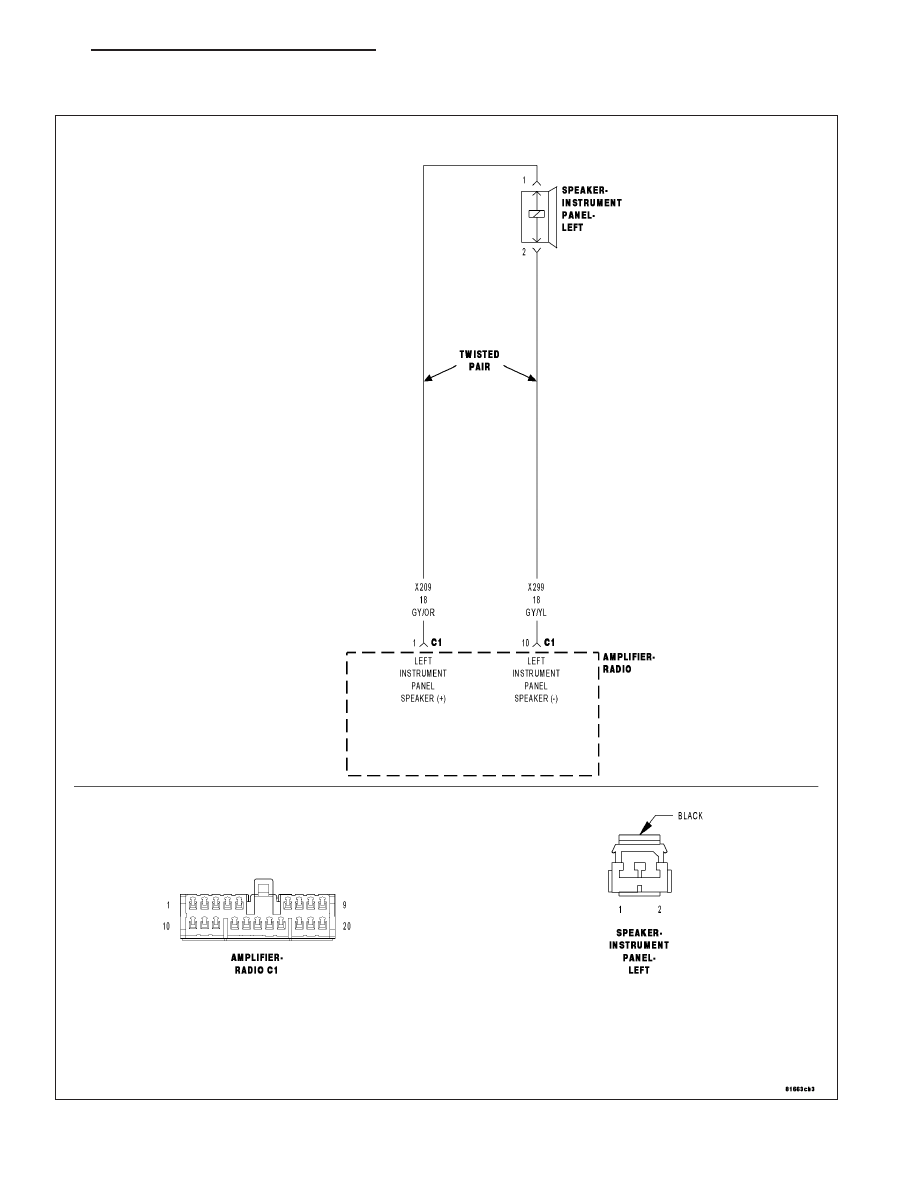

B1464-CHANNEL 1 AUDIO SPEAKER OUTPUT CIRCUIT SHORTED TOGETHER

For a complete wiring diagram Refer to Section 8W.

PM

AUDIO/VIDEO SYSTEMS- ELECTRICAL DIAGNOSIS

8A - 47

When Monitored:

With the ignition on. Radio volume at 25 or higher.

Set Condition:

The amplifier detects that the output circuits are shorted together.

Possible Causes

(X209) AMPLIFIED LEFT I/P SPEAKER (+) CIRCUIT SHORTED TO THE (X299) AMPLIFIED LEFT I/P SPEAKER
(-) CIRCUIT

AMPLIFIED LEFT I/P SPEAKER

AMPLIFIER

Diagnostic Test

1.

CHECK FOR AN INTERMITTENT CONDITION

Turn the ignition on, then off, and then on again.

With the scan tool, erase Amplifier DTCs.

Turn the radio on.

Turn the volume level to 25.

With the scan tool, read Amplifier DTCs.

Does the scan tool display active: B1464-CHANNEL 1 AUDIO SPEAKER OUTPUT CIRCUIT SHORTED
TOGETHER?

Yes

>> Go To 2

No

>> The conditions that caused this code to set are not present at this time. Using the wiring diagram/sche-

matic as a guide, inspect the wiring and connectors.

Perform BODY VERIFICATION TEST VER-1.

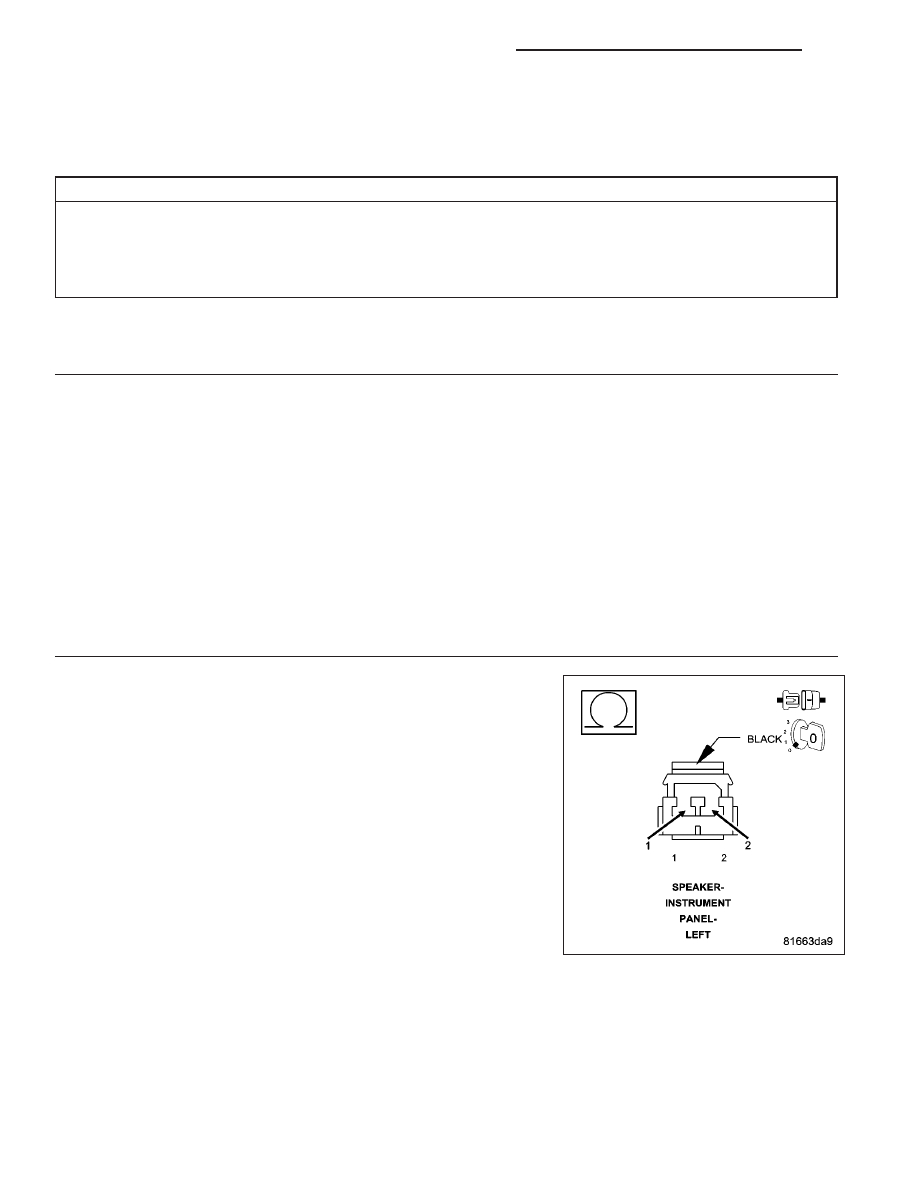

2.

CHECK THE OPERATION OF THE AMPLIFIED LEFT I/P SPEAKER

Disconnect the Amplified Left I/P Speaker.

Measure the resistance of the speaker between the two terminals.

Is the resistance of the speaker less than 1 ohm?

Yes

>> Replace the Amplified Left I/P Speaker in accordance with

the service information.

Perform BODY VERIFICATION TEST VER-1.

No

>> Go To 3

8A - 48
