U1114–LOST COMMUNICATION WITH LEFT FRONT TIRE PRESSURE TRIGGER
MODULE

PM

TIRES/WHEELS - ELECTRICAL DIAGNOSIS

22 - 35

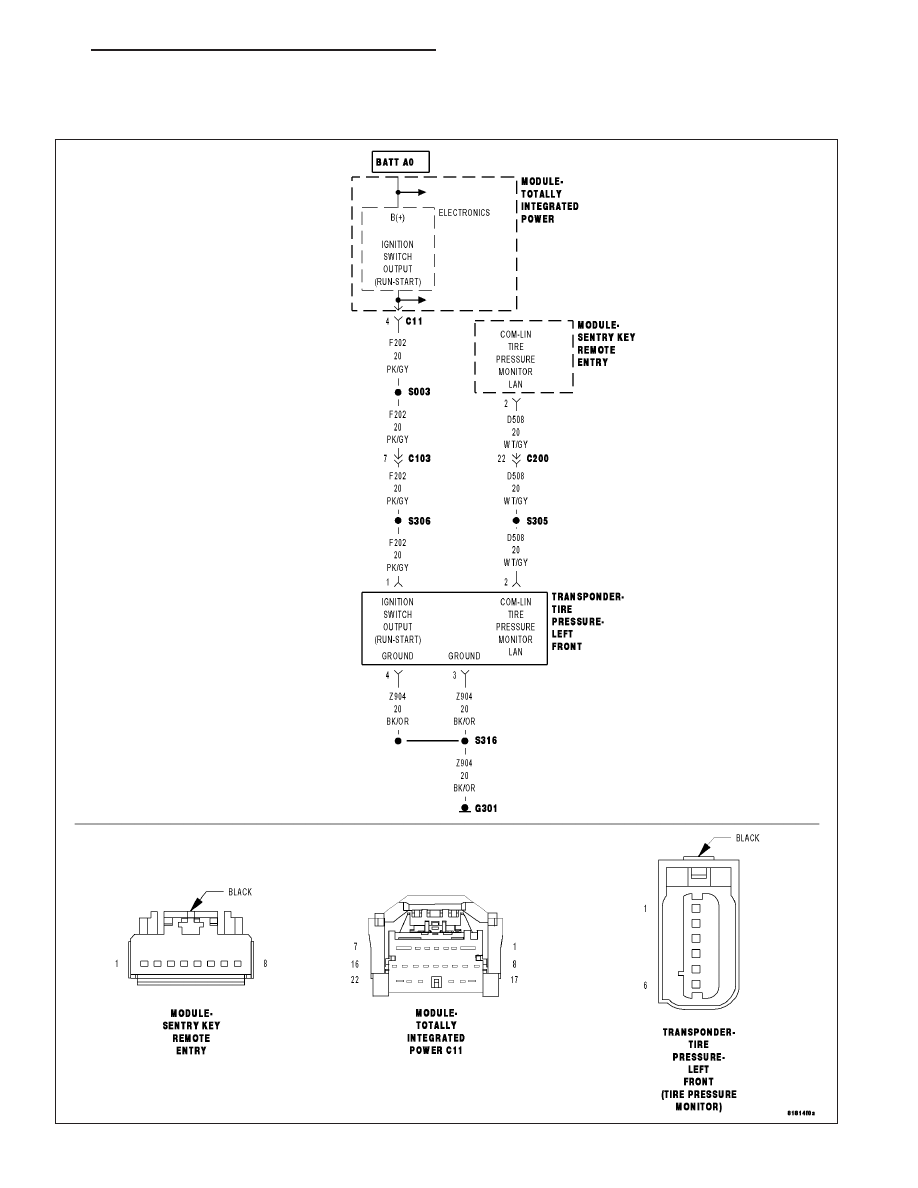

For a complete wiring diagram Refer to Section 8W.

When Monitored:

With the ignition on

Battery voltage between 10 and 16 volts

IOD fuse installed

Set Condition:
If the WCM fails to receive bus messages from the Tire pressure trigger module for two consecutive counts of
trigger module not responding to a communication check.

Possible Causes

(D508) COM - LIN TIRE PRESSURE MONITOR LAN CIRCUIT SHORT TO VOLTAGE

(D508) COM - LIN TIRE PRESSURE MONITOR LAN CIRCUIT SHORT TO GROUND

(D508) COM - LIN TIRE PRESSURE MONITOR LAN CIRCUIT OPEN OR HIGH RESISTANCE

(F202) FUSED IGNITION SWITCH OUTPUT (RUN) CIRCUIT OPEN OR HIGH RESISTANCE

(Z904) GROUND CIRCUIT(S) OPEN OR HIGH RESISTANCE

(D508) COM-LIN TIRE PRESSURE MONITOR LAN CIRCUIT OPEN

TIRE PRESSURE TRIGGER MODULE POWER AND GROUND

WCM

Diagnostic Test

1.

VERIFY DTC IS ACTIVE

NOTE: Ensure the IOD fuse is installed and battery voltage is between 10 and 16 volts before proceeding.
Turn the ignition on.

With the scan tool, read and record WCM DTCs.

With the scan tool, erase WCM DTCs.

Cycle the ignition switch.

With the scan tool, read WCM DTCs.

Does this DTC reset?

Yes

>> Go To 3

No

>> Perform the Stored Lost Communication test procedure. Refer to the table of contents in this section.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING).

Perform BODY VERIFICATION TEST. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES
- STANDARD PROCEDURE).

2.

(D508) COM-LIN TIRE PRESSURE MONITOR LAN CIRCUIT OPEN

Turn the ignition off.

Disconnect the Tire Pressure Trigger Module.

Disconnect the WCM.

With an ohmmeter measure the resistance of the (D508) COM-LIN TIRE PRESSURE MONITOR LAN CIRCUIT.

Is the resistance below 5 Ohms?

Yes

>> Go To 4

No

>> Repair or replace the open circuit.

Perform TPM VERIFICATION TEST. (Refer to 22 - TIRES/WHEELS/TIRE PRESSURE MONITORING -
STANDARD PROCEDURE)

22 - 36

TIRES/WHEELS - ELECTRICAL DIAGNOSIS

PM

3.

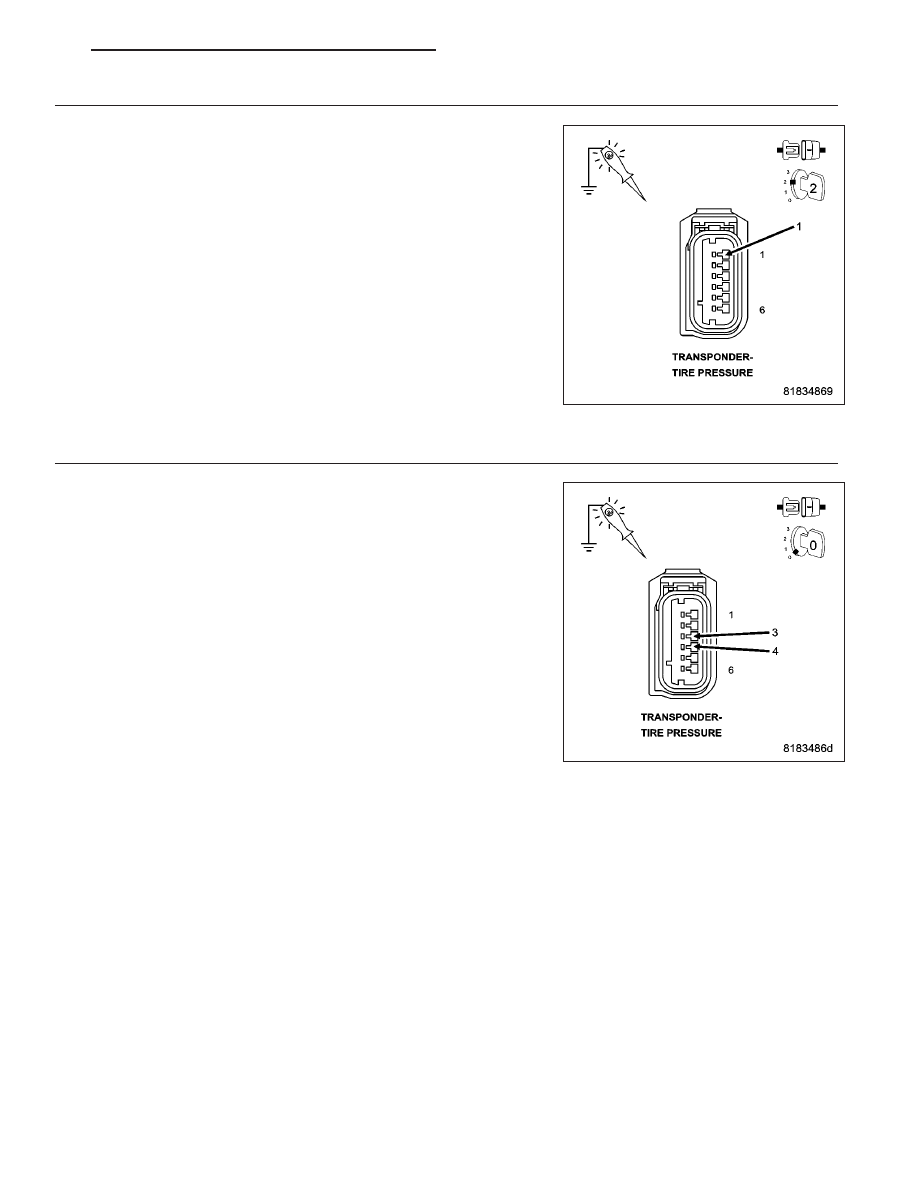

(F202) FUSED IGNITION SWITCH OUTPUT (RUN) CIRCUIT OPEN OR HIGH RESISTANCE

Turn the ignition off.

Disconnect the Tire Pressure Transponder harness connector.

Disconnect the Sentry Key Remote Entry Module harness connector.

Turn the ignition on.

Using a 12–volt test light connect to ground, check the (F924) Fused
Ignition Switch Output (Run) circuit.

NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.

Is the test light illuminated and bright?

Yes

>> Go to 5

No

>> Repair the (F924) Fused Ignition Switch Output (Run) circuit

for an open circuit or high resistance.

Perform TPM VERIFICATION TEST. (Refer to 22 - TIRES/
WHEELS/TIRE PRESSURE MONITORING - STANDARD
PROCEDURE)

4.

(Z924) GROUND CIRCUIT(S) OPEN OR HIGH RESISTANCE

Using a 12-volt test light connect to battery voltage, probe each of the
(Z924) Ground circuit(s).

NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.

Does the test light illuminate brightly?

Yes

>> Go to 6

No

>> Repair the (Z924) Ground circuit(s) for an open circuit or

high resistance.

Perform TPM VERIFICATION TEST. (Refer to 22 - TIRES/
WHEELS/TIRE PRESSURE MONITORING - STANDARD
PROCEDURE)

PM

TIRES/WHEELS - ELECTRICAL DIAGNOSIS

22 - 37

5.

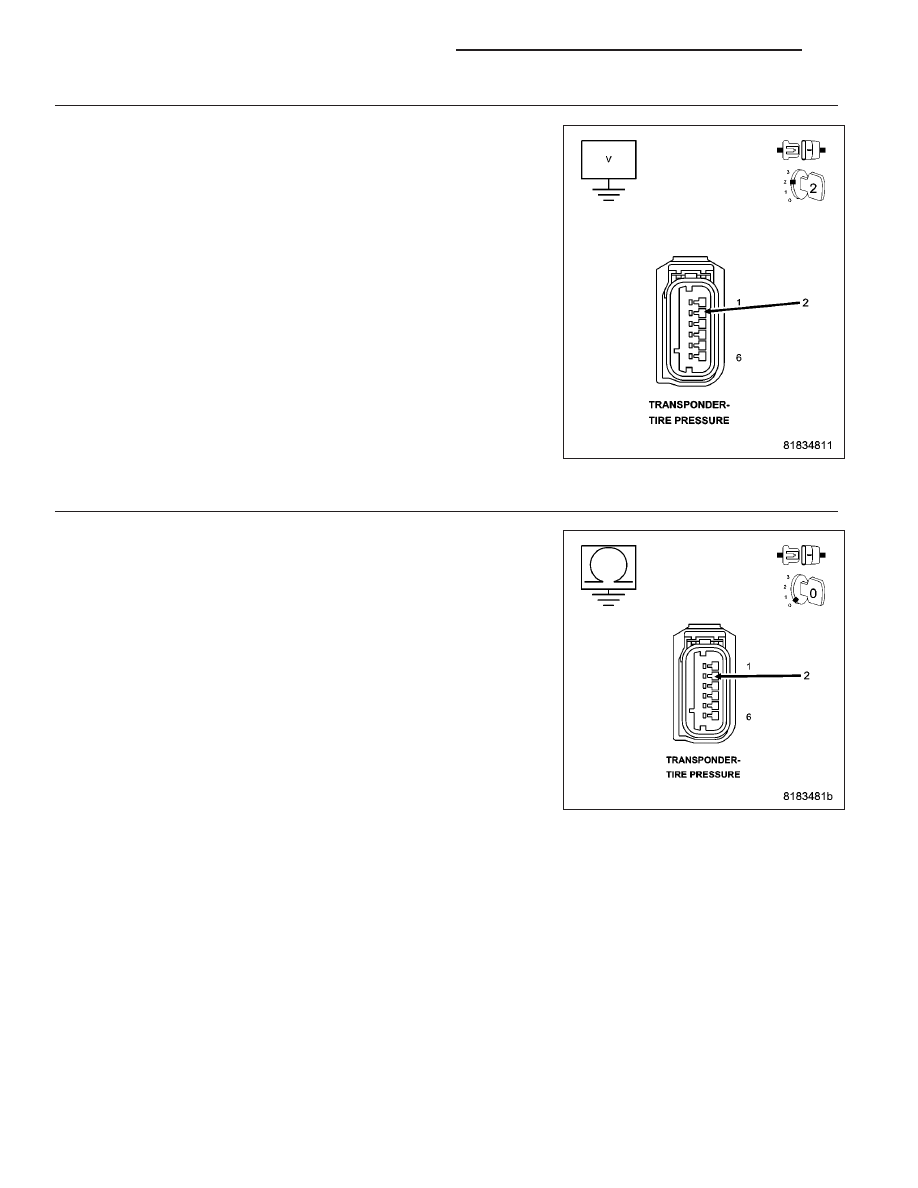

(D508) COM - LIN TIRE PRESSURE MONITOR LAN CIRCUIT SHORT TO VOLTAGE

Turn the ignition on.

Measure the voltage of the (D508) COM - LIN Tire Pressure Monitor
LAN circuit.

Is there any voltage present?

Yes

>> Repair the (D508) COM - LIN Tire Pressure Monitor LAN

circuit for a short to voltage.

No

>> Go to 7

Perform TPM VERIFICATION TEST. (Refer to 22 - TIRES/
WHEELS/TIRE PRESSURE MONITORING - STANDARD
PROCEDURE)

6.

(D508) COM - LIN TIRE PRESSURE MONITOR LAN CIRCUIT SHORT TO GROUND

Turn the ignition off.

Measure the resistance between ground and the (D508) COM - LIN Tire
Pressure Monitor LAN circuit.

Is the resistance below 5.0 ohms?

Yes

>> Repair the (D508) COM - LIN Tire Pressure Monitor LAN

circuit for a short to ground.

Perform TPM VERIFICATION TEST. (Refer to 22 - TIRES/
WHEELS/TIRE PRESSURE MONITORING - STANDARD
PROCEDURE)

No

>> Go to 8

22 - 38

TIRES/WHEELS - ELECTRICAL DIAGNOSIS

PM
