Dodge Caliber. Manual - part 1298

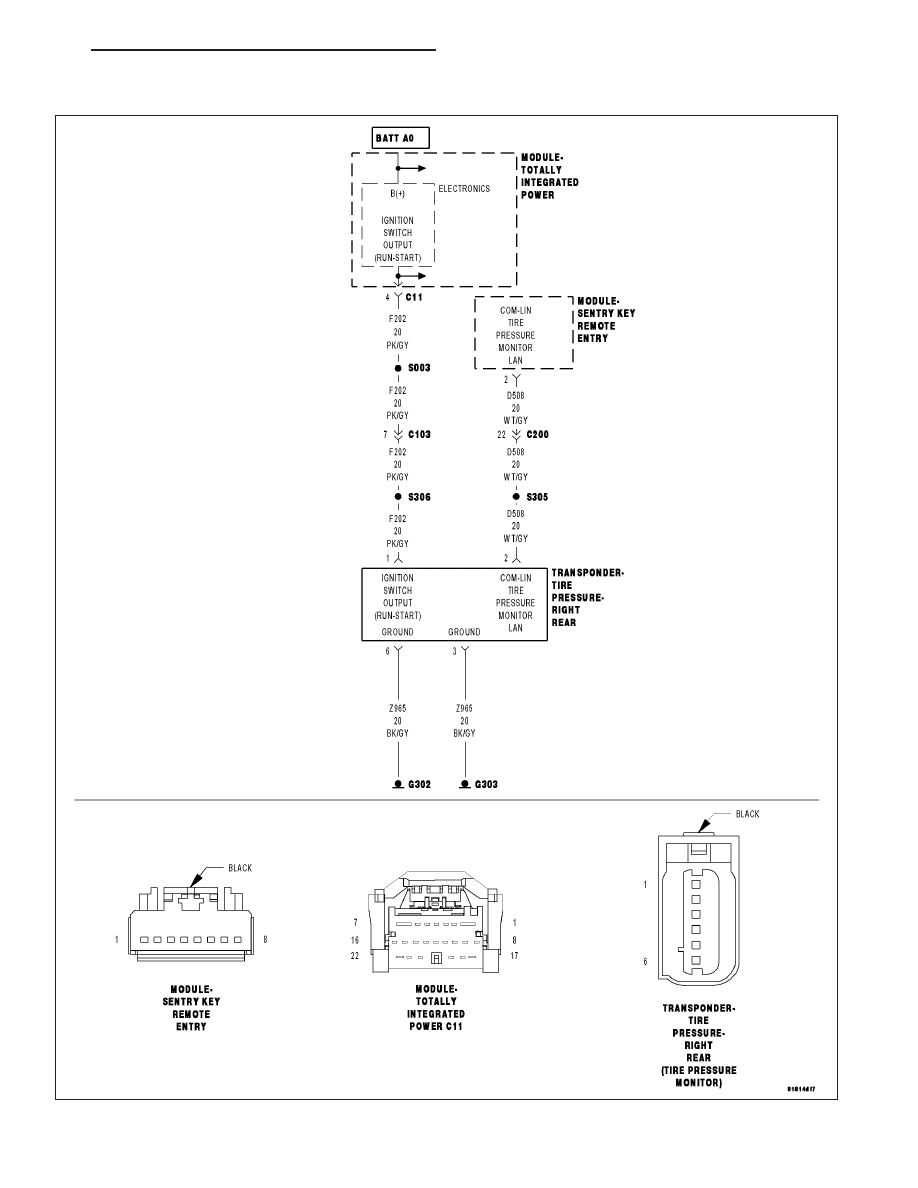

C1509–RIGHT REAR TIRE PRESSURE TRIGGER MODULE PERFORMANCE

For a complete wiring diagram Refer to Section 8W

PM

TIRES/WHEELS - ELECTRICAL DIAGNOSIS

22 - 19

Theory of Operation

The Tire Pressure Trigger Module is used to automatically learn the location of each wheel sensor on the vehicle.
The module is controlled and activated in sequence by the Wireless Control Module (SKREEM) over a LIN bus.
When activated, the module will generate a 125 KHz signal of sufficient field strength to trigger the tire pressure
sensor and force a RF transmission from the sensor.

When Monitored:
Continuously.

Set Condition:
The WCM (SKREEM) will monitor the messages from each Tire Pressure Trigger Module over the LIN bus. If
any of the messages are not received, or are received other than as expected, a DTC will set. When the
condition is corrected, or is no longer detected, as acknowledged via a LIN bus message, the WCM will reset
the appropriate trigger module fault status.

Possible Causes

INTERMITTENT TIRE PRESSURE TRIGGER MODULE PERFORMANCE DTC

TIRE PRESSURE TRIGGER MODULE

WIRELESS CONTROL MODULE (SKREEM)

Diagnostic Test

1.

DTC STATUS IS ACTIVE

Turn the ignition on.

With the scan tool, select View DTCs in the Wireless Control Module (SKREEM).

Is the DTC status Active at this time?

Yes

>> Go to 2

No

>> Go to 4

2.

TIRE PRESSURE TRIGGER MODULE

Turn the ignition off.

Replace the appropriate Tire Pressure Trigger Module in accordance with the Service Information.

With the scan tool, clear DTCs in the Wireless Control Module (SKREEM).

Test Drive the vehicle for a minimum of 10 minutes with vehicle speed greater than 15 MPH (24 km/h).

With the scan tool, select View DTCs in the Wireless Control Module (SKREEM).

Does the DTC reset or is the status Active for this DTC?

Yes

>> Go to 3

No

>> Test Complete.

Perform TPM VERIFICATION TEST. (Refer to 22 - TIRES/WHEELS/TIRE PRESSURE MONITORING -
STANDARD PROCEDURE)

3.

WIRELESS CONTROL MODULE (SKREEM)

View repair.

Repair

Replace the Wireless Control Module (SKREEM) in accordance with the Service Information.

Perform TPM VERIFICATION TEST. (Refer to 22 - TIRES/WHEELS/TIRE PRESSURE MONITORING -
STANDARD PROCEDURE)

22 - 20

TIRES/WHEELS - ELECTRICAL DIAGNOSIS

PM

4.

INTERMITTENT TIRE PRESSURE TRIGGER MODULE DTC

The conditions necessary to set this DTC are not present at this time.

Using the wiring schematic as a guide, inspect the wiring and connectors relative to this circuit.

Refer to any Technical Service Bulletins that may apply to this condition.

With the scan tool, clear DTCs in the Wireless Control Module (SKREEM).

Test Drive the vehicle for a minimum of 10 minutes with vehicle speed greater than 15 MPH (24 km/h).

With the scan tool, select View DTCs in the Wireless Control Module (SKREEM).

Does the DTC reset or is the status Active for this DTC?

Yes

>> Return to the first step of this test and perform the diagnostic procedure.

No

>> Test complete.

PM

TIRES/WHEELS - ELECTRICAL DIAGNOSIS

22 - 21

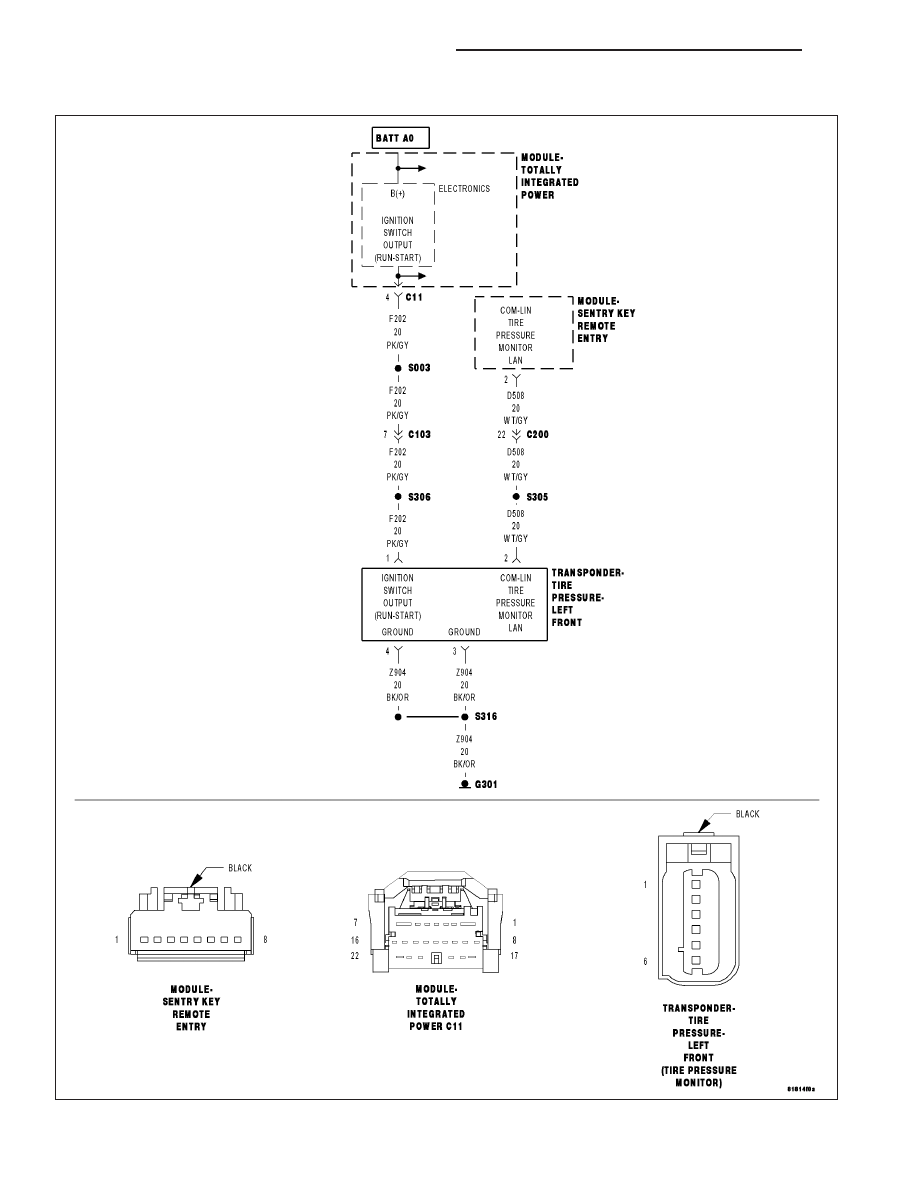

C150A–LEFT FRONT TIRE PRESSURE TRIGGER MODULE VOLTAGE HIGH

For a complete wiring diagram Refer to Section 8W

22 - 22

TIRES/WHEELS - ELECTRICAL DIAGNOSIS

PM
