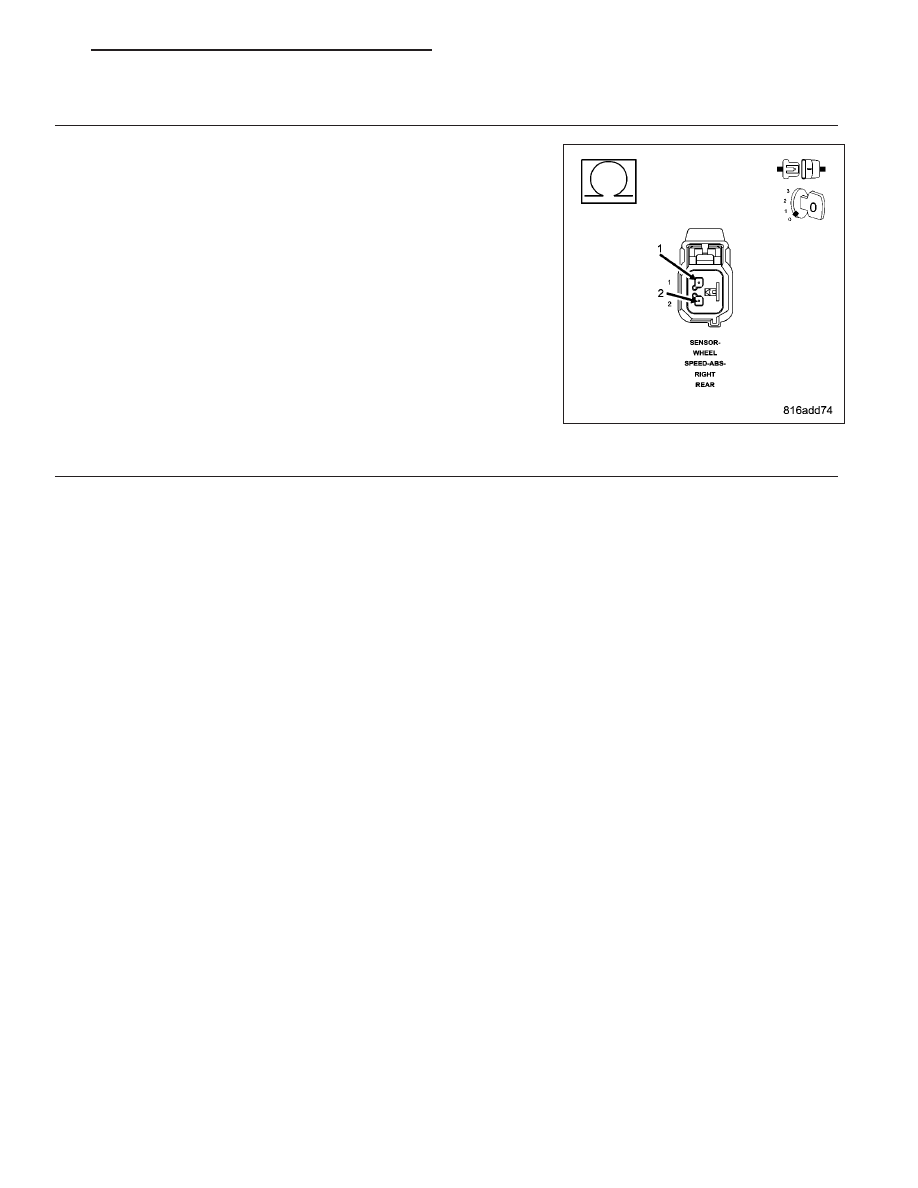

9. CHECK (B1) RIGHT REAR WSS SIGNAL CIRCUIT FOR A SHORT TO (B2) RIGHT REAR WSS 12 VOLT Turn the ignition off. Measure the resistance between the (B1) Right Rear WSS Signal circuit Is the resistance above 5.0 ohms? Yes >> Go To 10 No >> Repair the (B1) Right Rear WSS Signal circuit and the (B2) Right Rear WSS Supply circuit for a short together. Perform ABS VERIFICATION TEST. (Refer to 5 - BRAKES - 10. RIGHT REAR WHEEL SPEED SENSOR Replace the Right Rear Wheel Speed Sensor in accordance with the Service Information. Perform ABS VERIFICATION TEST. (Refer to 5 - BRAKES - STANDARD PROCEDURE). WARNING: To avoid personal injury or death, check brake capability is available before road testing. NOTE: Vehicle must be driven above 40 km/h (25 m.p.h.) for set conditions to be meet. NOTE: The Anti-Lock Brake Module must sense ALL 4 wheels at 12 km/h (7.5 mph) before it will extinguish Did DTC C102B–RIGHT REAR WHEEL SPEED SENSOR CIRCUIT reset? Yes >> Replace the Anti-Lock Brakes Module in accordance with the Service Information. Perform ABS VERIFICATION TEST. (Refer to 5 - BRAKES - STANDARD PROCEDURE). No >> Test Complete. PM BRAKES - ABS ELECTRICAL DIAGNOSTICS 5 - 177 |
