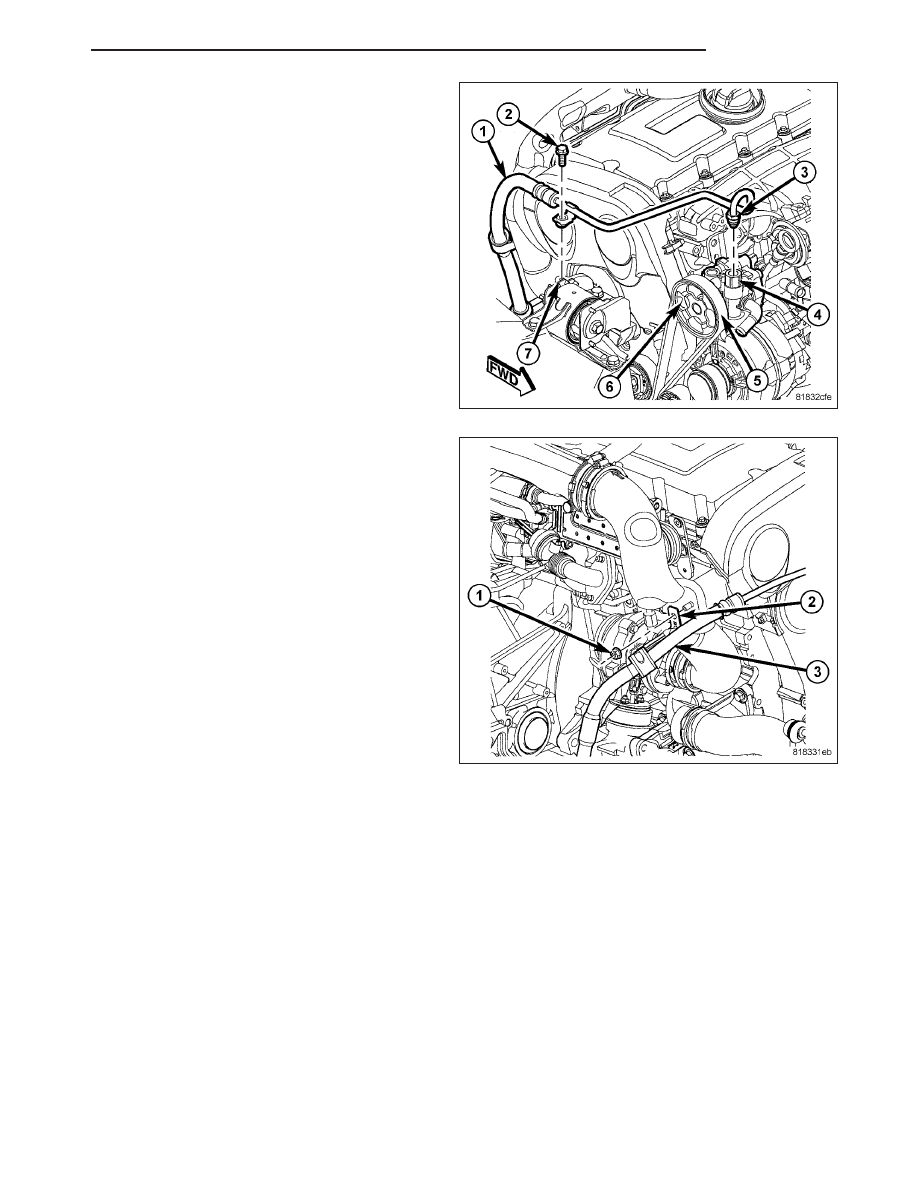

3. Remove the pressure line (3) at the pump (4).

4. Remove the pressure line routing bracket bolt (2)

at the upper mount (7).

5. Remove the pressure line routing bracket bolt (1)

at the back of the engine (2).

6. Raise and support the vehicle. (Refer to LUBRICATION & MAINTENANCE/HOISTING - STANDARD PROCE-

DURE)

PM

PUMP

19 - 75

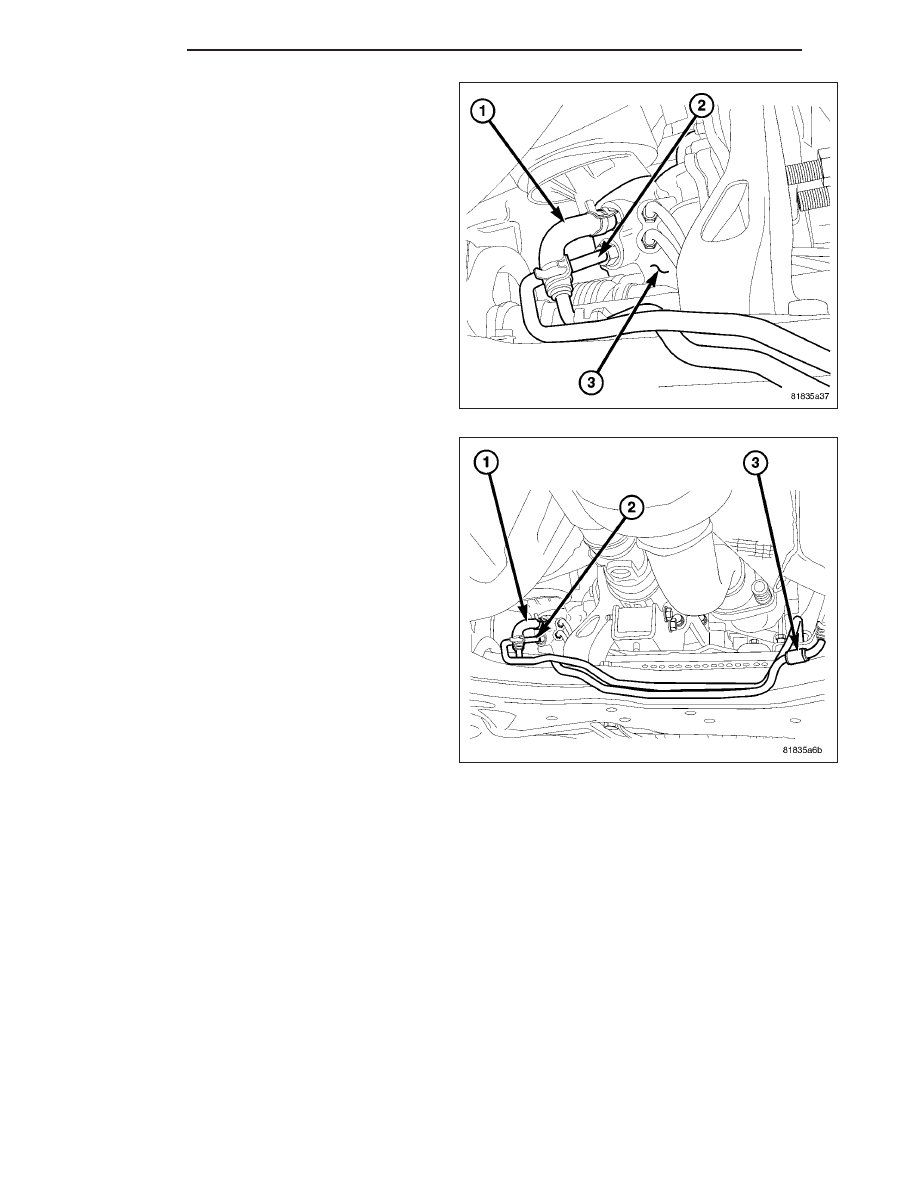

7. Raise and support the vehicle. (Refer to LUBRICA-

TION & MAINTENANCE/HOISTING - STANDARD
PROCEDURE)

8. Remove the pressure line (2) at the steering gear

(3).

9. Remove the power steering pressure line (2) from

the vehicle.

INSTALLATION

GAS ENGINE

CAUTION: Power steering fluid hoses must remain away from the exhaust system, driveshafts, vehicle com-
ponents and any unfriendly surface that can possibly damage the hoses.

1. Using a lint free towel, wipe clean the open power steering hose end and the power steering pump port. Replace

any used O-rings with new. Lubricate the O-ring with power steering fluid.

19 - 76

PUMP

PM

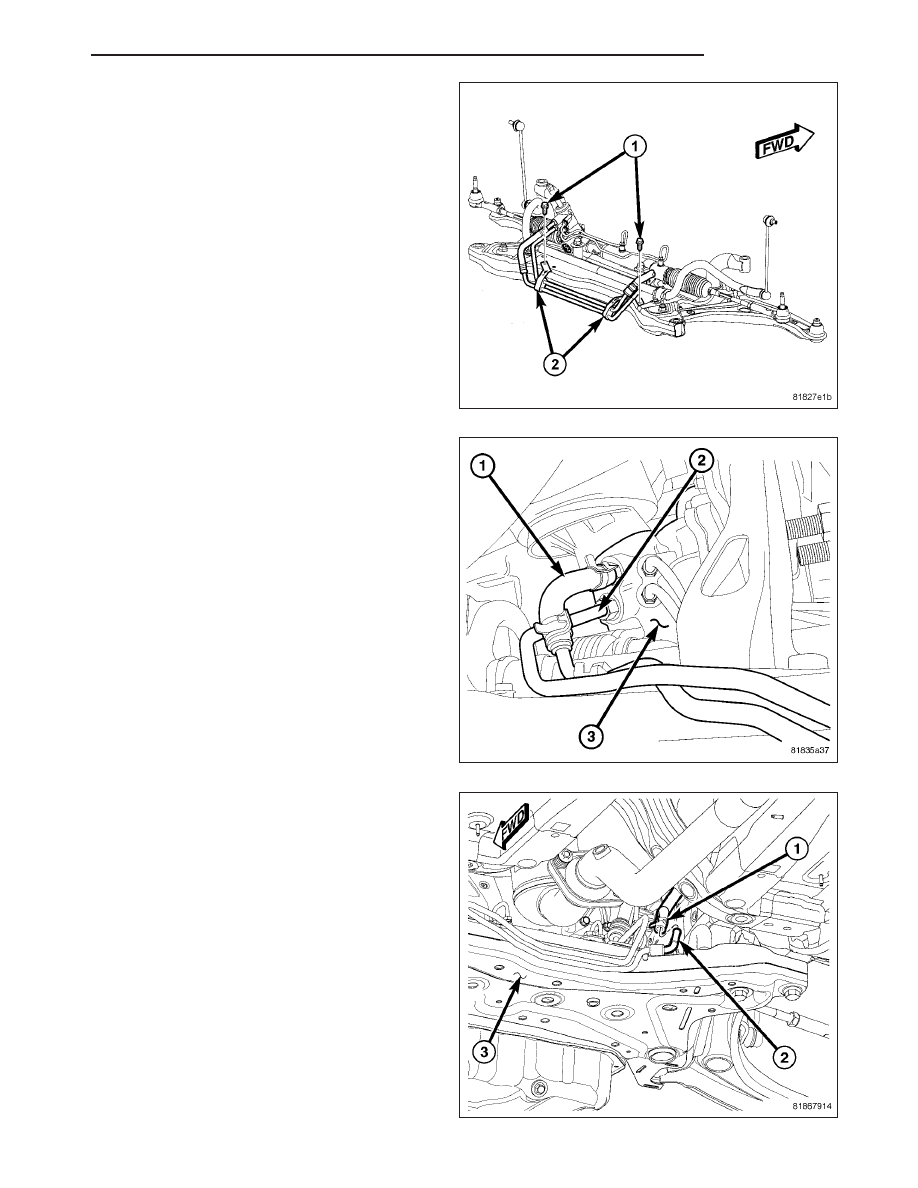

2. Install the power steering pressure hose into the

engine compartment from below.

3. Install the screws (1) securing the power steering

hose routing clamps (2) to the crossmember.
Tighten the screws to 8 N·m (71 in. lbs.).

4. Install the Pressure hose at the gear. Tighten the

tube nut to 32 N·m (24 ft. lbs.).

5. Install the return hose at the gear.

6. Install the return hose (1) at the return tube (2).

7. Lower the vehicle.

PM

PUMP

19 - 77

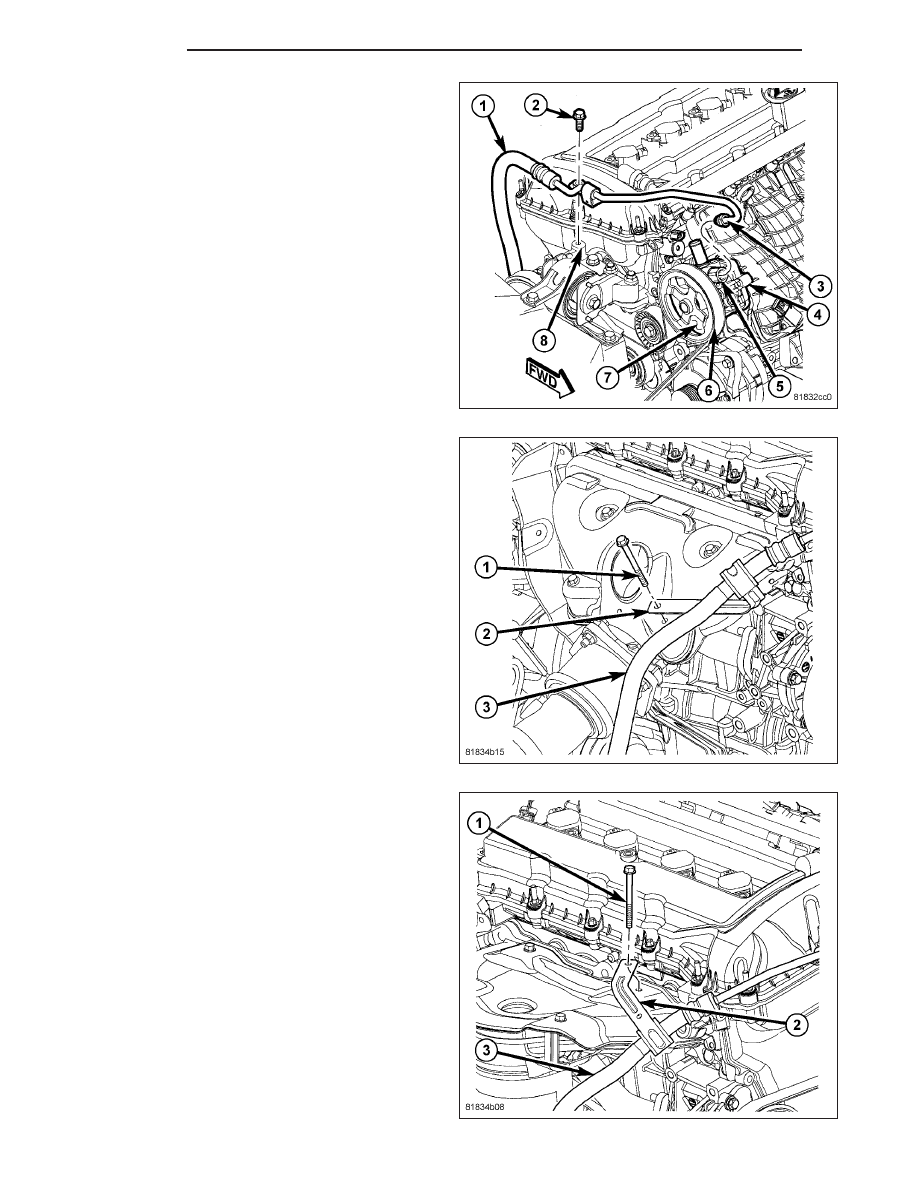

8. Install the pressure hose (3) at the pump pressure

port (5). Tighten the tube nut to 32 N·m (24 ft. lbs.).

9. Install the pressure hose routing bracket bolt (2) to

the upper mount (8).

10. 2.0L Engine - Position the pressure hose routing

clamp (2) at the exhaust manifold and install the
mounting bolt (1). Tighten the bolt to 9 N·m (80 in.
lbs.).

11. 2.4L Engine - Position the pressure hose routing

clamp (2) at the exhaust manifold and install the
mounting bolt (1). Tighten the bolt to 9 N·m (80 in.
lbs.).

19 - 78

PUMP

PM
