NOTE: If the front camshaft bearing cap is broken, the cylinder head MUST be replaced.

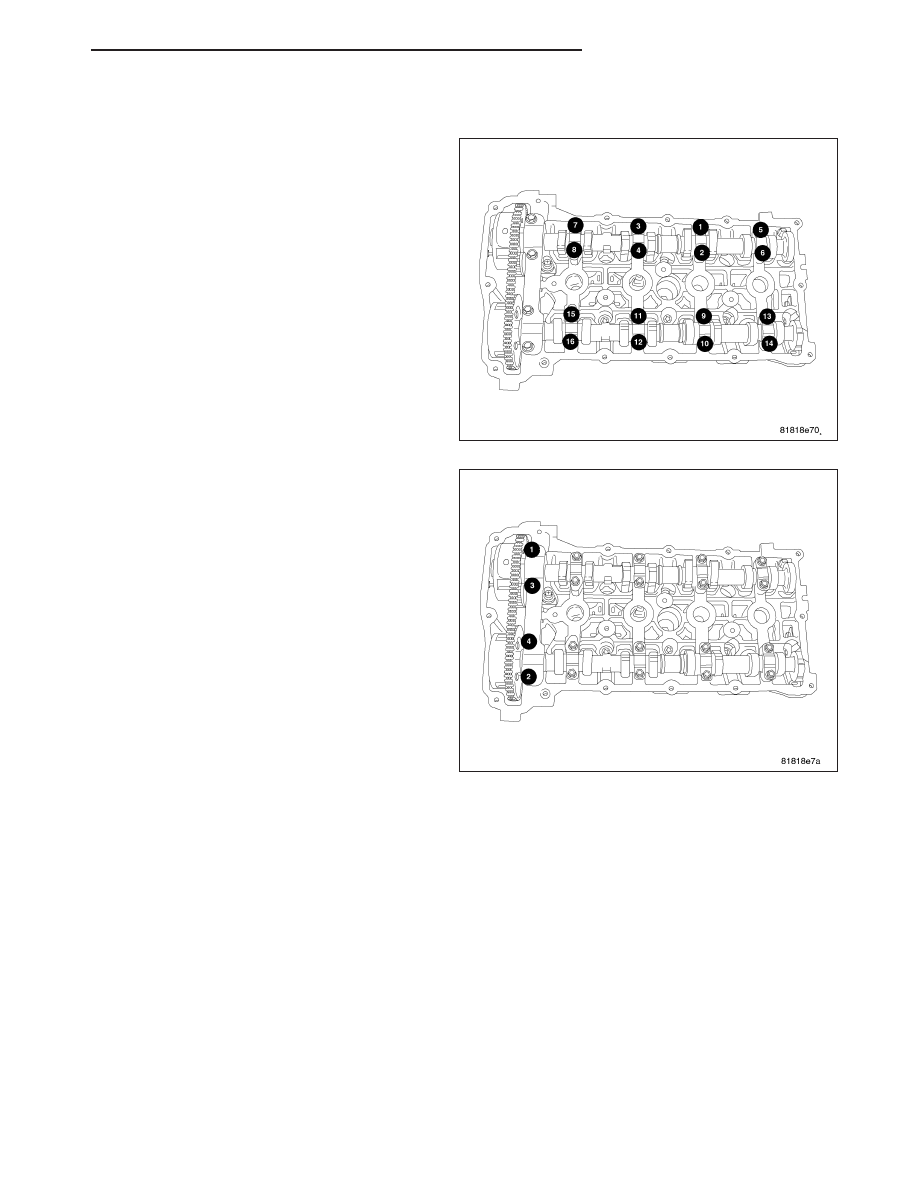

12. Install intake and exhaust camshaft bearing caps

slowly torque bolts in the sequence shown.

13. Install the front intake and exhaust bearing cap

and torque bolts in the sequence shown.

14. Verify that all timing marks are aligned.

15. Remove allen wrench from timing chain tensioner.

16. Remove locking wedge 9701.

17. Apply MOPAR

T

thread sealant to timing tensioner

plug and Install.

18. Install right splash shield.

19. Install cylinder head cover (Refer to 9 - ENGINE/

CYLINDER HEAD/CYLINDER HEAD COVER(S) -
INSTALLATION).

20. Install engine cover.

21. Connect negative battery cable.

22. Fill cooling system.

23. Fill with oil.

24. Start engine and check for leaks.

PM

ENGINE 2.4L WORLD

9 - 1699

COVER-CYLINDER HEAD

REMOVAL

1. Remove engine cover.

2. Disconnect ignition coil electrical connectors.

3. Disconnect PCV and make-up air hoses from cylin-

der head cover.

4. Use compressed air to blow dirt and debris off the

cylinder head cover prior to removal.

5. Remove cylinder head cover bolts.

6. Remove cylinder head cover from cylinder head.

INSTALLATION

1.

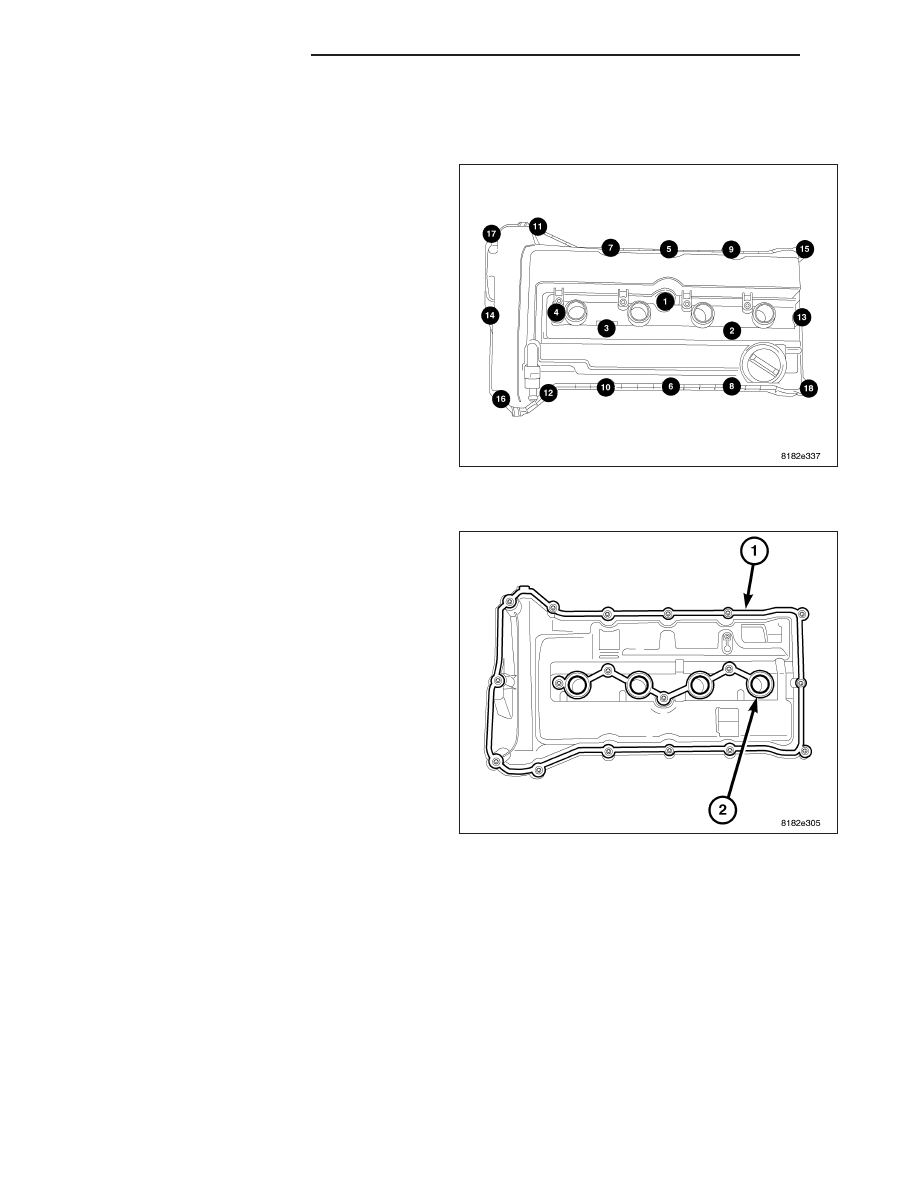

Install new cylinder head cover gaskets (1,2).

9 - 1700

ENGINE 2.4L WORLD

PM

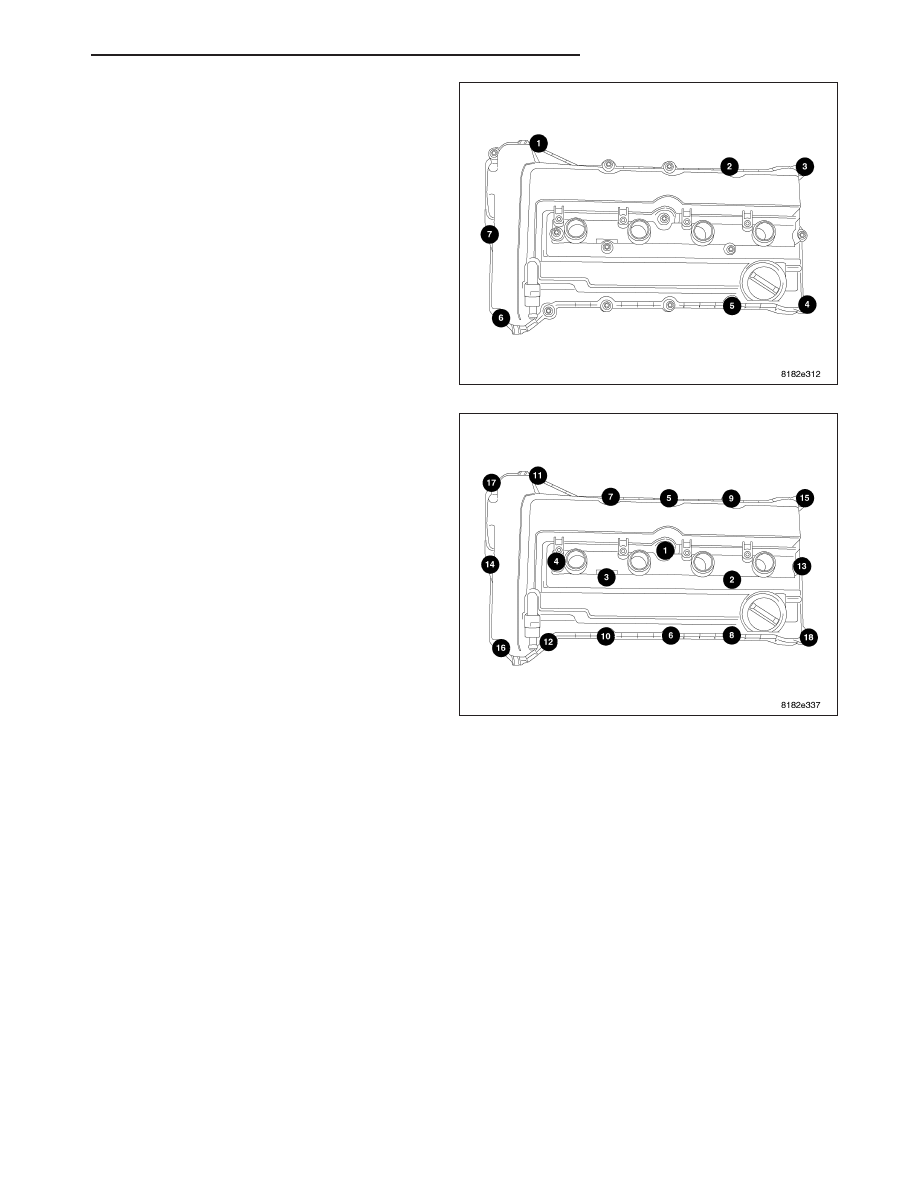

2. Install studs in cover as shown.

3. Clean all RTV from cylinder head.

4. Apply RTV to cylinder head/front cover joint.

5.

Install cylinder head cover assembly to cylinder

head and install all bolts, ensuring the studs are
located as shown.

6. Tighten bolts in sequence shown in Using a 2 step

torque method as follows:

a. Tighten all bolts to 4.5 N·m (40 in. lbs.)

b. Tighten all bolts to 10 N·m (90 in. lbs.).

7. Install ignition coils. Tighten fasteners to 8 N·m (70

in. lbs.).

8. If the PCV valve was removed, tighten PCV valve

to 4.5 N·m (40 in. lbs.).

9. Connect PCV and make-up air hoses to cylinder

head cover.

10. Install engine cover.

PM

ENGINE 2.4L WORLD

9 - 1701

TAPPETS-VALVE

DIAGNOSIS AND TESTING

MECHANICAL VALVE TAPPET NOISE DIAGNOSIS

A tappet-like noise may be produced from several items. Check the following items.

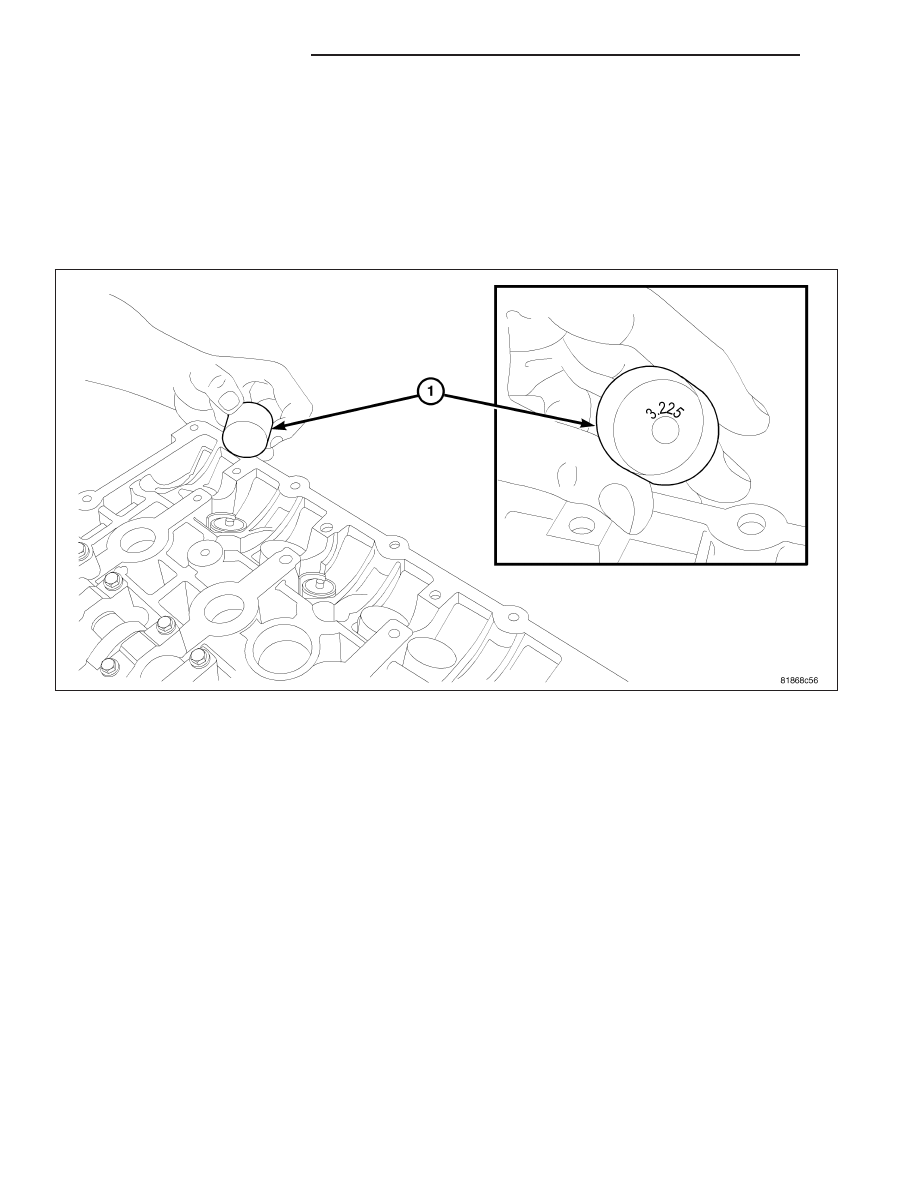

STANDARD PROCEDURE - MEASURING VALVE LASH

1. Remove engine cover.

2. Remove cylinder head cover (Refer to 9 - ENGINE/CYLINDER HEAD/CYLINDER HEAD COVER(S) -

REMOVAL).

3. Rotate camshaft so lobes are vertical.

4. Check clearance using feeler gauges.

5. Repeat for all tappets.

6. If clearance was too small Clearance too Small .

7. If clearance was too large Clearance too Large .

9 - 1702

ENGINE 2.4L WORLD

PM
