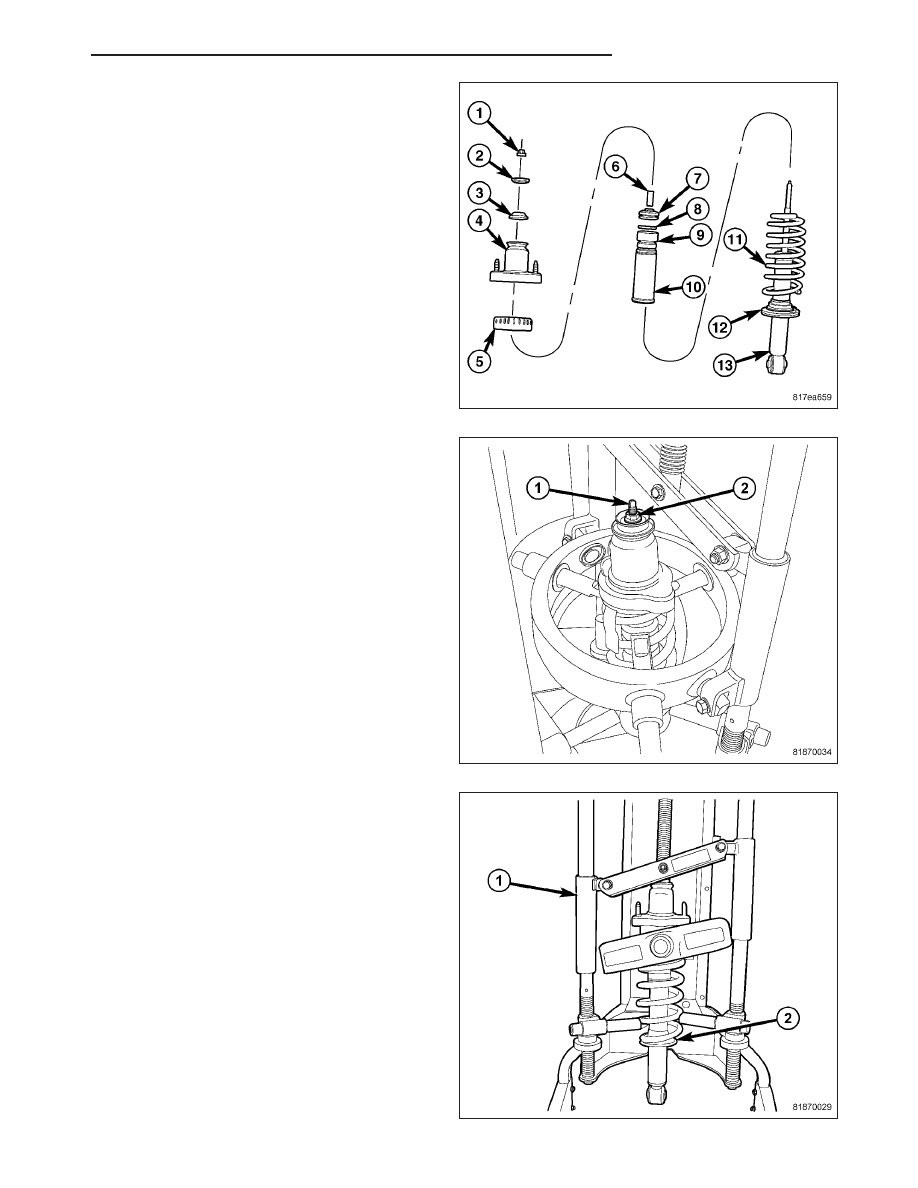

6. Install the lower spring isolator (12) on the spring

seat of the shock absorber (13).

7. Slide the dust shield (10), jounce bumper (9) and

washer (8) onto the shock rod.

8. Install the shock absorber (13) up through the bot-

tom of the coil spring and upper mounting bracket
until the lower spring seat contacts the lower end
of the coil spring.

9. While holding the shock absorber in position, install

the washer (2) and nut (1) on the end of the shock
rod.

CAUTION: Never use impact or high speed tools
to remove the shock rod nut. Damage to the shock
internal bearings can occur.

10. Install Snap-On

T

Shock Absorber Socket A139, or

equivalent, on the end of the shock rod (1). While
holding the shock rod from turning, tighten the nut
(2) using a crows foot wrench and a torque
wrench. Tighten the shock rod nut to 24 N·m (18
ft. lbs.).

11. Turn

the

upper

mounting

bracket

or

shock

absorber as necessary until the mounting studs on
the mounting bracket line up with the lower
mounting bolt eyelet at the bottom of the shock
absorber.

12. Slowly release the tension from the coil spring by

backing off the compressor (1) drive completely.

13. Remove the shock assembly from the spring com-

pressor.

14. Install the shock assembly on the vehicle. (Refer

to 2 - SUSPENSION/REAR/SHOCK - INSTALLA-
TION)

PM

REAR SUSPENSION

2 - 73

INSTALLATION

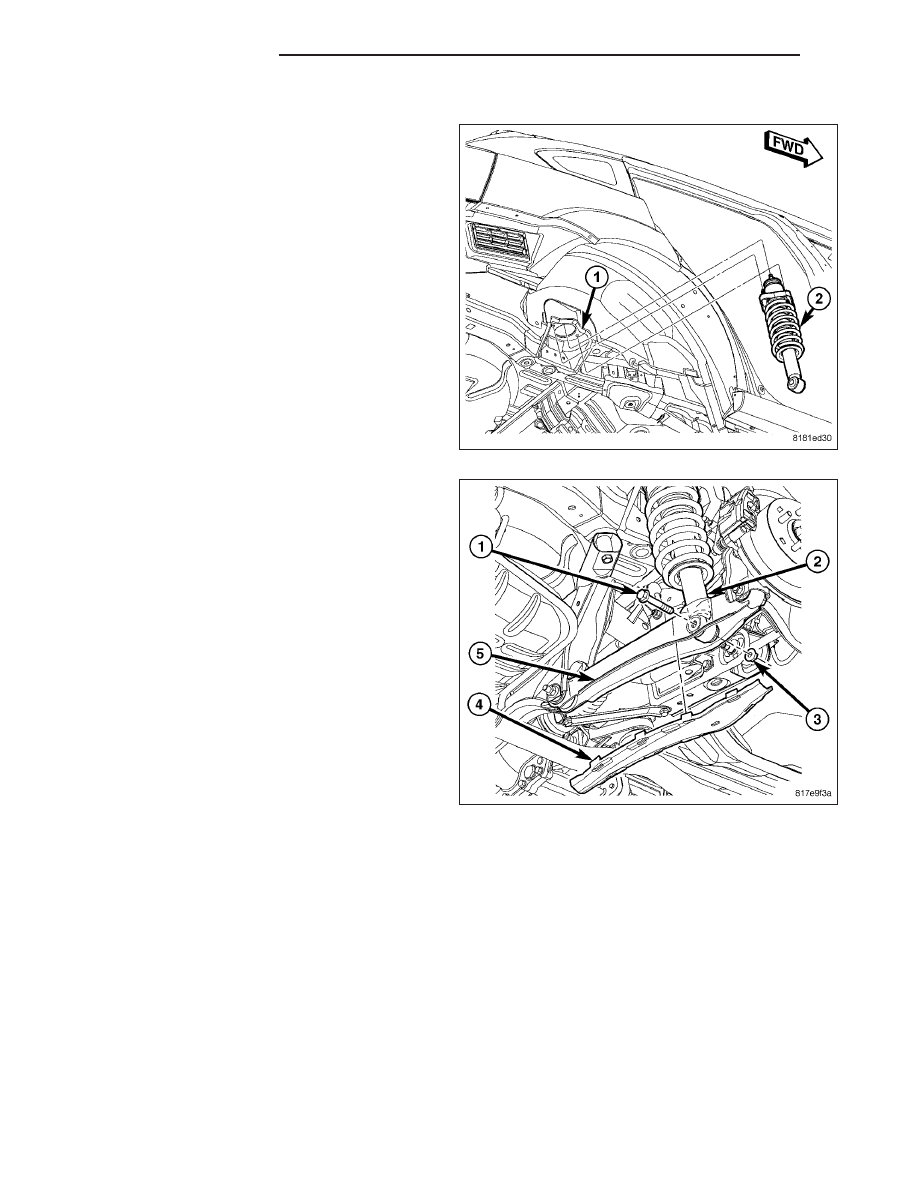

1. Insert the lower end of the shock assembly (2)

down though the lower control arm from above just
enough to clear the body, then lift it up into the
body bracket (1).

2. Install the mounting bolt (1) and nut (3) fastening

the shock assembly (2) to the lower control arm
(5). Do not tighten at this time.

3. Install the cover (4) on the bottom of the lower con-

trol arm (5).

2 - 74

REAR SUSPENSION

PM

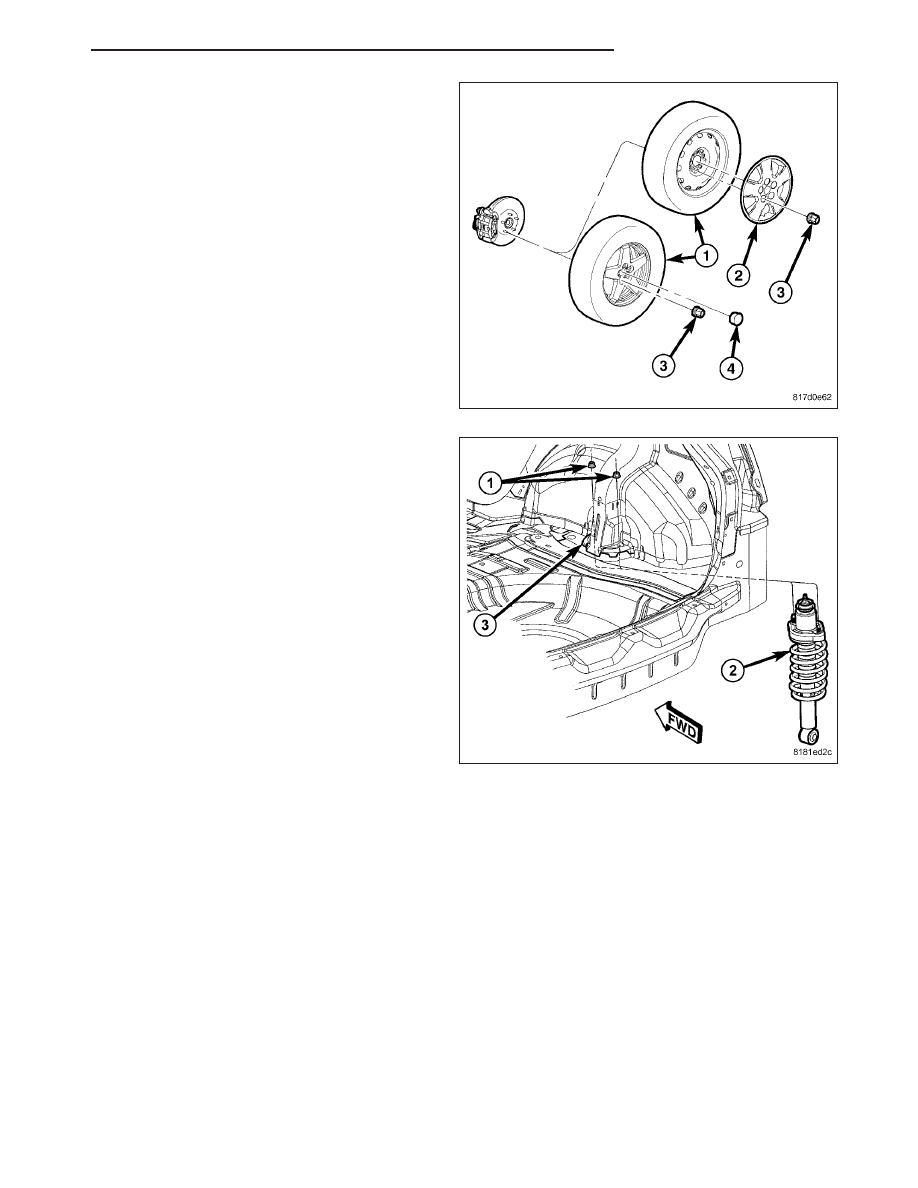

4. Install the tire and wheel assembly (1) (Refer to 22

- TIRES/WHEELS - INSTALLATION). Install and
tighten wheel mounting nuts (3) to 135 N·m (100 ft.
lbs.).

5. Lower the vehicle.

6. install the two nuts (1) securing the shock assem-

bly (2) to the body bracket (3). Tighten the mount-
ing nuts to 48 N·m (35 ft. lbs.).

7. Install the interior rear quarter trim panel. (Refer to 23 - BODY/INTERIOR/QUARTER PANEL TRIM - INSTAL-

LATION)

PM

REAR SUSPENSION

2 - 75

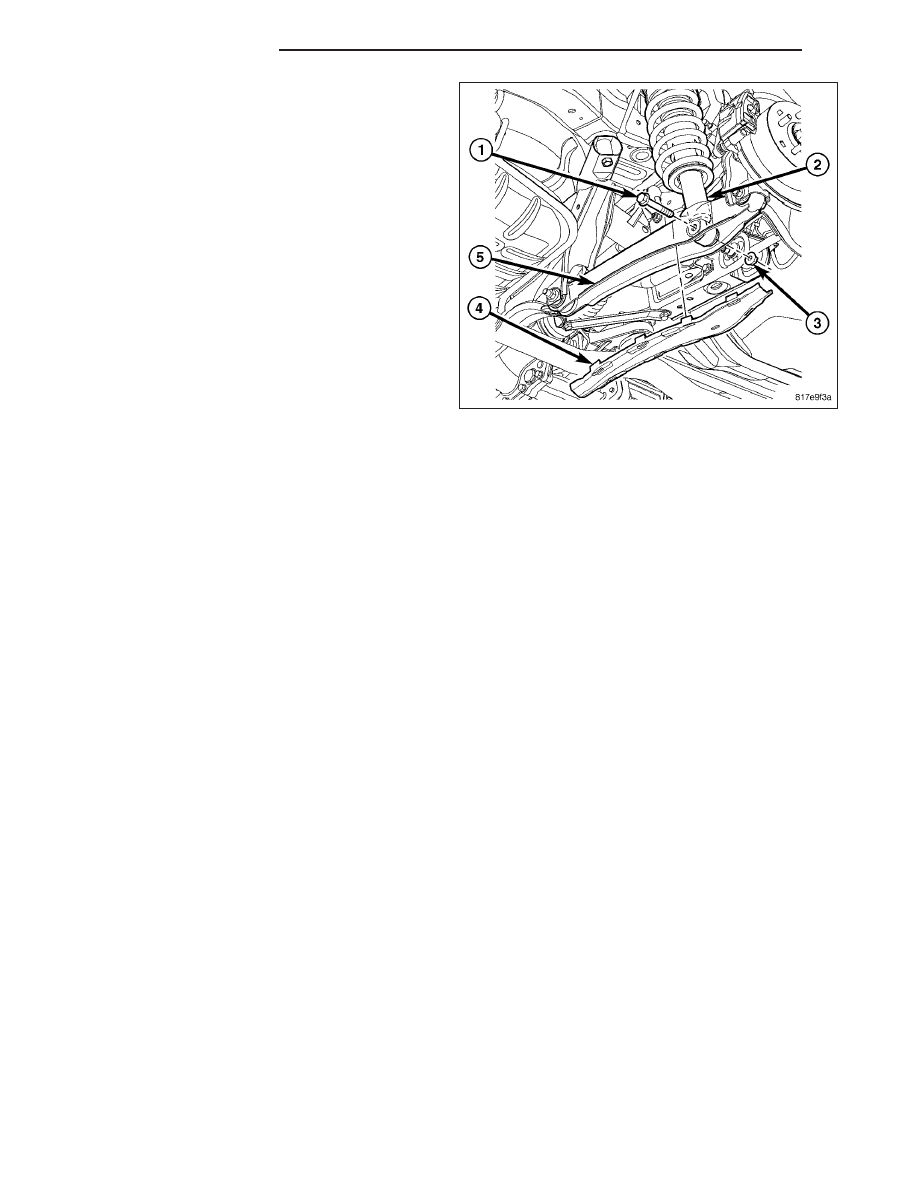

8. Position the vehicle on an alignment rack/drive-on

lift. Raise the lift as necessary to access the shock
mounting bolt (1) and nut (3).

9. Tighten the shock assembly lower mounting bolt

nut (3) to 99 N·m (73 ft. lbs.).

2 - 76

REAR SUSPENSION

PM
