2007 Dodge Nitro R/T

2007 SYSTEM WIRING DIAGRAMS Dodge - Nitro

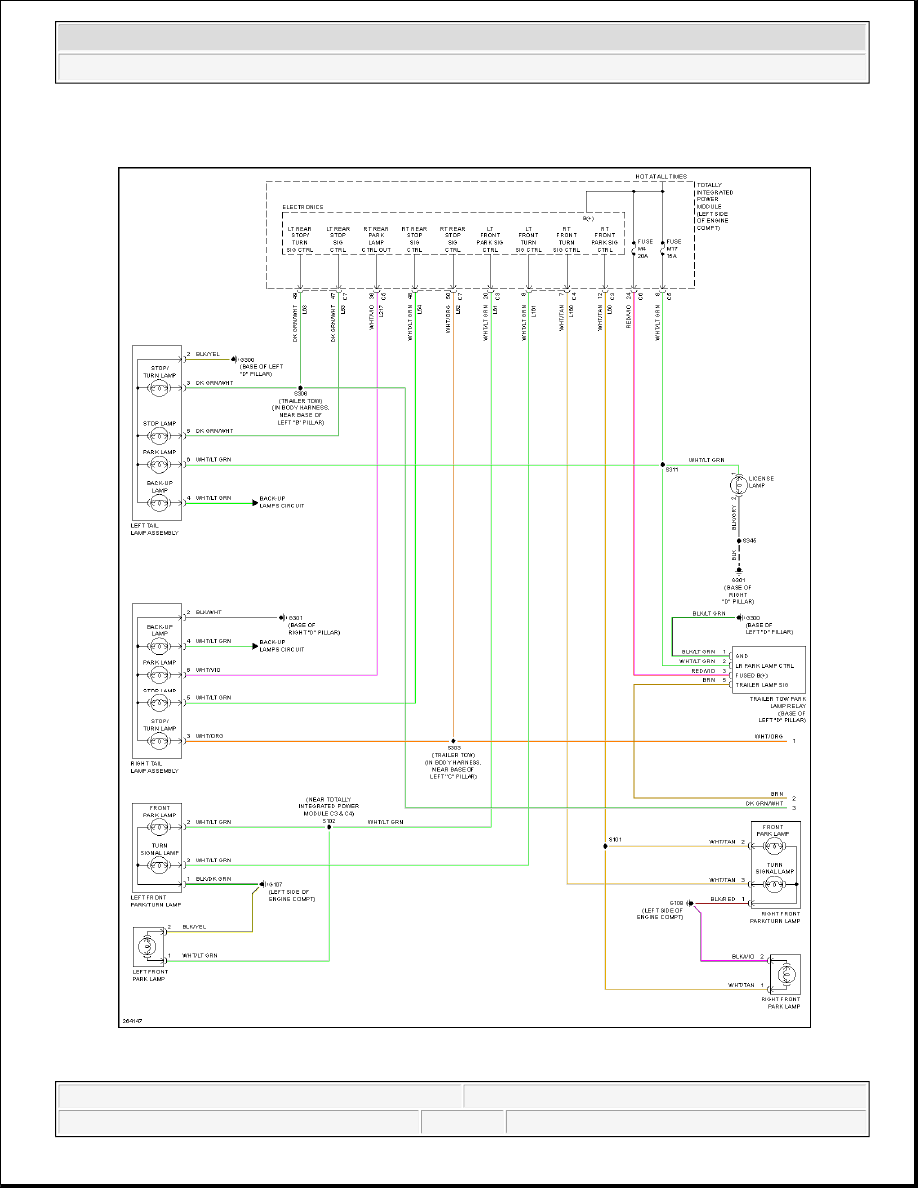

Fig. 23: Exterior Lamps Circuit (1 of 2)

2007 Dodge Nitro R/T

2007 SYSTEM WIRING DIAGRAMS Dodge - Nitro

2007 Dodge Nitro R/T

2007 SYSTEM WIRING DIAGRAMS Dodge - Nitro

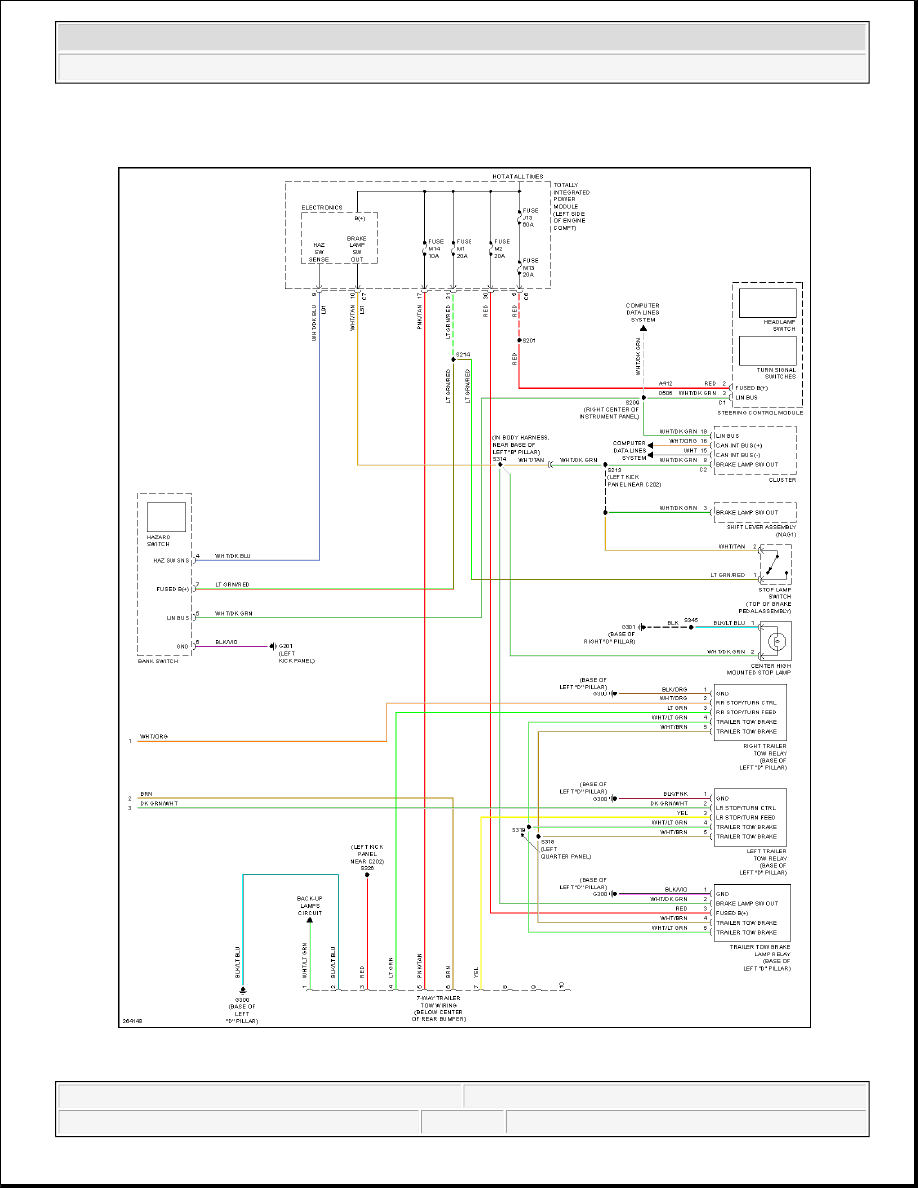

Fig. 24: Exterior Lamps Circuit (2 of 2)

GROUND DISTRIBUTION

2007 Dodge Nitro R/T

2007 SYSTEM WIRING DIAGRAMS Dodge - Nitro
