2007 Dodge Nitro R/T

2007 SYSTEM WIRING DIAGRAMS Dodge - Nitro

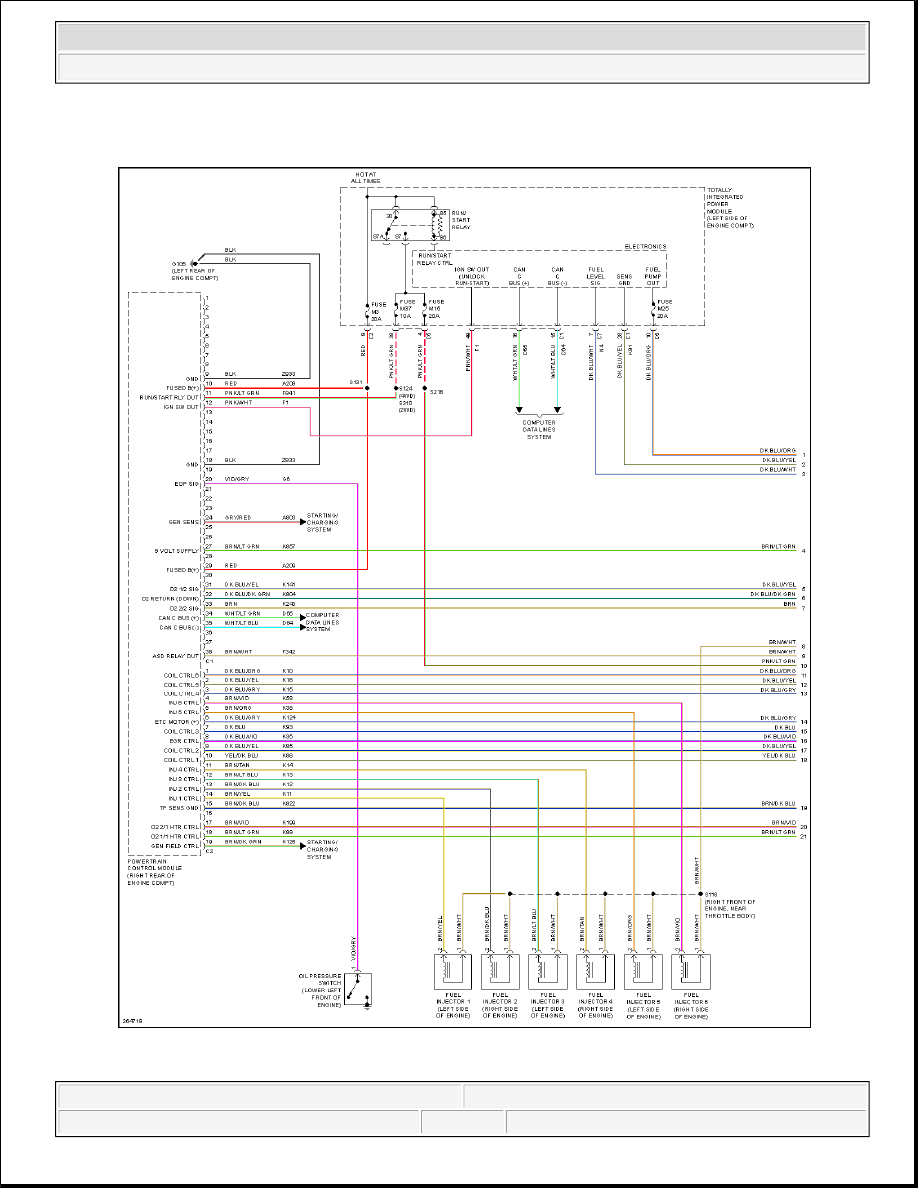

Fig. 13: 3.7L, Engine Performance Circuit (1 of 5)



2007 Dodge Nitro R/T

2007 SYSTEM WIRING DIAGRAMS Dodge - Nitro





2007 Dodge Nitro R/T

2007 SYSTEM WIRING DIAGRAMS Dodge - Nitro

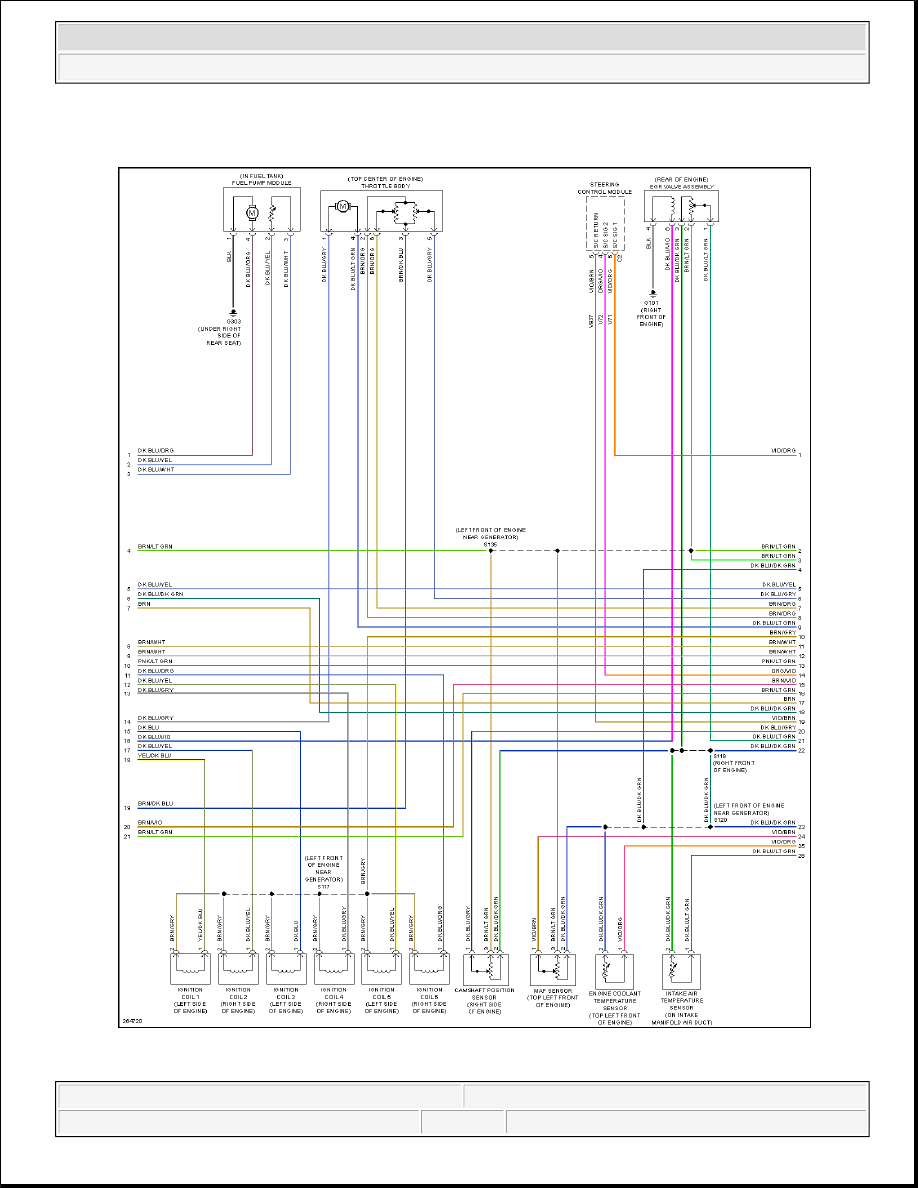

Fig. 14: 3.7L, Engine Performance Circuit (2 of 5)



2007 Dodge Nitro R/T

2007 SYSTEM WIRING DIAGRAMS Dodge - Nitro
