When the control knob on the control stalk of the right (wiper) multi-function switch is moved to one of the five
DELAY interval positions the SCM sends an electronic wiper switch delay interval status message to the
EMIC, the EMIC relays an electronic wiper switch delay interval request message to the TIPM, then the
TIPM electronic intermittent wipe logic circuit responds by calculating the correct length of time between wiper
sweeps based upon the selected delay interval input.

The TIPM monitors the changing state of the wiper motor park switch through a hard wired park switch sense
input. This input allows the TIPM to determine the proper intervals at which to energize and de-energize the
wiper motor intermittently for one low speed cycle at a time.

The TIPM logic is also programmed to provide vehicle speed sensitivity to the selected intermittent wipe delay
intervals. In order to provide this feature the TIPM monitors electronic vehicle speed messages from the
Controller Antilock Brake (CAB) or the Powertrain Control Module (PCM) and doubles the selected delay
interval whenever the vehicle speed is about 16 kilometers-per-hour (10 miles-per-hour) or less.

MIST WIPE MODE

When the control stalk of the right (wiper) multi-function switch is moved downward to the momentary MIST
position, the SCM sends an electronic wiper mist mode status message to the EMIC, the EMIC relays an
electronic wiper mist mode request message to the TIPM, then the TIPM energizes the low speed brush of the
wiper motor for as long as the switch is held closed, then de-energizes the motor when the state of the switch
changes to open, parking the wiper blades near the base of the windshield. The TIPM can operate the front
wiper motor in this mode for only one low speed cycle at a time, or for an indefinite number of sequential low
speed cycles, depending upon how long the switch is held closed.

WASH MODE

When the control stalk of the right (wiper) multi-function switch is pulled rearward to the front momentary
WASH position for more than about one-half second with the wiper system operating, the SCM sends an
electronic washer switch status message to the EMIC, the EMIC relays an electronic washer switch request
message to the TIPM, then the TIPM directs battery current and ground to the washer pump/motor. This will
cause the washer pump/motor to be energized in the front wash direction for as long as the switch is held closed
(up to approximately 10 seconds) and to be de-energized when the control stalk is released.

When the control stalk is pulled rearward to the front momentary WASH position while the front wiper system
is operating in one of the DELAY interval positions, the washer pump/motor operation is the same. However,
the TIPM also overrides the selected delay interval and operates the front wiper motor in a continuous low
speed mode for as long as the control stalk is held in the front momentary WASH position, then reverts to the
selected delay interval several wipe cycles after the control stalk is released. If the WASH switch is held closed
for more than approximately 10 seconds, the TIPM will suspend washer pump/motor operation until the control
stalk is released for about 2 seconds and then cycled back to the WASH position.

WIPE-AFTER-WASH MODE

When the control stalk of the right (wiper) multi-function switch is pulled rearward to the front momentary
WASH position for more than about one-half second while the wiper system is not operating, the SCM sends an
electronic washer switch status message to the EMIC, the EMIC relays an electronic washer switch request
message to the TIPM, and the TIPM directs battery current and ground to the washer pump/motor and energizes



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Wipers/Washers - Service Information - Nitro



the wiper motor in a continuous low speed mode for as long as the switch is held closed (up to approximately
10 seconds). When the control stalk is released, the TIPM de-energizes the washer pump/motor immediately,
but allows the wiper motor to operate for two or three additional wipe cycles before it de-energizes the wiper
motor and parks the wiper blades near the base of the windshield.

If the control stalk is held rearward for more than about 10 seconds, the TIPM will suspend washer pump/motor
operation until the stalk is released for about 2 seconds and then cycled back to the WASH position; however,
the wipers will continue to operate for as long as the switch is held closed. The TIPM monitors the changing
state of the wiper motor park switch through a hard wired wiper park switch sense circuit input. This input
allows the TIPM to count the number of wipe cycles that occur after the control stalk is released, and to
determine the proper interval at which to de-energize the wiper motor to complete the WIPE-AFTER-WASH
mode cycle.

REAR WIPER AND WASHER SYSTEM

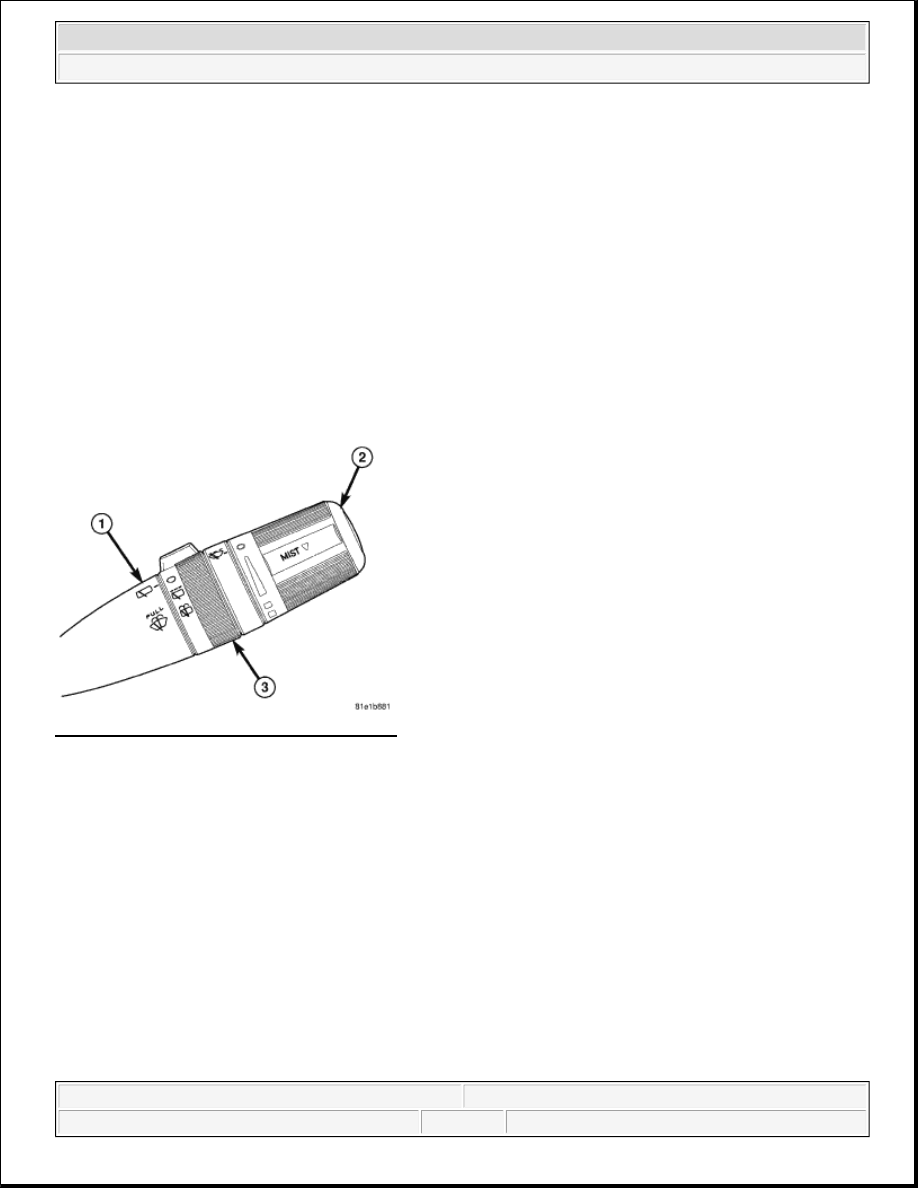

Fig. 4: Right (Wiper) Multi-Function Switch
Courtesy of CHRYSLER LLC

The rear wiper and washer system is designed to provide the vehicle operator with a convenient, safe, and
reliable means of maintaining visibility through the liftgate glass. The various components of this system are
designed to convert electrical energy produced by the vehicle electrical system into the mechanical action of the
wiper blade to wipe the outside surface of the glass, as well as into the hydraulic action of the washer system to
apply washer fluid stored in an on-board reservoir to the area of the glass to be wiped. When combined, these
components provide the means to effectively maintain clear visibility for the vehicle operator by removing
excess accumulations of rain, snow, bugs, mud, or other minor debris from the outer surface of the liftgate glass
that might be encountered while driving the vehicle under numerous types of inclement operating conditions.

The vehicle operator initiates all front and rear wiper and washer system functions with the control stalk (1) of
the right (wiper) multi-function switch that extends from the right side of the steering column, just below the
steering wheel. Rotating the control sleeve (3) on the control stalk to the OFF or INTERMITTENT detent
positions or the momentary WASH position selects the rear wiper and washer system operating modes.

The right multi-function switch provides hard wired analog and resistor multiplexed inputs to the Steering



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Wipers/Washers - Service Information - Nitro



Control Module (SCM) integral to the left (lighting) multi-function switch for all of the wiper and washer
system functions. The SCM then sends electronic rear wiper/washer switch status messages to the Electro
Mechanical Instrument Cluster (EMIC) (also known as the Cab Compartment Node/CCN) over a Local
Interface Network (LIN) data bus. The EMIC then sends electronic rear wiper/washer switch request
messages to the Totally Integrated Power Module (TIPM) over the Controller Area Network (CAN) data bus
requesting the appropriate rear wiper and washer system operating modes.

Rear wiper and washer system operation is completely controlled by the SCM, EMIC and TIPM logic circuits,
and that logic will only allow these systems to operate when the ignition switch is in the ACCESSORY or ON
positions. The TIPM uses intelligent, high current, self-protected high side switches to control wiper system
operation by energizing or de-energizing the rear wiper motor. The TIPM uses an H-bridge circuit to control the
operation of the reversible washer pump/motor unit. The right multi-function switch circuitry receives a clean
ground output from the SCM on a multi-function switch return circuit, then provides analog and resistor
multiplexed inputs to the SCM to indicate the selected rear wiper and rear washer system mode.

The hard wired circuits and components of the rear wiper and washer system may be diagnosed using
conventional diagnostic tools and procedures. Refer to the appropriate wiring information. However,
conventional diagnostic methods will not prove conclusive in the diagnosis of the rear wiper and washer system
or the electronic controls or communication between other modules and devices that provide some features of
the rear wiper and washer system. The most reliable, efficient, and accurate means to diagnose the rear wiper
and washer system or the electronic controls and communication related to rear wiper and washer system
operation requires the use of a diagnostic scan tool. Refer to the appropriate diagnostic information.

OPERATING MODES

Following are paragraphs that briefly describe the operation of each of the rear wiper and washer system
operating modes.

INTERMITTENT WIPE MODE

When the INTERMITTENT WIPE position of the control sleeve on the control stalk of the right multi-function
switch is selected, the SCM sends an electronic rear wiper switch status message to the EMIC over the LIN
data bus, then the EMIC relays an electronic rear wiper switch request message to the TIPM over the CAN
data bus, and the TIPM directs battery current to the rear wiper motor at fixed delay intervals to enable the rear
wiper motor intermittent wipe mode.

WASH MODE

When the control sleeve of the right multi-function switch is rotated counterclockwise past the
INTERMITTENT detent position to the momentary rear WASH position, the SCM sends an electronic rear
washer switch status message to the EMIC over the LIN data bus, then the EMIC relays an electronic rear
washer switch request message to the TIPM over the CAN data bus, and the TIPM directs battery current to the
rear wiper motor and directs battery current and ground to the washer pump/motor unit. These outputs will
cause the washer pump motor and the rear wiper motor to operate continuously for as long as the switch is held
closed up to approximately 10 seconds. The washer pump is de-energized as soon as the control sleeve is
released, but the rear wiper motor continues to operate for two to three continuous cycles before reverting to the
fixed delay interval operation. The TIPM uses a hard wired output from a park switch internal to the rear wiper
motor as an additional logic input to monitor the position of the rear wiper blade on the glass and to control the



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Wipers/Washers - Service Information - Nitro



number of continuous wiper sweeps following washer operation.

DIAGNOSIS AND TESTING

FRONT WIPER AND WASHER SYSTEM

If the front wiper motor operates, but the wipers do not move on the windshield, replace the ineffective front
wiper module. If the washer pump/motor operates, but no washer fluid is dispensed on the glass; or, if the
wipers operate, but chatter, lift, or do not clear the glass, clean and inspect the front wiper and washer system
components as required. See CLEANING, and INSPECTION.

The hard wired front wiper and washer system circuits and components may be diagnosed using conventional
diagnostic tools and procedures. Refer to the appropriate wiring information. The wiring information includes
wiring diagrams, proper wire and connector repair procedures, details of wire harness routing and retention,
connector pin-out information and location views for the various wire harness connectors, splices and grounds.

However, conventional diagnostic methods will not prove conclusive in the diagnosis of the front wiper and
washer system or the electronic controls or communication between other modules and devices that provide
some features of the front wiper and washer system. The most reliable, efficient, and accurate means to
diagnose the front wiper and washer system or the electronic controls and communication related to front wiper
and washer system operation requires the use of a diagnostic scan tool. Refer to the appropriate diagnostic
information.

WARNING:

To avoid serious or fatal injury on vehicles equipped with airbags, disable
the supplemental restraint system before attempting any steering wheel,
steering column, airbag, occupant classification system, seat belt
tensioner, impact sensor, or instrument panel component diagnosis or
service. Disconnect and isolate the battery negative (ground) cable, then
wait two minutes for the system capacitor to discharge before performing
further diagnosis or service. This is the only sure way to disable the
supplemental restraint system. Failure to take the proper precautions
could result in accidental airbag deployment.

NOTE:

The front wiper and washer switches are integral to the right multi-function
switch. The right multi-function switch is hard wired to the left multi-function
switch/Steering Control Module (SCM), which communicates with the Electro
Mechanical Instrument Cluster (EMIC)/Cab Compartment Node (CCN) over the
Local Interface Network (LIN) data bus. Before performing any of the following
tests, determine whether the other functions of the right and left multi-function
switch/SCM are operational. If only the right multi-function switch functions are
inoperative, test and repair the right multi-function switch or the jumper
harness between the right and left multi-function switches before attempting to
repair the Front Wiper and Washer System. If both the right and left multi-
function switch/SCM functions are ineffective, diagnose and repair that problem
before attempting to repair the Front Wiper and Washer System.
