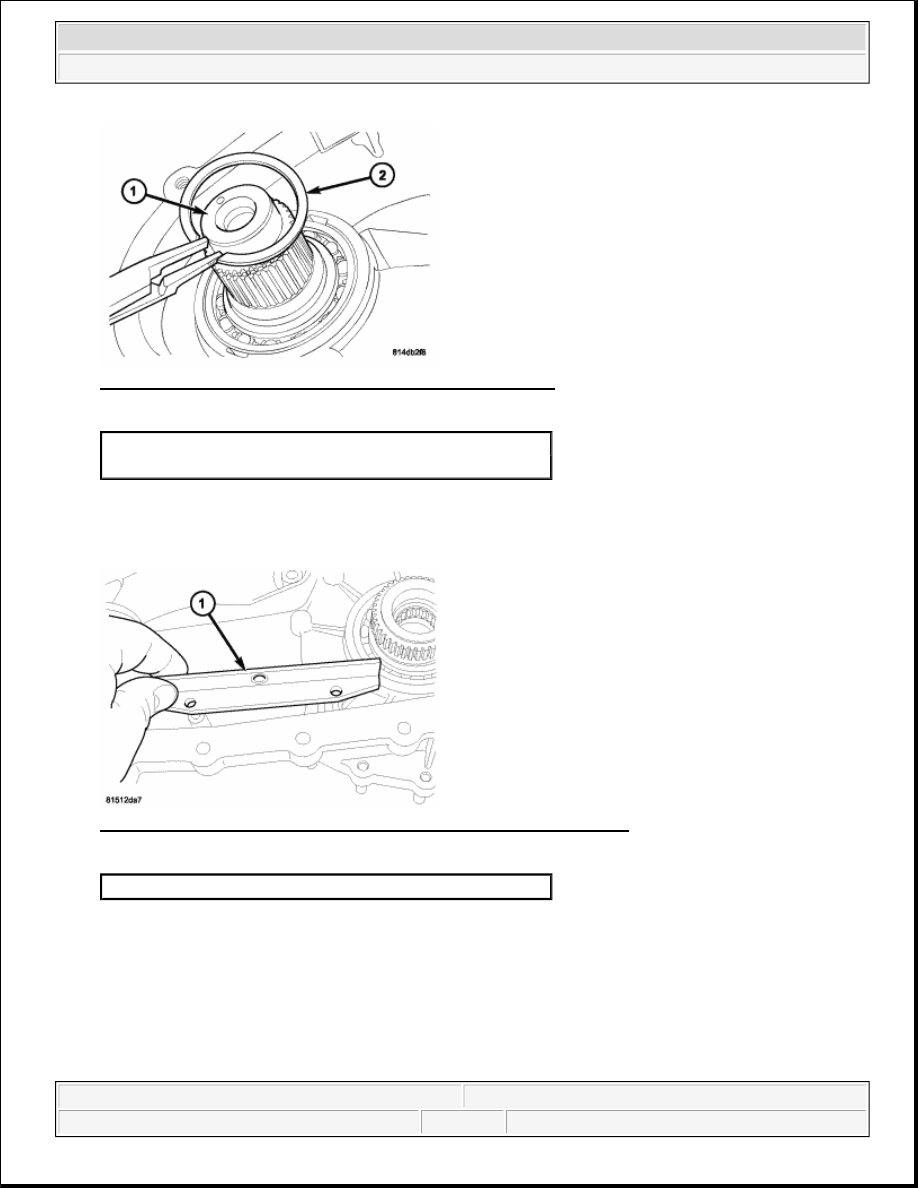

Fig. 33: Installing Retaining Ring Onto Front Output Shaft
Courtesy of CHRYSLER LLC

9. Install the retaining ring (2) onto the front output shaft (1).

10. Install the new input shaft seal with Installer 9672 and Handle C-4171.

Fig. 34: Installing Both Drive Chain Guide Rails Onto Transfer Case
Courtesy of CHRYSLER LLC

11. Install the both drive chain guide rails (1) onto the transfer case.

1 - FRONT OUTPUT SHAFT
2 - RETAINING RING

1 - DRIVE CHAIN GUIDE



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP143 - Service Information - Nitro



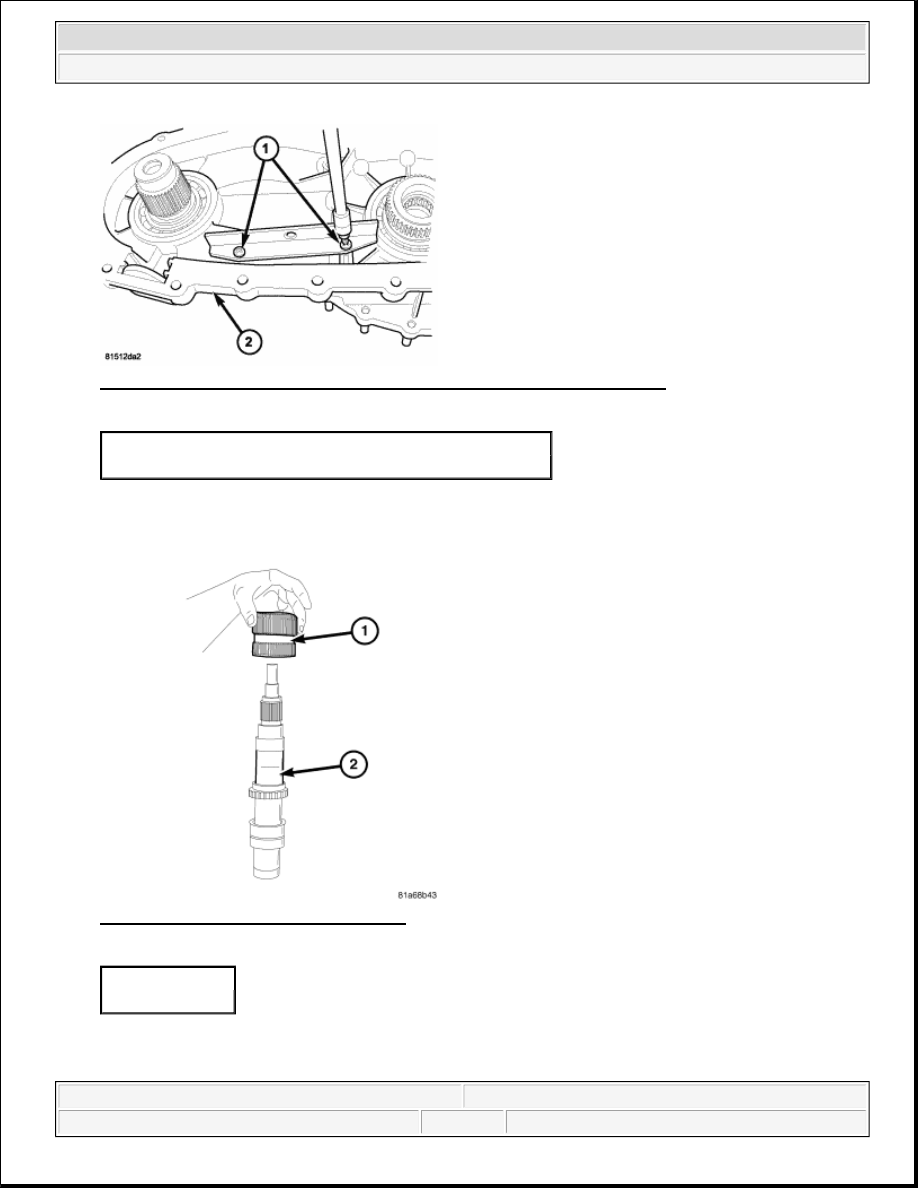

Fig. 35: Installing Screws To Hold Both Chain Guide Rails To Front Case
Courtesy of CHRYSLER LLC

12. Install the screws (1) to hold the both chain guide rails to the front case (2). Tighten the screws to 5-8

N.m (44-71 in.lbs.).

Fig. 36: Removing/Installing Mode Hub
Courtesy of CHRYSLER LLC

13. Install the mode hub (1) onto the mainshaft (2).

1 - SCREWS
2 - FRONT CASE

1 - MODE HUB
2 - MAINSHAFT



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP143 - Service Information - Nitro



Fig. 37: Removing/Installing Mode Hub Snap Ring
Courtesy of CHRYSLER LLC

14. Install the mode hub snap ring (1) onto the mainshaft (3).

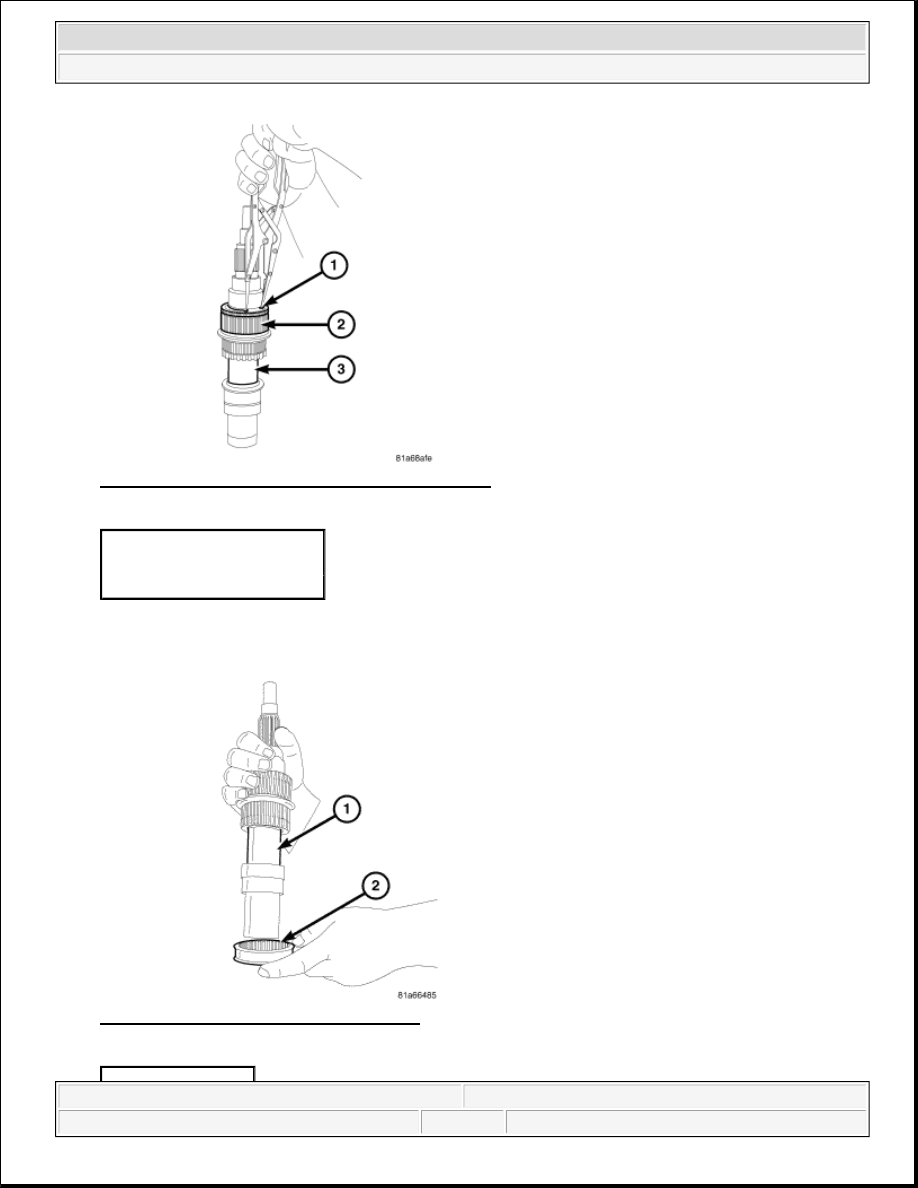

Fig. 38: Removing/Installing Mode Sleeve
Courtesy of CHRYSLER LLC

1 - MODE HUB SNAP RING
2 - MODE HUB
3 - MAINSHAFT



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP143 - Service Information - Nitro



15. Install the mode sleeve (2) onto the mainshaft (1).

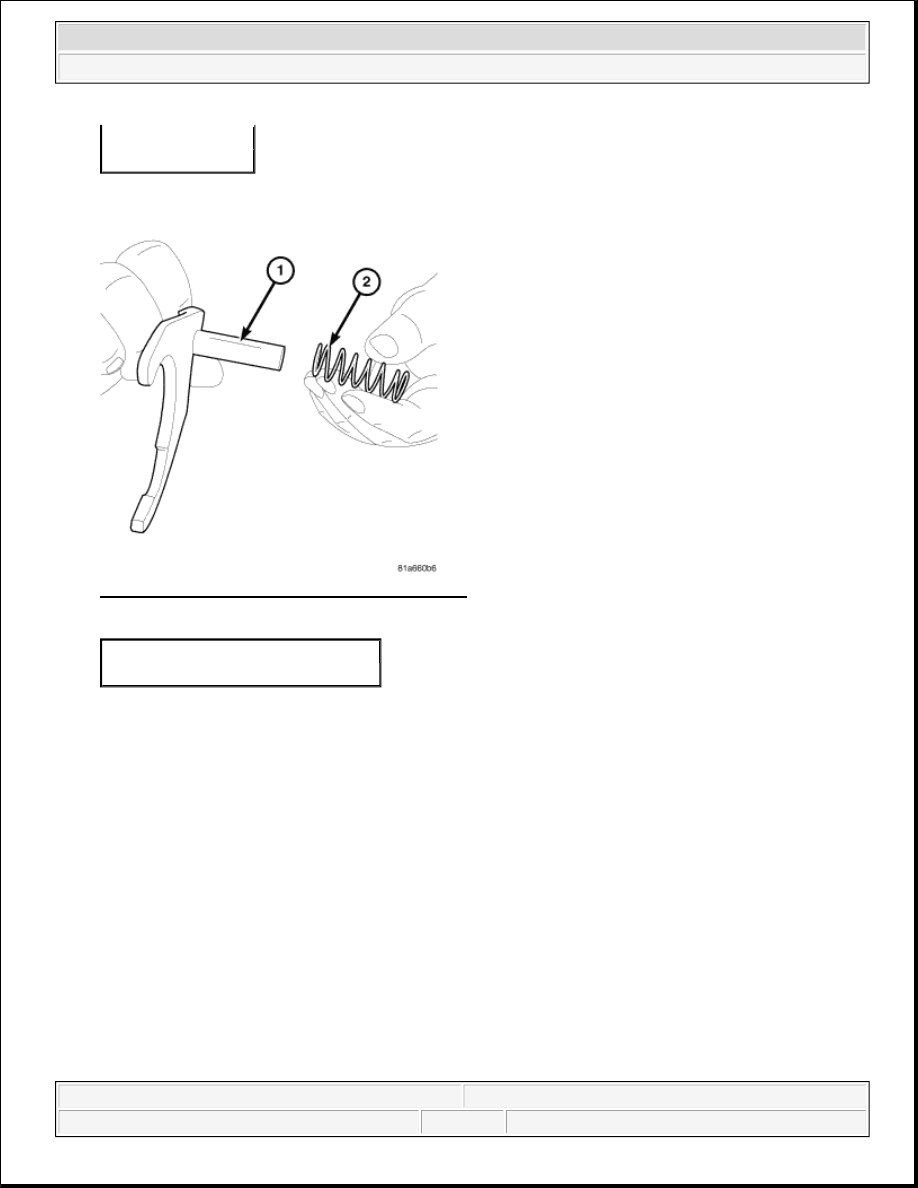

Fig. 39: Removing/Installing Mode Fork Spring
Courtesy of CHRYSLER LLC

16. Install the mode fork return spring (2) onto the mode fork (1).

1 - MAINSHAFT
2 - MODE SLEEVE

1 - MODE FORK
2 - MODE FORK RETURN SPRING
