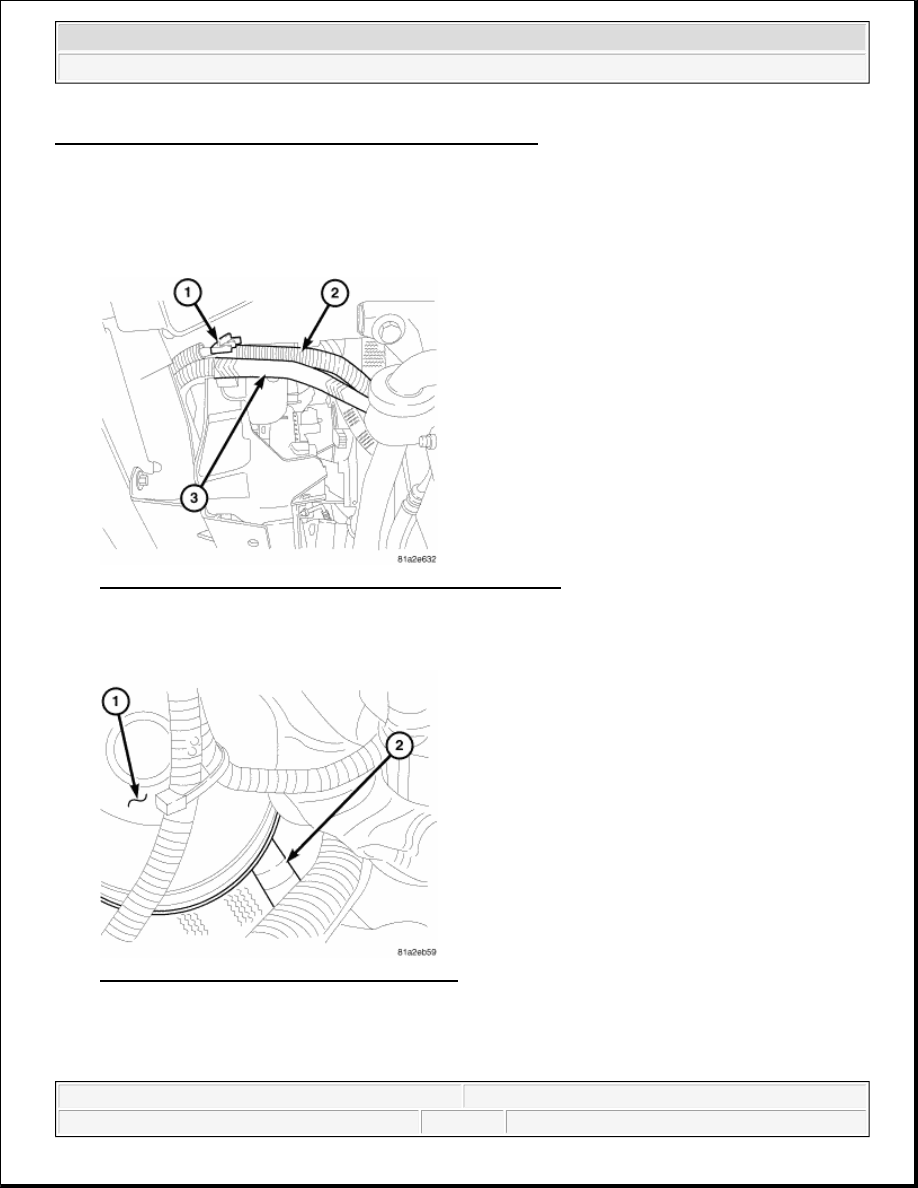

Fig. 125: Identifying Cooler, Hose Clamps & Mounting Screws
Courtesy of CHRYSLER LLC

1. Install the hose to the vehicle.

2. Install the 3 push pins and install the front fascia into position.

3. Install the hose to the cooler (1) and reclamp (2) with a new hose crimp clamp.

Fig. 126: Identifying Return Hose Assembly & Routing Clip
Courtesy of CHRYSLER LLC

4. Install the return hose assembly routing clip (1).

Fig. 127: Identifying Reservoir & Return Hose
Courtesy of CHRYSLER LLC

5. Install a new hose clamp for the cooler to reservoir hose (2) to the reservoir (1).

6. Lower the vehicle.



2007 Dodge Nitro R/T

2007 STEERING Steering System - Nitro



7. Fill and bleed power steering system. See STANDARD PROCEDURE.

8. Inspect for leaks.

PRESSURE HOSE - DIESEL

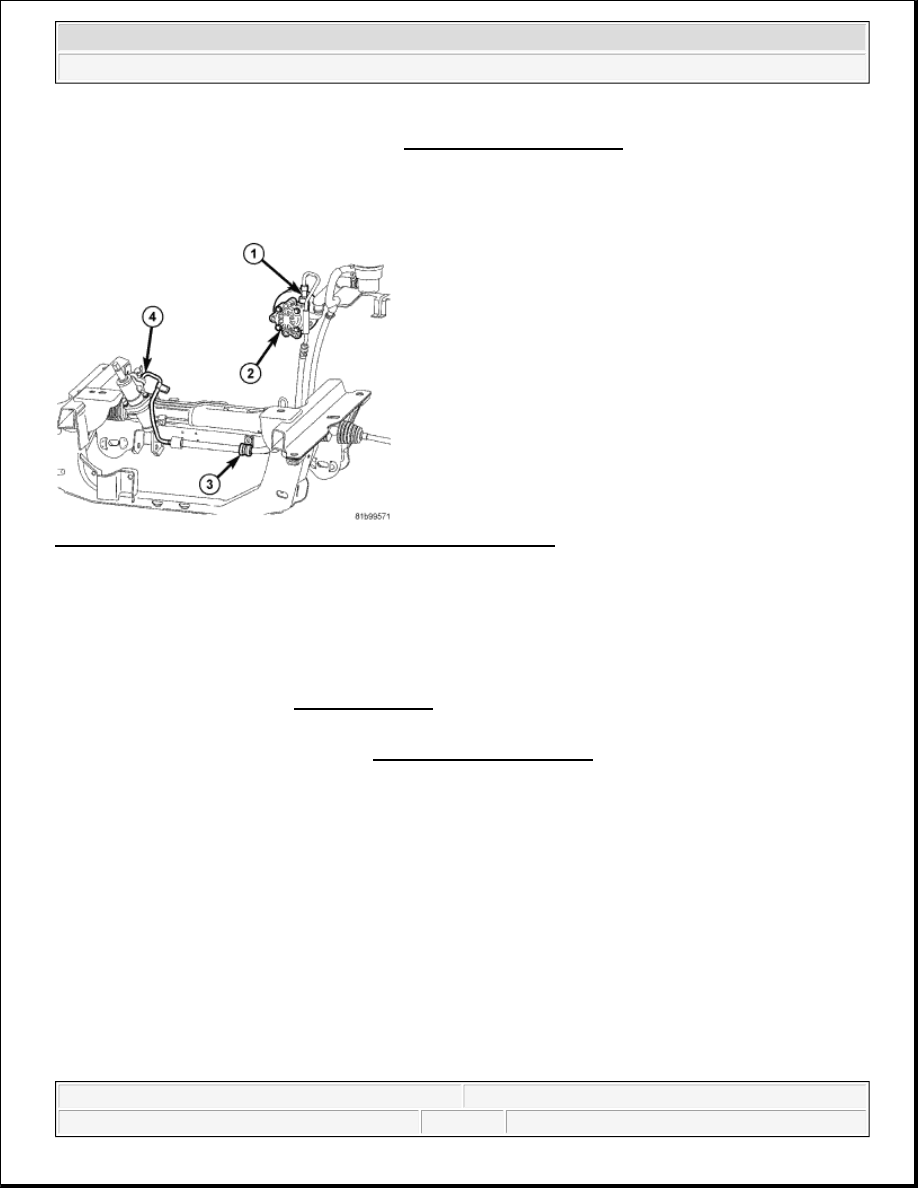

Fig. 128: Identifying Pressure Line, Pump, Bracket Bolts & Gear
Courtesy of CHRYSLER LLC

1. Install the pressure hose (1) to the vehicle.

2. Install the pressure hose mounting bracket bolts (3) to the frame.

3. Install the pressure hose at the gear (4).

4. Install the pressure line (1) at the pump (2).

5. Install the airbox. Refer to INSTALLATION .

6. Refill the power steering fluid.

7. Bleed the power steering system. See STANDARD PROCEDURE.

8. Check for leaks.

PULLEY

REMOVAL

PULLEY- GAS ENGINE



2007 Dodge Nitro R/T

2007 STEERING Steering System - Nitro



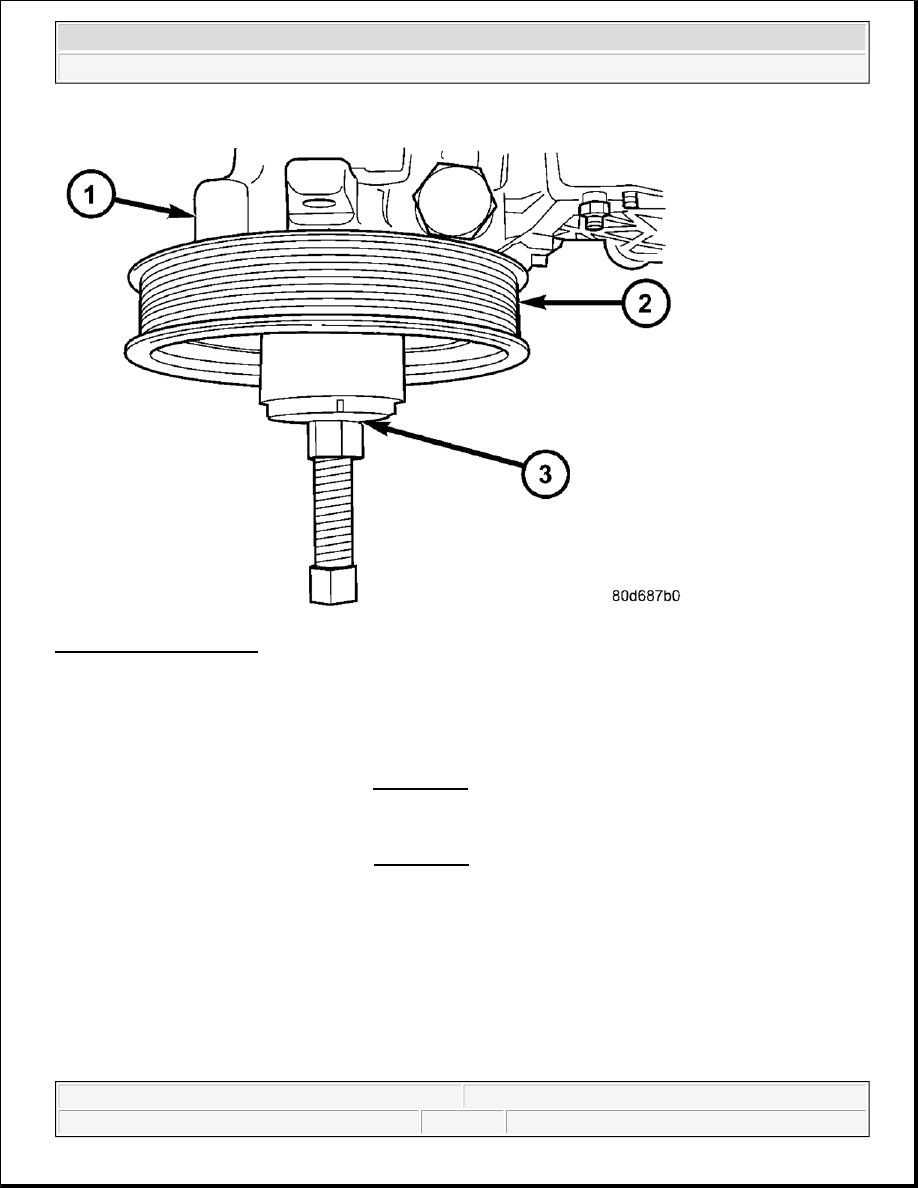

Fig. 129: Removing Pulley
Courtesy of CHRYSLER LLC

1. Remove air cleaner housing. Refer to REMOVAL .

2. Remove the washer/coolant reservoir assembly.

3. Remove the fan shroud.

4. Remove power steering belt. Refer to REMOVAL .

5. Remove the pulley (2) from the pump using (OTC® 7185) power steering pulley removal tool or

equivalent (3).

PULLEY - DIESEL ENGINE

CAUTION: Do not reuse the old power steering pump pulley it is not intended for

reuse. A new pulley must be installed if removed.



2007 Dodge Nitro R/T

2007 STEERING Steering System - Nitro



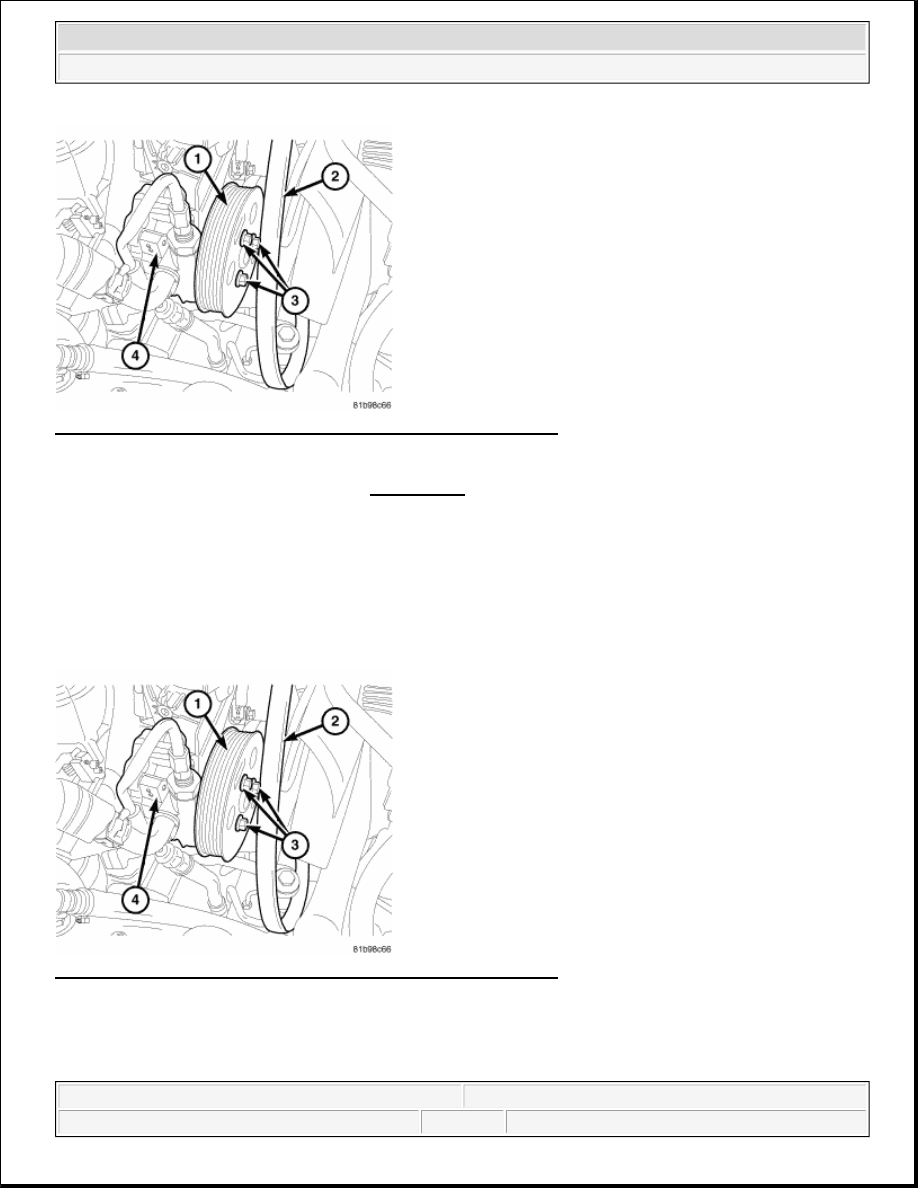

Fig. 130: Identifying Pulley, Serpentine Drive Belt, Bolts & Pump
Courtesy of CHRYSLER LLC

1. Remove the air cleaner box. Refer to REMOVAL .

2. Remove the air inlet tube.

3. Remove the serpentine drive belt (2).

4. Remove the three bolts (3) securing the pulley (1) to the pump (4).

INSTALLATION

PULLEY - DIESEL ENGINE

Fig. 131: Identifying Pulley, Serpentine Drive Belt, Bolts & Pump
Courtesy of CHRYSLER LLC

1. Install the pulley (1) to the pump shaft.

2. Install the three bolts (3) securing the pulley (1) to the pump (4). Tighten to 47 N.m (35 ft. lbs.).
