High Engine Coolant Temperature.

Low Engine Oil Pressure.

Initiate Remote Start

To Remote Start the vehicle:

1. Press remote button on the Key Fob twice within 5 seconds.

2. Unlock vehicle with Key Fob to enter the vehicle.

3. Put key in ignition, turn key to run position to exit remote start and enter a normal start without engine

shut off.

Identification that Remote Start is Activated

To identify that Remote Start has been activated the following will occur:

Horn will sound and lights will flash to acknowledge a start command was received.

Park Lamps will turn on to indicate that the engine is running in remote start mode.

Terminate Remote Start

To terminate Remote Start, press Remote Start button on the Key Fob once.

DIAGNOSIS AND TESTING

STARTING SYSTEM

The battery, starting, and charging systems operate in conjunction with one another, and must be tested as a
complete system. For correct starting/charging system operation, all of the components involved in these three
systems must perform within specifications.

NOTE:

Engine will run for 15 minutes after a remote start is initiated. After 15
minutes, the engine will shut off. The system allows for only two
sequential remote starts without a key ignition cycle.

NOTE:

In order to avoid inadvertent shut downs, the one-time press to shut down the
vehicle will be disabled for two seconds after receipt of a valid remote start
request.

Starting System Diagnosis

CONDITION

POSSIBLE CAUSE

CORRECTION

STARTER FAILS TO
OPERATE.

1. Battery discharged or
faulty.

1. Refer to BATTERY . Charge or replace battery, if
required.

2. Starting circuit wiring  2. Refer to SYSTEM WIRING DIAGRAMS . Test



2007 Dodge Nitro R/T

2007 ENGINE Starting - Service Information - Nitro



faulty.

and repair starter feed and/or control circuits, if
required.

3. Starter relay faulty.

3. The starter relay is located within the TIPM
(Totally Integrated Power Module). Refer to "*NO
CRANK CONDITION
 " .

4. Ignition switch faulty. 4. Refer to Ignition Switch and Key Lock Cylinder in

STEERING SYSTEM article. Replace ignition
switch if required.

5. Clutch pedal position
switch faulty.

5. Refer to SWITCH-CLUTCH PEDAL
POSITION
 .

6. Park/Neutral position
switch faulty or
misadjusted.

6. Refer to Park/Neutral Position Switch in 42RLE -
SERVICE INFORMATION
 . Replace park/neutral
position switch if required.

7. Starter solenoid faulty. 7. Refer to MOTOR - STARTER. Replace starter

motor assembly if required.

8. Starter motor faulty.

8. If all other starting system components and circuits
test OK, replace starter motor.

STARTER ENGAGES,
FAILS TO TURN
ENGINE.

1. Battery discharged or
faulty.

1. Refer to BATTERY . Charge or replace battery if
required.

2. Starting circuit wiring
faulty.

2. Refer to SYSTEM WIRING DIAGRAMS . Test
and repair starter feed and/or control circuits if
required.

3. Starter motor faulty.

3. If all other starting system components and circuits
test OK, replace starter motor assembly.

4. Engine seized.

4. Refer to Engine Diagnosis in the DIAGNOSIS
AND TESTING
 for 3.7L - SERVICE
INFORMATION or DIAGNOSIS AND TESTING
for 4.0L - SERVICE INFORMATION .

STARTER ENGAGES,
SPINS OUT BEFORE
ENGINE STARTS.

1. Starter ring gear
faulty.

1. Refer to Starter Motor REMOVAL and
INSTALLATION. Remove starter motor to inspect
starter ring gear. Replace starter ring gear if required.

2. Starter motor faulty.

2. If all other starting system components and circuits
test OK, replace starter motor assembly.

STARTER DOES NOT
DISENGAGE.

1. Starter motor
improperly installed.

1. Refer to Starter Motor REMOVAL and
INSTALLATION. Tighten starter mounting
hardware to correct torque specifications.

2. Starter relay faulty.

2. The starter relay is located within the TIPM
(Totally Integrated Power Module). Refer to "*NO
CRANK CONDITION
 " .

3. Ignition switch faulty. 3. Refer to Ignition Switch and Key Lock Cylinder in

STEERING SYSTEM article. Replace ignition
switch if required.

4. Starter motor faulty.

4. If all other starting system components and circuits
test OK, replace starter motor.



2007 Dodge Nitro R/T

2007 ENGINE Starting - Service Information - Nitro



INSPECTION

For complete starter wiring circuit diagrams, refer to SYSTEM WIRING DIAGRAMS . Before removing any
unit from starting system for repair or diagnosis, perform the following inspections:

Battery - Visually inspect battery for indications of physical damage and loose or corroded cable
connections. Determine state-of-charge and cranking capacity of battery. Charge or replace battery if
required. Refer to BATTERY . Note: If equipped with diesel engine, a dual battery system may be
used, and both batteries must be inspected.


Ignition Switch - Visually inspect ignition switch for indications of physical damage and loose or
corroded wire harness connections. Refer to STEERING SYSTEM article.

Clutch Pedal Position Switch - If equipped with manual transmission, visually inspect clutch pedal
position switch for indications of physical damage and loose or corroded wire harness connections. Refer
to SWITCH-CLUTCH PEDAL POSITION .

Park/Neutral Position Switch - If equipped with automatic transmission, visually inspect park/neutral
position switch for indications of physical damage and loose or corroded wire harness connections. Refer
to 42RLE - SERVICE INFORMATION .

Starter Relay - The starter relay is located within the TIPM (Totally Integrated Power Module). Refer to
"*NO CRANK CONDITION " .

Starter Motor - Visually inspect starter motor for indications of physical damage and loose or corroded
wire harness connections.

Starter Solenoid - Visually inspect starter solenoid for indications of physical damage and loose or
corroded wire harness connections.

Wiring - Visually inspect wire harnesses for damage. Repair or replace any faulty wiring, as required.
Refer to SYSTEM WIRING DIAGRAMS article .

TESTING

COLD CRANKING TEST

WARNING:

On vehicles equipped with airbags, refer to RESTRAINTS - SERVICE
INFORMATION , before attempting any steering wheel, steering column,
or instrument panel component diagnosis or service. Failure to take the
proper precautions could result in accidental airbag deployment and
possible personal injury.

NOTE:

For complete starter wiring circuit diagrams, refer to SYSTEM WIRING
DIAGRAMS . The battery must be fully-charged and load-tested before
proceeding. Refer to BATTERY .



2007 Dodge Nitro R/T

2007 ENGINE Starting - Service Information - Nitro



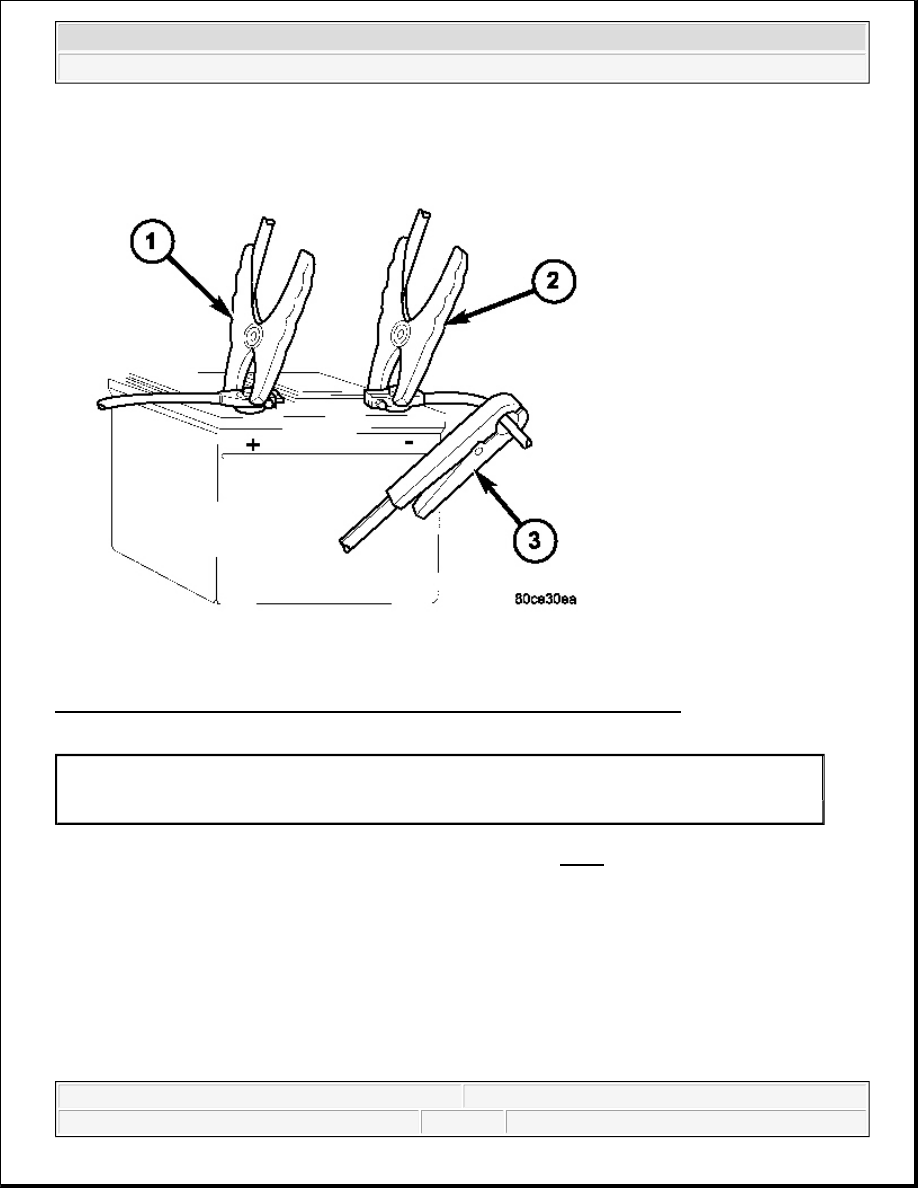

Fig. 1: Identifying Positive Clamp, Negative Clamp & Induction Ammeter Clamp
Courtesy of CHRYSLER LLC

1. Connect volt-ampere tester (1) and (2) to battery terminals. See Fig. 1. See instructions provided by

manufacturer of volt-ampere tester being used. Note: Certain diesel equipped models use dual
batteries. If equipped with dual battery system, tester should be connected to battery on left side of
vehicle only. Also, tester current reading must be taken from positive battery cable lead that
connects to starter motor.


2. Fully engage parking brake.

3. If equipped with manual transmission, place gearshift selector lever in Neutral position and block clutch

pedal in fully depressed position. If equipped with automatic transmission, place gearshift selector lever
in Park position.

4. Verify that all lamps and accessories are turned off.

1 - POSITIVE CLAMP
2 - NEGATIVE CLAMP
3 - INDUCTION AMMETER CLAMP
