Dodge Nitro. Manual - part 878





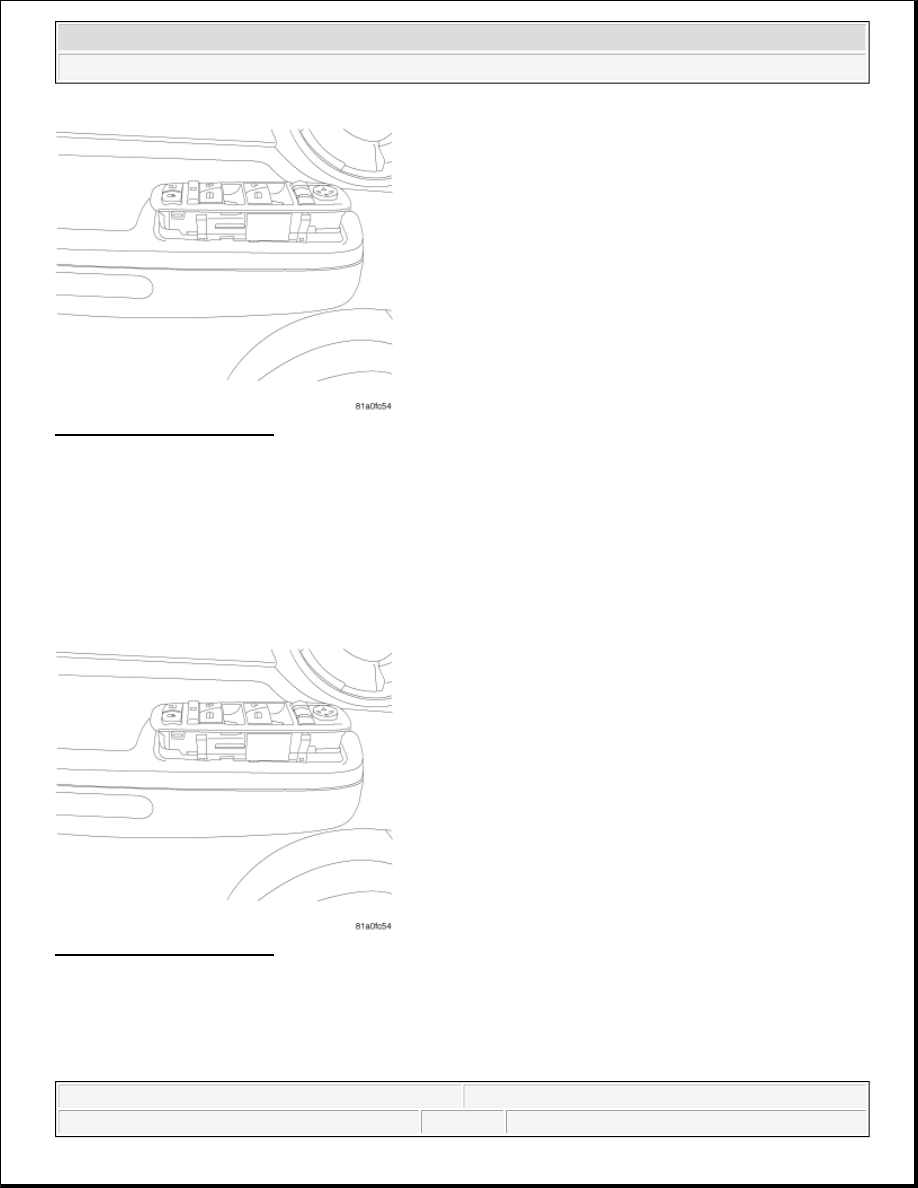

Fig. 3: Power Mirror Switch
Courtesy of CHRYSLER LLC

1. Disconnect and isolate the battery negative cable.

2. Gently pry the switch from the door trim panel.

3. Disconnect electrical harness connector from switch.

INSTALLATION

POWER MIRROR SWITCH

Fig. 4: Power Mirror Switch
Courtesy of CHRYSLER LLC

1. Connect the electrical harness connector to the switch.

2. Press the switch into place.

3. Connect the battery negative cable.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Power Mirrors - Service Information - Nitro



SIDEVIEW MIRROR

REMOVAL

POWER MIRROR

1. For removal procedures, refer to REMOVAL



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Power Mirrors - Service Information - Nitro



2007 ACCESSORIES AND EQUIPMENT

Power Seats - Service Information - Nitro

POWER SEATS - SERVICE INFORMATION

DESCRIPTION

POWER SEAT SYSTEM

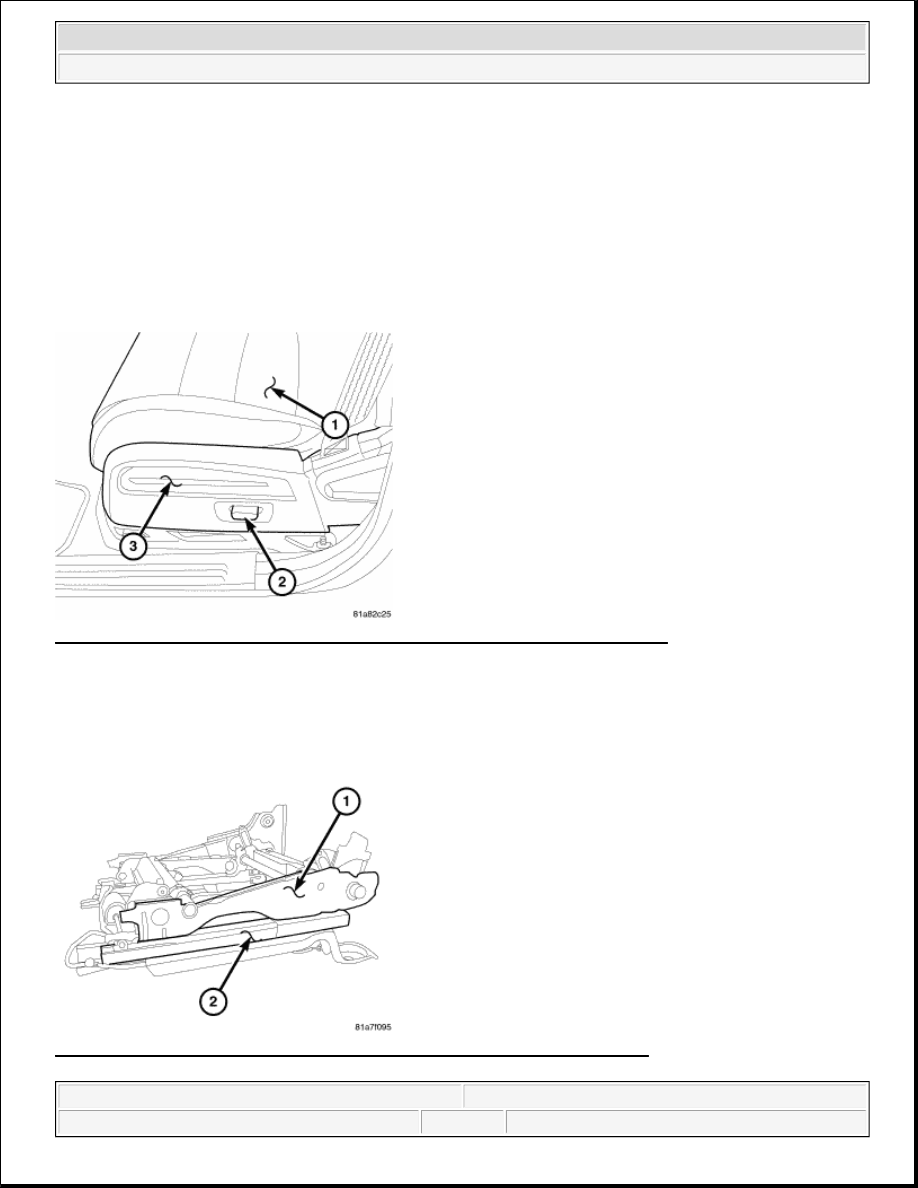

Fig. 1: Identifying Power Seat Switch, Seat Cushion & Seat Cushion Side Shield
Courtesy of CHRYSLER LLC

The power seat system allows the driver to electrically adjust the seating position using the power seat switch
assembly (2) located on the outboard seat cushion side shield (3).

Fig. 2: Identifying Upper Power Seat Adjuster & Lower Power Seat Adjuster
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Power Seats - Service Information - Nitro





2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Power Seats - Service Information - Nitro



A driver side six-way power seat is available on this vehicle. The power seat includes a six-way adjustable seat
cushion track. The six-way power seat can be adjusted back up, back down, front up, front down, forward and
rearward. The power seat system is also available with the heated seat option, refer to DESCRIPTION for
additional information on the heated seats.

The power seat adjuster is made up of the upper and lower power seat adjuster assemblies. The upper power
seat adjuster (1) contains two reversible motors that are connected to worm-drive gearboxes that move the seat
adjusters through screw-type drive units. These motors control the front seat tilt, rear seat tilt and when
activated together the height of the driver seat. The lower power seat adjuster (2) contains one reversible motor
that is connected to a worm-drive gearbox that moves the seat adjuster through a screw-type drive unit. This
motor is responsible for the fore and aft movement of the driver seat. Each motor contains a self-resetting
circuit breaker to protect it from overload. Consecutive or frequent resetting of the circuit breakers may
damaged the motors.

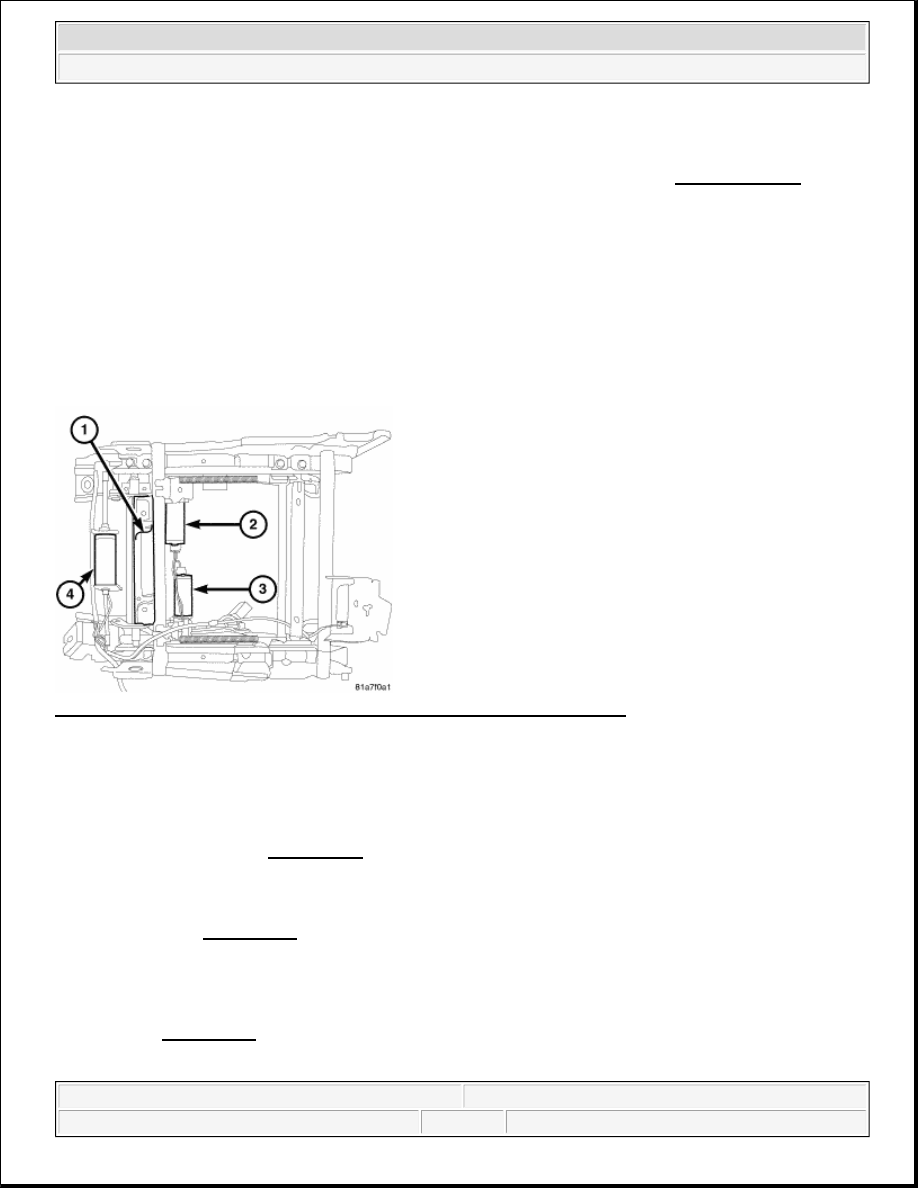

Fig. 3: Front/Rear Tilt Motor, Reversible Motor & Power Seat Track Unit
Courtesy of CHRYSLER LLC

The power seat system for this vehicle includes the following major components:

The Front Tilt Motor (2) is located on the upper power seat adjuster assembly and controls the up and down
movement of the seat front only. The front tilt motor is part of the power seat track unit (1) and must be
replaced as an assembly. See REMOVAL

The Rear Tilt Motor (3) is located on the upper power seat adjuster assembly and controls the up and down
movement of the seat rear only. The front tilt motor is part of the power seat track unit (1) and must be replaced
as an assembly. See REMOVAL

The Lower Power Seat Adjuster contains one reversible motor (4) that is connected to a worm-drive gearbox
that moves the seat adjuster through a screw-type drive unit. This motor is responsible for the fore and aft
movement of the driver seat. The motor is part of the power seat track unit (1) and must be replaced as an
assembly, See REMOVAL



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Power Seats - Service Information - Nitro
