Dodge Nitro. Manual - part 858





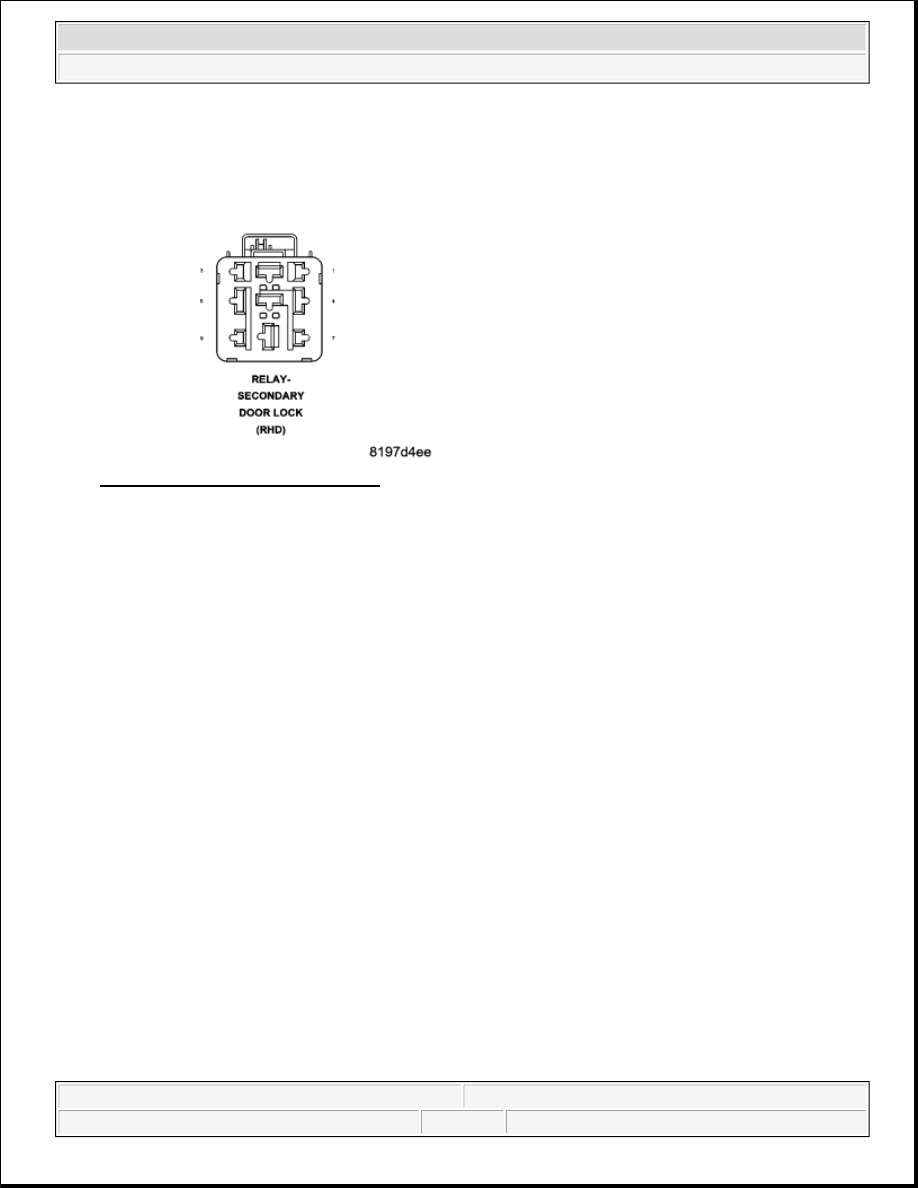

Fig. 19: Secondary Door Lock Relay
Courtesy of CHRYSLER LLC

Turn the ignition off.

Remove the Secondary Door Lock Relay from the I.P. End Bracket (behind the right kick panel).

Install a substitute relay in place of the Secondary Door Lock Relay.

Turn the ignition on.

With the scan tool, erase DTCs.

Turn ignition off and remove the key.

Lock all doors and wait 2 minutes.

Turn the ignition on.

With the scan tool, read DTCs.

Does the scan tool display B186F-ALL DOOR SECONDARY LOCK CONTROL CIRCUIT LOW?

Yes

Go to 3).

No

Replace the original relay.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Power Locks - Electrical Diagnostics - Nitro



Perform BODY VERIFICATION TEST - VER 1 .

3) CHECK THE (P390) SECONDARY DOOR LOCK RELAY CONTROL CIRCUIT FOR A
SHORT TO GROUND


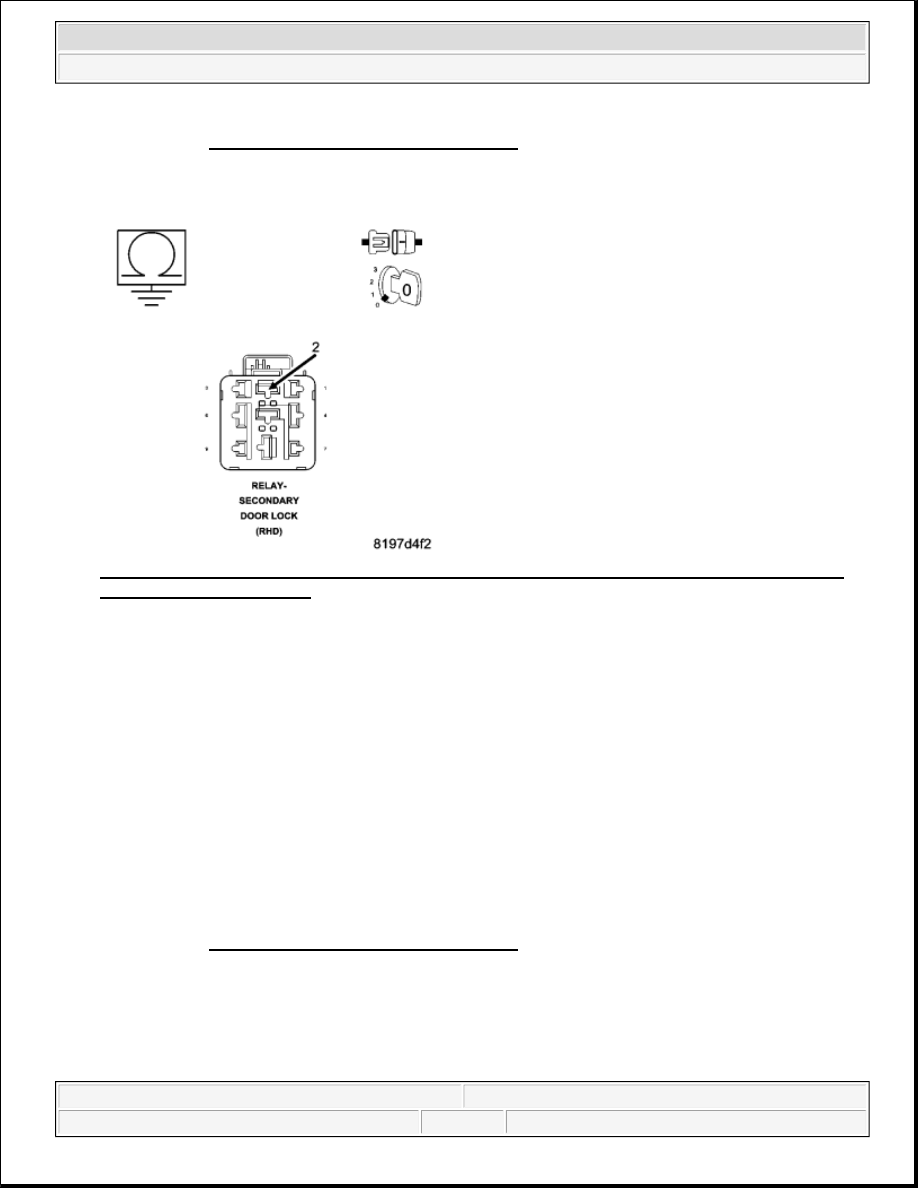

Fig. 20: Measuring Resistance Between Ground And (P390) Secondary Door Lock Relay Control
Circuit In Relay Connector

Courtesy of CHRYSLER LLC

Turn the ignition off.

Remove the Secondary Door Lock Relay.

Disconnect the TIPM C7 connector.

Measure the resistance between ground and the (P390) Secondary Door Lock Relay Control circuit in the
relay connector.

Is the resistance below 1,000.0 ohms?

Yes

Repair the (P390) Secondary Door Lock Relay Control circuit for a short to ground.

Perform BODY VERIFICATION TEST - VER 1 .

No

Go to 4).

4) CHECK THE (P390) SECONDARY DOOR LOCK RELAY CONTROL CIRCUIT FOR AN
OPEN




2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Power Locks - Electrical Diagnostics - Nitro



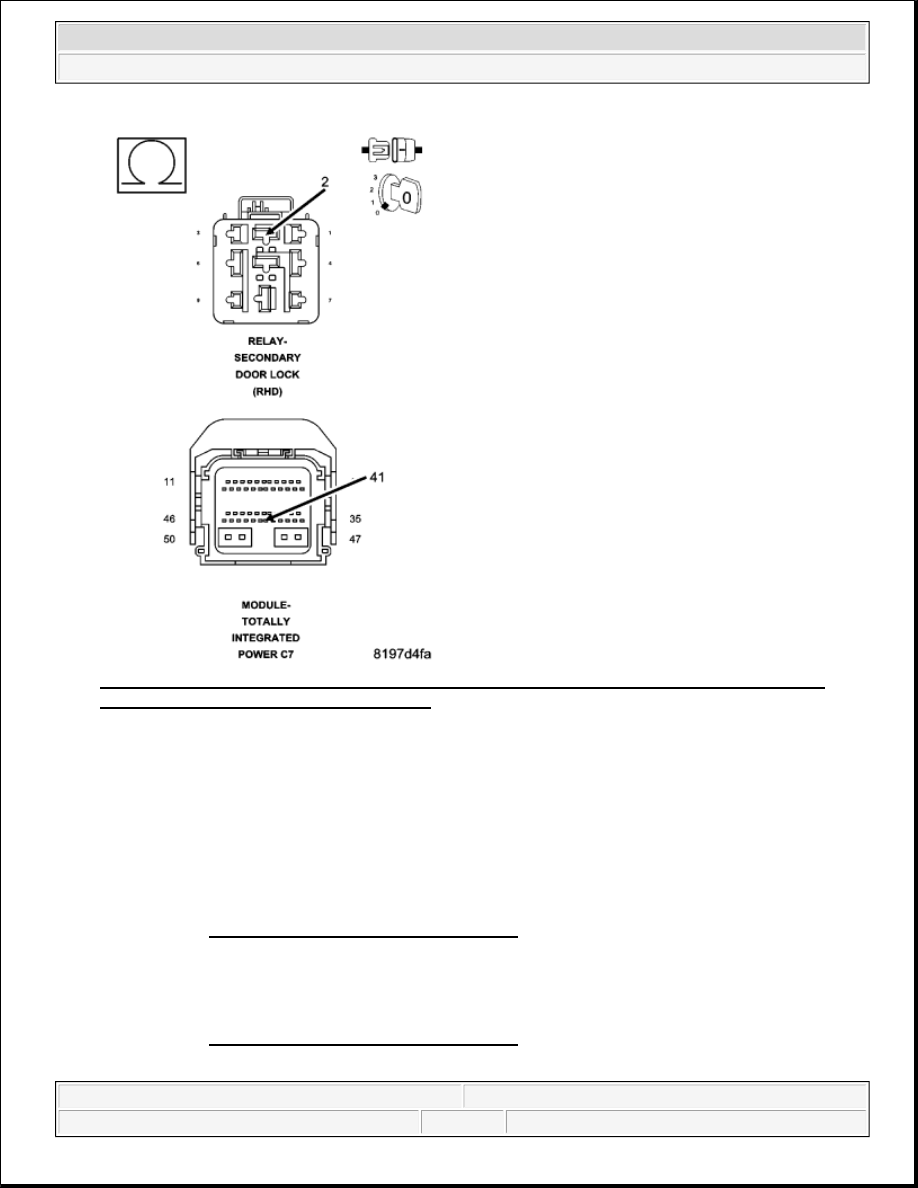

Fig. 21: Measuring Resistance Of (P390) Secondary Door Lock Relay Control Circuit Between
Relay Connector And TIPM C7 Connector

Courtesy of CHRYSLER LLC

Measure the resistance of the (P390) Secondary Door Lock Relay Control circuit between the Relay
connector and the TIPM C7 connector.

Is the resistance below 2.0 ohms?

Yes

Replace the Totally Integrated Power Module in accordance with service information.

Perform BODY VERIFICATION TEST - VER 1 .

No

Repair the (P390) Secondary Door Lock Relay Control circuit for an open.

Perform BODY VERIFICATION TEST - VER 1 .

B1870 - ALL DOOR SECONDARY LOCK CONTROL CIRCUIT HIGH - TIPM



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Power Locks - Electrical Diagnostics - Nitro

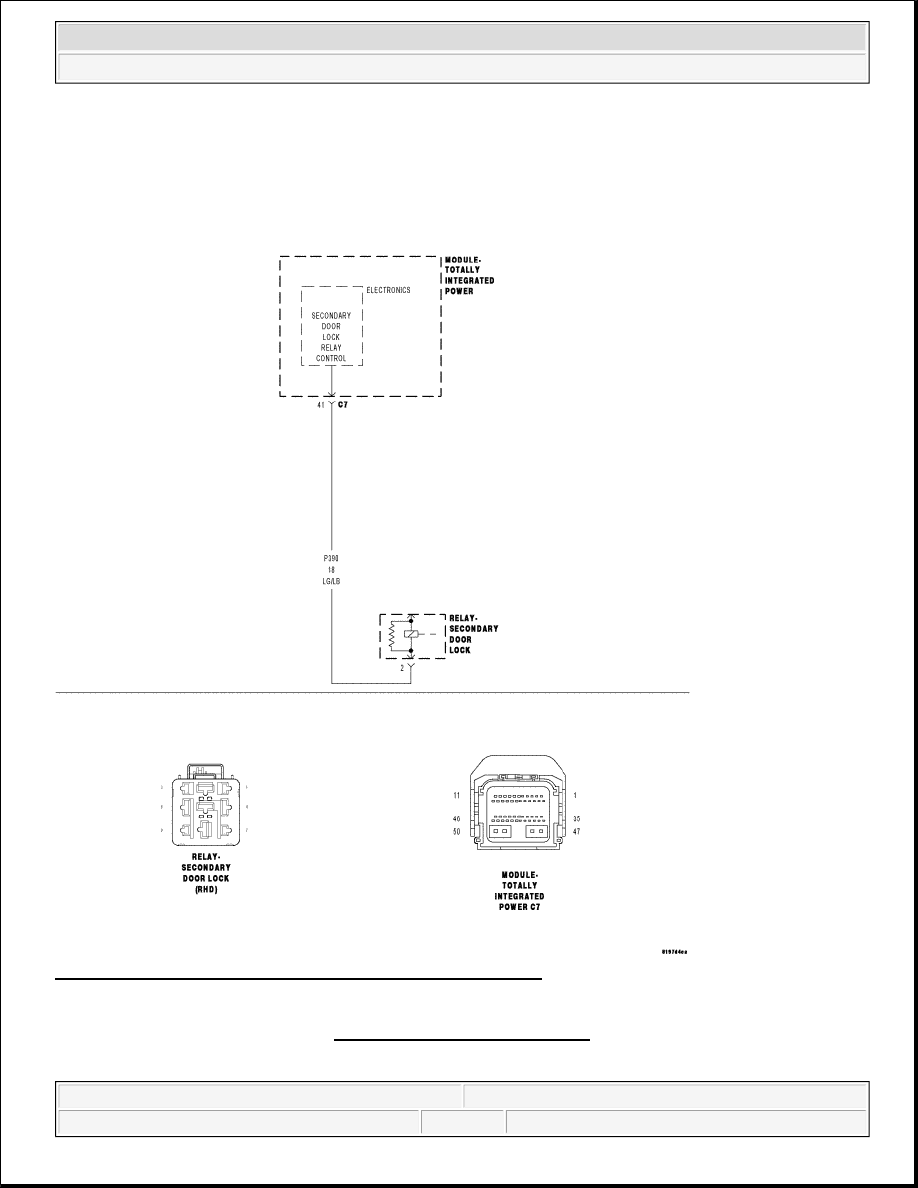

Fig. 22: Secondary Door Lock Relay Control Circuit Schematic
Courtesy of CHRYSLER LLC

For complete wiring diagrams refer to SYSTEM WIRING DIAGRAMS article.

When Monitored:



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Power Locks - Electrical Diagnostics - Nitro
