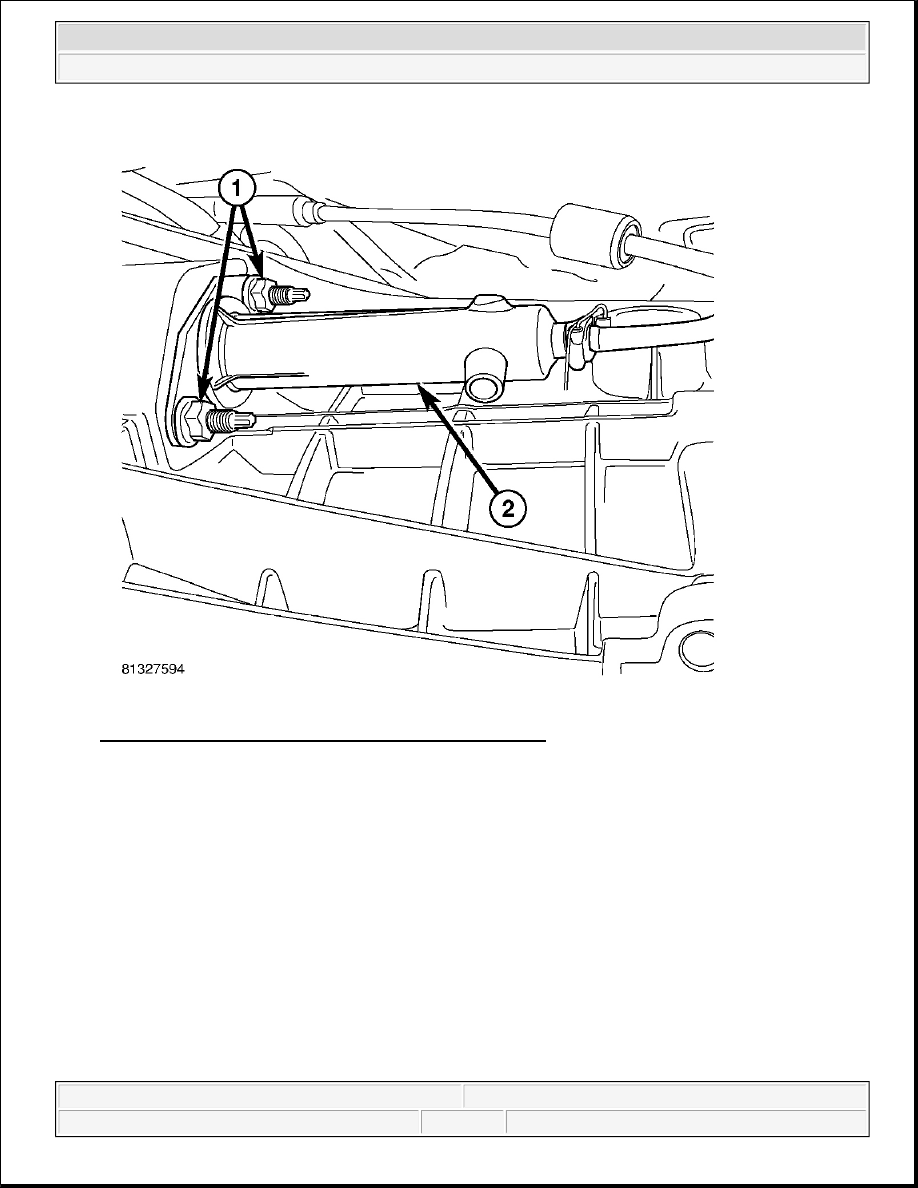

Fig. 9: Identifying Clutch Slave Cylinder Nuts & Cylinder
Courtesy of CHRYSLER LLC

12. Remove clutch slave cylinder nuts (1) and remove cylinder (2).



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

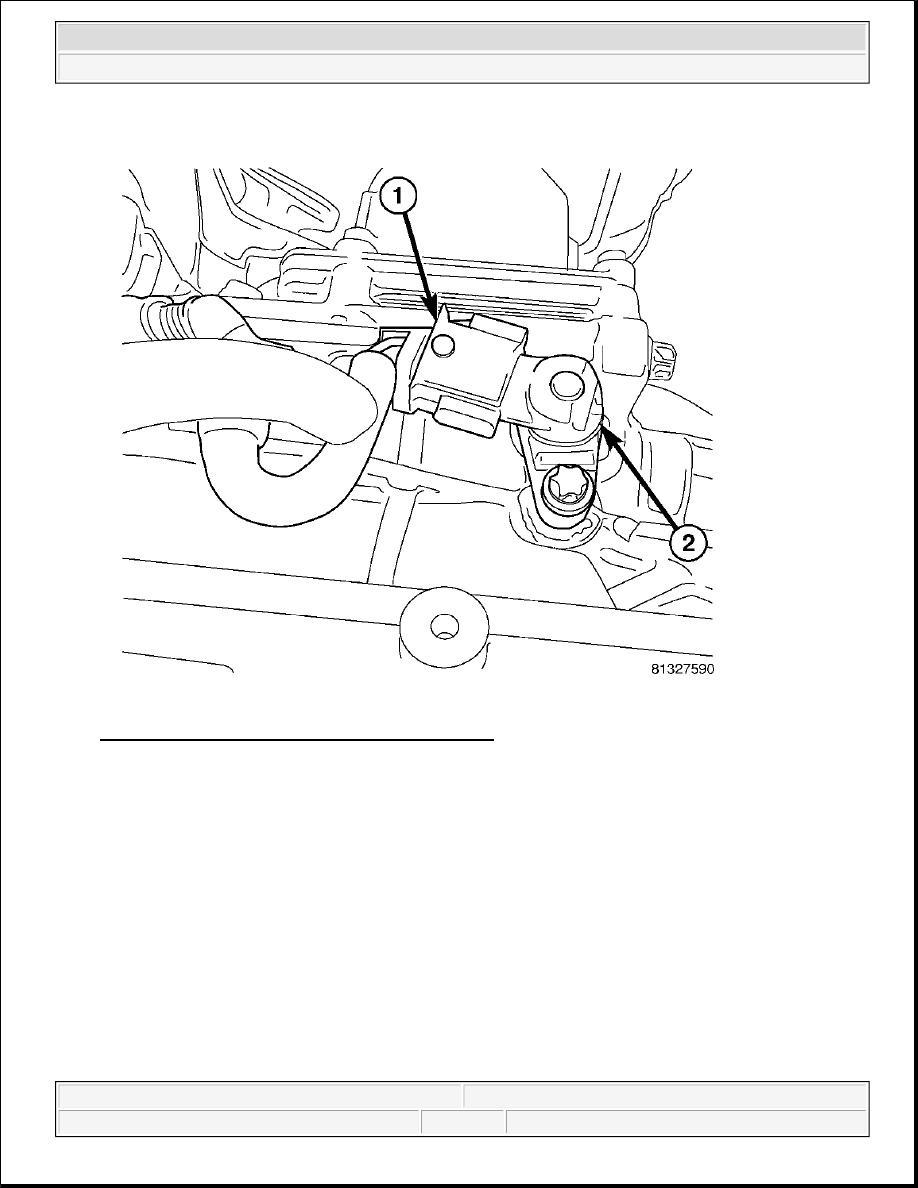

Fig. 10: Backup Lamp Switch & Wiring Connector
Courtesy of CHRYSLER LLC

13. Remove backup lamp switch (1) wiring connector (2).



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

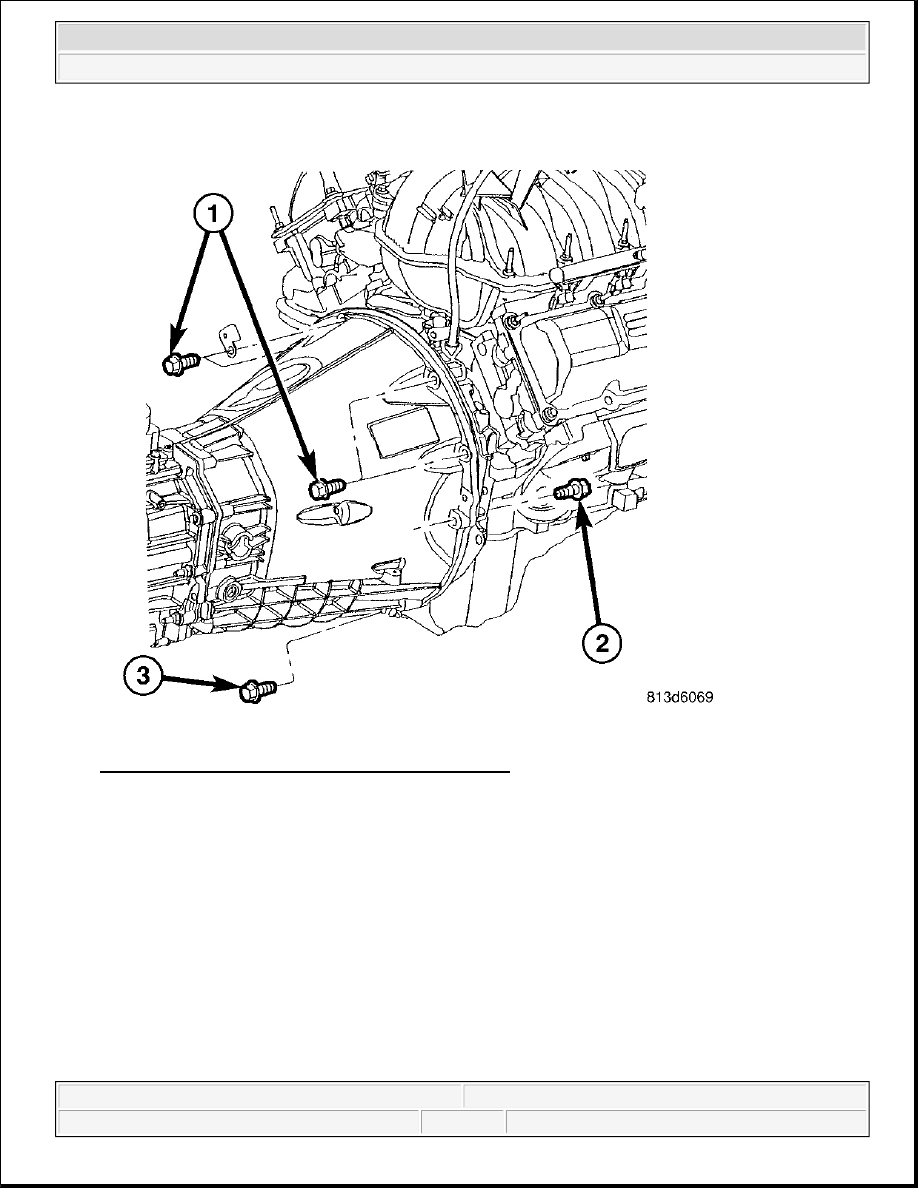

Fig. 11: Identifying Transmission Bolts (3.7L Engine)
Courtesy of CHRYSLER LLC

14. Remove starter bolts and remove starter.

15. Remove transmission bolts (1,2,3) on 3.7L engine and remove transmission.



2007 Dodge Nitro R/T

2007 MANUAL TRANSMISSION NSG370 - Diagnosis & Overhaul - Nitro

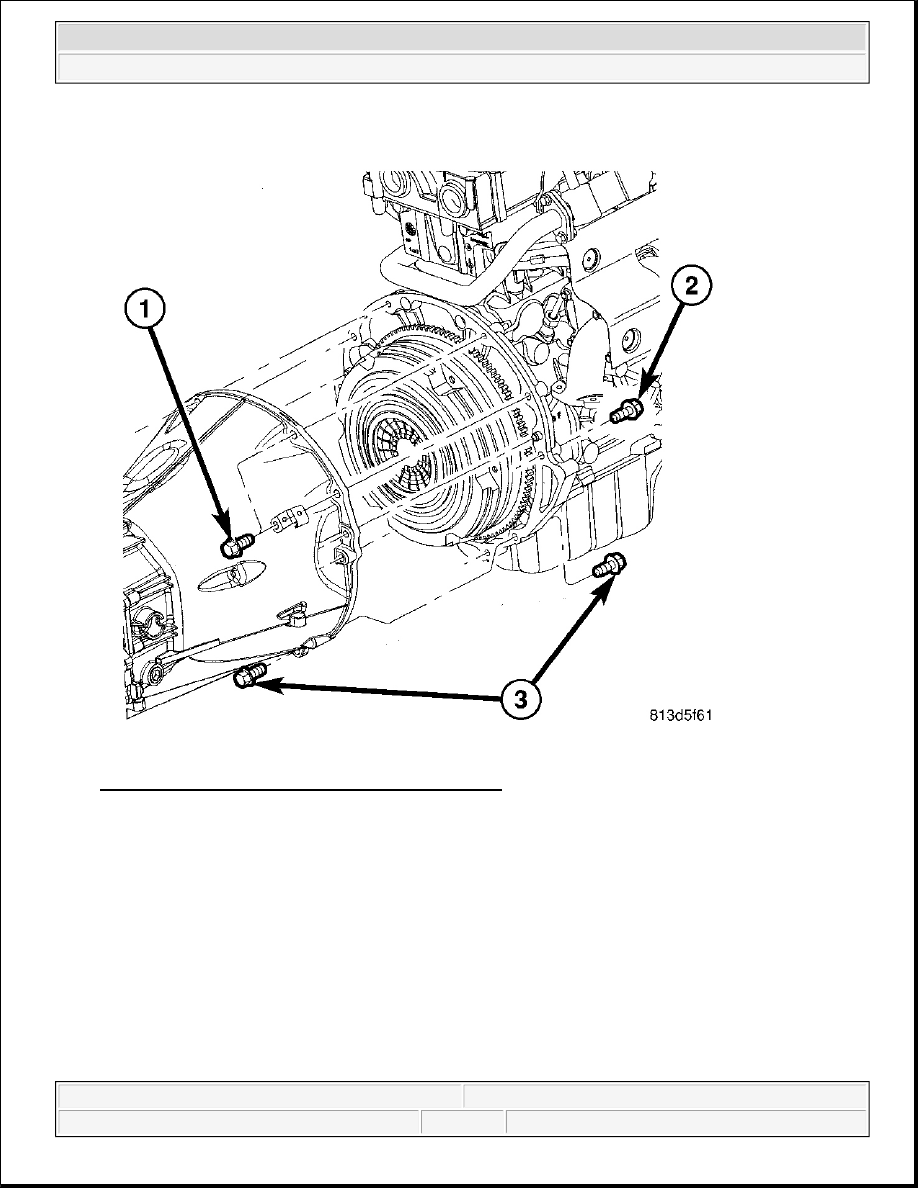

Fig. 12: Identifying Transmission Bolts (2.8L Diesel)
Courtesy of CHRYSLER LLC

16. Remove transmission bolts (1,2,3) on 2.8L diesel engine and remove transmission.

DISASSEMBLY

MANUAL TRANSMISSION - NSG370
