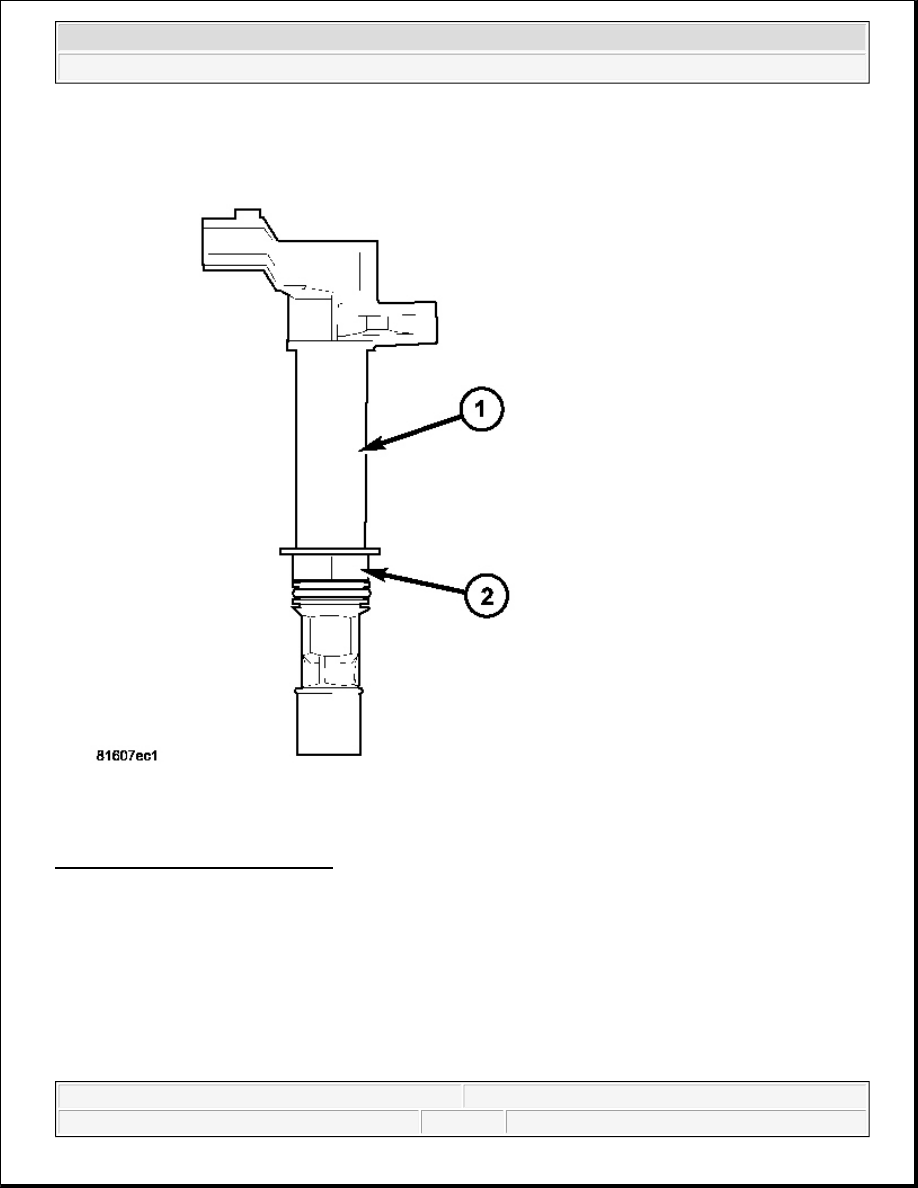

Fig. 8: Ignition Coil Seal & O-Ring
Courtesy of CHRYSLER LLC

An individual ignition coil (1) is used for each spark plug. The coil fits into machined holes in the cylinder
head. A mounting stud/nut secures each coil to the top of the intake manifold. The bottom of the coil is
equipped with a rubber boot to seal the spark plug to the coil. Inside each rubber boot is a spring. The spring is
used for a mechanical contact between the coil and the top of the spark plug. These rubber boots and springs are
a permanent part of the coil and are not serviced separately. An o-ring (2) is used to seal the coil at the opening
into the cylinder head.

1. Depending on which coil is being removed, the throttle body air intake tube or intake box may need to be



2007 Dodge Nitro R/T

2007 ENGINE Ignition Control - Service Information - Nitro



removed to gain access to coil.

2. Disconnect electrical connector from coil by pushing downward on release lock on top of connector and

pull connector from coil.

3. Clean area at base of coil with compressed air before removal.

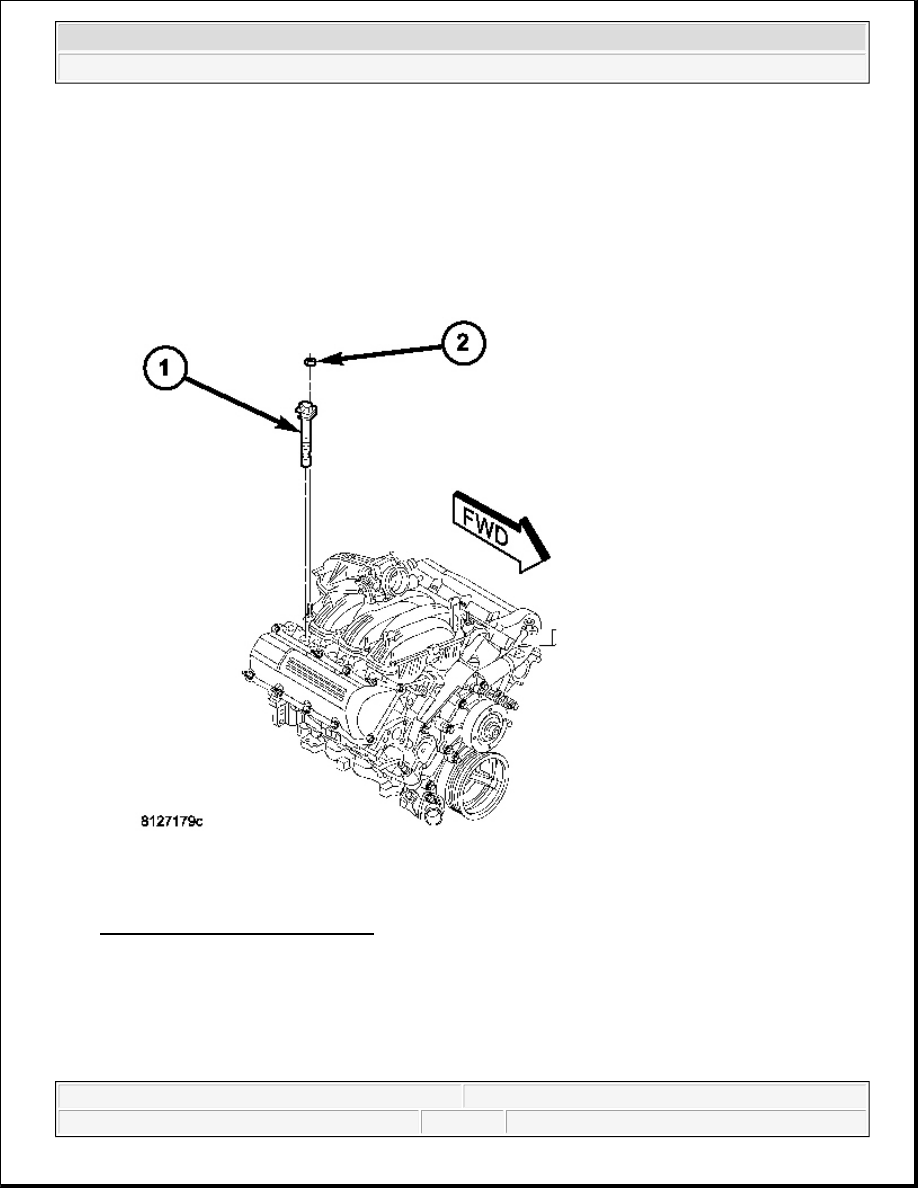

Fig. 9: Locating Ignition Coil - 3.7L
Courtesy of CHRYSLER LLC

4. Remove coil mounting nut (2) from mounting stud.

5. Carefully pull up coil from cylinder head opening with a slight twisting action.

6. Remove coil from vehicle.

COIL-IGNITION - 4.0L



2007 Dodge Nitro R/T

2007 ENGINE Ignition Control - Service Information - Nitro



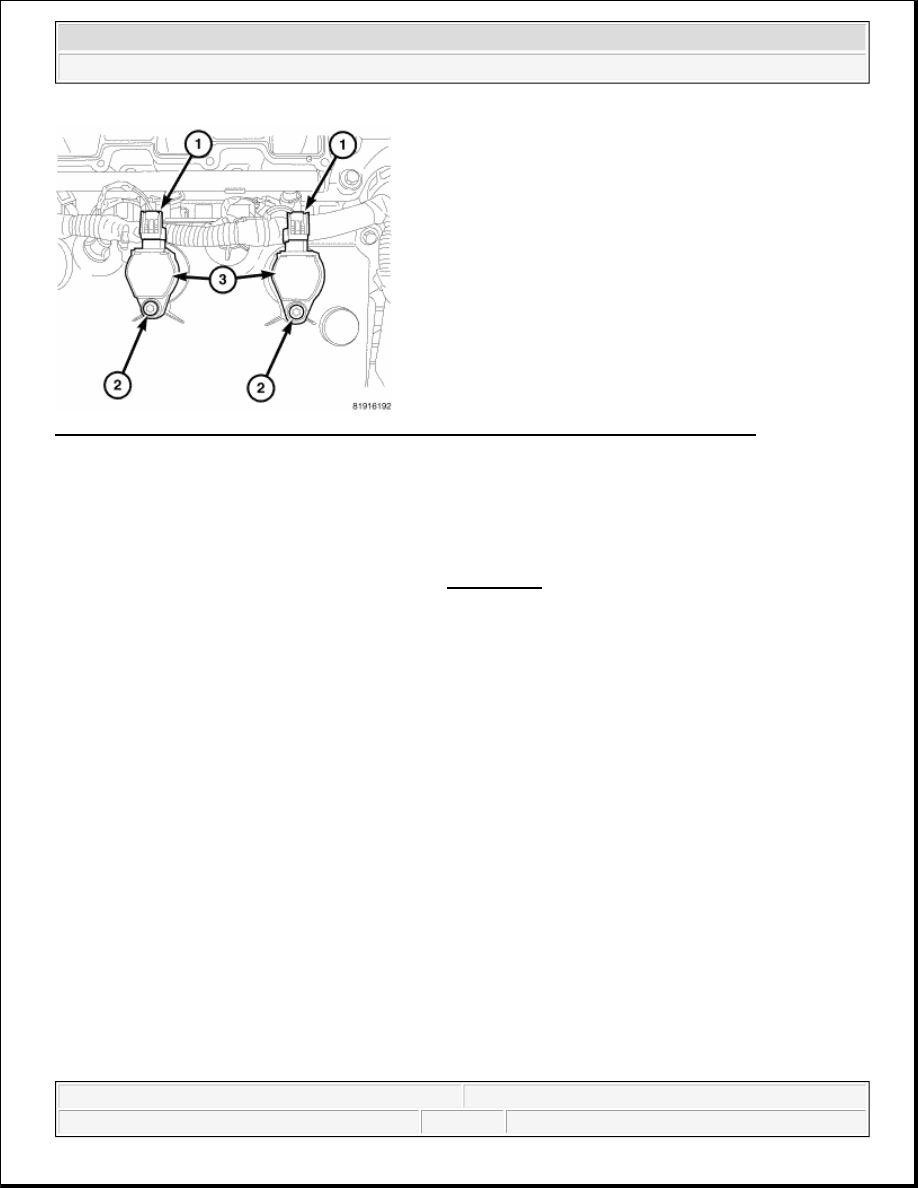

Fig. 10: Identifying Ignition Coil Electrical Connector, Coil Mounting Bolt & Ignition Coils
Courtesy of CHRYSLER LLC

Six individual ignition coils (3) are used for each of the six spark plugs.

1. Remove engine cover.

2. Disconnect negative battery cable.

3. Remove upper half of intake manifold. Refer to REMOVAL .

4. Unlock and disconnect electrical connector (1) from ignition coil(s)

5. Clean area at base of coil with compressed air before removal.

6. Remove coil mounting bolt (2).

7. Carefully pull up coil from cylinder head opening with a slight twisting action.

8. Remove coil from engine.

INSTALLATION

COIL-IGNITION - 3.7L



2007 Dodge Nitro R/T

2007 ENGINE Ignition Control - Service Information - Nitro



Fig. 11: Ignition Coil Seal & O-Ring
Courtesy of CHRYSLER LLC

1. Using compressed air, blow out any dirt or contaminants from around top of spark plug.

2. Check condition of coil O-ring (2) and replace as necessary. To aid in coil installation, apply silicone to

coil o-ring (2).
