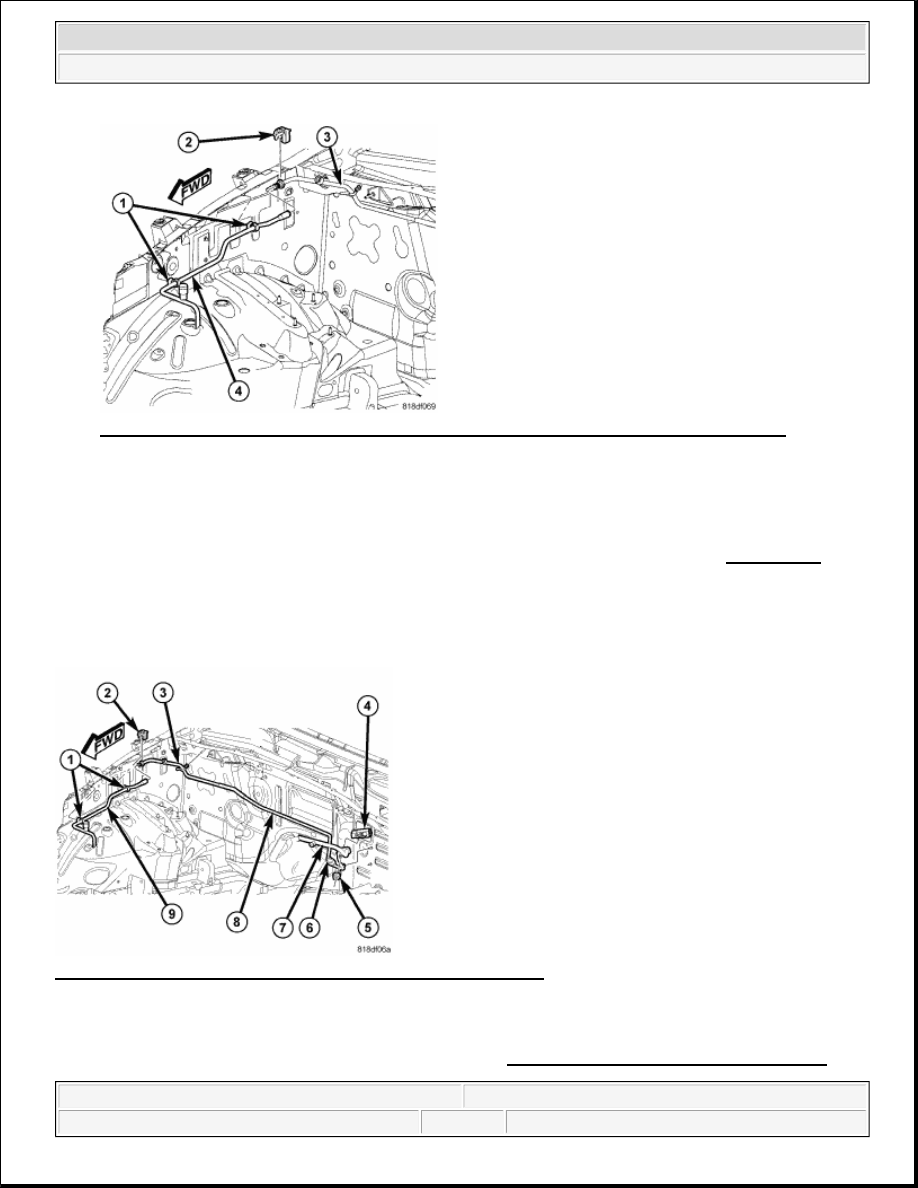

Fig. 172: Retaining Clips, Secondary Retaining Clip, A/C Liquid Line & A/C Liquid Line
Courtesy of CHRYSLER LLC

5. Disengage the front section of the A/C liquid line (4) from the two retaining clips (1) located on the right

inner fender.

6. Remove the secondary retaining clip (2) and using the proper A/C line disconnect tool, disconnect the

front section of the A/C liquid line from the rear section of the A/C liquid line (3). See REMOVAL.

7. Remove the front section of the A/C liquid line from the engine compartment and remove and discard the

O-ring seals and install plugs in, or tape over the opened refrigerant line fittings and the condenser tube.

REAR SECTION

Fig. 173: Removing/Installing RHD Liquid Lines - Rear Section
Courtesy of CHRYSLER LLC

1. Disconnect and isolate the negative battery cable.

2. Recover the refrigerant from the refrigerant system. See REFRIGERANT SYSTEM RECOVERY.



2007 Dodge Nitro R/T

2007 HVAC Heating & Air Conditioning - Service Information - Nitro



3. Remove the air cleaner housing (refer to REMOVAL for 3.7L - SERVICE INFORMATION or

REMOVAL for 4.0L - SERVICE INFORMATION ).

4. Remove the two nuts that secure the engine coolant reservoir to the dash panel and position the reservoir

out of the way.

5. Disconnect the wire harness connector from the A/C pressure transducer (6) located on the rear section of

the A/C liquid line (8) near the A/C expansion valve (4) and if required, remove the A/C pressure
transducer from the A/C liquid line. See REMOVAL for more information.

6. Remove the nut (5) that secures the A/C suction line (7) and the rear section of the A/C liquid line to the

A/C expansion valve and disconnect the lines from the valve.

7. Disengage the A/C liquid line from the retaining clips (3) located on the dash panel and the brake lines

near the brake booster.

8. Separate the A/C liquid line from the A/C suction line and disengage the A/C liquid line from the two

retaining clips (1) located on the right inner fender.

9. Remove the secondary retaining clip (2) and using the proper A/C line disconnect tool (Special Tool Kit

7193 or equivalent), disconnect the rear section of the A/C liquid line from the front section of the liquid
line (9). See REMOVAL.

10. Remove the rear section of the A/C liquid line from out of the right side of the engine compartment and

remove and discard the O-ring seals and install plugs in, or tape over the opened refrigerant line fittings
and the expansion valve ports.

LHD MODEL

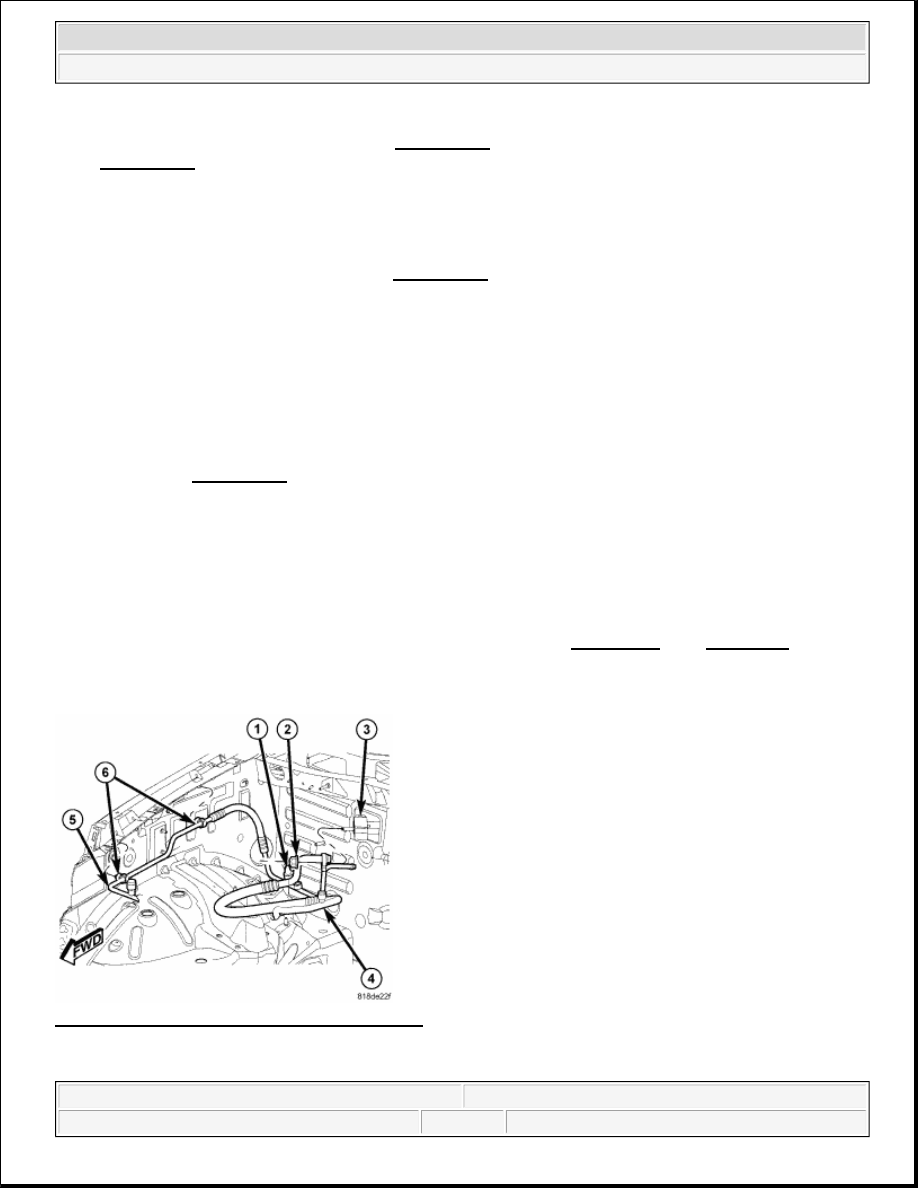

Fig. 174: Removing/Installing LHD Liquid Line
Courtesy of CHRYSLER LLC

WARNING:

Refer to the applicable warnings and cautions for this system before
performing the following operation. See WARNING, and CAUTION. Failure
to follow the warnings and cautions could result in possible personal
injury or death.



2007 Dodge Nitro R/T

2007 HVAC Heating & Air Conditioning - Service Information - Nitro



1. Disconnect and isolate the negative battery cable.

2. Recover the refrigerant from the refrigerant system. See REFRIGERANT SYSTEM RECOVERY.

3. Remove the air cleaner housing (refer toREMOVAL for 3.7L - SERVICE INFORMATION or

REMOVAL for 4.0L - SERVICE INFORMATION ).

4. Disconnect the wire harness connector from the A/C pressure transducer (1) located on the A/C liquid

line (5) near the A/C expansion valve (3) and if required, remove the A/C pressure transducer from the
A/C liquid line. See

REMOVAL

.

5. Remove the nut (2) that secures the A/C suction line (1) and the A/C liquid line (4) to the A/C expansion

valve (3) and disconnect the lines from the valve.

6. Separate the A/C liquid line from the A/C suction line and disengage the A/C liquid line from the two

retaining clips (6) located on the right inner fender.

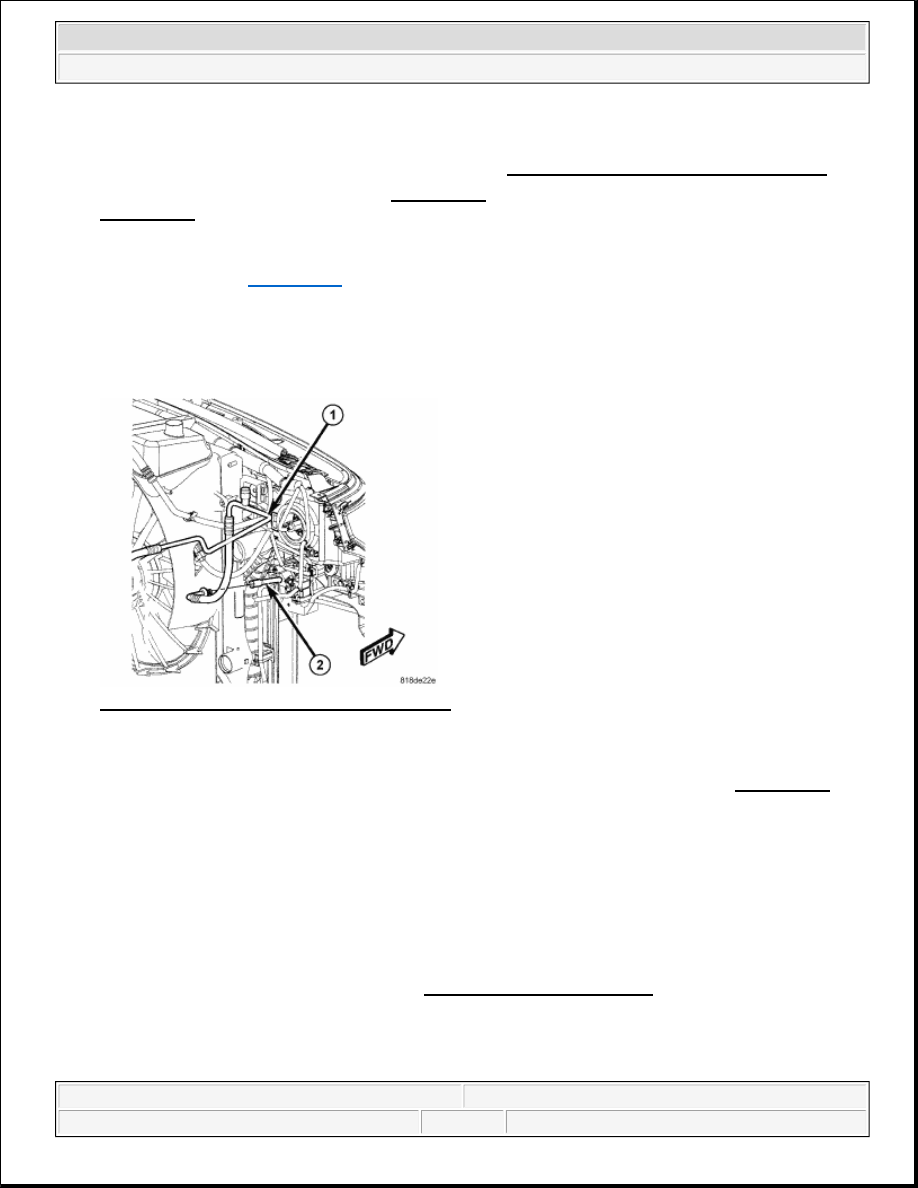

Fig. 175: A/C Liquid Line & Condenser Tube
Courtesy of CHRYSLER LLC

7. Remove the secondary retaining clip and using the proper A/C line disconnect tool (Special Tool Kit

7193 or equivalent), disconnect the A/C liquid line (1) from the condenser tube (2). See REMOVAL.

8. Remove the A/C liquid line from the engine compartment and remove and discard the O-ring seals and

install plugs in, or tape over the opened refrigerant line fittings and the condenser and expansion valve
ports.

INSTALLATION

LHD MODELS

CAUTION: Be certain to adjust the refrigerant oil level when servicing the A/C

refrigerant system. See REFRIGERANT OIL LEVEL. Failure to properly
adjust the refrigerant oil level will prevent the A/C system from operating
as designed and can cause serious A/C compressor damage.



2007 Dodge Nitro R/T

2007 HVAC Heating & Air Conditioning - Service Information - Nitro



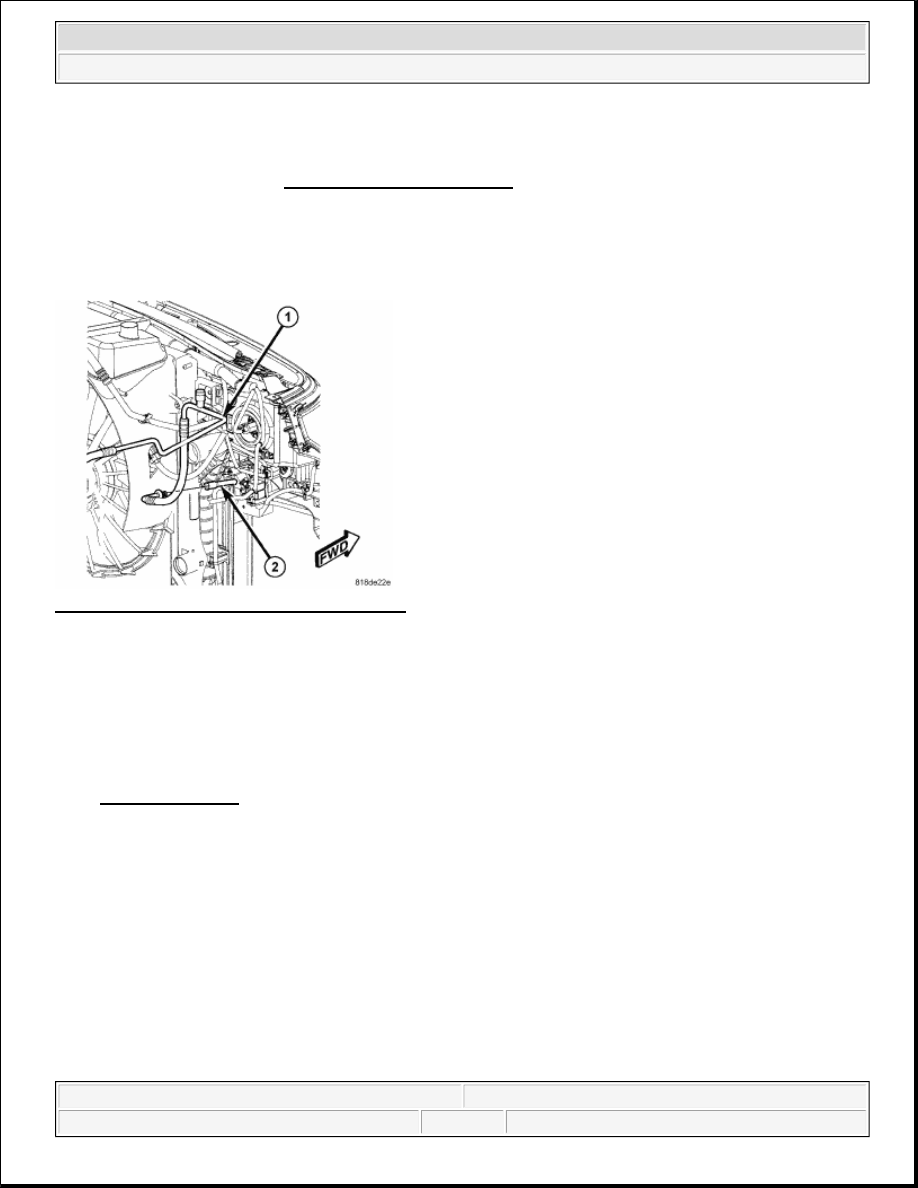

Fig. 176: A/C Liquid Line & Condenser Tube
Courtesy of CHRYSLER LLC

1. Remove the tape or plugs from the opened refrigerant line fittings and the condenser and expansion valve

ports.

2. Lubricate new rubber O-ring seals with clean refrigerant oil and install them onto the refrigerant line

fittings. Use only the specified O-rings as they are made of a special material for the R-134a system. Use
only refrigerant oil of the type recommended for the A/C compressor in the vehicle.

3. Connect the A/C liquid line (1) to the condenser tube (2) and install the secondary retaining clip. See

INSTALLATION.

NOTE:

When replacing multiple A/C system components, refer to the Refrigerant Oil
Capacities chart to determine how much oil should be added to the refrigerant
system. See REFRIGERANT OIL LEVEL.

NOTE:

Replacement of the refrigerant line O-ring seals and gaskets is required anytime
a refrigerant line is opened. Failure to replace the rubber O-ring seals and metal
gaskets could result in a refrigerant system leak.
