SYSTEM EMPTY

1. Evacuate the refrigerant system to the lowest degree of vacuum possible (approximately -88 kPa (- 26 in.

Hg) or greater vacuum). See REFRIGERANT SYSTEM EVACUATE. Determine if the system holds a
vacuum for 15 minutes. If the refrigerant system will not maintain vacuum level, proceed to step 2. If
vacuum is held, a leak is probably not present.

2. Prepare and dispense 0.284 kilograms (10 ounces) of R-134a refrigerant into the evacuated refrigerant

system. See REFRIGERANT SYSTEM CHARGE, and proceed to SYSTEM LOW .

SYSTEM LOW

1. Position the vehicle in a wind-free work area. This will aid in detecting small leaks.

2. Operate the heating-A/C system with the engine at idle under the following conditions for at least 5

minutes.

Doors or windows open

Transmission in Park or Neutral with the parking brake set (depending on transmission application)

A/C compressor engaged with A/C-heater controls set to Recirculation mode (max-A/C), full cool,
panel mode and high speed blower.

3. Shut the vehicle Off and wait 2-7 minutes. Then use an electronic leak detector that is designed to detect

R-134a refrigerant and search for leaks. Fittings, lines or components that appear to be oily usually
indicate a refrigerant leak. To inspect the A/C evaporator for leaks, insert the leak detector probe into the
passenger side floor duct. A dye for R-134a is available to aid in leak detection. Use only Chrysler
approved refrigerant dye.

STANDARD PROCEDURE

REFRIGERANT SYSTEM EVACUATE

If an A/C compressor designed to use R-134a refrigerant is left open to the atmosphere for an extended period
of time. It is recommended that the refrigerant oil be drained and replaced with new oil or a new A/C
compressor be used. This will eliminate the possibility of contaminating the refrigerant system.

If the refrigerant system has been open to the atmosphere, it must be evacuated before the system can be filled.
Moisture and air mixed with the refrigerant will raise the compressor head pressure above acceptable operating
levels. This will reduce the performance of the A/C system and damage the A/C compressor. Moisture will boil
at near room temperature when exposed to vacuum. To evacuate the refrigerant system:

CAUTION: A leak detector only designed for R-12 refrigerant will not detect

leaks in an R-134a refrigerant system.

NOTE:

Special effort must be used to prevent moisture from entering the A/C system
oil. Moisture in the oil is very difficult to remove and will cause a reliability
problem with the A/C compressor.



2007 Dodge Nitro R/T

2007 HVAC Heating & Air Conditioning - Service Information - Nitro



1. Recover the refrigerant system. See REFRIGERANT SYSTEM RECOVERY.

2. Connect a suitable charging station, refrigerant recovery machine or a manifold gauge set with vacuum

pump and refrigerant recovery equipment. See REFRIGERANT SYSTEM SERVICE EQUIPMENT.

3. Open the suction and discharge valves and start the vacuum pump. The vacuum pump should run a

minimum of 45 minutes prior to charge to eliminate all moisture in system. When the suction gauge reads
to the lowest degree of vacuum possible (approximately -88 kPa (- 26 in. Hg) or greater) for 30 minutes,
close all valves and turn off vacuum pump. If the system fails to reach specified vacuum, the refrigerant
system likely has a leak that must be corrected. If the refrigerant system maintains specified vacuum for
at least 30 minutes, start the vacuum pump, open the suction and discharge valves. Then allow the system
to evacuate an additional 10 minutes.

4. Close all valves. Turn off and disconnect the vacuum pump.

5. Charge the refrigerant system. See REFRIGERANT SYSTEM CHARGE.

REFRIGERANT SYSTEM SERVICE EQUIPMENT

NOTE:

When connecting the service equipment coupling to the line fitting, verify that
the valve of the coupling is fully closed. This will reduce the amount of effort
required to make the connection.

WARNING:

Refer to the applicable warnings and cautions for this system before
performing the following operation. See WARNING, and CAUTION. Failure
to follow the warnings and cautions could result in possible personal
injury or death.

WARNING:

Eye protection must be worn when servicing an air conditioning
refrigerant system. Turn off (rotate clockwise) all valves on the equipment
being used, before connecting to or disconnecting from the refrigerant
system. Failure to observe these warnings may result in personal injury
or death.



2007 Dodge Nitro R/T

2007 HVAC Heating & Air Conditioning - Service Information - Nitro

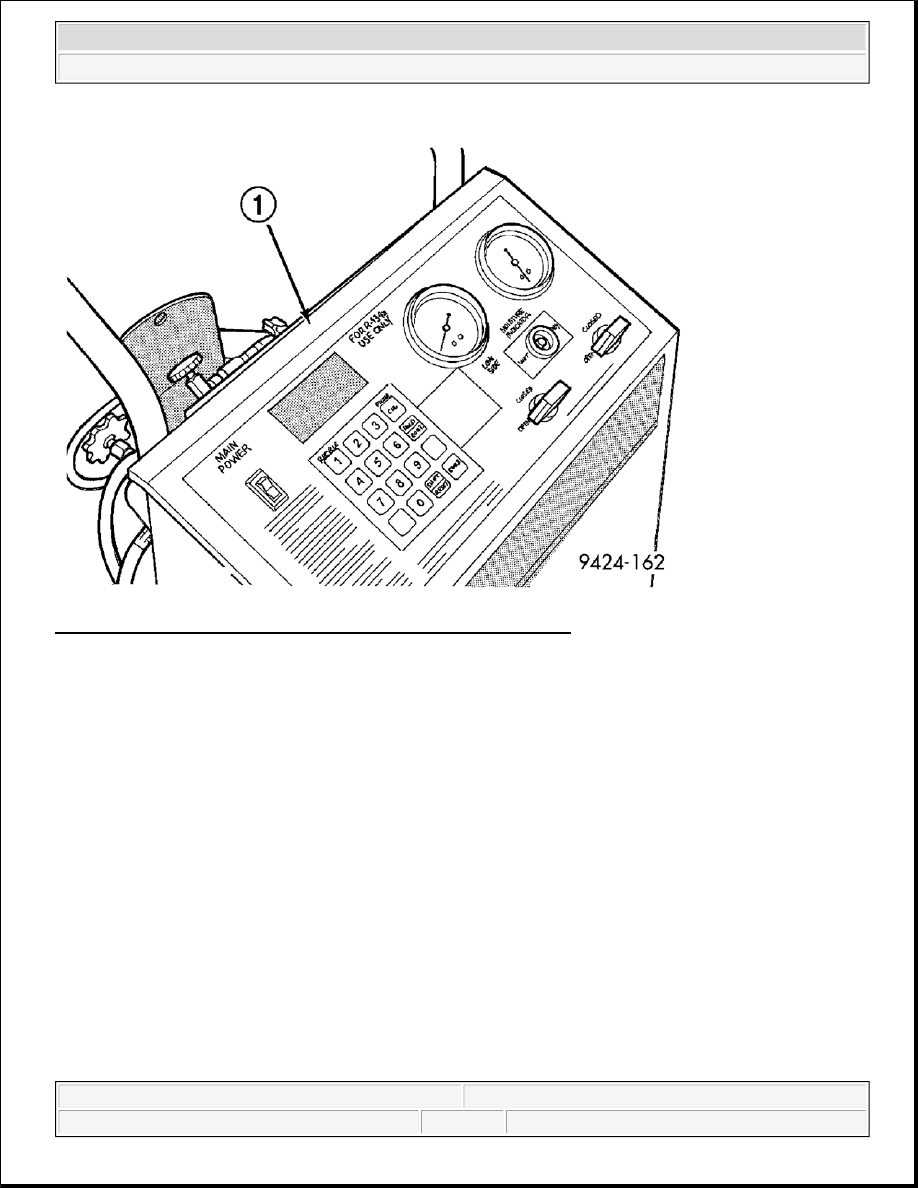

Fig. 118: R-134a Refrigerant Recovery/Recycling/Charging Station
Courtesy of CHRYSLER LLC

When servicing the A/C system, a R-134a refrigerant recovery/recycling/charging station that meets SAE
standard J2210 must be used (1). Contact an automotive service equipment supplier for refrigerant
recovery/recycling/charging equipment. Refer to the operating instructions supplied by the equipment
manufacturer for proper care and use of this equipment.



2007 Dodge Nitro R/T

2007 HVAC Heating & Air Conditioning - Service Information - Nitro

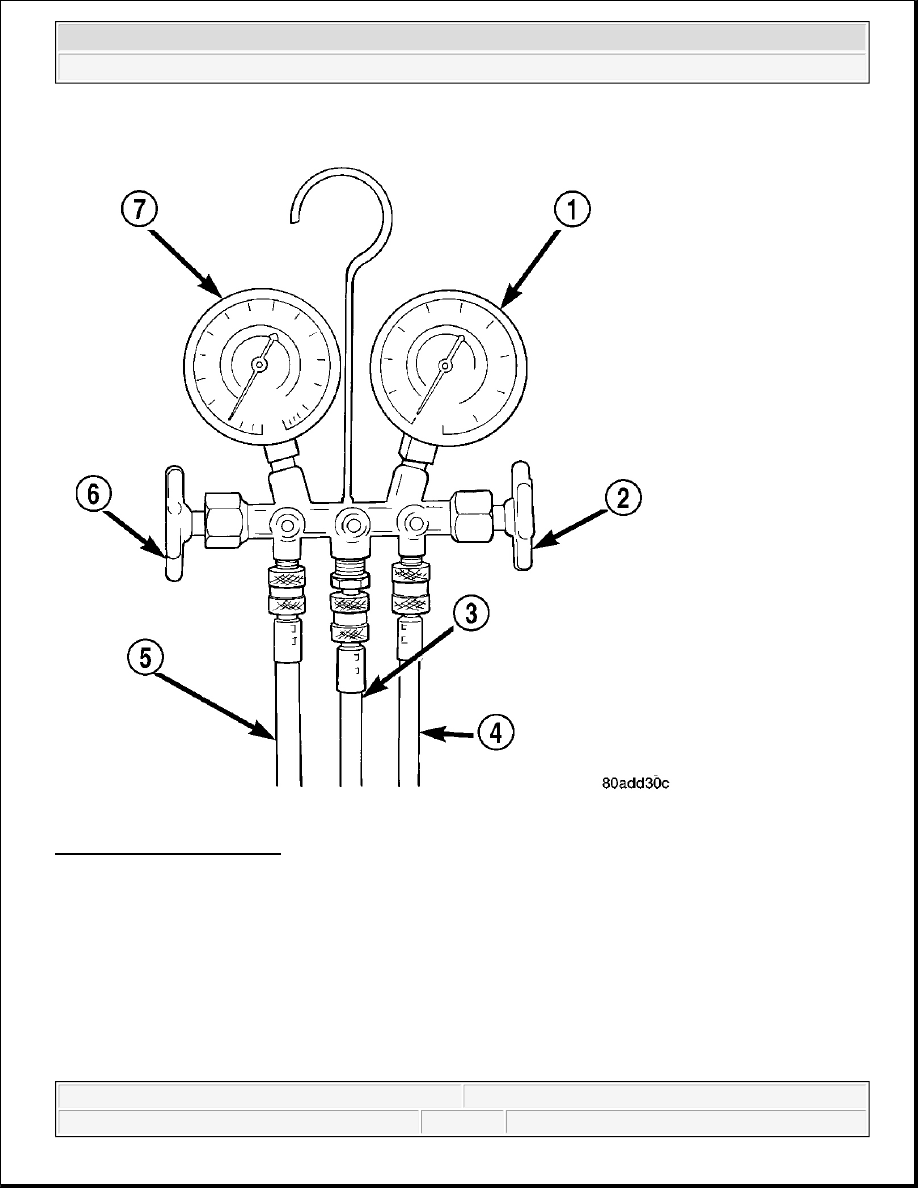

Fig. 119: Manifold Gauge Set
Courtesy of CHRYSLER LLC

A manifold gauge set (1) may be needed with some recovery/recycling/charging equipment. The manifold
gauge set should have manual shut-off valves (2 and 6), or automatic back-flow valves located at the service
port connector end of the manifold gauge set hoses (4 and 5). This will prevent refrigerant from being released
into the atmosphere.

MANIFOLD GAUGE SET CONNECTIONS

CAUTION: Do not use an R-12 manifold gauge set on an R-134a system. The

refrigerants are not compatible and system damage will result.



2007 Dodge Nitro R/T

2007 HVAC Heating & Air Conditioning - Service Information - Nitro
