Does the ohm meter read open circuit?

Yes

Repair the (C21) Evaporator Temperature Sensor Signal circuit for an open.

Perform BODY VERIFICATION TEST - VER 1 .

No

Go to 5).

5) CHECK (C121) SENSOR GROUND CIRCUIT FOR AN OPEN

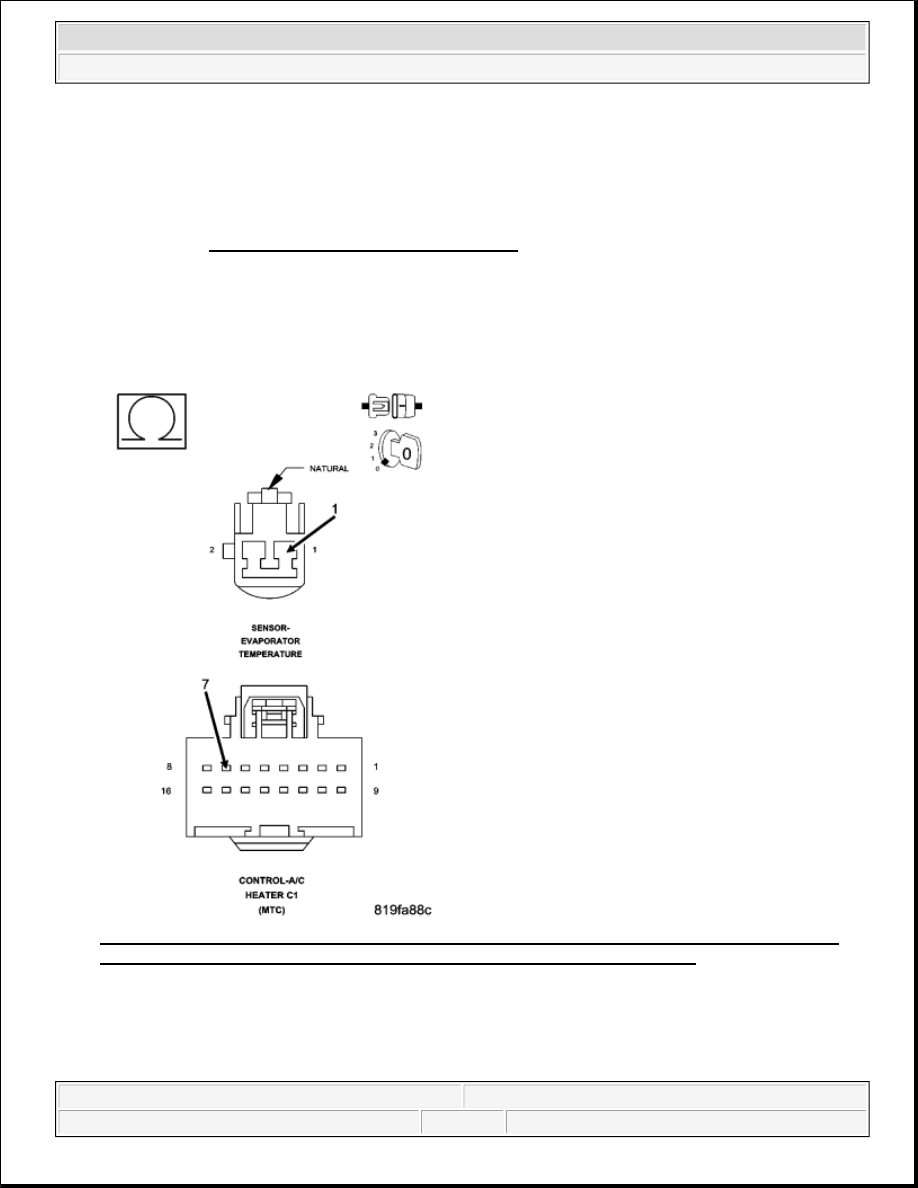

Fig. 7: Measuring Resistance Of (C121) Sensor Ground Circuit Between A/C Heater Control C1
Harness Connector And Evaporator Temperature Sensor Harness Connector
Courtesy of CHRYSLER LLC

Measure the resistance of the (C121) Sensor Ground circuit between the A/C Heater Control C1 harness
connector and the Evaporator Temperature Sensor harness connector.



2007 Dodge Nitro R/T

2007 HVAC Heating & Air Conditioning - Electrical Diagnostics - Nitro



Does the ohm meter read open circuit?

Yes

Repair the (C121) Sensor Ground circuit for an open.

Perform BODY VERIFICATION TEST - VER 1 .

No

Replace the Evaporator Temperature Sensor in accordance with the service information.

Perform BODY VERIFICATION TEST - VER 1 .

B1034-INFRARED TEMPERATURE SENSOR INPUT CIRCUIT LOW

For complete wiring diagrams refer to SYSTEM WIRING DIAGRAMS article.

When Monitored:

With the ignition on.

Set Condition:

If the IR Sensor fails the internal self test.

Diagnostic Test

1) REPLACE THE A/C HEATER CONTROL

Repair

Replace the A/C Heater Control in accordance with the service information.

Perform BODY VERIFICATION TEST - VER 1 .

B1034-INFRARED TEMPERATURE SENSOR THERMISTOR CIRCUIT LOW

For complete wiring diagrams refer to SYSTEM WIRING DIAGRAMS article.

When Monitored:

Possible Causes

A/C HEATER CONTROL

NOTE:

This DTC must be active for the results of this test to be valid. Do not perform
this test if this DTC is stored. Refer to HVAC System Test (ATC) for stored DTC
test procedures.



2007 Dodge Nitro R/T

2007 HVAC Heating & Air Conditioning - Electrical Diagnostics - Nitro



With the ignition on.

Set Condition:

If the IR Sensor fails the internal self test.

Diagnostic Test

1) REPLACE THE A/C HEATER CONTROL

Repair

Replace the A/C Heater Control in accordance with the service information.

Perform BODY VERIFICATION TEST - VER 1 .

B1035-INFRARED TEMPERATURE SENSOR INPUT CIRCUIT HIGH

For complete wiring diagrams refer to SYSTEM WIRING DIAGRAMS article.

When Monitored:

With the ignition on.

Set Condition:

If the IR Sensor fails the internal self test.

Diagnostic Test

1) REPLACE THE A/C HEATER CONTROL

Possible Causes

A/C HEATER CONTROL

NOTE:

This DTC must be active for the results of this test to be valid. Do not perform
this test if this DTC is stored. Refer to HVAC System Test (ATC) for stored DTC
test procedures.

Possible Causes

A/C HEATER CONTROL

NOTE:

This DTC must be active for the results of this test to be valid. Do not perform
this test if this DTC is stored. Refer to HVAC System Test (ATC) for stored DTC
test procedures.



2007 Dodge Nitro R/T

2007 HVAC Heating & Air Conditioning - Electrical Diagnostics - Nitro



Repair

Replace the A/C Heater Control in accordance with the service information.

Perform BODY VERIFICATION TEST - VER 1 .

B1040-PANEL MODE DOOR 1 CONTROL CIRCUIT/PERFORMANCE
