Replace the A/C Heater Control in accordance with the service information.

Perform BODY VERIFICATION TEST - VER 1 .

No

Perform BODY VERIFICATION TEST - VER 1 .

B1015-REAR DEFROST SWITCH REQUEST INPUT CIRCUIT/PERFORMANCE

For complete wiring diagrams refer to SYSTEM WIRING DIAGRAMS article.

The switch input changes when the switch is pushed down. A stored DTC indicates that the rear defrost switch
was stuck in a pushed position for more than 10 minutes, but has since returned to its normal state. An active
DTC indicates that the rear defrost switch is stuck in a pushed position.

When Monitored:

With the ignition on.

Set Condition:

If the rear defrost switch is detected in a pushed position for more than 10 minutes.

Diagnostic Test

1) VERIFY THE DTC IS STILL ACTIVE

Turn the ignition on.

With the scan tool, erase HVAC DTCs.

Turn the ignition off, wait 10 seconds, and then turn the ignition on. Wait 10 minutes before proceeding.

With the scan tool, read HVAC DTCs.

Does the scan tool display this DTC?

Yes

Go to 2).

Possible Causes

OBJECT HOLDING REAR DEFROST SWITCH IN A PUSHED POSITION
SUBSTANCE CAUSING REAR DEFROST SWITCH TO GET STUCK IN A PUSHED POSITION
A/C HEATER CONTROL



2007 Dodge Nitro R/T

2007 HVAC Heating & Air Conditioning - Electrical Diagnostics - Nitro



No

The condition that caused this symptom is currently not present. Check for an intermittent
condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken
wires. Also, inspect the related connectors for broken, bent, pushed out, spread, corroded, or
contaminated terminals. Repair as necessary.

Perform BODY VERIFICATION TEST - VER 1 .

2) CHECK FOR NORMAL REAR DEFROST SWITCH & STATUS INDICATOR FUNCTION

Set the Blower control to any position except Off.

Set the Mode control to any position except Auto.

Press the Rear Defrost switch on and off several times while observing the Rear Defrost status indicator.

Does the Rear Defrost status indicator turn on and off?

Yes

Go to 4).

No

Go to 3).

3) INSPECT FOR OBJECT OR SUBSTANCE CAUSING THE REAR DEFROST SWITCH TO
STAY OR STICK IN A PUSHED POSITION

Inspect the A/C Heater Control for anything that would cause the Rear Defrost switch to stay or stick in a
pushed position.

Is anything present that would cause the Rear Defrost switch to stay or stick in a pushed position?

Yes

Repair as necessary.

Perform BODY VERIFICATION TEST - VER 1 .

No

Go to 4).

4) INSPECT THE A/C HEATER CONTROL FOR DAMAGE

Inspect the A/C Heater Control for damage.

Is the A/C Heater Control damaged?



2007 Dodge Nitro R/T

2007 HVAC Heating & Air Conditioning - Electrical Diagnostics - Nitro



Yes

Replace the A/C Heater Control in accordance with the service information.

Perform BODY VERIFICATION TEST - VER 1 .

No

Perform BODY VERIFICATION TEST - VER 1 .

B1031-EVAPORATOR FIN TEMPERATURE SENSOR CIRCUIT LOW



2007 Dodge Nitro R/T

2007 HVAC Heating & Air Conditioning - Electrical Diagnostics - Nitro



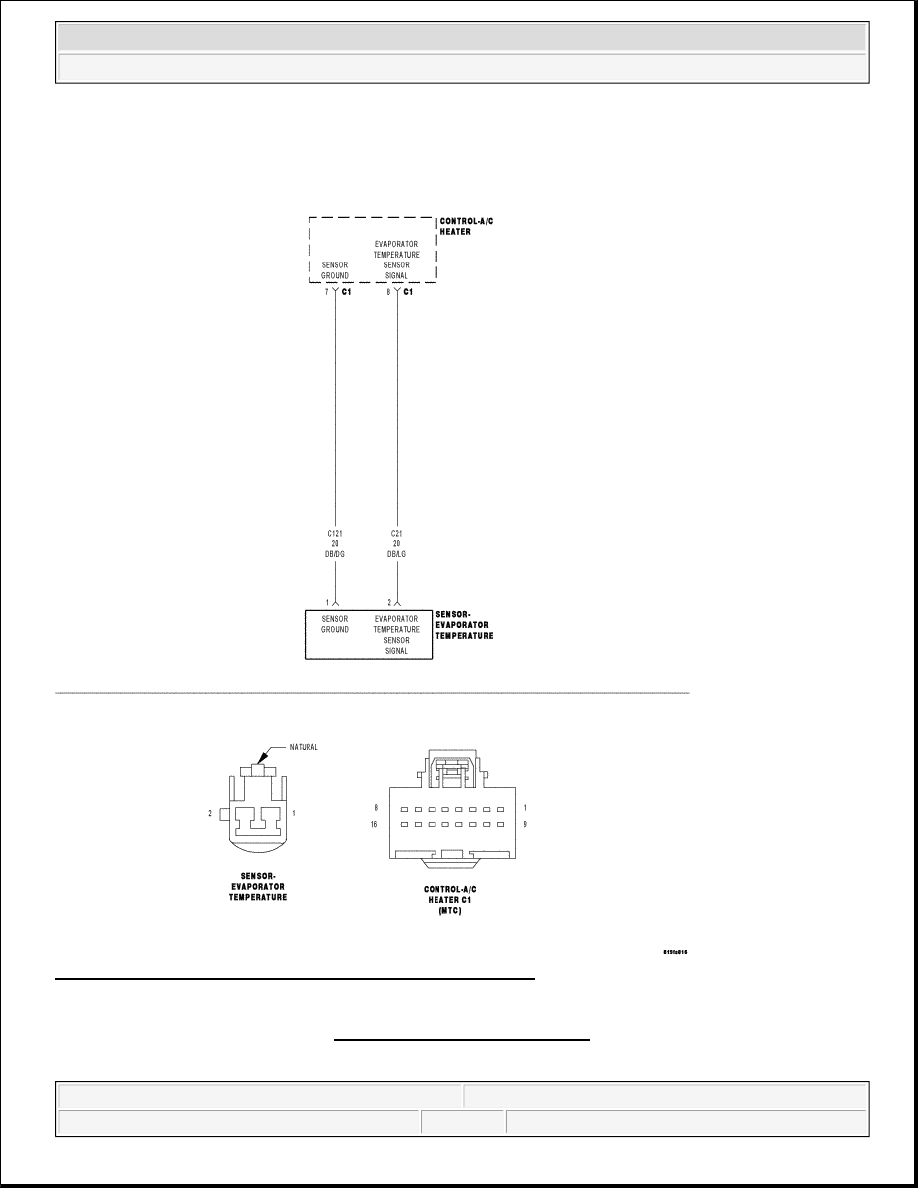

Fig. 1: Evaporator Fin Temperature Sensor Circuit Schematic
Courtesy of CHRYSLER LLC

For complete wiring diagrams refer to SYSTEM WIRING DIAGRAMS article.

When Monitored:
