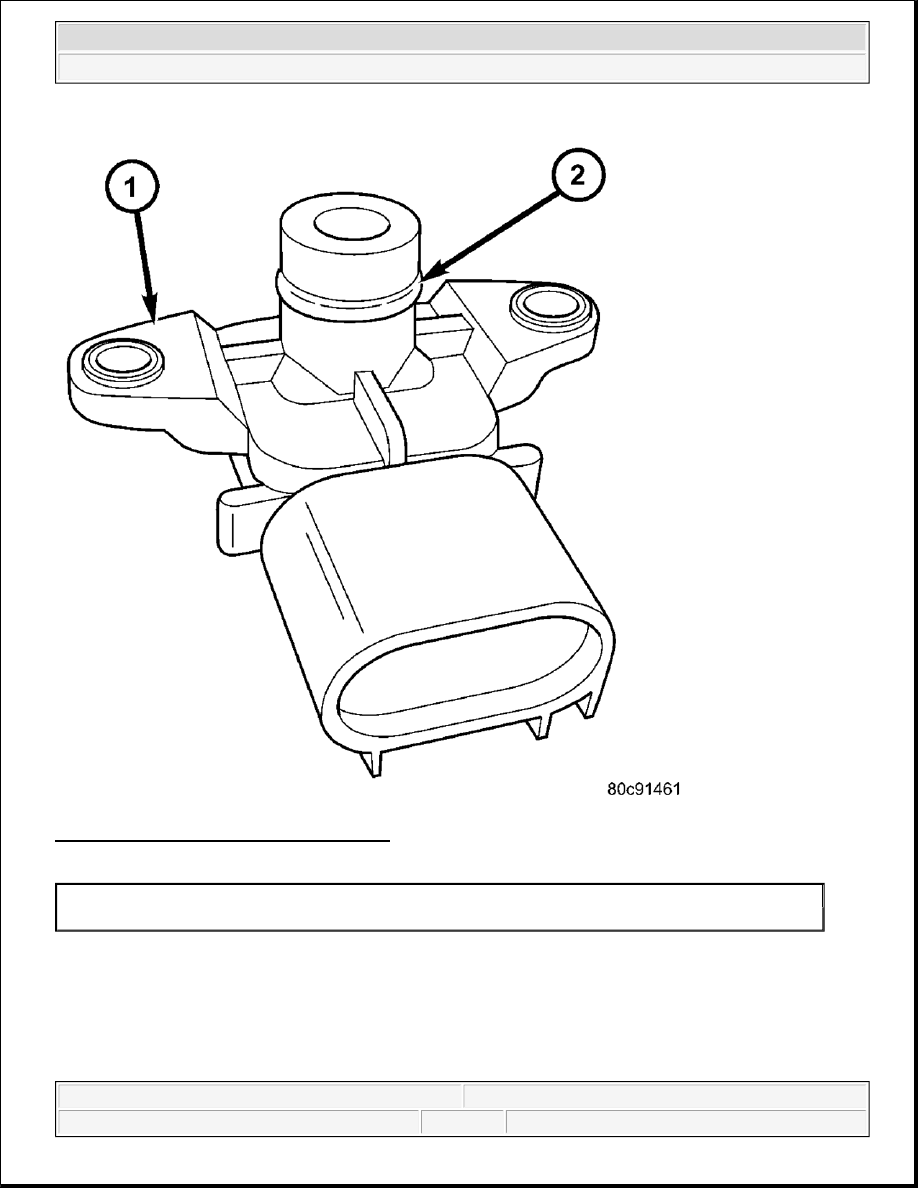

Fig. 103: Identifying MAP Sensor & O-ring
Courtesy of CHRYSLER LLC

5. Check condition of sensor o-ring (2)

INSTALLATION

INSTALLATION

1 - MAP SENSOR
2 - O-RING



2007 Dodge Nitro R/T

2007 ENGINE Fuel System - Nitro



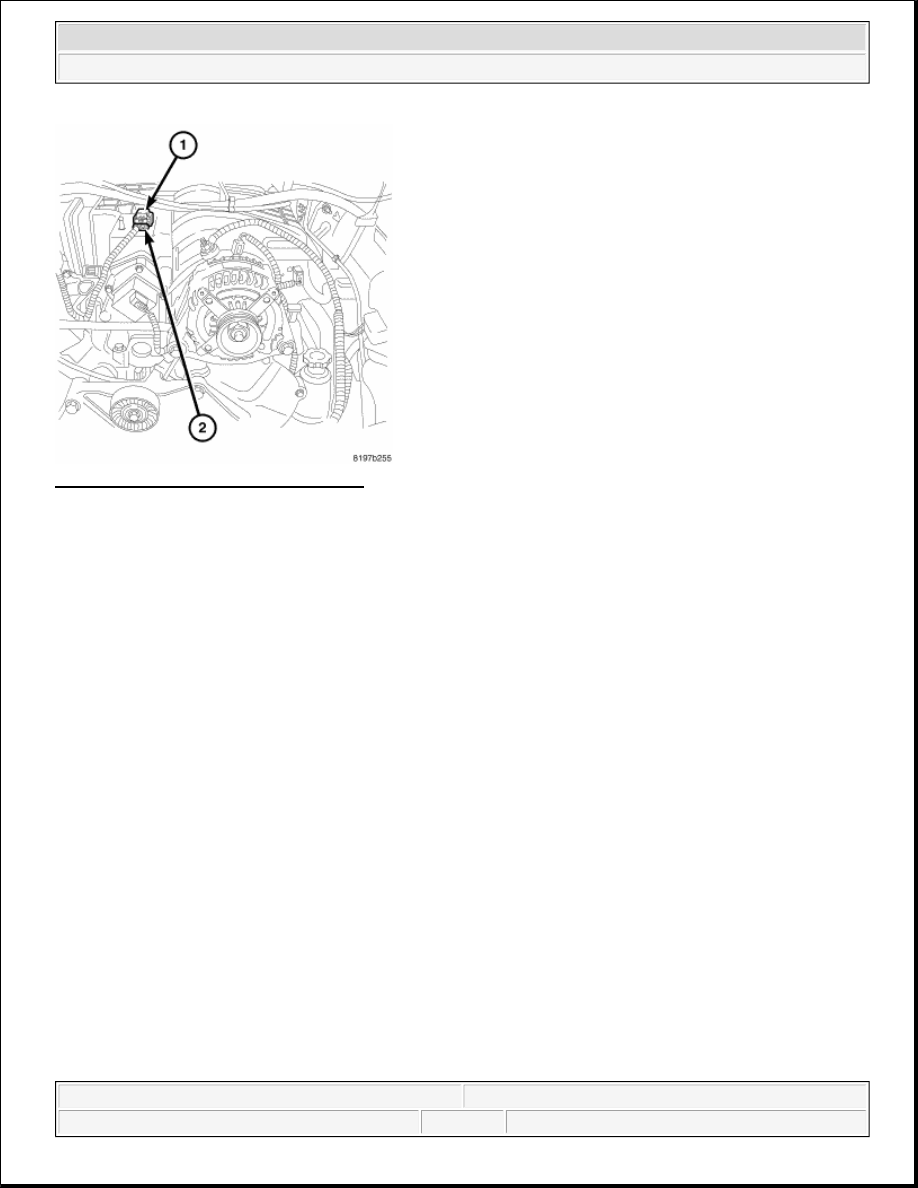

Fig. 104: Identifying MAP Sensor - 4.0L
Courtesy of CHRYSLER LLC

The Manifold Absolute Pressure (MAP) sensor (2) is mounted into the top/front of the upper half of the intake
manifold.

An O-ring is used to seal the sensor to the intake manifold.

1. Check condition of sensor O-ring.

2. Position MAP sensor into intake manifold. Note locating tangs.

3. Rotate sensor 1/4 turn clockwise.

4. Connect electrical connector (1) at sensor (2).

MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR



2007 Dodge Nitro R/T

2007 ENGINE Fuel System - Nitro



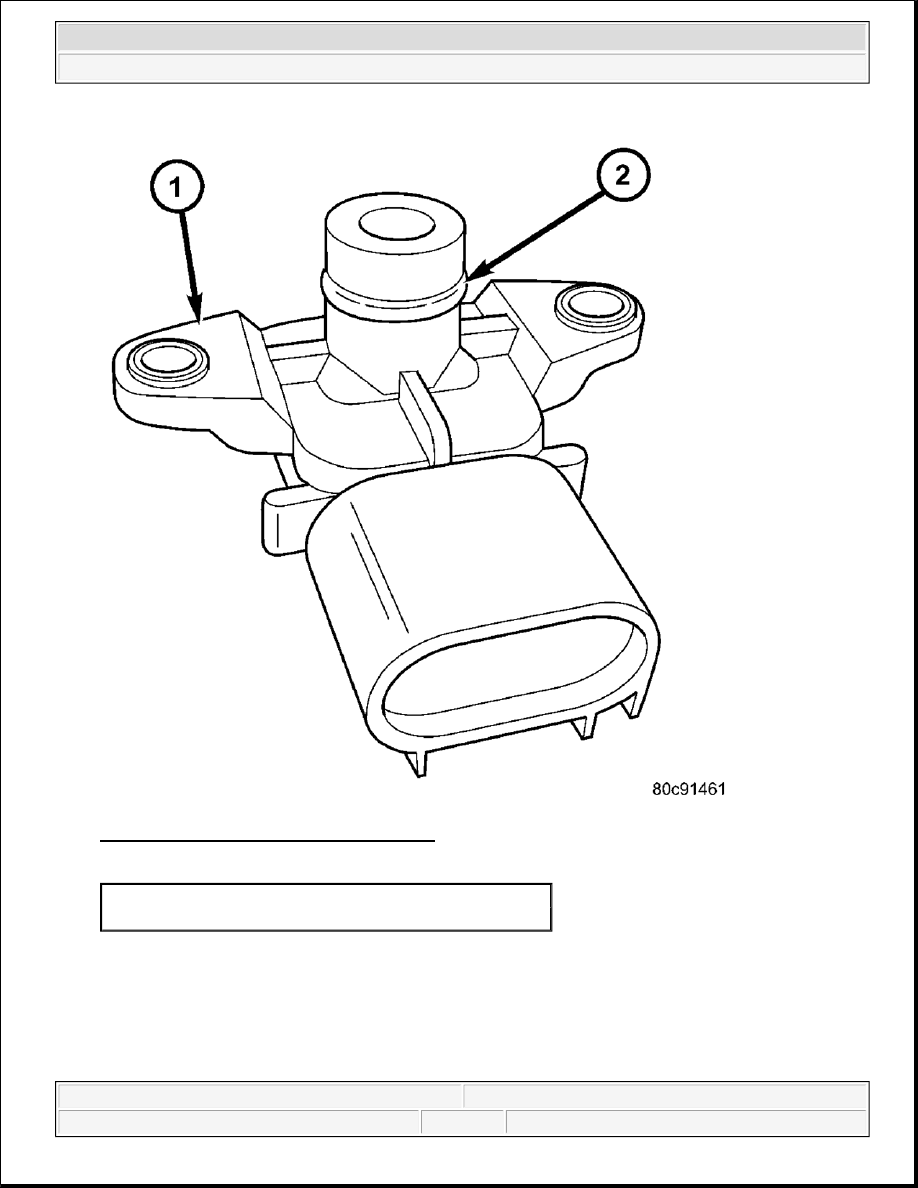

Fig. 105: Identifying MAP Sensor & O-ring
Courtesy of CHRYSLER LLC

1. Clean MAP sensor mounting hole at intake manifold.

2. Check MAP sensor o-ring seal (2) for cuts or tears.

1 - MAP SENSOR
2 - O-RING



2007 Dodge Nitro R/T

2007 ENGINE Fuel System - Nitro



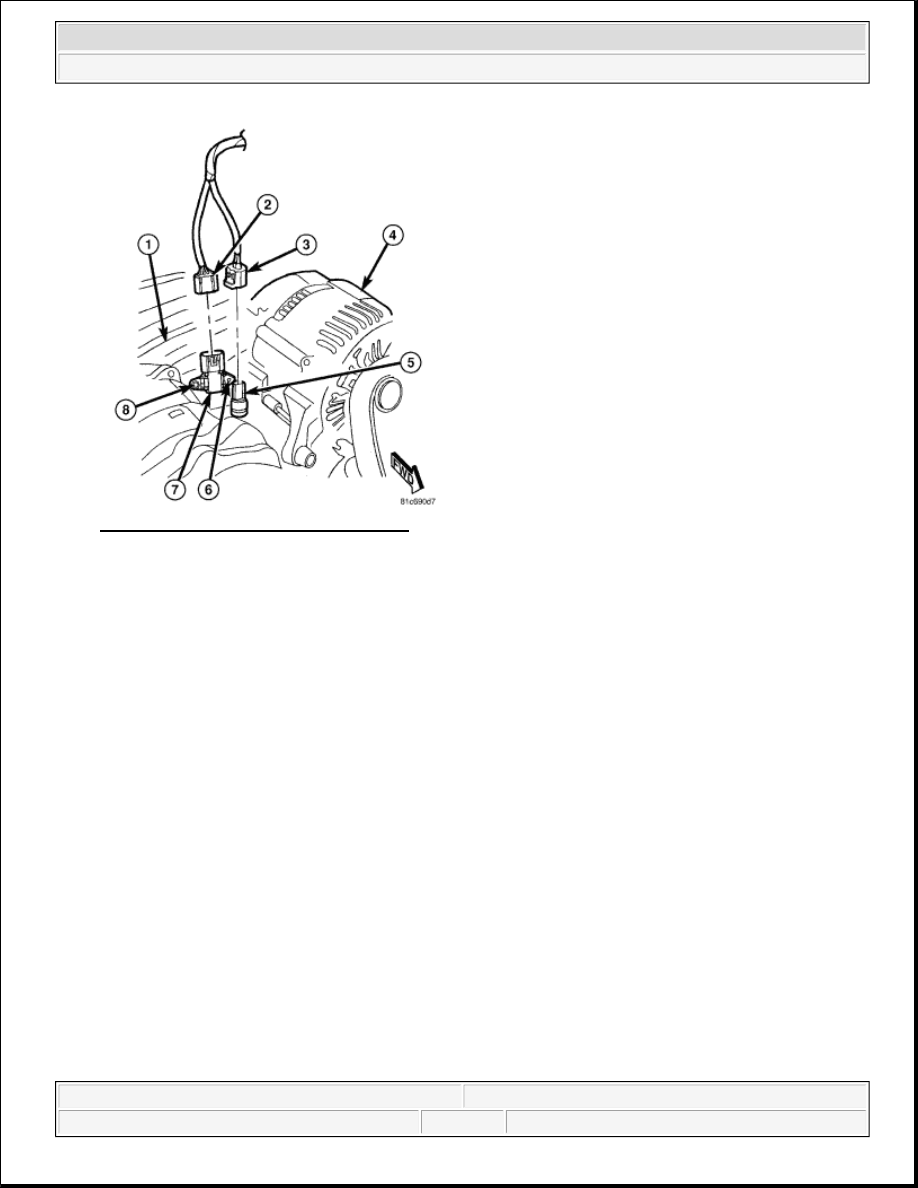

Fig. 106: Identifying MAP Sensor - 3.7L
Courtesy of CHRYSLER LLC

3. Position MAP sensor into manifold by sliding sensor over locating pin (6).

4. Install mounting bolt (8). Tighten to 3 N.m (25 in. lbs.) torque.

5. Connect electrical connector (2).

SENSOR - OXYGEN

REMOVAL

REMOVAL - 3.7L
