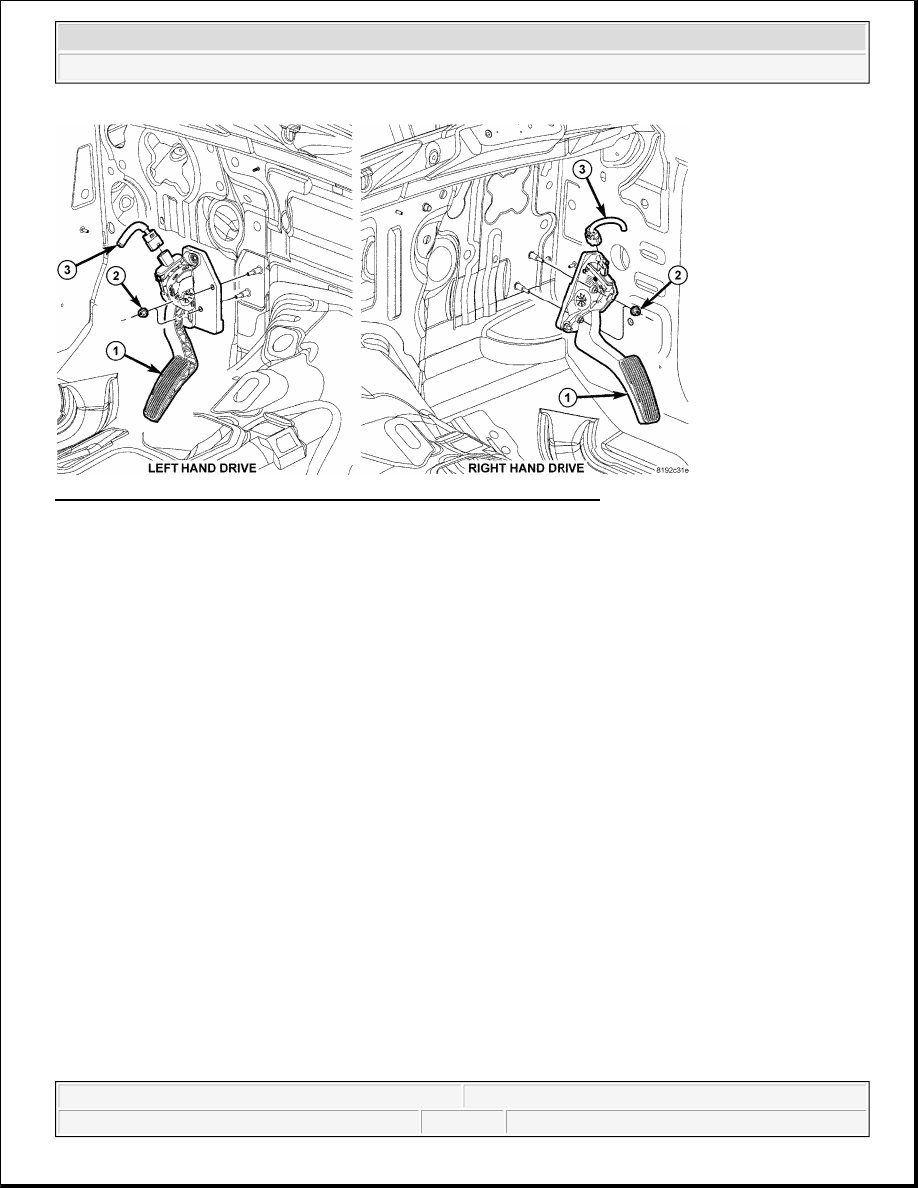

Fig. 88: Accelerator Pedal - Without Accelerator Pedal Position Sensor
Courtesy of CHRYSLER LLC

The accelerator pedal and APPS (Accelerator Pedal Position Sensor) are serviced as a complete assembly
including the bracket.

1. Position accelerator pedal/APPS assembly over two mounting studs.

2. Install two accelerator pedal mounting bracket nuts (2).

3. Connect electrical connector (3) at APPS.

4. Before starting engine, operate accelerator pedal to check for any binding.

SENSOR - ACCELERATOR PEDAL POSITION

DESCRIPTION

DESCRIPTION



2007 Dodge Nitro R/T

2007 ENGINE Fuel System - Nitro



Fig. 89: Accelerator Pedal - Without Accelerator Pedal Position Sensor
Courtesy of CHRYSLER LLC

The accelerator pedal and APPS (Accelerator Pedal Position Sensor) are serviced as a complete assembly
including the bracket. Refer to Accelerator Pedal Removal and Installation procedures.

SENSOR-CRANKSHAFT POSITION

REMOVAL

CRANKSHAFT POSITION (CKP) SENSOR-3.7L



2007 Dodge Nitro R/T

2007 ENGINE Fuel System - Nitro



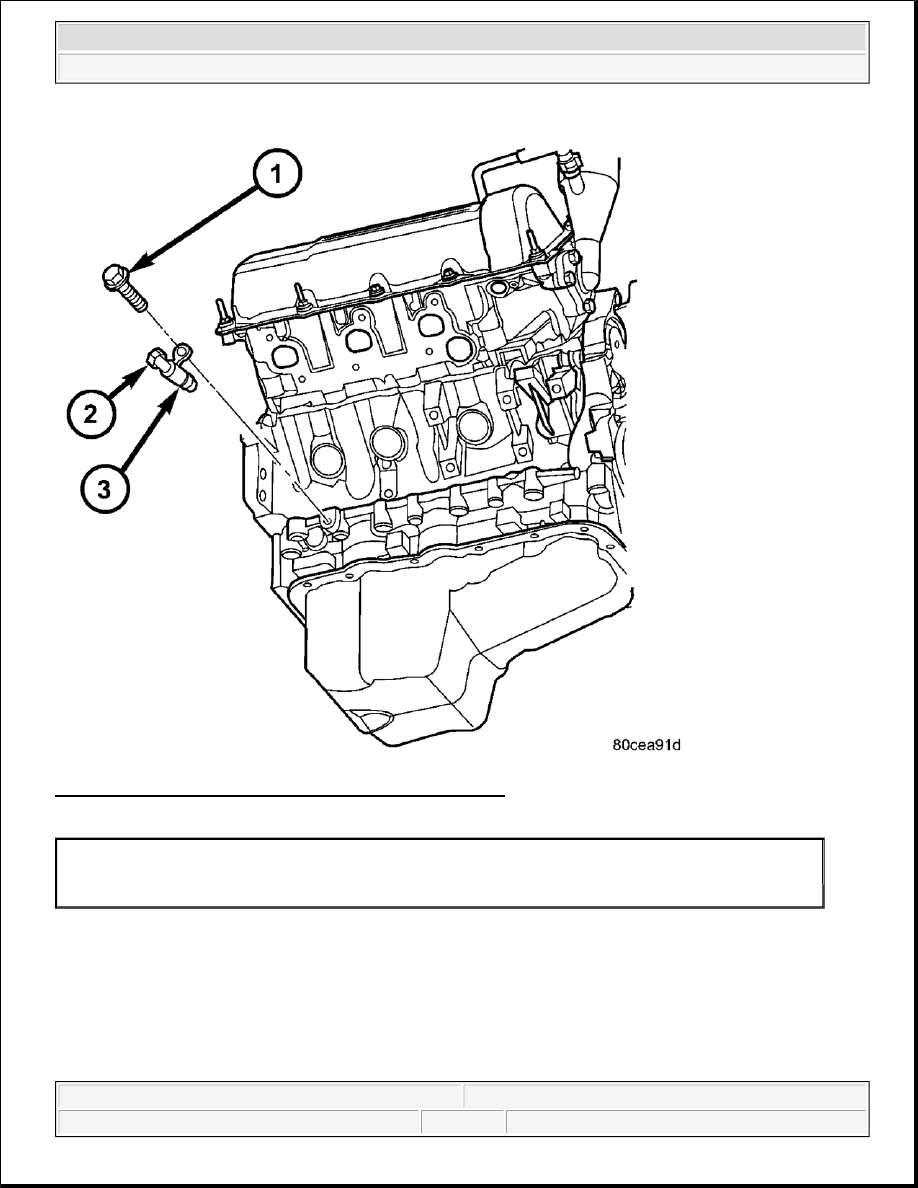

Fig. 90: Identifying CKP Sensor, O-Ring & Mounting Bolt
Courtesy of CHRYSLER LLC

The Crankshaft Position (CKP) sensor (2) is mounted into the right rear side of the cylinder block. It is
positioned and bolted into a machined hole.

1. Raise vehicle.

2. Disconnect sensor electrical connector.

3. Remove sensor mounting bolt (1).

1 - MOUNTING BOLT
2 - CKP SENSOR
3 - O-RING



2007 Dodge Nitro R/T

2007 ENGINE Fuel System - Nitro



4. Carefully twist sensor from cylinder block.

5. Check condition of sensor o-ring (3).

REMOVAL - 4.0L

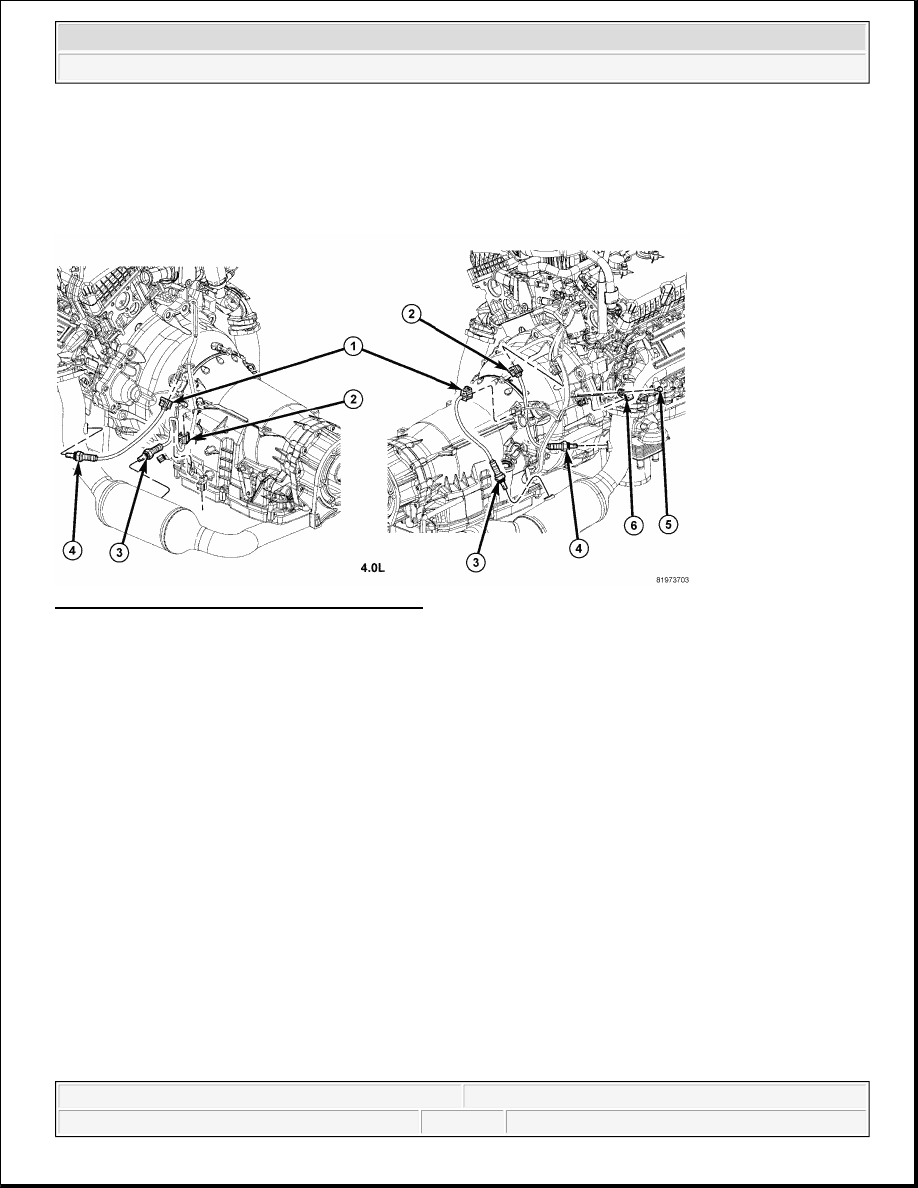

Fig. 91: Identifying CKP/Oxygen Sensors - 4.0L
Courtesy of CHRYSLER LLC

The Crankshaft Position (CKP) sensor (6) is mounted into the right side of the transmission bellhousing. It is
positioned and bolted into a machined hole.

1. Raise vehicle.

2. Disconnect sensor electrical connector.

3. Remove sensor mounting bolt (5).

4. Carefully twist sensor from transmission.

INSTALLATION

CRANKSHAFT POSITION (CKP) SENSOR-3.7L



2007 Dodge Nitro R/T

2007 ENGINE Fuel System - Nitro
