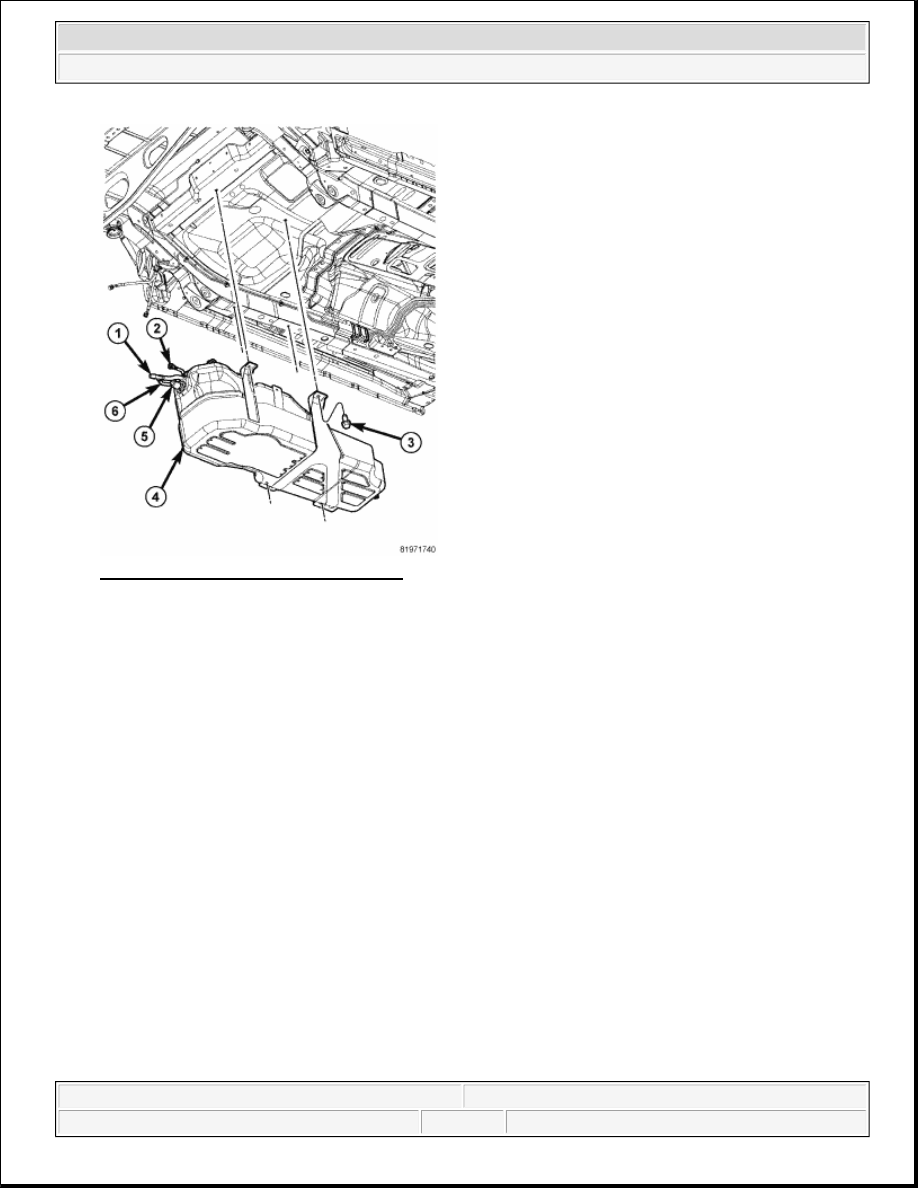

Fig. 35: Removing/Installing Fuel Tank
Courtesy of CHRYSLER LLC

4. Install tank mounting bolts (3) at both sides of tank. Tighten to 61 N.m (45 ft. lbs.).



2007 Dodge Nitro R/T

2007 ENGINE Fuel System - Nitro

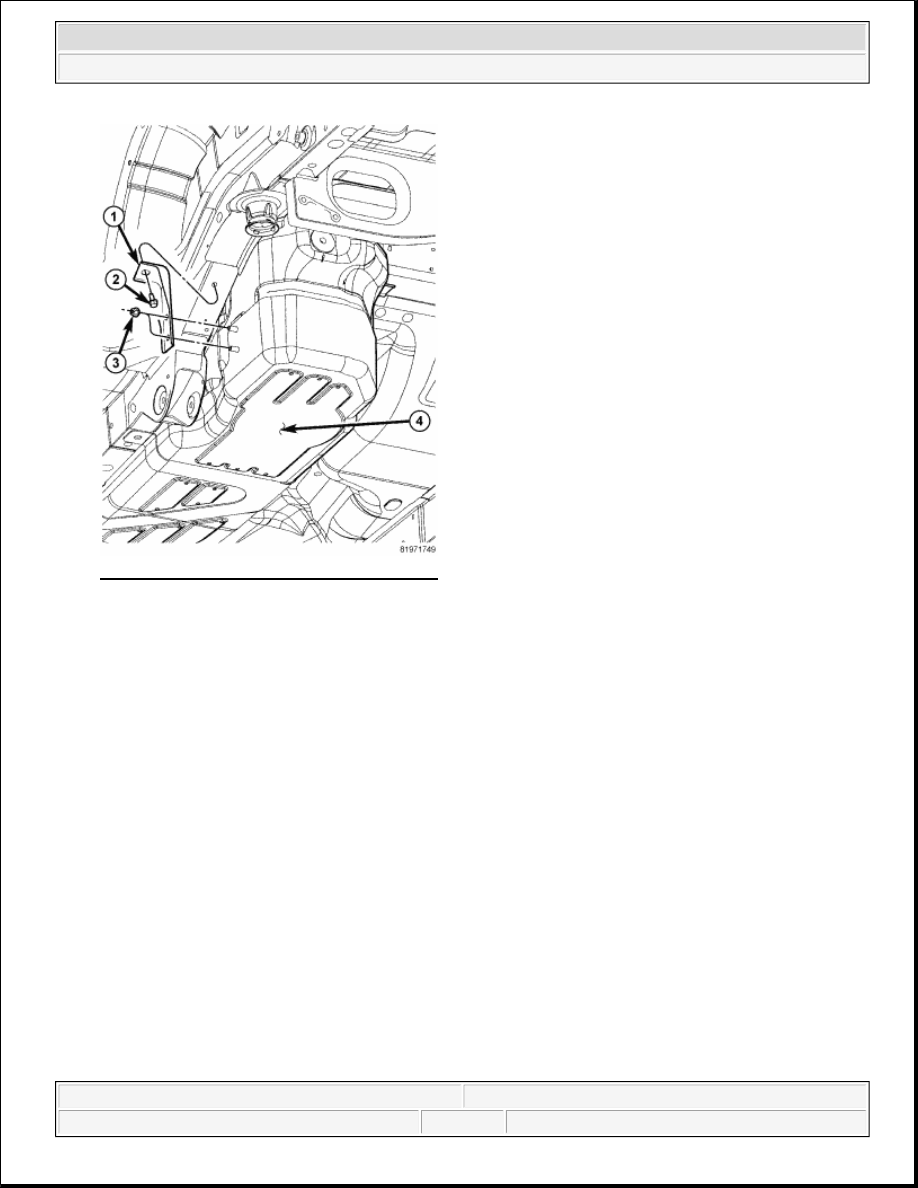

Fig. 36: Tank Support Bracket, Bolt & Nuts
Courtesy of CHRYSLER LLC

5. Tighten two nuts (3) at tank support bracket (1) to 61 N.m (45 ft. lbs.).

6. Install bolt (2). Tighten to 61 N.m (45 ft. lbs.).

7. Install rear propshaft.



2007 Dodge Nitro R/T

2007 ENGINE Fuel System - Nitro

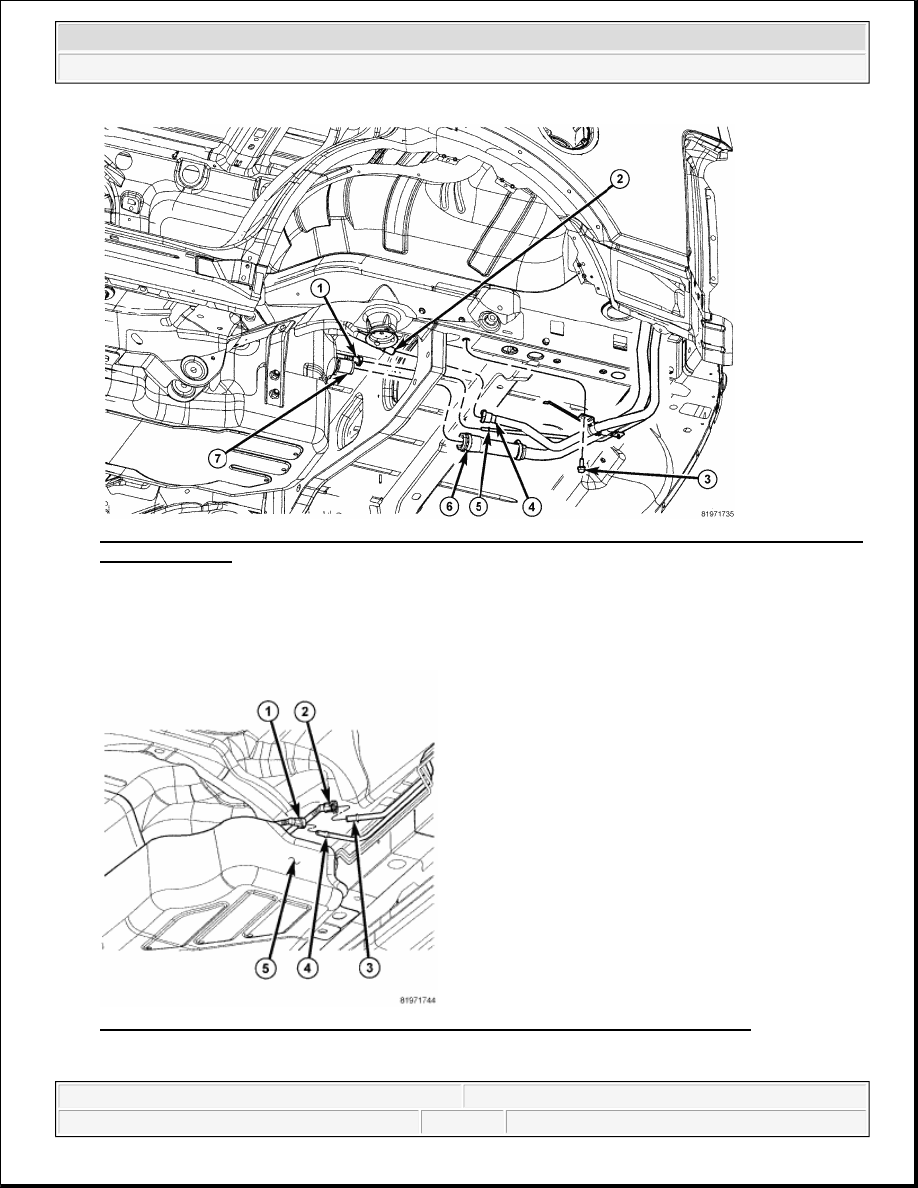

Fig. 37: Disconnecting/Connecting Vapor Lines And At Rear Of Tank & Fuel Fill Hose And Clamp
At Rear Of Tank

Courtesy of CHRYSLER LLC

8. Connect vapor lines (4) and (5) at rear of tank.

9. Connect fuel fill hose and clamp (6) at rear of tank.

Fig. 38: Disconnecting Fuel Line Quick Connect Fittings And At Front Of Fuel Tank
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 ENGINE Fuel System - Nitro



10. Connect fuel line quick connect fittings (1) and (2) at front of fuel tank (5).

11. Lower vehicle, fill tank with fuel and install fuel fill cap.

12. Check for fuel leaks.

FUEL DELIVERY - 2.8L DIESEL

WARNING

HIGH FUEL SYSTEM PRESSURE

DIAGNOSIS AND TESTING

FUEL SUPPLY RESTRICTIONS

LOW-PRESSURE LINES

Fuel supply line restrictions or a restricted fuel filter can cause starting problems and prevent engine from
accelerating. The starting problems include; no start, longer cranking times, low power and/or white fog like
exhaust.

Inspect all fuel supply lines for restrictions or blockage, including the fuel filter. Flush or replace as necessary.

HIGH-PRESSURE LINES

Restricted (kinked or bent) high-pressure lines can cause starting problems, poor engine performance, engine
mis-fire and white smoke from exhaust.

TESTING FUEL INJECTORS

WARNING:

High-pressure fuel lines deliver fuel under extreme pressure from the
injection pump to the injectors. This may be as high as 1600bar
(23,200psi). Use extreme caution when inspecting for high-pressure fuel
leaks. Fuel under this amount of pressure can penetrate skin causing
personal injury or death. Inspect high-pressure fuel leaks with a sheet of
cardboard. Wear safety goggles and adequate protective clothing when
servicing fuel system.

CAUTION: High-pressure lines cannot contact each other or other components. Do

not attempt to weld high-pressure fuel lines or to repair lines that are
damaged. High-pressure lines can be reused only after close inspection
for cracks or deformation around the sealing cone. Corroded pipes must
be replaced. Use only recommended lines when replacement of high-
pressure fuel line is necessary.

NOTE:

High-pressure fuel lines must be replaced at each disassembly.



2007 Dodge Nitro R/T

2007 ENGINE Fuel System - Nitro
