Dodge Nitro. Manual - part 645





Module Grille & Headlamp Leveling Motor
Courtesy of CHRYSLER LLC


1. Disconnect and isolate the battery negative cable.

2. Partially remove the grille and both front lamp units from the face of the front end module as a unit. Refer

to REMOVAL .

3. Disconnect the wire harness connector (4) from the connector receptacle integral to the position lamp

bulb socket on the back of the front lamp unit housing (6) located on the back of the front end module
grille (1).

4. Firmly grasp the position lamp bulb socket on the back of the housing and rotate it counterclockwise

about 30 degrees to unlock it.

5. Pull the socket and bulb straight out from the keyed opening in the housing.

6. Pull the base of the bulb straight out of the socket.

INSTALLATION

FRONT SIDE MARKER BULB

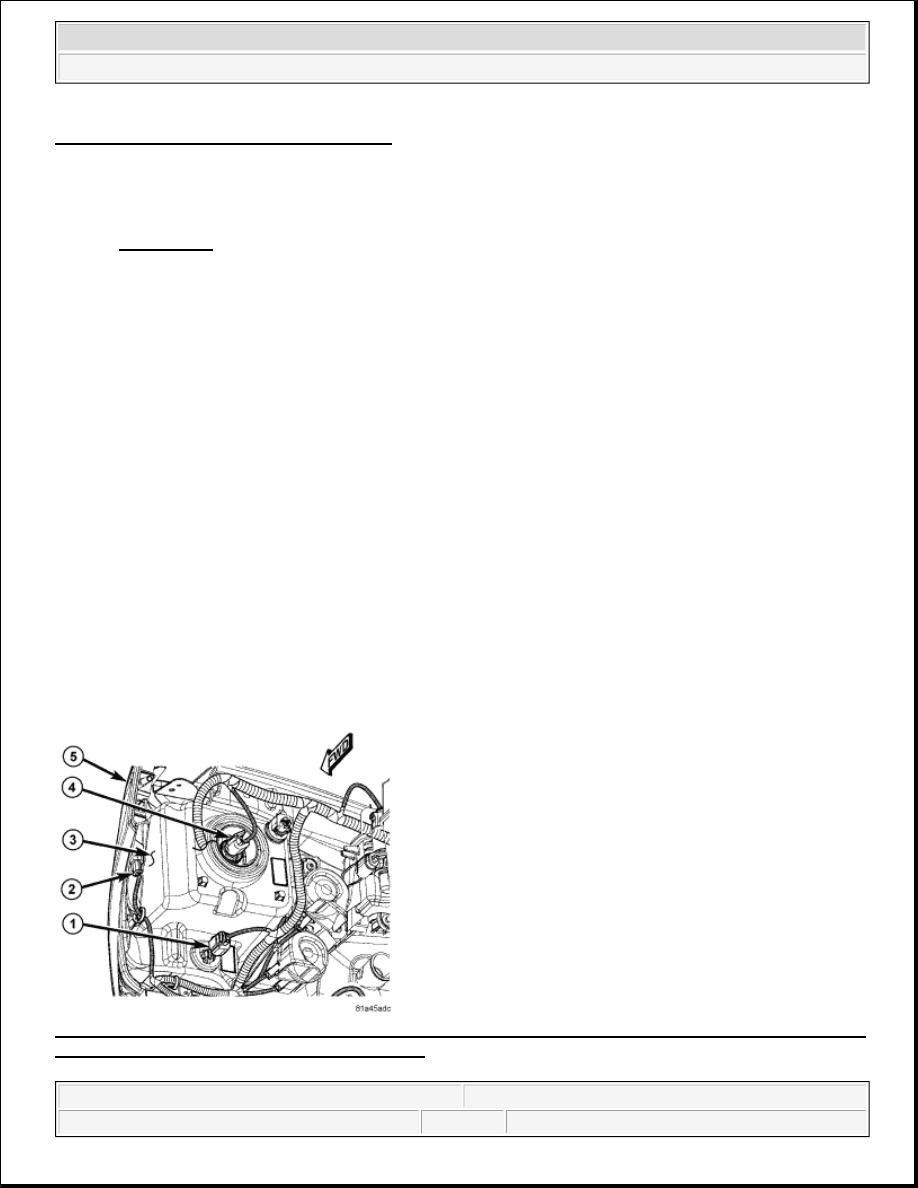

Fig. 22: Identifying Front Lamp Unit Housing, Wire Harness Connector, Front End Module Grille, Front
Lamp Unit Housing & Wire Harness Connector

Courtesy of CHRYSLER LLC

CAUTION: Always use the correct bulb size and type for replacement. An incorrect

bulb size or type may overheat and cause damage to the lamp, the socket
or the lamp wiring.

NOTE:

The following procedure applies only to vehicles manufactured for domestic
markets. Vehicles manufactured for export markets do not have a bulb, socket
or wiring provided to illuminate the front side marker compartment of the front
lamp unit. The front side marker lens is present, but serves only as a reflector
on export market vehicles.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Lamps/Lighting - Exterior - Service Information - Nitro



1. Align the base of the bulb with the front side marker bulb socket.

2. Push the bulb straight into the socket until the base is firmly seated.

3. Align the socket and bulb with the keyed opening on the back of the front lamp unit housing (3) located

on the back of the front end module grille (5).

4. Insert the socket and bulb into the housing until the socket is firmly seated.

5. Rotate the socket clockwise about 30 degrees to lock it into place.

6. Reconnect the wire harness connector (2) to the connector receptacle integral to the side marker bulb

socket.

7. Reinstall the grille and both front lamp units to the face of the front end module as a unit. Refer to

INSTALLATION .

8. Reconnect the battery negative cable.

FRONT PARK/TURN SIGNAL BULB

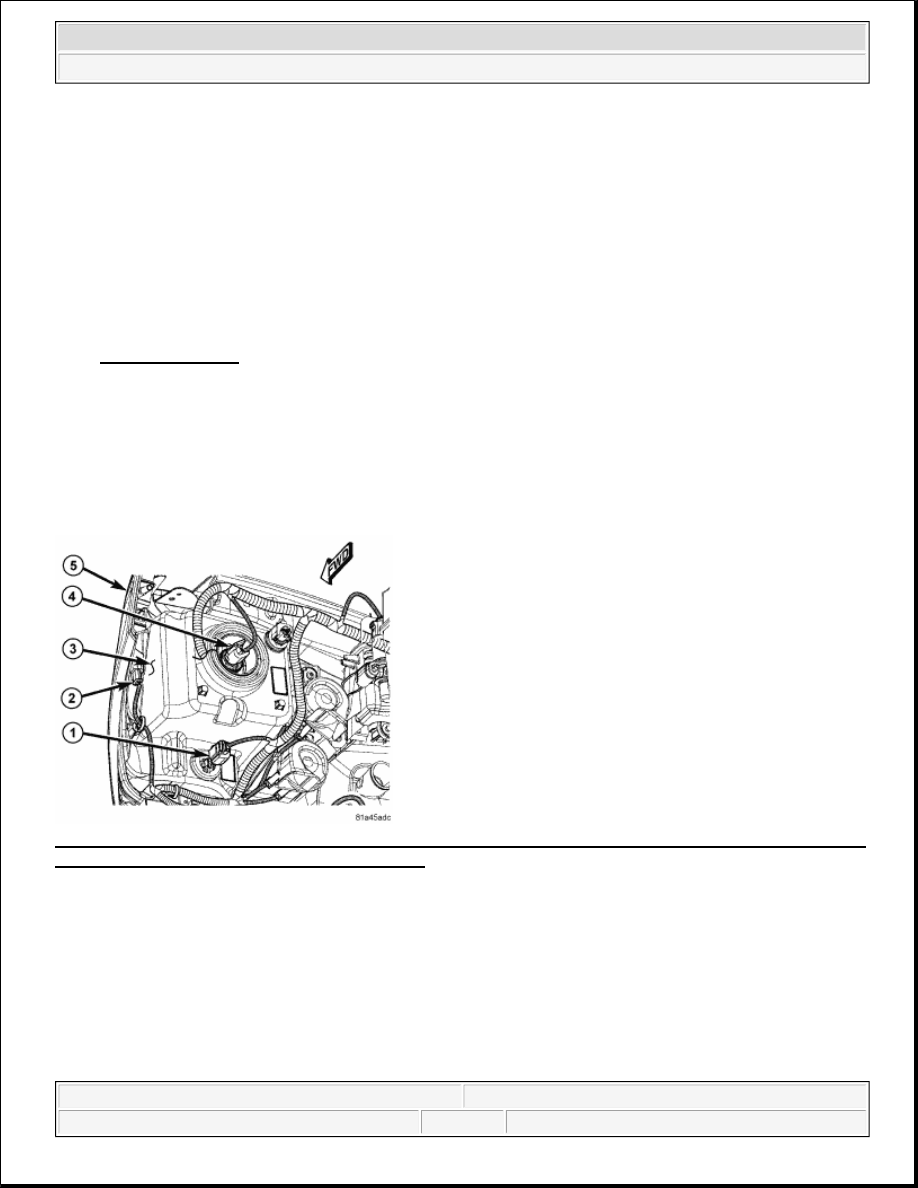

Fig. 23: Identifying Front Lamp Unit Housing, Wire Harness Connector, Front End Module Grille, Front
Lamp Unit Housing & Wire Harness Connector

Courtesy of CHRYSLER LLC

1. Align the base of the bulb with the park/turn signal bulb socket.

2. Push the bulb straight into the socket until the base is firmly seated.

3. Align the socket and bulb with the keyed opening in the back of the front lamp unit housing (3) located

on the back of the front end module (5).

4. Insert the socket and bulb into the housing until the socket is firmly seated.

5. Rotate the socket clockwise about 30 degrees to lock it into place.

6. Reconnect the wire harness connector (1) to the connector receptacle integral to the park/turn signal bulb

CAUTION: Always use the correct bulb size and type for replacement. An incorrect

bulb size or type may overheat and cause damage to the lamp, the socket
or the lamp wiring.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Lamps/Lighting - Exterior - Service Information - Nitro



socket on the back of the housing.

7. Reconnect the battery negative cable.

HEADLAMP BULB - DOMESTIC

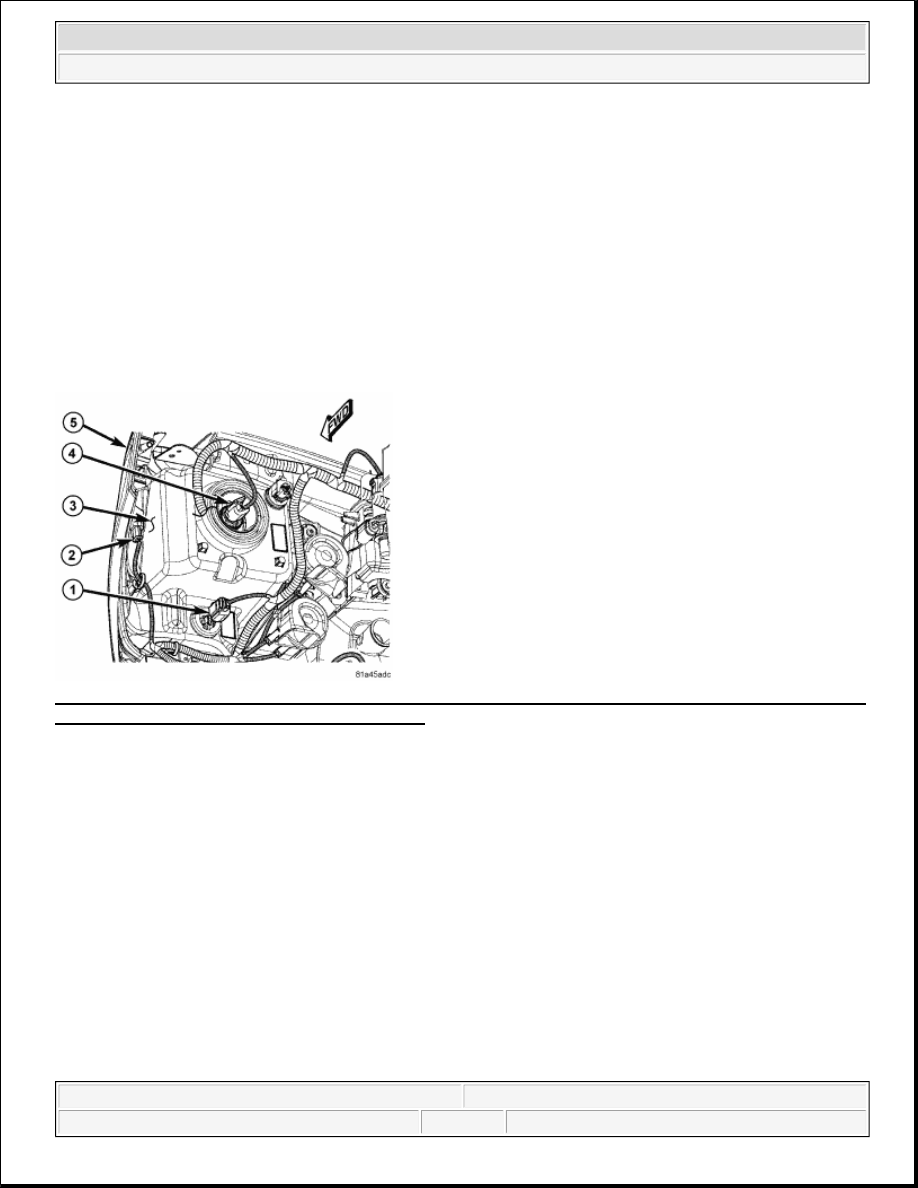

Fig. 24: Identifying Front Lamp Unit Housing, Wire Harness Connector, Front End Module Grille, Front
Lamp Unit Housing & Wire Harness Connector

Courtesy of CHRYSLER LLC

1. Align the bulb base with the keyed opening on the back of the front lamp unit (3) reflector.

2. Insert the bulb and base into the reflector until the base is firmly seated.

3. Rotate the base clockwise about 30 degrees to lock it into place.

4. Reconnect the wire harness connector to the connector receptacle integral to the bulb base on the back of

the front lamp unit housing.

5. Reconnect the battery negative cable.

POSITION LAMP BULB

CAUTION: Always use the correct bulb size and type for replacement. An incorrect

bulb size or type may overheat and cause damage to the lamp, the socket
or the lamp wiring.

CAUTION: Do not contaminate the bulb glass by touching it with your fingers or by

allowing it to contact other oily surfaces. Shortened bulb life will result.

CAUTION: Always use the correct bulb size and type for replacement. An incorrect

bulb size or type may overheat and cause damage to the lamp, the socket
or the lamp wiring.

NOTE:

The following procedure applies only to vehicles manufactured for export



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Lamps/Lighting - Exterior - Service Information - Nitro



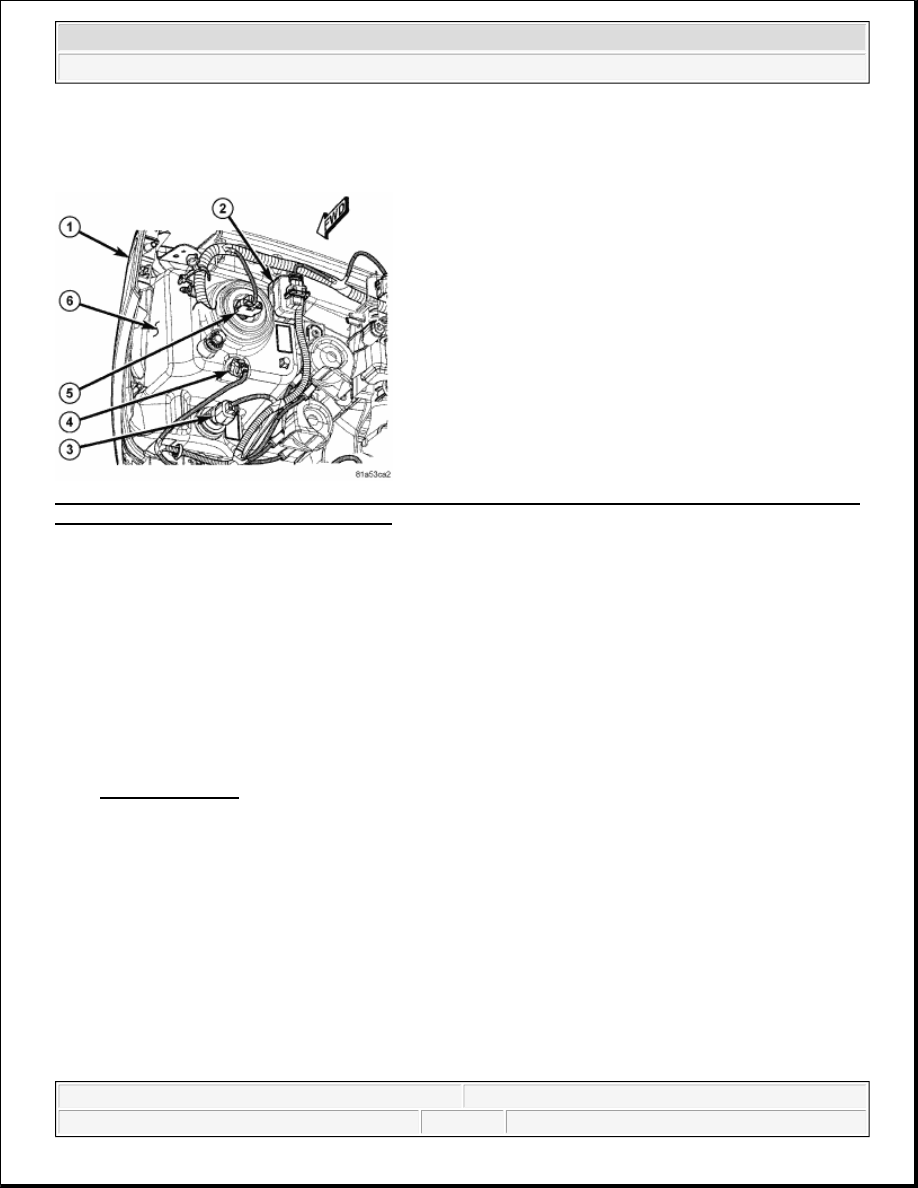

Fig. 25: Identifying Front End Module, Wire Harness Connectors, Front Lamp Unit Housing, Front End
Module Grille & Headlamp Leveling Motor

Courtesy of CHRYSLER LLC

1. Align the base of the bulb with the position lamp bulb socket.

2. Push the bulb straight into the socket until the base is firmly seated.

3. Align the socket and bulb with the keyed opening on the back of the front lamp unit housing (6) located

on the back of the front end module grille (1).

4. Insert the socket and bulb into the housing until the socket is firmly seated.

5. Rotate the socket clockwise about 30 degrees to lock it into place.

6. Reconnect the wire harness connector (4) to the connector receptacle integral to the position lamp bulb

socket.

7. Reinstall the grille and both front lamp units to the face of the front end module as a unit. Refer to

INSTALLATION .

8. Reconnect the battery negative cable.

HEADLAMP BULB - EXPORT

markets. Vehicles manufactured for domestic markets do not have a position
lamp bulb, socket or wiring provided in the front lamp unit.

CAUTION: Always use the correct bulb size and type for replacement. An incorrect

bulb size or type may overheat and cause damage to the lamp, the socket
or the lamp wiring.

CAUTION: Do not contaminate the bulb glass by touching it with your fingers or by

allowing it to contact other oily surfaces. Shortened bulb life will result.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Lamps/Lighting - Exterior - Service Information - Nitro
