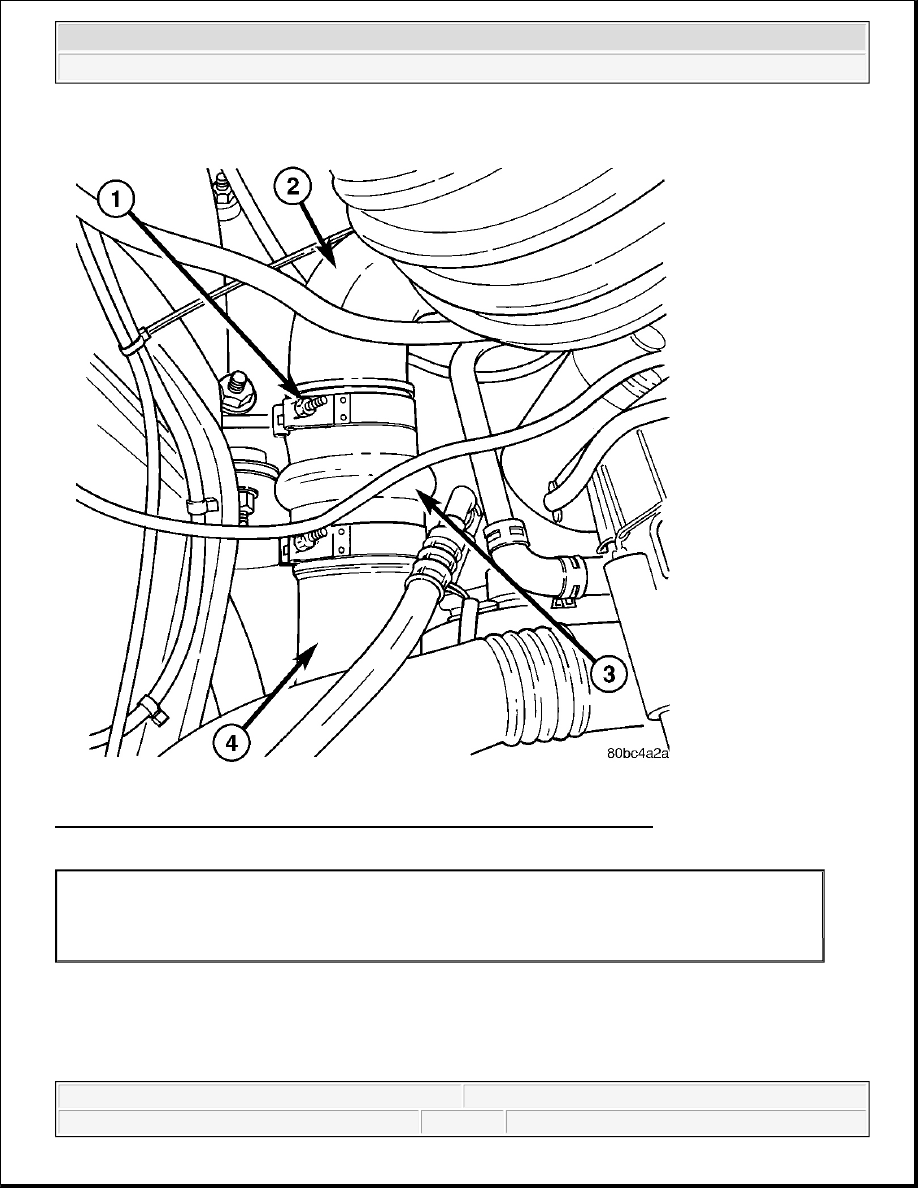

Fig. 18: Air Inlet Duct Rubber Sleeve, Air Inlet Duct, Clamp & Turbocharger
Courtesy of CHRYSLER LLC

Low turbocharger boost pressure and low engine performance can be caused by leaks in the charge air cooler or
plumbing. Fuel staining on the exhaust manifold can also be an indication that there are leaks in the air system.
The following procedure outlines how to check for leaks in the charge air cooler system.

This procedure can also be used to check for leaks in the wastegate signal line or the wastegate canister.

1 - CLAMP
2 - TURBOCHARGER
3 - AIR DUCT RUBBER SLEEVE
4 - AIR INLET DUCT



2007 Dodge Nitro R/T

2007 ENGINE Exhaust System And Turbocharger - Nitro



1. Loosen clamp (1) and remove air inlet hose (3) from turbocharger.

2. Insert Special Tool 9022 Adapter into the turbocharger inlet. Tighten tool clamp to 8 N.m (72 in. lbs.).

3. Connect a regulated air supply to air fitting on Tool 9022 Adapter. Set air pressure to a maximum of 138

kPa (20 psi).

4. Using soapy water check the rubber sleeves, charge air cooler and intake manifold for leaks.

5. Using soapy water check for leaks at the wastegate signal line, wastegate canister and wastegate

command valve.

REMOVAL

REMOVAL-INLET HOSE

CAUTION: Do not apply more than 138 kPa (20 psi) air pressure to the charge air

cooler system; severe damage to the charge air cooler system may
occur.



2007 Dodge Nitro R/T

2007 ENGINE Exhaust System And Turbocharger - Nitro

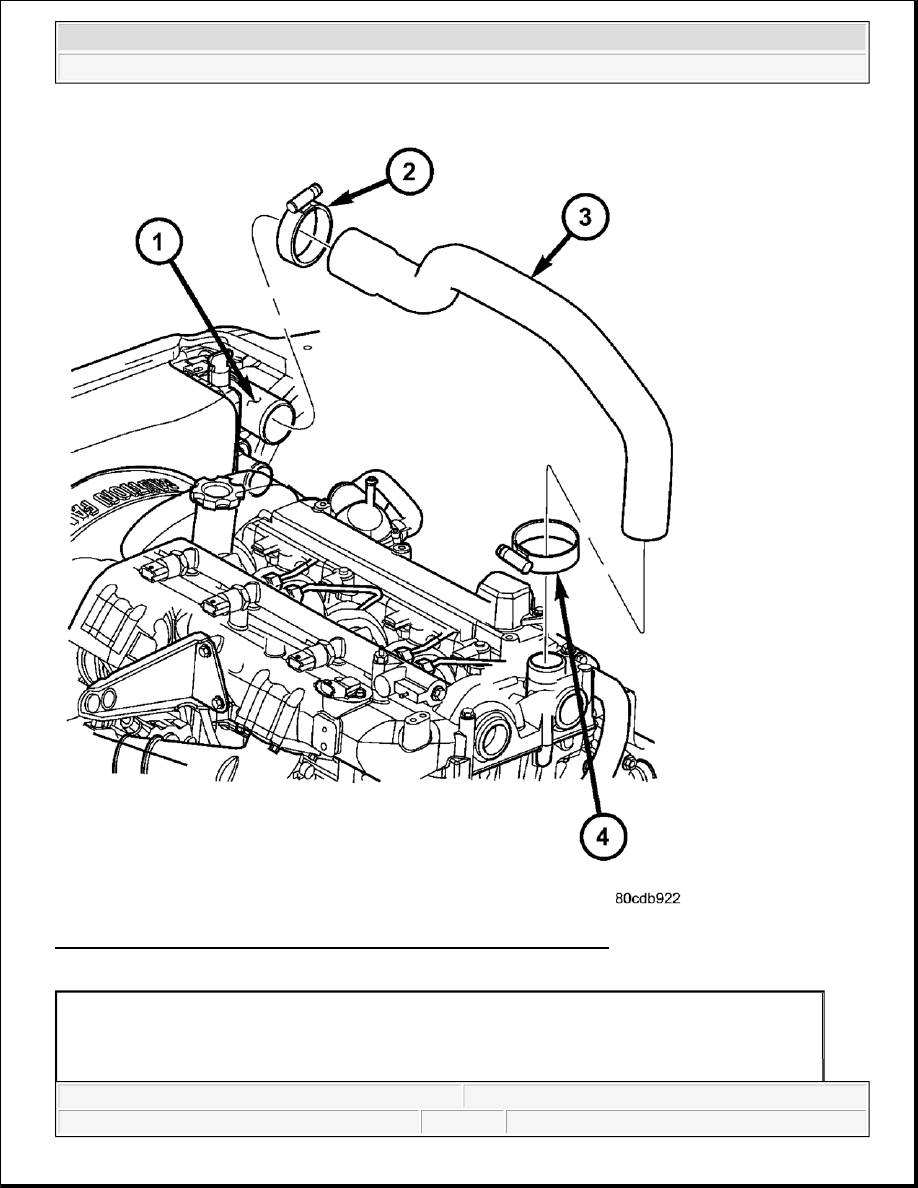

Fig. 19: Charge Air Cooler, Hose Clamps, Charge Air Cooler Inlet Hose
Courtesy of CHRYSLER LLC

1 - CHARGE AIR COOLER
2 - HOSE CLAMP
3 - CHARGE AIR COOLER INLET HOSE
4 - HOSE CLAMP



2007 Dodge Nitro R/T

2007 ENGINE Exhaust System And Turbocharger - Nitro



1. Open and support hood of vehicle.

2. Loosen hose clamps at both ends of charge air cooler (CAC) inlet hose. See Fig. 19.

3. Remove CAC inlet hose (3) from turbocharger and CAC.

REMOVAL-OUTLET HOSE

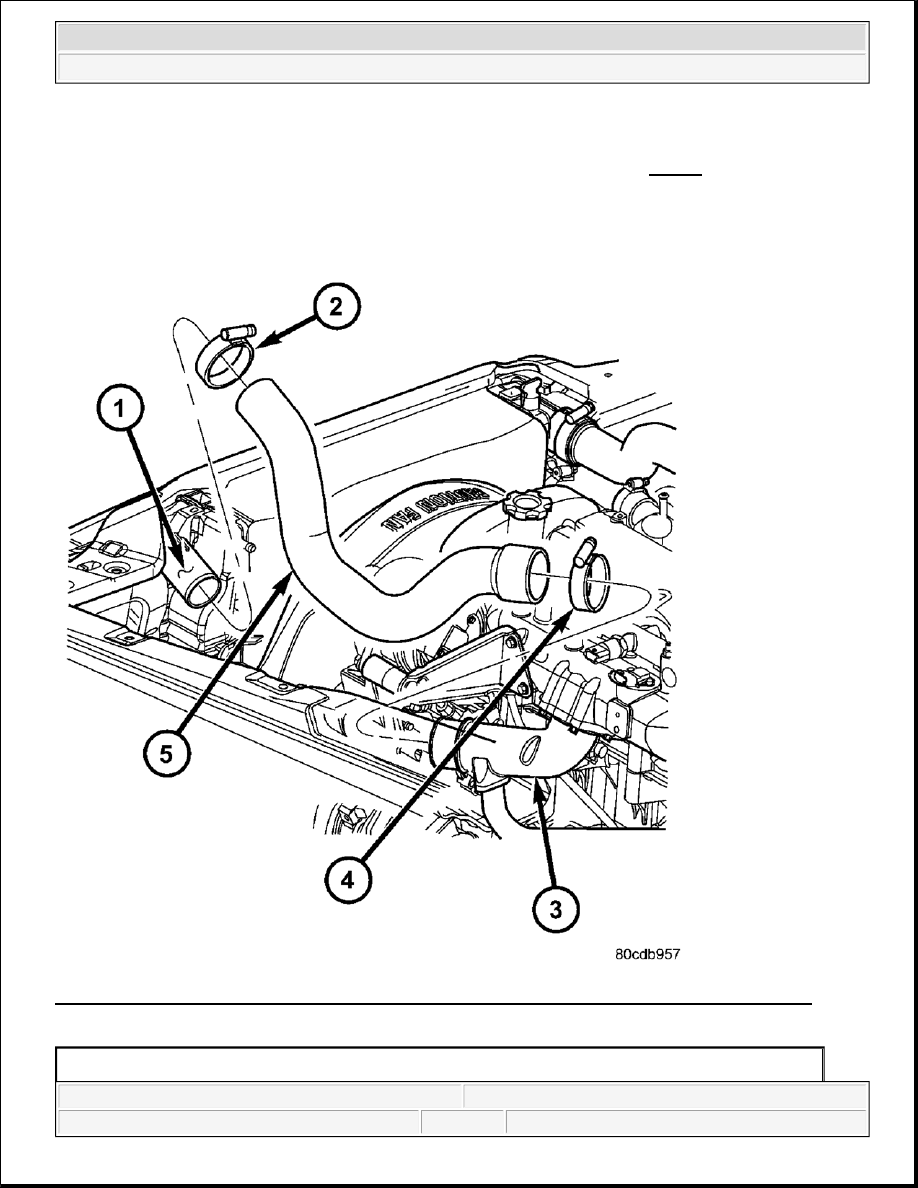

Fig. 20: Charge Air Cooler, Hose Clamps, Intake Manifold Inlet & Charge Air Cooler Outlet Hose
Courtesy of CHRYSLER LLC

1 - CHARGE AIR COOLER



2007 Dodge Nitro R/T

2007 ENGINE Exhaust System And Turbocharger - Nitro
