Dodge Nitro. Manual - part 602

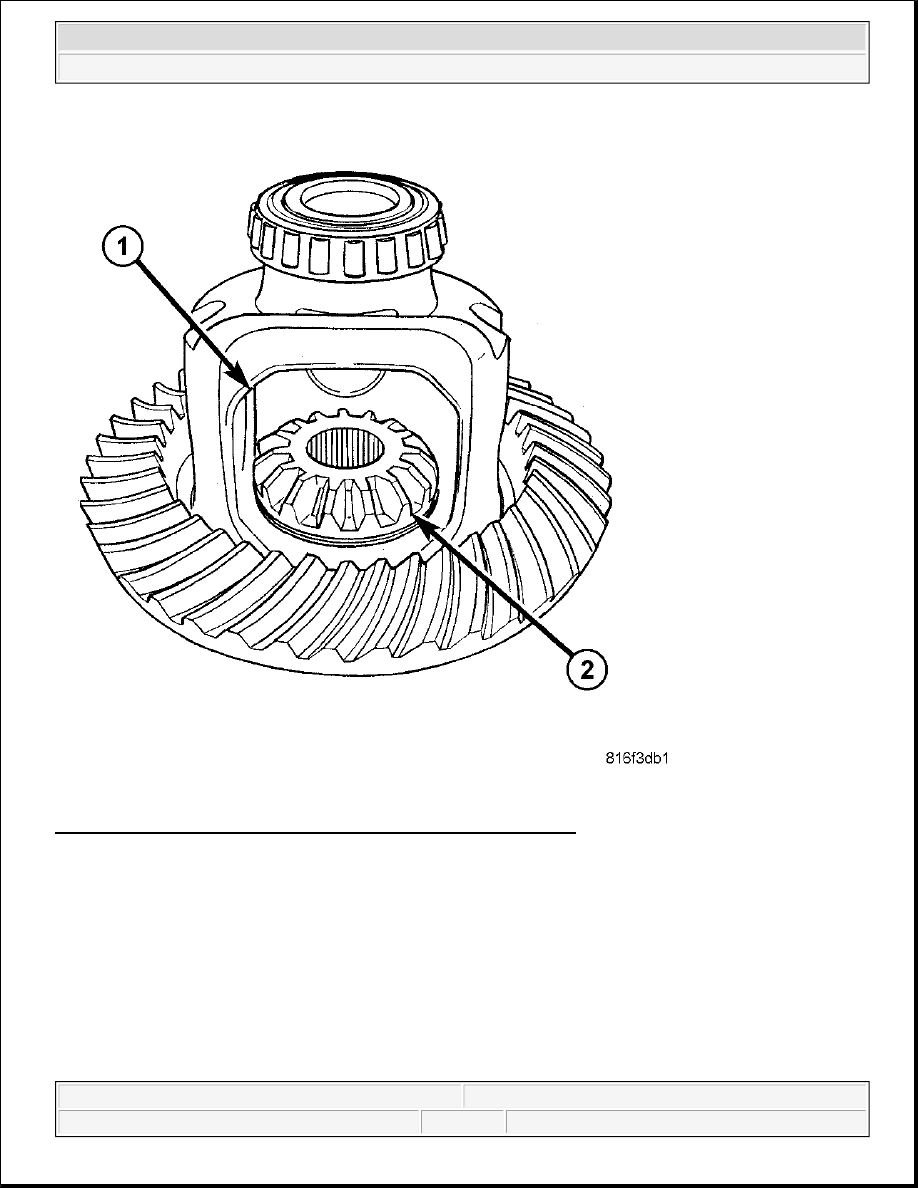

Fig. 301: Identifying Differential Side Gears & Differential Window
Courtesy of CHRYSLER LLC

1. Lubricate all differential components with axle lubricant.

2. Install differential side gears (2) and thrust washers through differential window (1).

NOTE:

If same gears and thrust washers are being used, install them into their original
locations.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

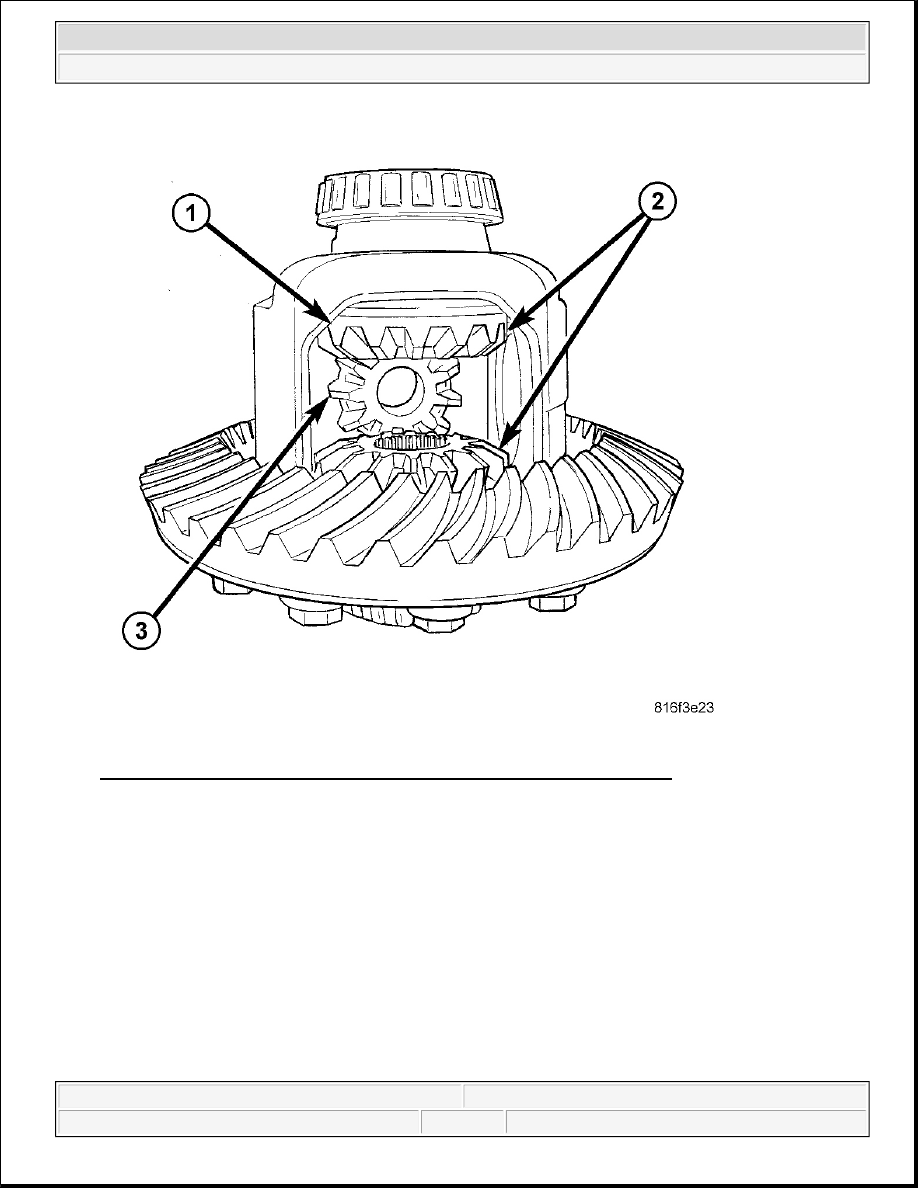

Fig. 302: Identifying First Pinion Gear, Differential Window & Side Gears
Courtesy of CHRYSLER LLC

3. Install first pinion gear (3) with thrust washer into differential window (1) and side gears (2). Rotate

pinion gear into the case.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

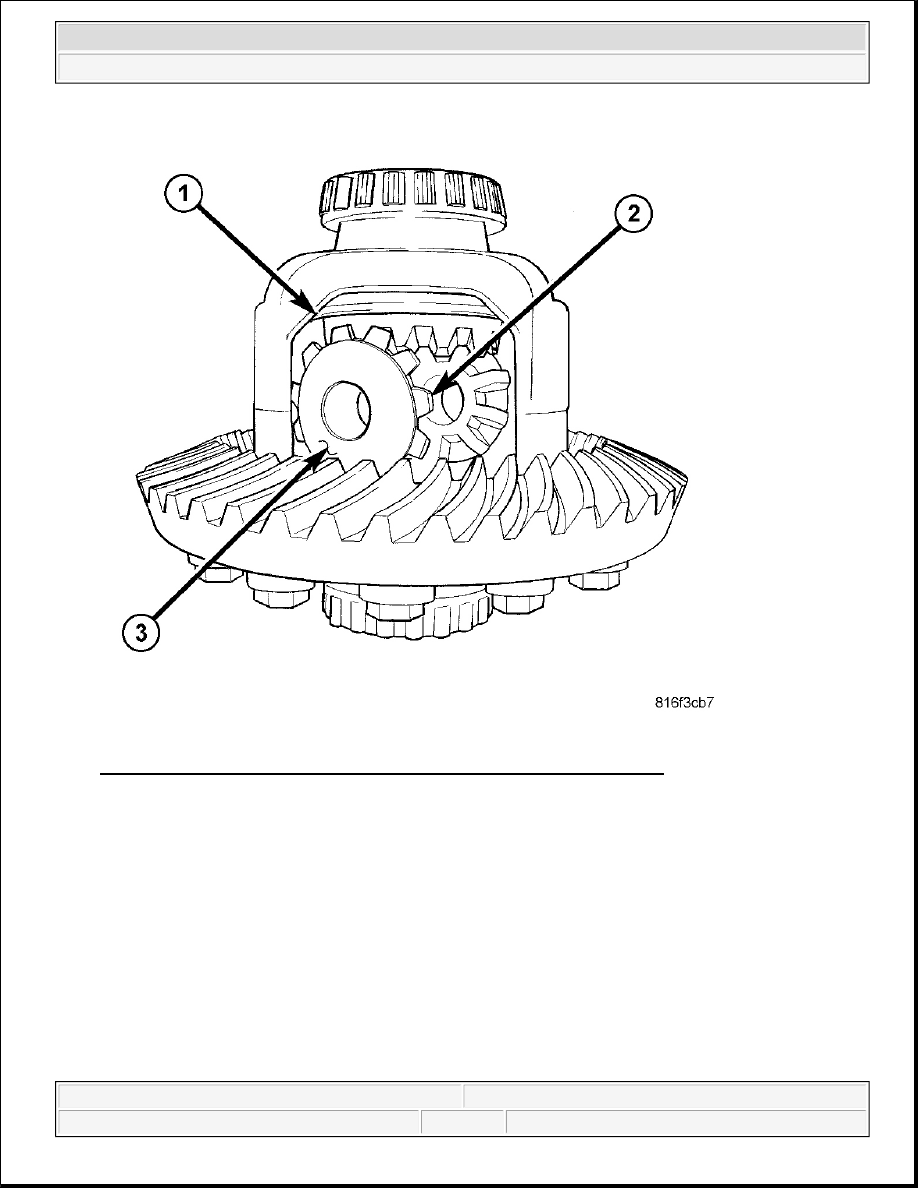

Fig. 303: Identifying Differential Window, Pinion Gear & Thrust Washer
Courtesy of CHRYSLER LLC

4. Install remaining pinion gear (2) and thrust washer (3). Rotate gears to align hole in the pinion gears with

hole in the differential case.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

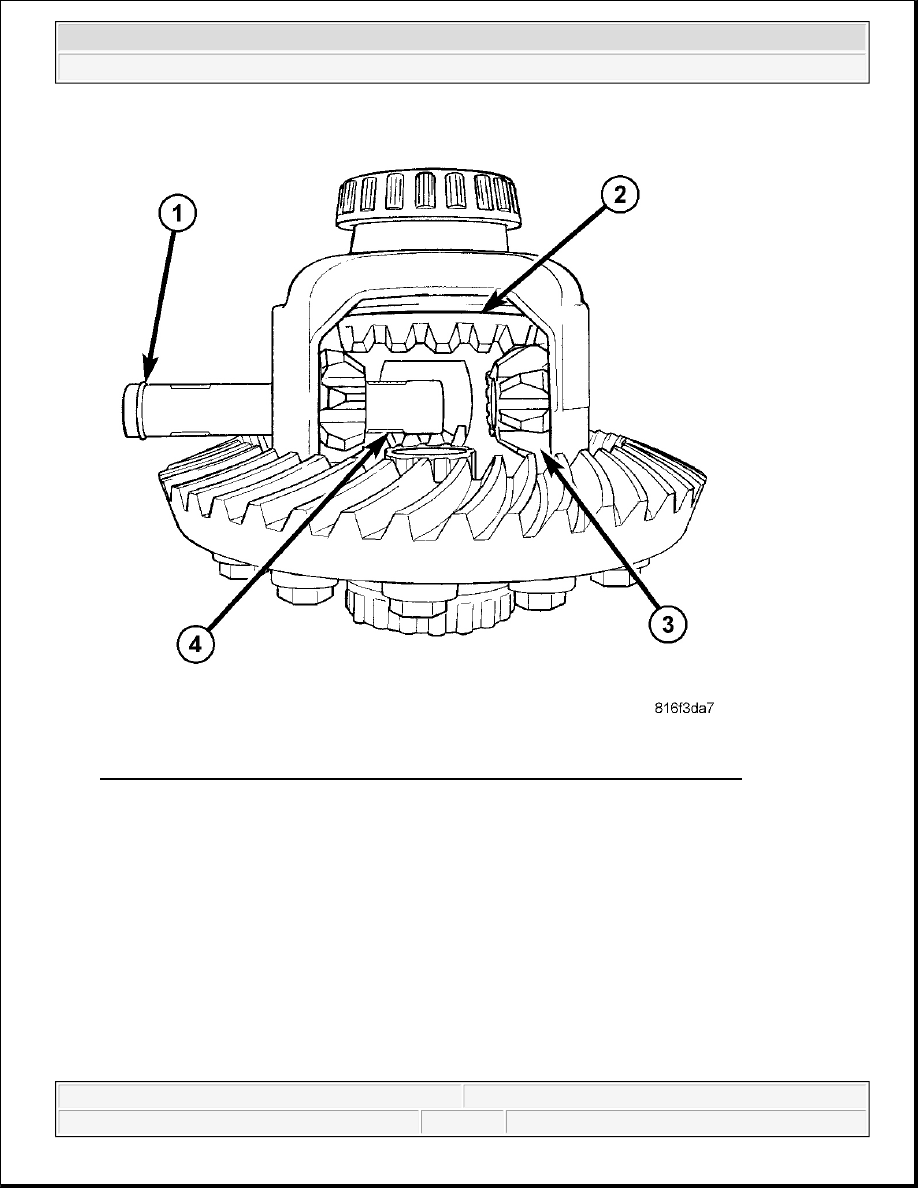

Fig. 304: Sliding Pinion Shaft Into Case And Through Pinion Gears To Align Gears
Courtesy of CHRYSLER LLC

5. Slide pinion shaft (1) into the case and through the pinion gears (3) to align the gears.

INSTALLATION
