1. Position pressure bottle on mounting bracket.

2. Install mounting nuts. Tighten nuts to 8.5 N.m (75 in. lbs.).

3. Install lower hose at coolant bottle.

4. Install radiator to coolant bottle hose at coolant bottle.

5. Fill cooling system. See STANDARD PROCEDURE.

HOSES-COOLING SYSTEM-2.8L DIESEL

REMOVAL

REMOVAL

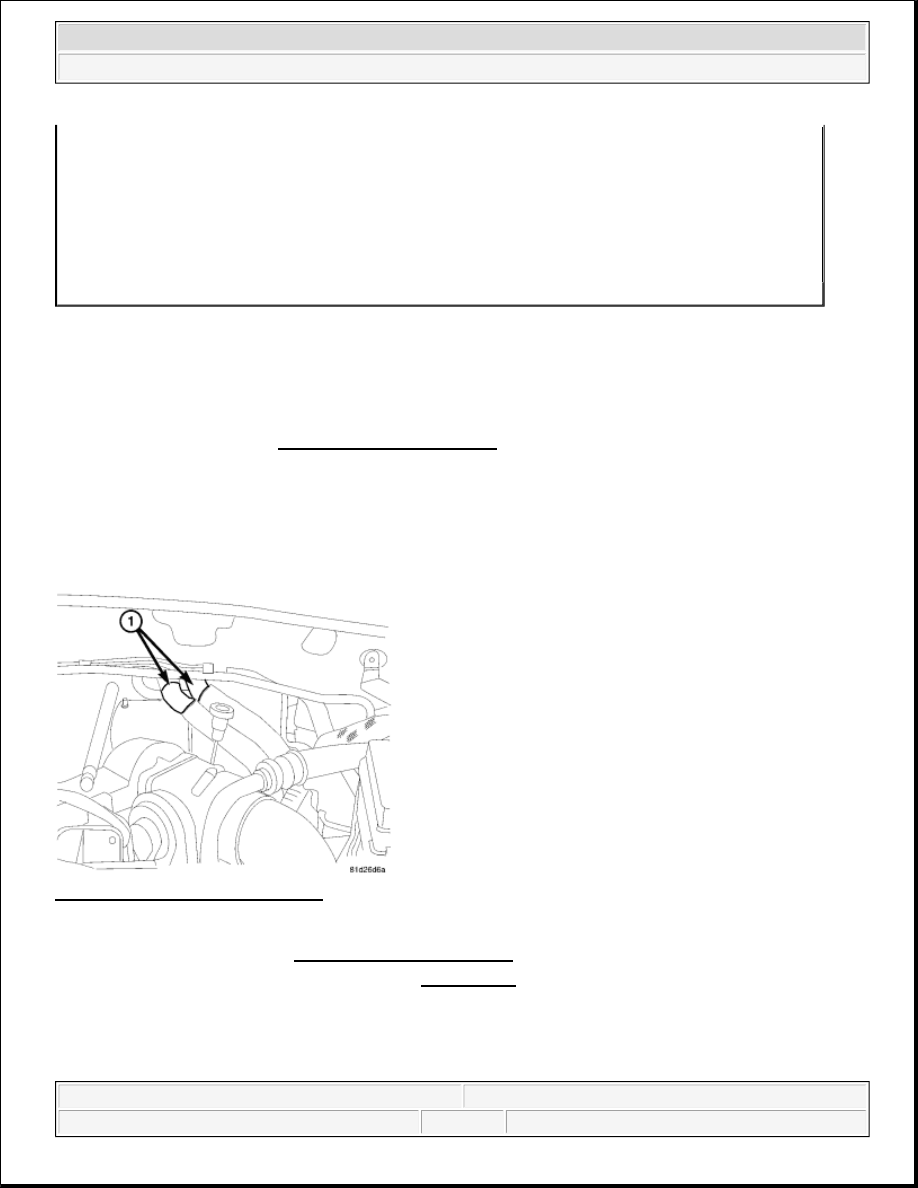

Fig. 41: Heater Core Return Hoses
Courtesy of CHRYSLER LLC

1. Drain cooling system. See STANDARD PROCEDURE.

2. Remove engine cover from engine. Refer to REMOVAL .

3. Disconnect heater core supply line at heater core and viscous heater. Remove hose from vehicle.

4. Disconnect heater core return line (5) from heater core and EGR cooler. Remove hose from vehicle.

REMOVAL-UPPER HOSE-2.8L DIESEL

1 - PRESSURE CAP
2 - COOLANT BOTTLE
3 - MOUNTING NUTS
4 - COOLANT BOTTLE TO RADIATOR HOSE
5 - CLAMP
6 - RADIATOR
7 - LOWER HOSE
8 - MOUNTING BRACKET



2007 Dodge Nitro R/T

2007 ENGINE Cooling - Nitro



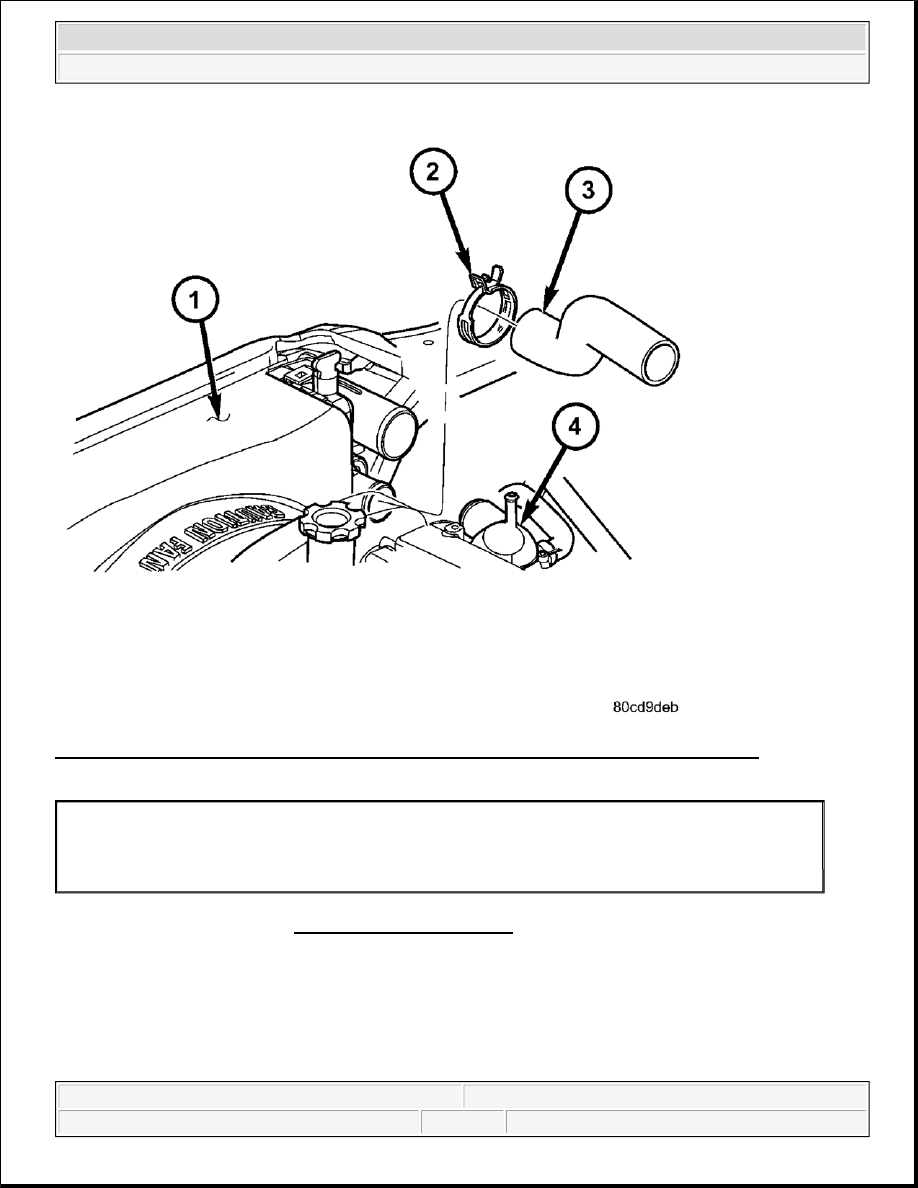

Fig. 42: Identifying Fan Shroud, Hose Clamp, Upper Radiator Hose & Thermostat Housing
Courtesy of CHRYSLER LLC

1. Drain cooling system. See STANDARD PROCEDURE.

2. Disconnect upper radiator hose (3) from thermostat housing.

3. Disconnect upper radiator hose from radiator and remove from vehicle.

INSTALLATION

INSTALLATION-UPPER HOSE-2.8L DIESEL

1 - FAN SHROUD
2 - HOSE CLAMP
3 - UPPER RADIATOR HOSE
4 - THERMOSTAT HOUSING



2007 Dodge Nitro R/T

2007 ENGINE Cooling - Nitro



Fig. 43: Identifying Fan Shroud, Hose Clamp, Upper Radiator Hose & Thermostat Housing
Courtesy of CHRYSLER LLC

1. Install upper radiator hose on radiator and thermostat housing.

2. Reposition hose clamps in proper position.

3. Refill cooling system to proper level. See STANDARD PROCEDURE.

INSTALLATION

1 - FAN SHROUD
2 - HOSE CLAMP
3 - UPPER RADIATOR HOSE
4 - THERMOSTAT HOUSING



2007 Dodge Nitro R/T

2007 ENGINE Cooling - Nitro



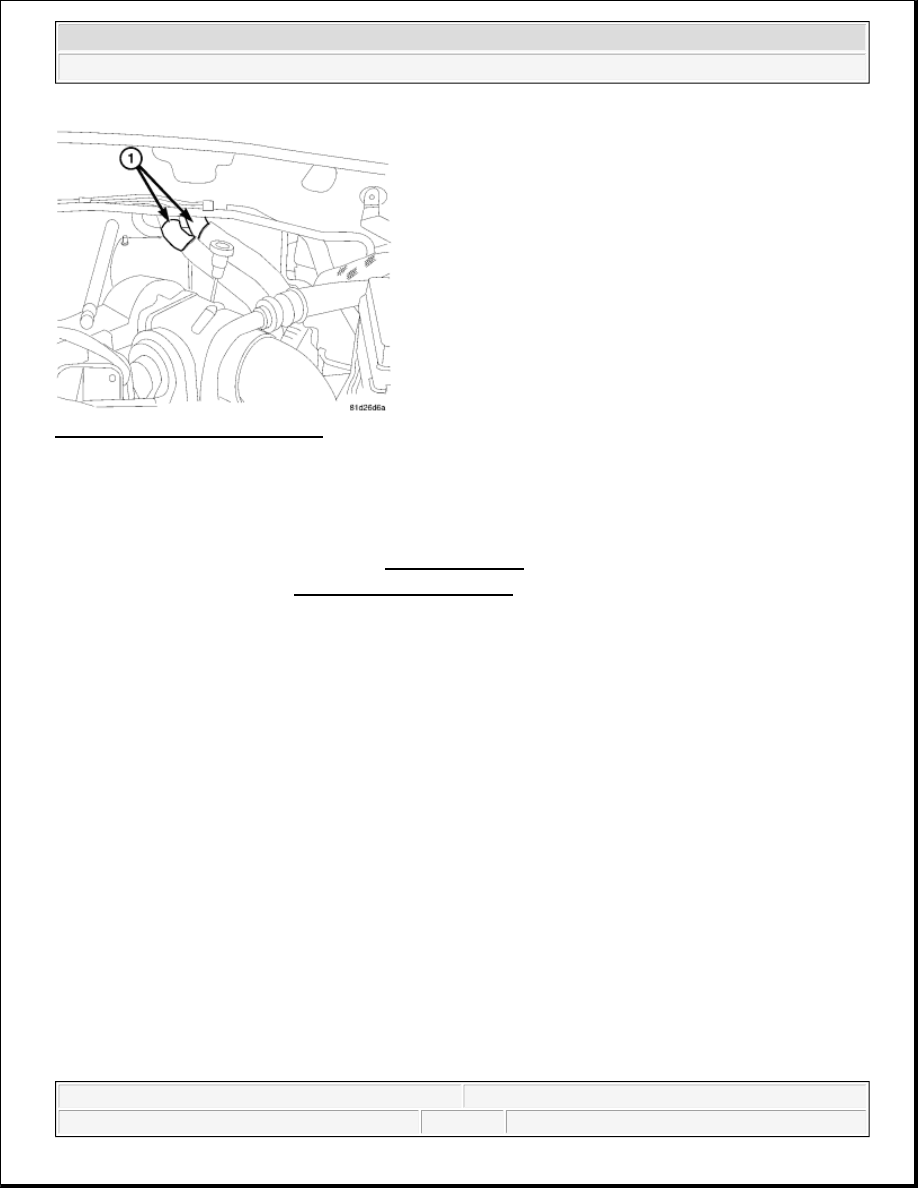

Fig. 44: Heater Core Return Hoses
Courtesy of CHRYSLER LLC

1. Connect heater core supply hose to heater core and viscous heater. Position hose clamps into proper

position.

2. Connect heater core return hose to heater core and EGR cooler. Position hose clamps into proper position.

3. Install engine cover to engine. Refer to INSTALLATION .

4. Refill cooling system. See STANDARD PROCEDURE.

HEATER-ENGINE BLOCK

DESCRIPTION

DESCRIPTION

The block heater is operated by ordinary house current (110 Volt A.C.) through a power cord and connector
located in the engine compartment. The heater is mounted in a core hole (in place of a core hole plug) in the
engine block, with the heating element immersed in coolant.

OPERATION

OPERATION

The block heater element is submerged in the cooling system's coolant. When electrical power (110 volt A.C.)
is applied to the element, it creates heat. This heat is transferred to the engine coolant. This provides easier
engine starting and faster warm-up when vehicle is operated in areas having extremely low temperatures.

REMOVAL

CAUTION: The power cord must be secured in its retainer clips, and not positioned

so it could contact linkages or exhaust manifolds and become damaged.



2007 Dodge Nitro R/T

2007 ENGINE Cooling - Nitro
