Courtesy of CHRYSLER LLC

2. Install accessory drive belt. See INSTALLATION.

3. Connect negative battery cable.

INSTALLATION-4.0L

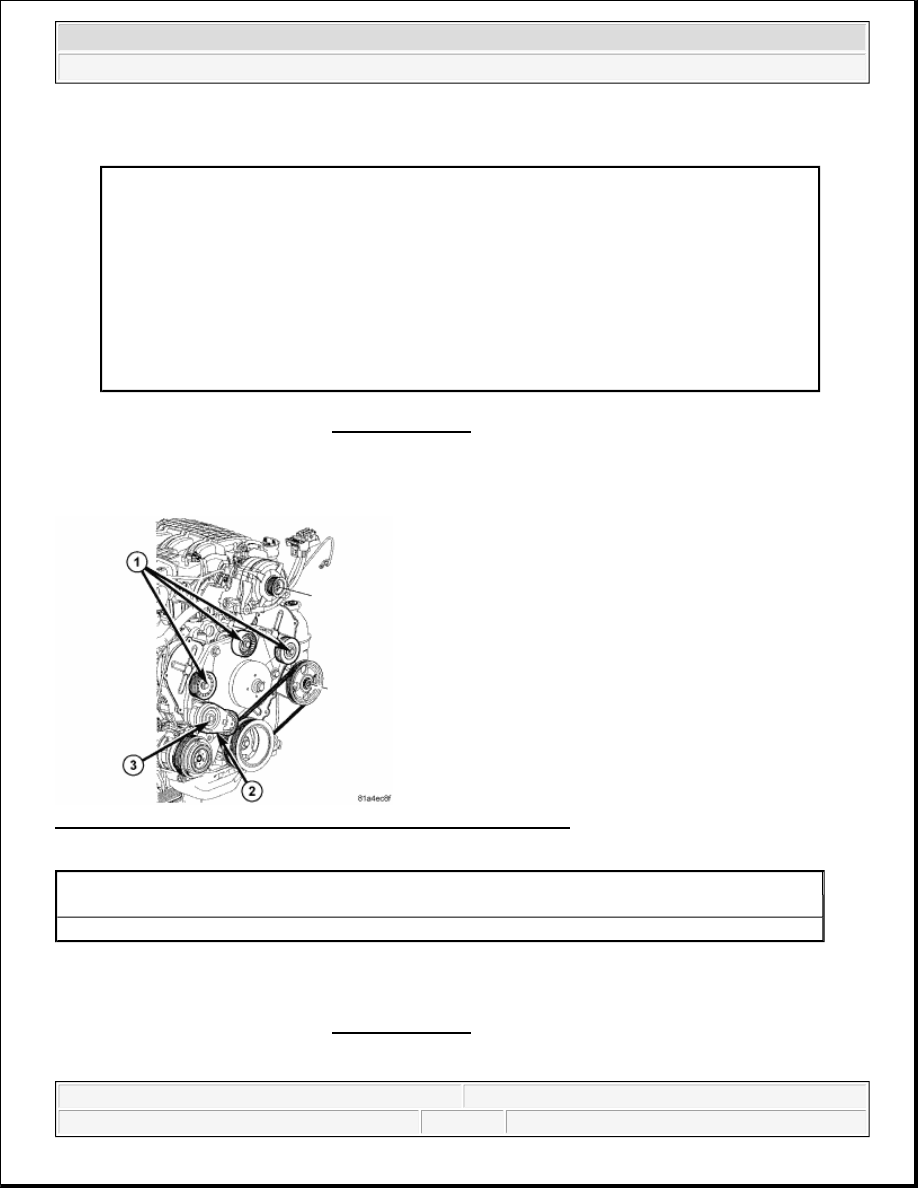

Fig. 32: Removing/Installing Accessory Drive Belt Tensioner - 4.0L
Courtesy of CHRYSLER LLC

1. Position accessory drive belt tensioner (2).

2. Install mounting bolt (3). Tighten bolt to Tighten bolt to 61 N.m (45 ft. lbs.).

3. Install accessory drive belt. See INSTALLATION.

PULLEY-IDLER

1 - IDLER PULLEY
2 - GENERATOR
3 - IDLER PULLEY
4 - A/C COMPRESSOR
5 - COOLING FAN SUPPORT
6 - VIBRATION DAMPER
7 - BELT TENSIONER
8 - POWER STEERING PUMP
9 - ACCESSORY DRIVE BELT
10 - VISCOUS HEATER

1 - IDLER PULLEY
2 - ACCESSORY DRIVE BELT TENSIONER
3 - MOUNTING BOLT



2007 Dodge Nitro R/T

2007 ENGINE Cooling - Nitro



REMOVAL

REMOVAL-4.0L

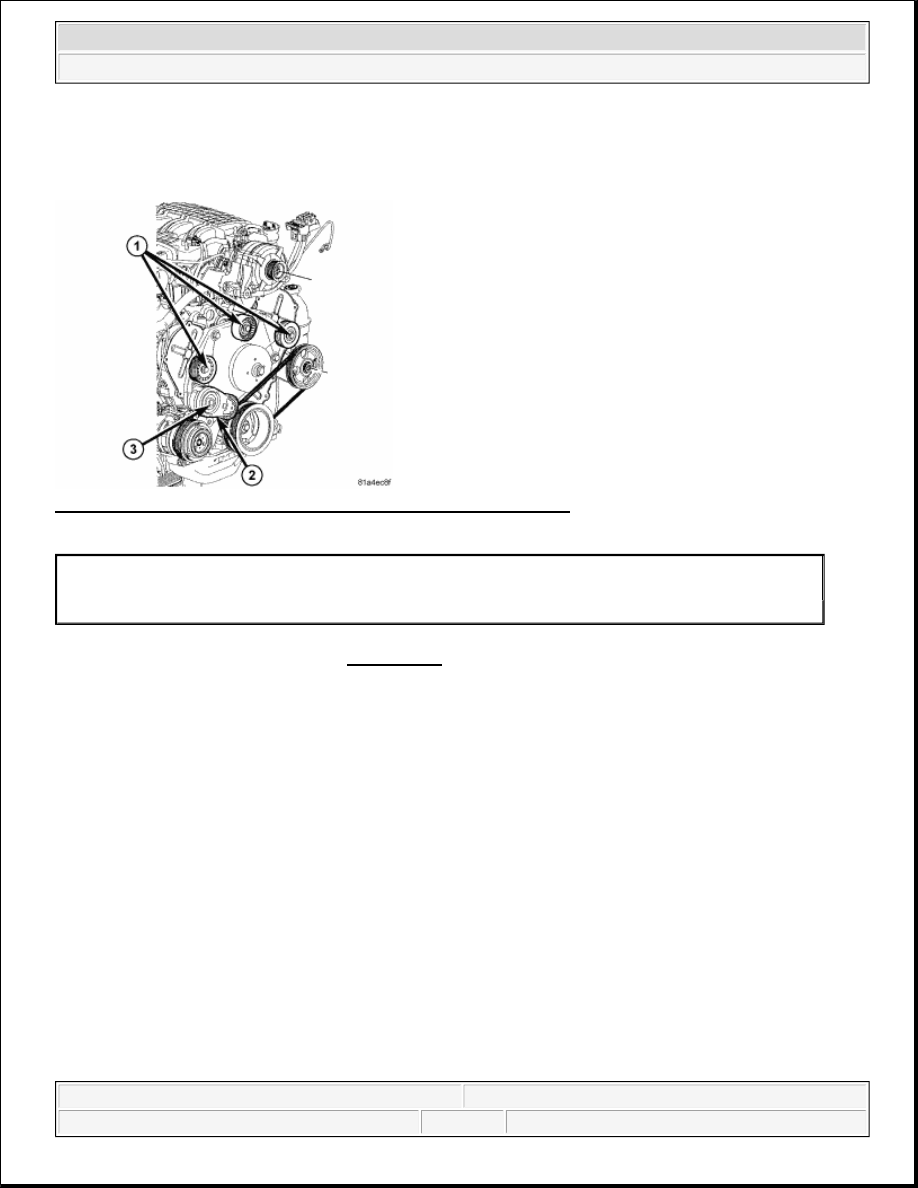

Fig. 33: Removing/Installing Accessory Drive Belt Tensioner - 4.0L
Courtesy of CHRYSLER LLC

1. Remove accessory drive belt. See REMOVAL.

2. Remove cover.

3. Remove bolt and pulley (1).

IDLER PULLEY-REMOVAL-2.8L DIESEL

1 - IDLER PULLEY
2 - ACCESSORY DRIVE BELT TENSIONER
3 - MOUNTING BOLT



2007 Dodge Nitro R/T

2007 ENGINE Cooling - Nitro



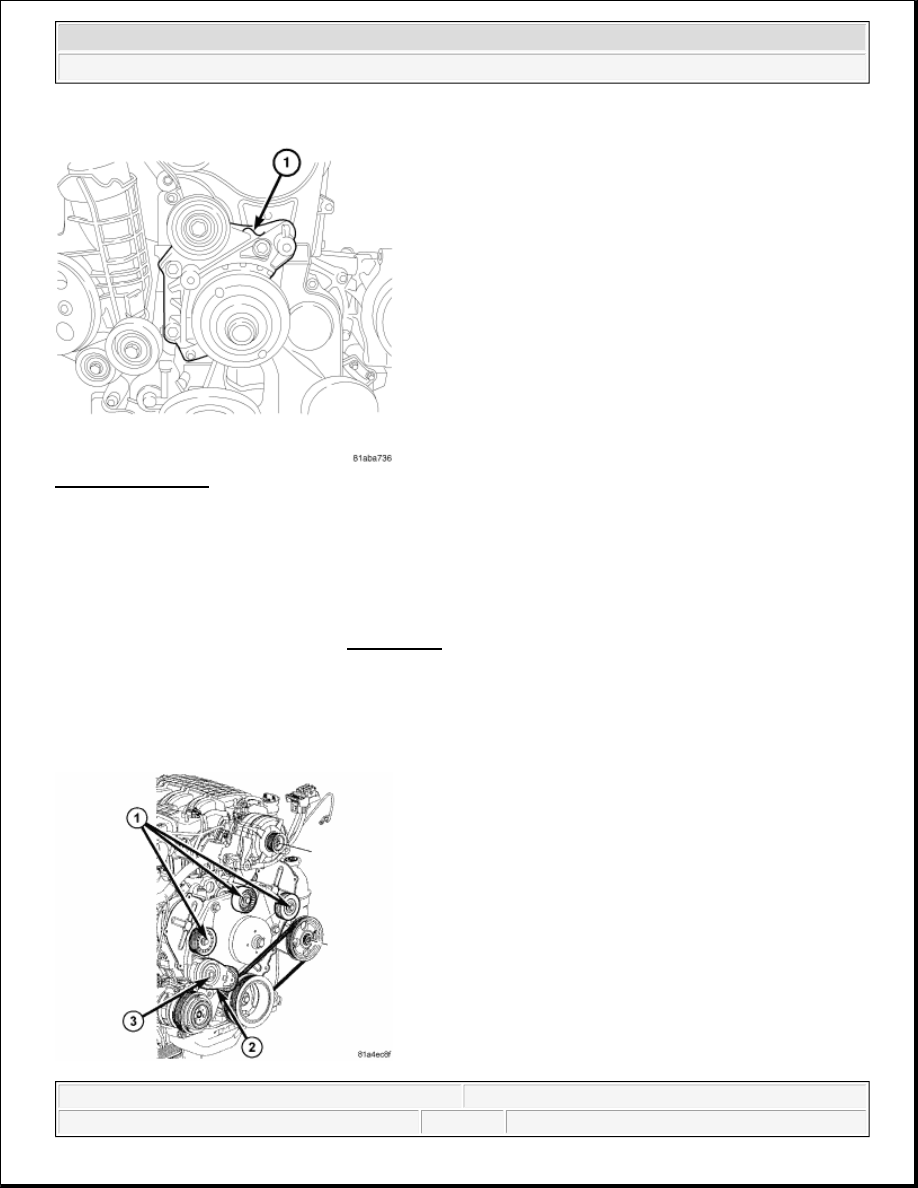

Fig. 34: Idler Pulley
Courtesy of CHRYSLER LLC

1. Disconnect negative battery cable.

2. Remove accessory drive belt. See REMOVAL.

3. Remove idler pulley retaining bolts and pulley.

INSTALLATION

INSTALLATION-4.0L

Fig. 35: Removing/Installing Accessory Drive Belt Tensioner - 4.0L

CAUTION: The retaining bolts on the idler pulleys are left hand thread.



2007 Dodge Nitro R/T

2007 ENGINE Cooling - Nitro



Courtesy of CHRYSLER LLC

1. Position idler pulley (1).

2. Tighten bolt to (3) 28 N.m (250 in. lbs.).

3. Install cover.

4. Install accessory drive belt. See INSTALLATION.

IDLER PULLEY-INSTALLATION-2.8L DIESEL

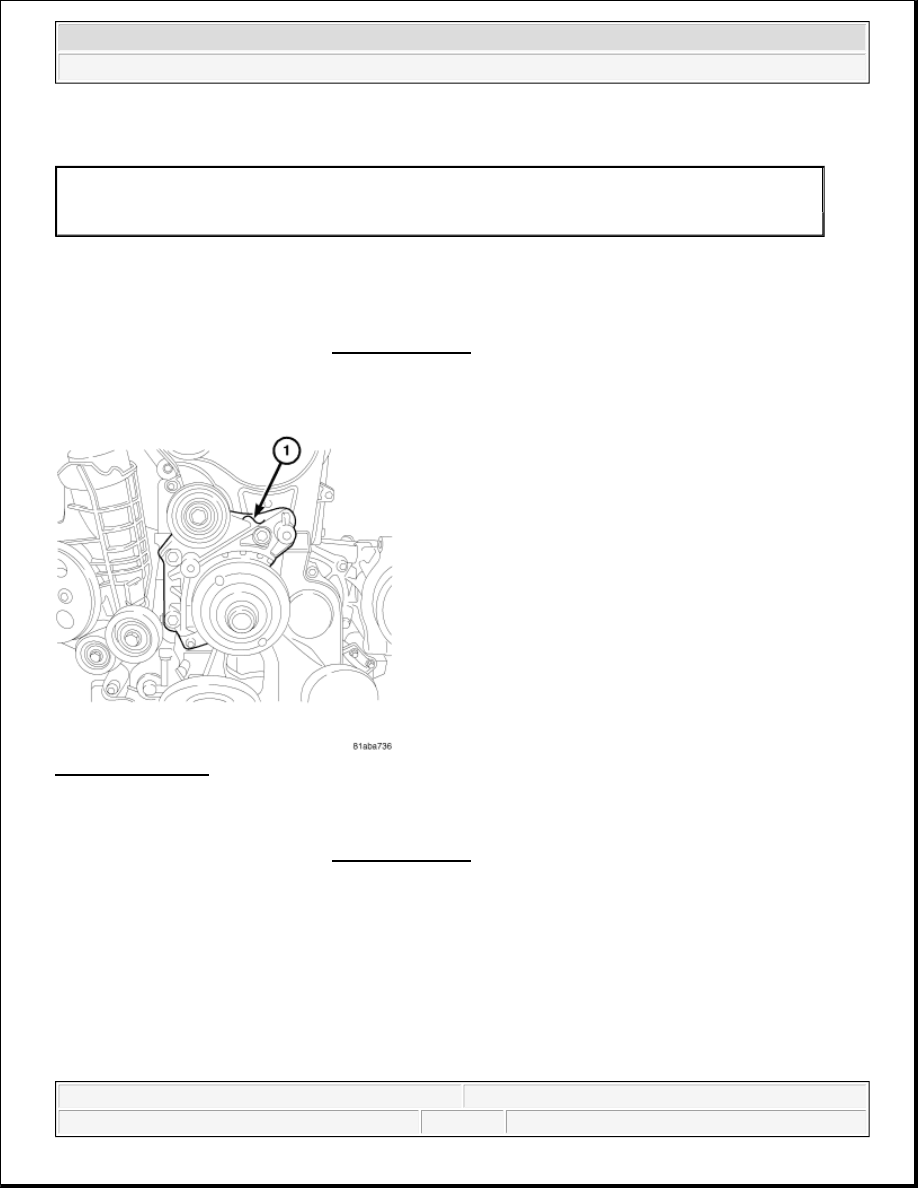

Fig. 36: Idler Pulley
Courtesy of CHRYSLER LLC

1. Install idler pulley and retaining bolt. Tighten bolts to 53 N.m (39 ft. lbs.)

2. Install accessory drive belt. See INSTALLATION.

3. Connect negative battery cable.

ENGINE

COOLANT

DESCRIPTION

COOLANT-DESCRIPTION

1 - IDLER PULLEY
2 - ACCESSORY DRIVE BELT TENSIONER
3 - MOUNTING BOLT



2007 Dodge Nitro R/T

2007 ENGINE Cooling - Nitro
