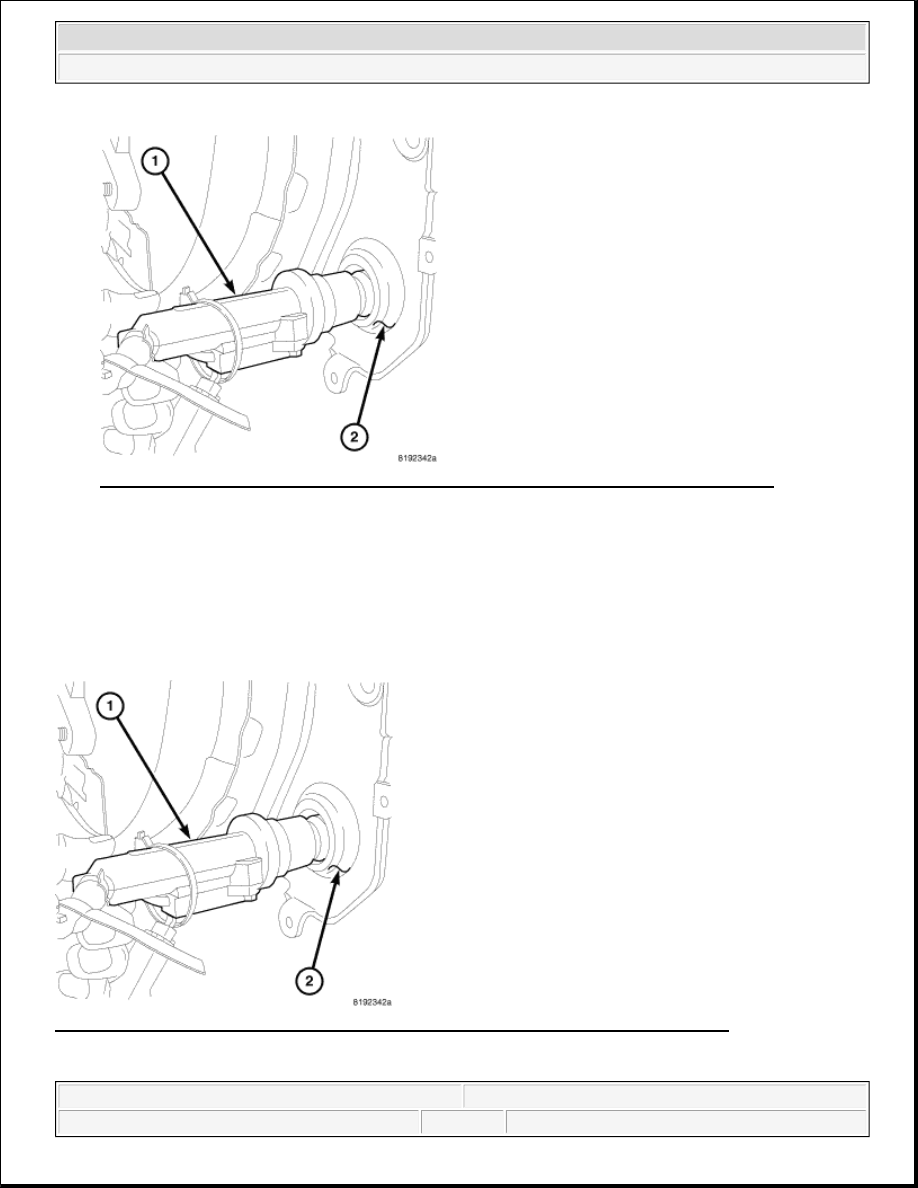

Fig. 13: Identifying Clutch Master Cylinder Assembly & Brake Booster Mounting Plate
Courtesy of CHRYSLER LLC

5. Turn clutch master cylinder assembly (1) clockwise a quarter turn and remove from brake booster

mounting plate (2).

INSTALLATION

Fig. 14: Identifying Clutch Master Cylinder Assembly & Brake Booster Mounting Plate
Courtesy of CHRYSLER LLC

2007 Dodge Nitro R/T

2007 CLUTCH Clutch - Nitro

1. Install clutch master cylinder (1) through brake booster mounting plate (2) and turn counter clockwise a

quarter turn.

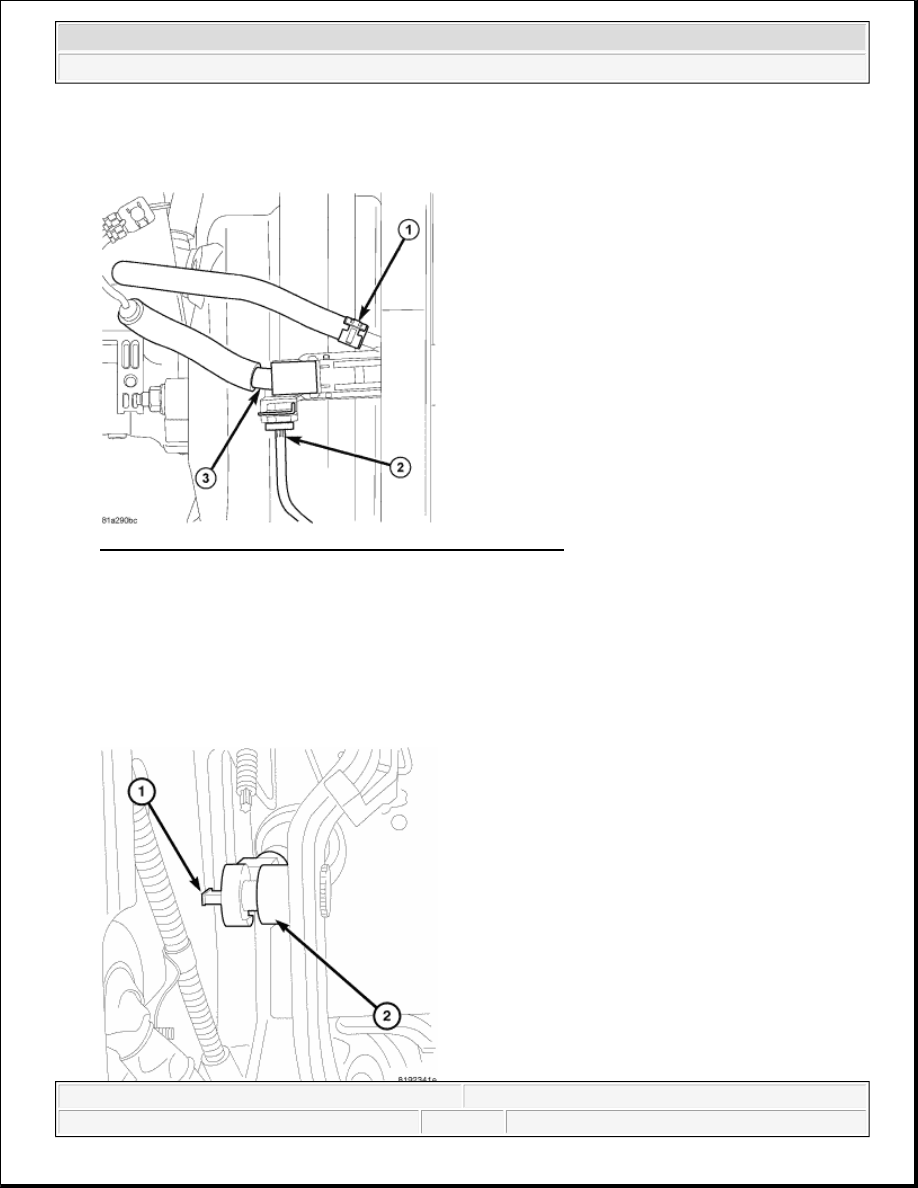

Fig. 15: Identifying Hose, Wiring Harness & Hydraulic Line
Courtesy of CHRYSLER LLC

2. Install actuator hose (1) to clutch master cylinder.

3. Install hydraulic line (2) to the bottom of clutch master cylinder.

4. Connect wiring harness (3) to pedal position switch.

NOTE:

Verify O-ring is on hydraulic line.

2007 Dodge Nitro R/T

2007 CLUTCH Clutch - Nitro

Fig. 16: Identifying Actuator Rod & Clutch Pedal Pin
Courtesy of CHRYSLER LLC

5. Install actuator rod (1) on clutch pedal pin (2).

6. Bleed clutch hydraulic circuit.

CYLINDER-SLAVE

REMOVAL

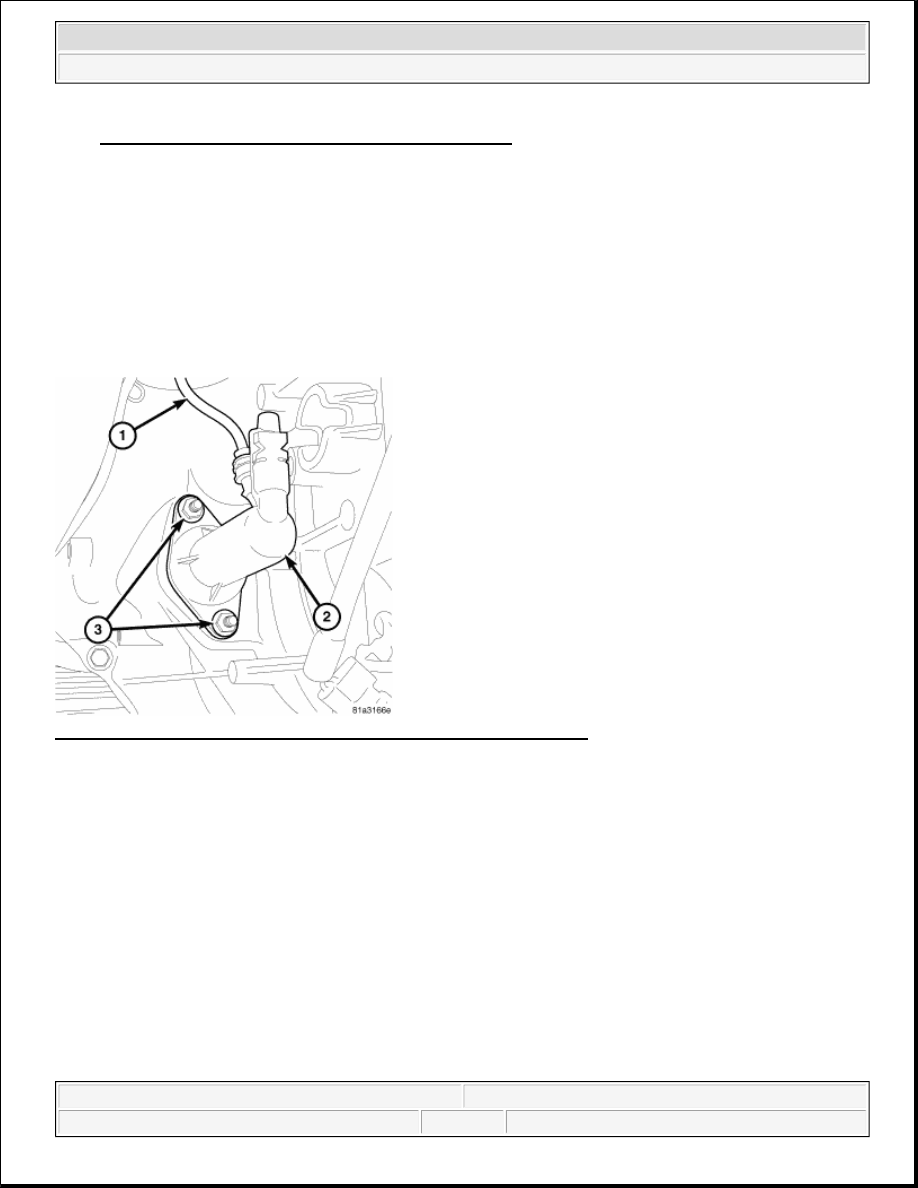

Fig. 17: Identifying Hydraulic Line, Slave Cylinder & Mounting Nuts
Courtesy of CHRYSLER LLC

1. With transmission in neutral, position vehicle on hoist.

2. Pull clip from hydraulic line (1) at the slave cylinder (2) and remove the line.

3. Remove mounting nuts (3) from slave cylinder (2).

4. Remove the slave cylinder.

INSTALLATION

2007 Dodge Nitro R/T

2007 CLUTCH Clutch - Nitro

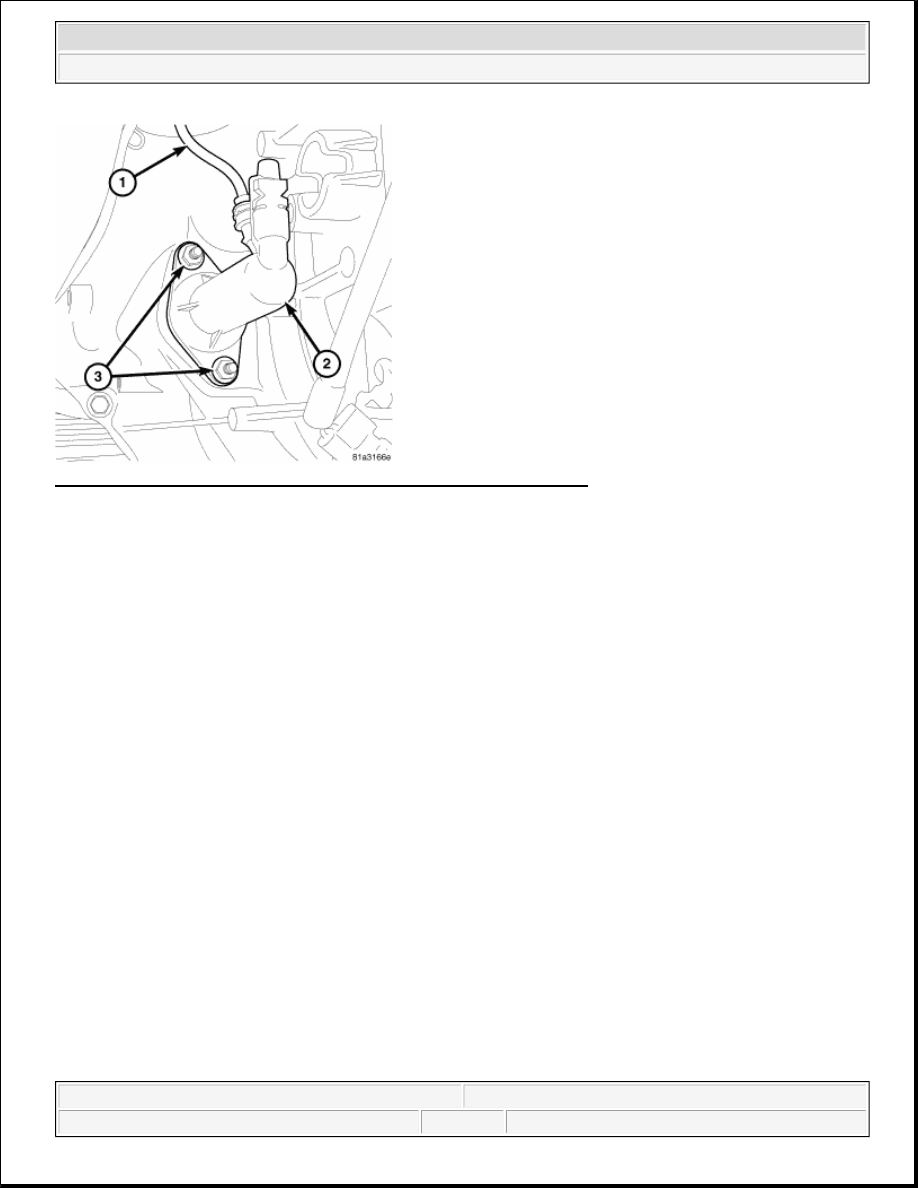

Fig. 18: Identifying Hydraulic Line, Slave Cylinder & Mounting Nuts
Courtesy of CHRYSLER LLC

1. Install slave cylinder (2) in transmission.

2. Install slave cylinder nuts (3) and tighten to 23 N.m (17 ft. lbs.).

3. Install hydraulic line (1) to slave cylinder (2).

4. Bleed hydraulic system.

PEDAL-CLUTCH

REMOVAL

PEDAL-CLUTCH

NOTE:

Verify O-ring is on hydraulic line.
