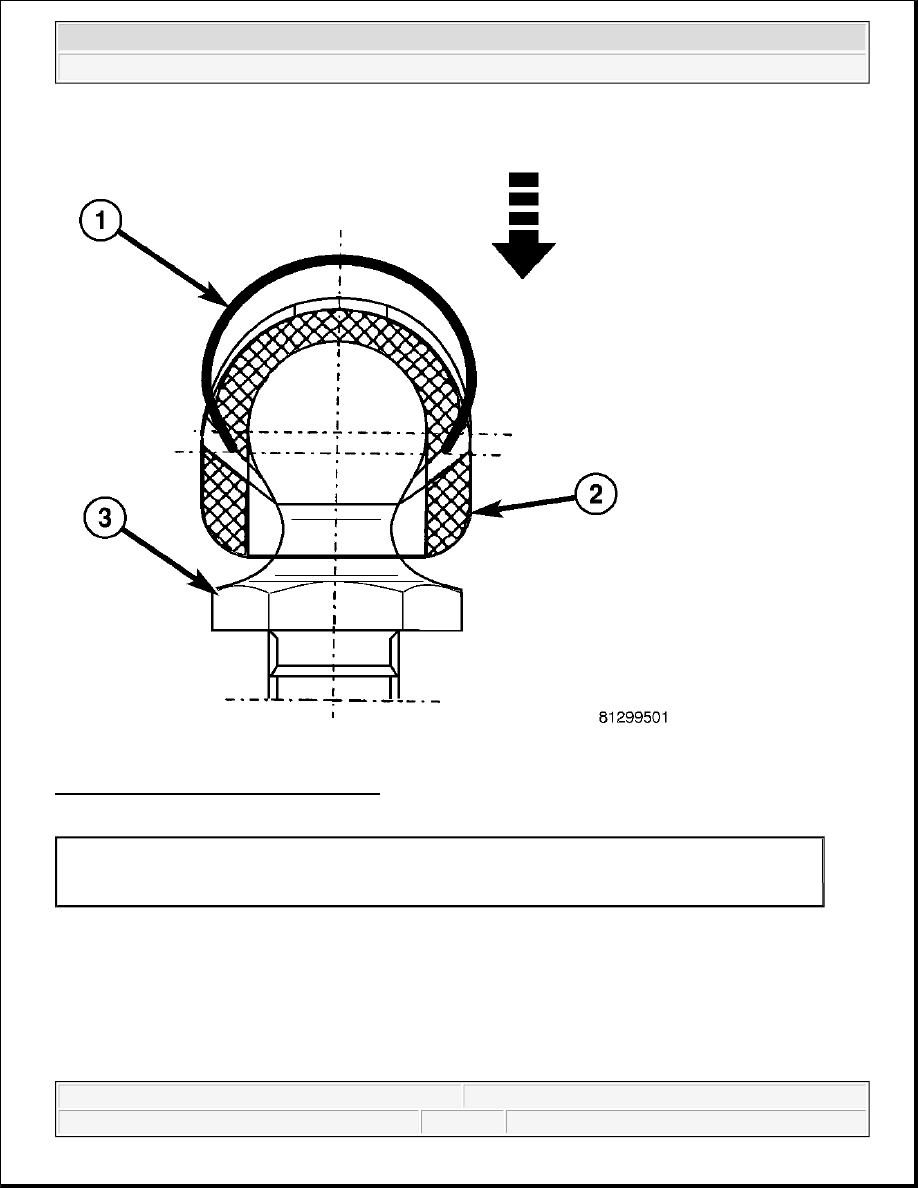

Fig. 298: Support Cylinder Retaining Clip
Courtesy of CHRYSLER LLC

1. Make sure the retaining clips (1) are seated into the ball socket (2) fully.

1 - RETAINING CLIP
2 - BALL SOCKET
3 - BALL STUD



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



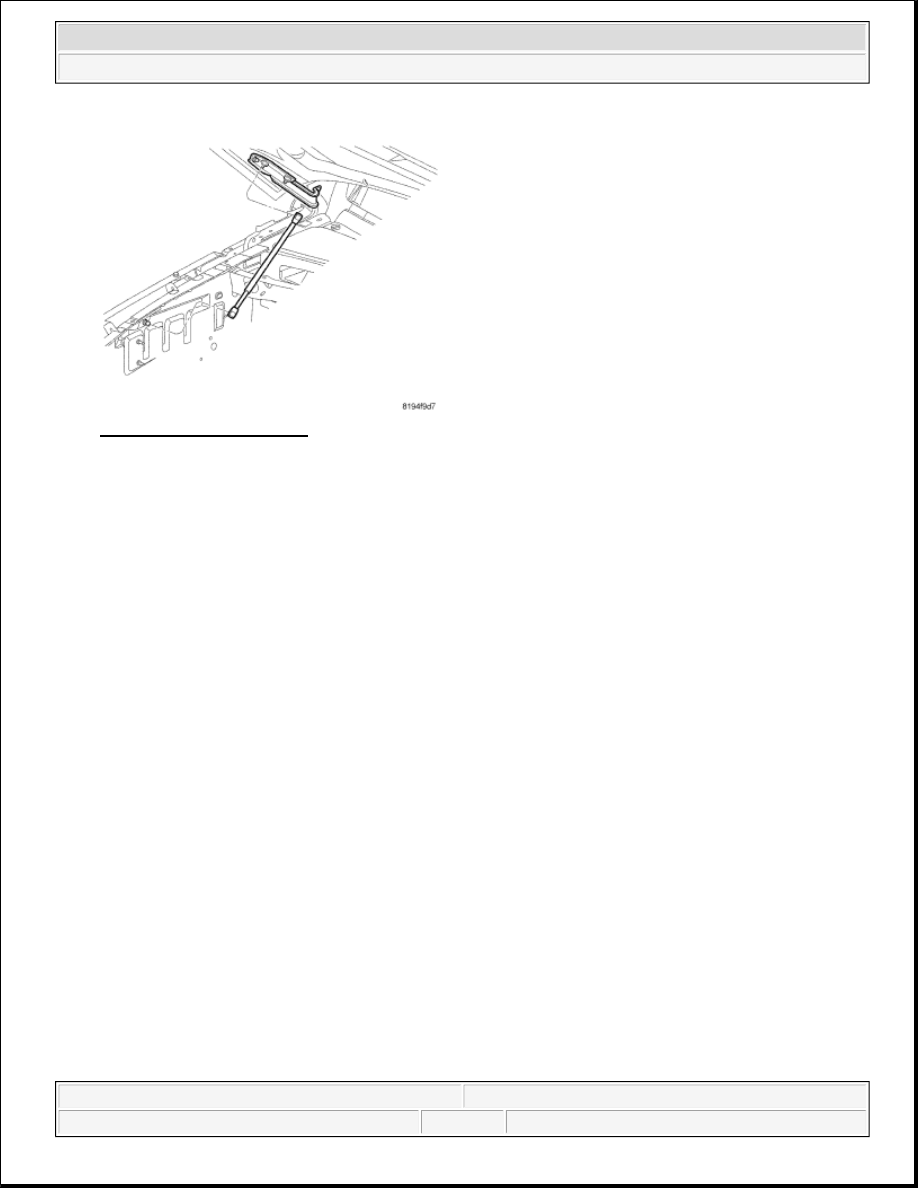

Fig. 299: Support Cylinder
Courtesy of CHRYSLER LLC

2. Install the support cylinder over the ball studs with the thin end connected to the body side of the hinge

and the retaining clips snapping into place.

INSTRUMENT PANEL

WARNING

RESTRAINT SYSTEM

CAUTION: Do not install the support cylinders by pressing at the center of the

cylinder. Press the ends only.

WARNING:

To avoid personal injury or death, during and following any seat belt or
child restraint anchor service, carefully inspect all seat belts, buckles,
mounting hardware, retractors, tether straps, and anchors for proper
installation, operation, or damage. Replace any belt that is cut, frayed, or
torn. Straighten any belt that is twisted. Tighten any loose fasteners.
Replace any belt that has a damaged or inoperative buckle or retractor.
Replace any belt that has a bent or damaged latch plate or anchor plate.
Replace any child restraint anchor or the unit to which the anchor is
integral that has been bent or damaged. Never attempt to repair a seat
belt or child restraint component. Always replace damaged or faulty seat
belt and child restraint components with the correct, new and unused
replacement parts listed in the DaimlerChrysler Mopar® parts catalog.

WARNING:

To avoid personal injury or death, on vehicles equipped with airbags,
disable the supplemental restraint system before attempting any steering
wheel, steering column, airbag, occupant classification system, seat belt



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



tensioner, impact sensor, or instrument panel component diagnosis or
service. Disconnect and isolate the battery negative (ground) cable, then
wait two minutes for the system capacitor to discharge before performing
further diagnosis or service. This is the only sure way to disable the
supplemental restraint system. Failure to take the proper precautions
could result in accidental airbag deployment.

WARNING:

To avoid personal injury or death on vehicles equipped with airbags,
before performing any welding operations disconnect and isolate the
battery negative (ground) cable and disconnect all wire harness
connectors from the airbag control module (ACM). Failure to take the
proper precautions could result in accidental airbag deployment and
other possible damage to the supplemental restraint system circuits and
components.

WARNING:

To avoid personal injury or death, do not attempt to dismantle an airbag
unit or tamper with its inflator. Do not puncture, incinerate, or bring into
contact with electricity. Do not store at temperatures exceeding 93°C
(200°F). An airbag inflator unit may contain sodium azide and potassium
nitrate. These materials are poisonous and extremely flammable. Contact
with acid, water, or heavy metals may produce harmful and irritating
gases (sodium hydroxide is formed in the presence of moisture) or
combustible compounds. An airbag inflator unit may also contain a gas
canister pressurized to over 2500 psi.

WARNING:

To avoid personal injury or death, when handling a seat belt tensioner
retractor, proper care should be exercised to keep fingers out from under
the retractor cover and away from the seat belt webbing where it exits
from the retractor cover.

WARNING:

To avoid personal injury or death, replace all restraint system
components only with parts specified in the DaimlerChrysler Mopar®
parts catalog. Substitute parts may appear interchangeable, but internal
differences may result in inferior occupant protection.

WARNING:

To avoid personal injury or death, the fasteners, screws, and bolts
originally used for the restraint system components must never be
replaced with any substitutes. These fasteners have special coatings and
are specifically designed for the restraint system. Any time a new fastener
is needed, replace it with the correct fasteners provided in the service
package or specified in the DaimlerChrysler Mopar® parts catalog.

WARNING:

To avoid personal injury or death, when a steering column has an airbag
unit attached, never place the column on the floor or any other surface
with the steering wheel or airbag unit face down.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



BEZEL - CLUSTER

REMOVAL

BEZEL - CLUSTER

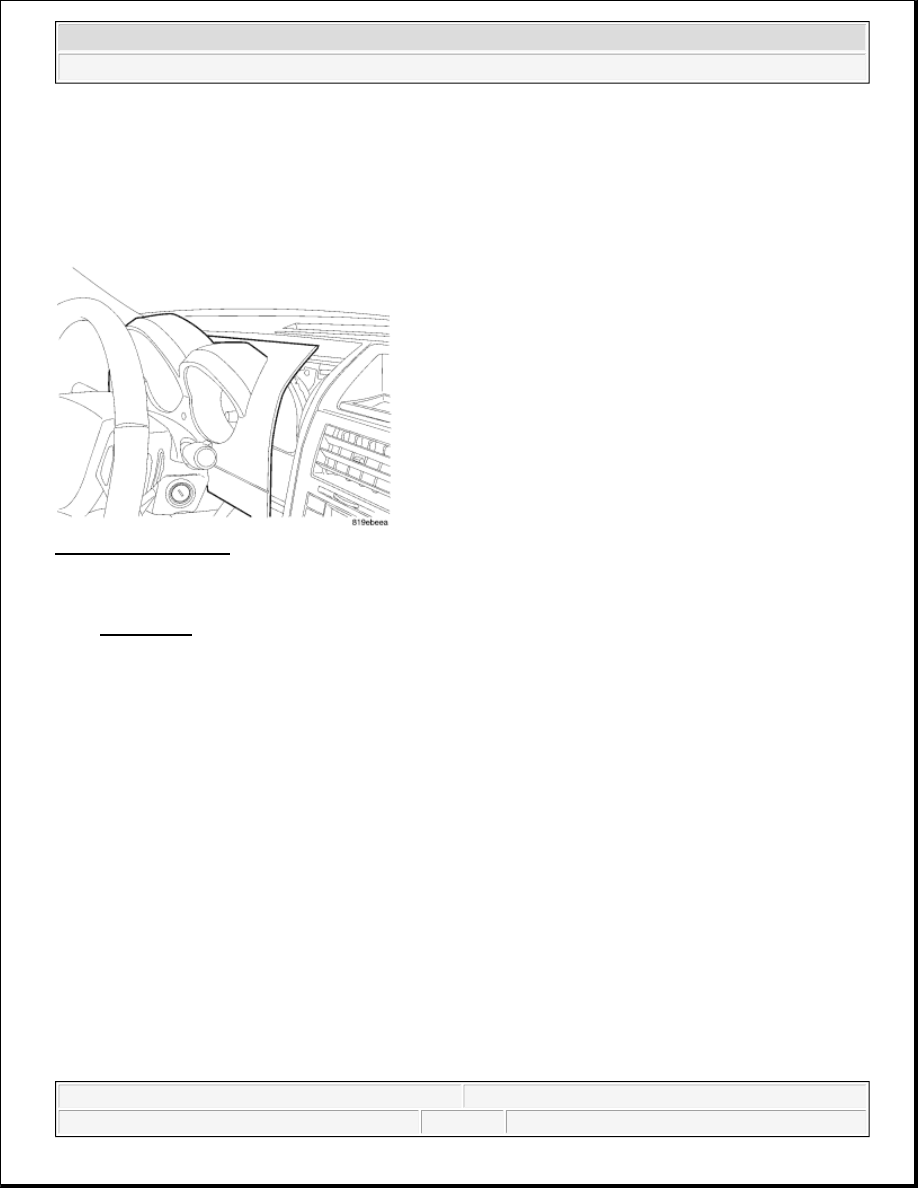

Fig. 300: Cluster Bezel
Courtesy of CHRYSLER LLC

1. Before proceeding with the following repair procedure, review all warnings and cautions. See

WARNING.

2. Using a trim stick C-4755 or equivalent, remove the cluster bezel from the instrument panel assembly.

INSTALLATION

BEZEL - CLUSTER

NOTE:

Position the steering column to the lowest position to ease in the removal
of the cluster bezel.
