Dodge Nitro. Manual - part 380





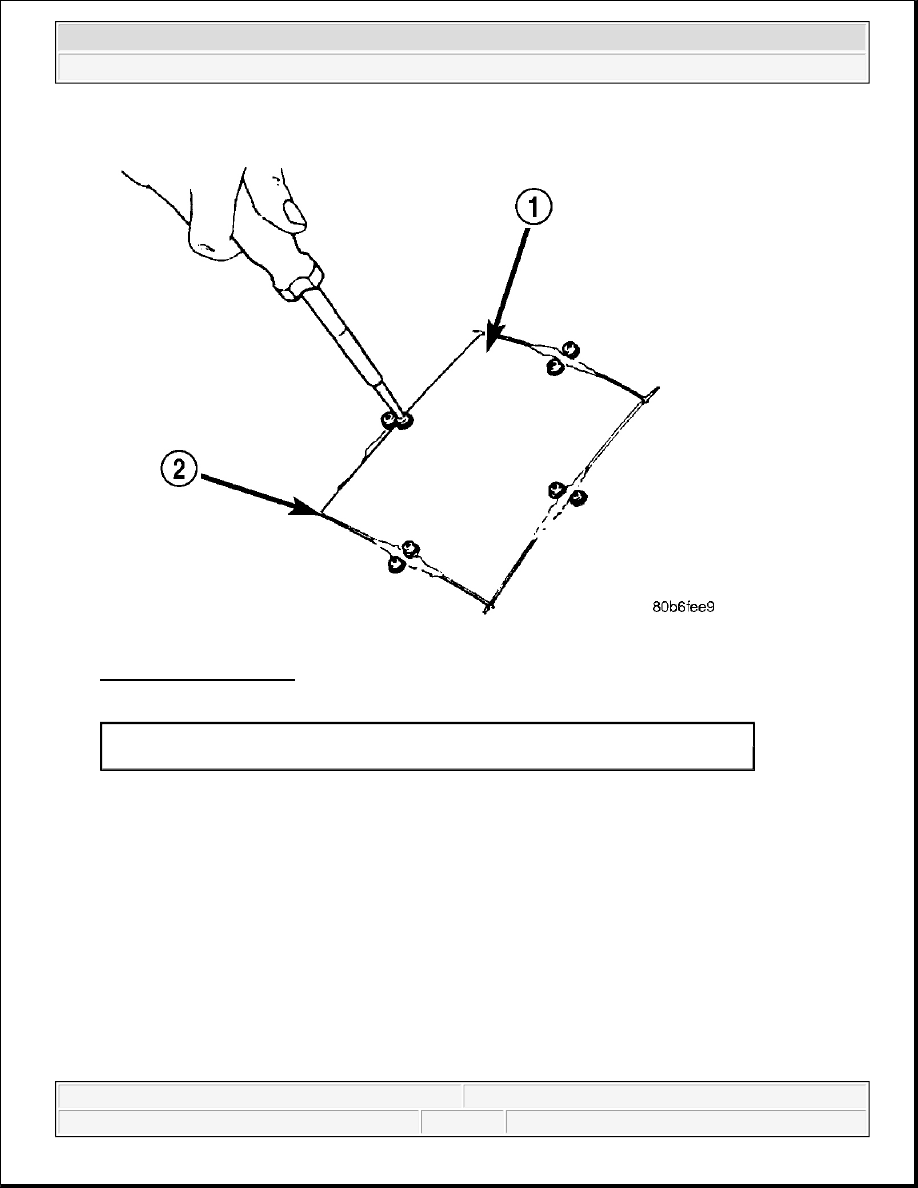

Fig. 12: Installing Screws
Courtesy of CHRYSLER LLC

15. Install screws to hold the patch to support squares. Tighten screws until patch surface is flush with panel

surface.

16. Allow adhesive to cure, and remove all screws.

1 - PATCH
2 - GAP



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



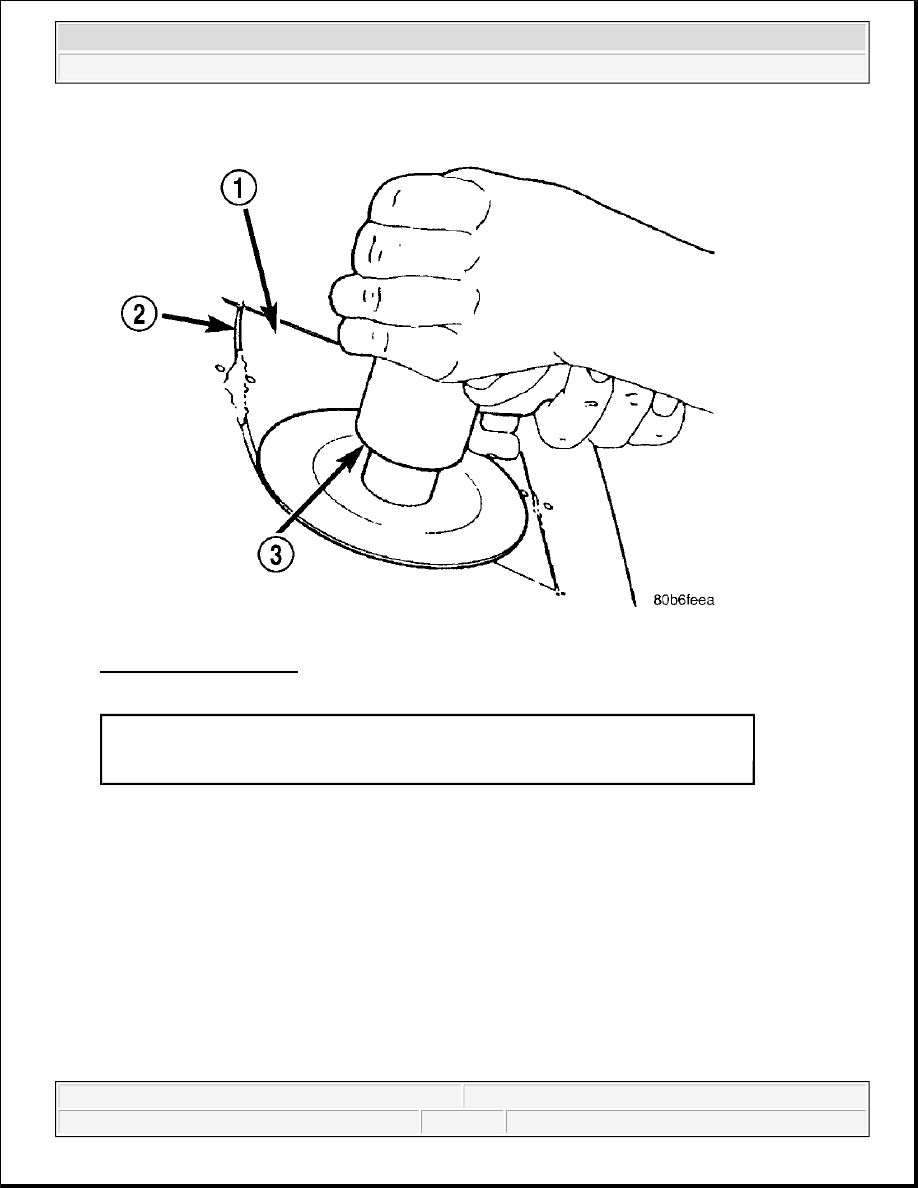

Fig. 13: Grinding Surface
Courtesy of CHRYSLER LLC

17. Using a 125 mm (5 in.) 24 grit disc grinder, grind a 50 mm (2 in.) to 75 mm (3 in.) wide and 2 mm (0.080

in.) deep path across the gaps around the patch. With compressed air, blow dust from around patch.

1 - PATCH
2 - GAP
3 - DISC GRINDER



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



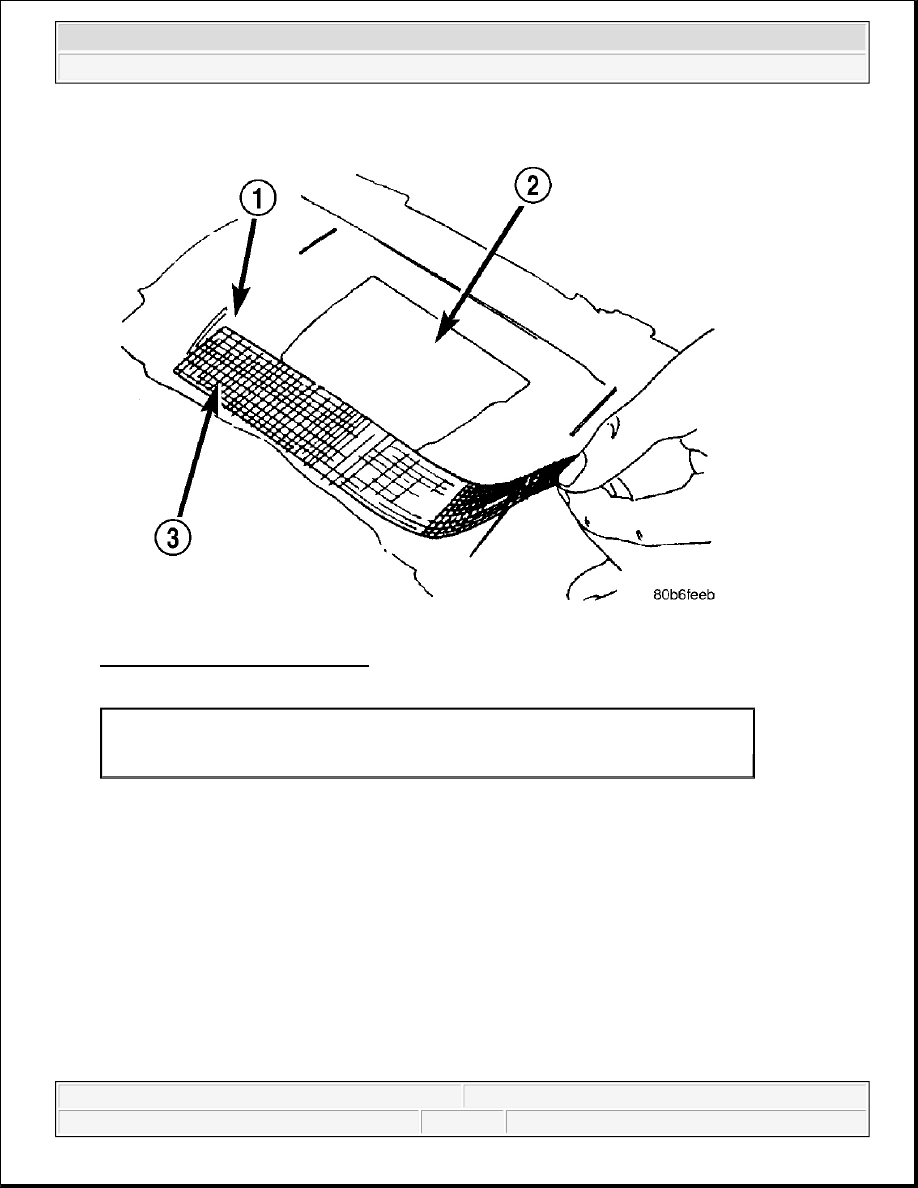

Fig. 14: Covering Gaps With Mesh
Courtesy of CHRYSLER LLC

18. Apply adhesive backed nylon mesh (dry wall tape) over gaps around patch.

19. Mix enough adhesive to cover the entire patch area.

1 - GROUND DOWN AREA
2 - PATCH
3 - MESH



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



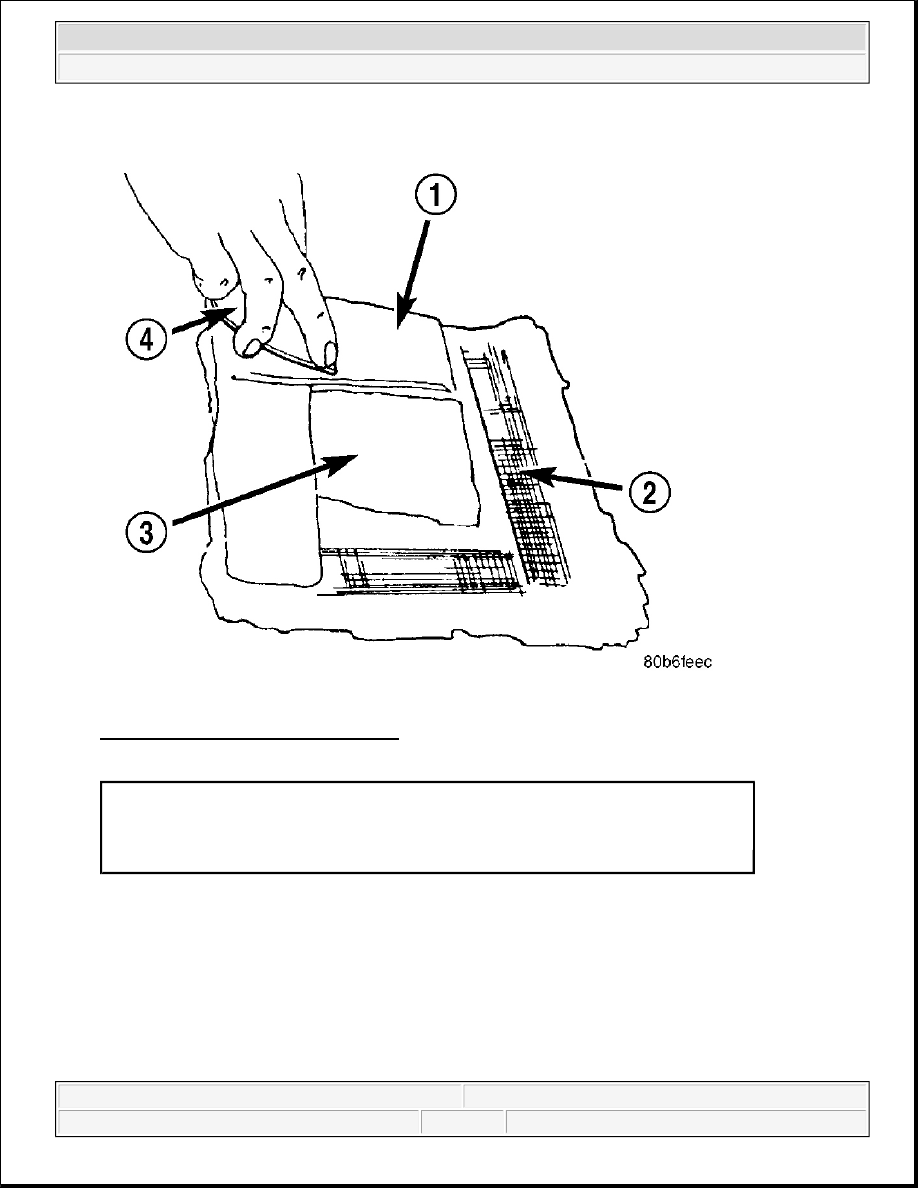

Fig. 15: Covering Mesh With Adhesive
Courtesy of CHRYSLER LLC

20. Apply adhesive over the mesh around patch, and smooth epoxy with a wide spreader to reduce finish

grinding. Use two to three layers of mesh and adhesive to create a stronger repair.

PATCHED PANEL SURFACING

After patch panel is installed, the patch area can be finished using the same methods as finishing other types of
body panels. If mesh material is exposed in the patched area, grind surface down, and apply a coat of high
quality rigid plastic body filler. Prime, block sand, and paint as required.

1 - ADHESIVE
2 - MESH
3 - PATCH
4 - SPREADER



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro
