Dodge Nitro. Manual - part 377

SMC

SHEET MOLDED COMPOUND SMC

BODY PANELS

TMC

TRANSFER MOLDING
COMPOUND

TMC

GRILLES

UP

UNSATURATED POLYESTER
(THERMOSETTING)

SMC, BMC, TMC, ZMC,
IMC, XSMC, UP

GRILLE OPENING
PANEL, LIFTGATES,
FLARESIDE FENDERS,
FENDER EXTENSIONS

EEBC

ETHER/ESTER BLOCKED CO-
POLYMER

EEBC

BUMPERS

EEBC/PBTP EEBC/POLYBUTYLENE

TEREPTHALATE

EEBC, PBTP, BEXLOY

BUMPER, ROCKER
PANELS

EMPP

ETHYLENE MODIFIED
POLYPROPYLENE

EMPP

BUMPER COVERS

EPDM

ETHYLENE/PROPROPYLENE
DIENE MONOMER

EPDM, NORDEL,
VISTALON

BUMPERS

EPM

ETHYLENE/PROPROPYLENE
CO-POLYMER

EPM

FENDERS

MPU

FOAM POLYURETHANE

MPU

SPOILERS

PE

POLYETHYLENE

ALATHON, DYLAN,
LUPOLEN, MARLEX

-

PP

POLYPROPYLENE (BLENDS)

NORYL, AZDEL,
MARLOX, DYLON,
PRAVEX

INNER FENDER,
SPOILERS, KICK
PANELS

PP/EPDM

PP/EPDM ALLOY

PP/EPDM

SPOILERS, GRILLES

PUR

POLYURETHANE

COLONELS, PUR, PU

FASCIAS, BUMPERS

PUR/PC

PUR/PC ALLOY

TEXIN

BUMPERS

PVC

POLYVINYL CHLORIDE

APEX, GEON, VINYLITE BODY MOLDINGS,

WIRE INSULATION,
STEERING WHEELS

RIM

REACTION INJECTED
MOLDED POLYURETHANE

RIM, BAYFLEX

FRONT FASCIAS,
MODULAR WINDOWS

RRIM

REINFORCED REACTION
INJECTED MOLDED

PUR, RRIM

FASCIAS, BODY
PANELS, BODY TRIMS

TPE

THERMO POLYETHYLENE

TPE, HYTREL,
BEXLOY-V

FASCIAS, BUMPERS,
CLADDINGS

TPO

THERMOPOLYOLEFIN

POLYTROPE, RENFLEX,
SANTOPRENE,
VISAFLEX, ETA, APEX,
TPO, SHIELDS,
CLADDINGS

BUMPERS, END CAPS,
TELCAR, RUBBER,
STRIPS, SIGHT,
INTERIOR B POST

TPP

THERMO-POLYPROPYLENE

TPP

BUMPERS

TPU

THERMOPOLYURETHANE,
POLYESTER

TPU, HYTREL, TEXIN,
ESTANE

BUMPERS, BODY SIDE,
MOLDINGS, FENDERS,
FASCIAS



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



PANEL SECTIONING

Fig. 1: View Of Panel Sectioning
Courtesy of CHRYSLER LLC

If it is required to section a large panel for a plastic repair, it will be necessary to reinforce the panel. To bond
two plastic panels together, a reinforcement must overlap both panels. The panels must be "V'd" at a 20 degree
angle. The area to be reinforced should be washed, then sanded. Be sure to wipe off any excess soap and water
when finished. Lightly sand or abrade the plastic with an abrasive pad or sandpaper. Blow off any dust with
compressed air or wipe with a clean dry rag.

When bonding plastic panels, follow repair material manufacturers recommendations. Be sure that enough
adhesive has been applied to allow squeeze out and to fill the full bond line. Once the pieces have been brought
together, do not move them until the adhesive is cured. The assembly can be held together with clamps, rivets,
etc. A faster cure can be obtained by heating with a heat lamp or heat gun. After the parts have been bonded and
have had time to cure, rough sand the seam and apply the final adhesive filler to the area being repaired. Smooth
the filler with a spreader, wooden tongue depressor, or squeegee. For fine texturing, a small amount of water
can be applied to the filler surface while smoothing. The cured filler can be sanded as necessary and, as a final
step, cleanup can be done with soapy water. Wipe the surface clean with a dry cloth allowing time for the panel

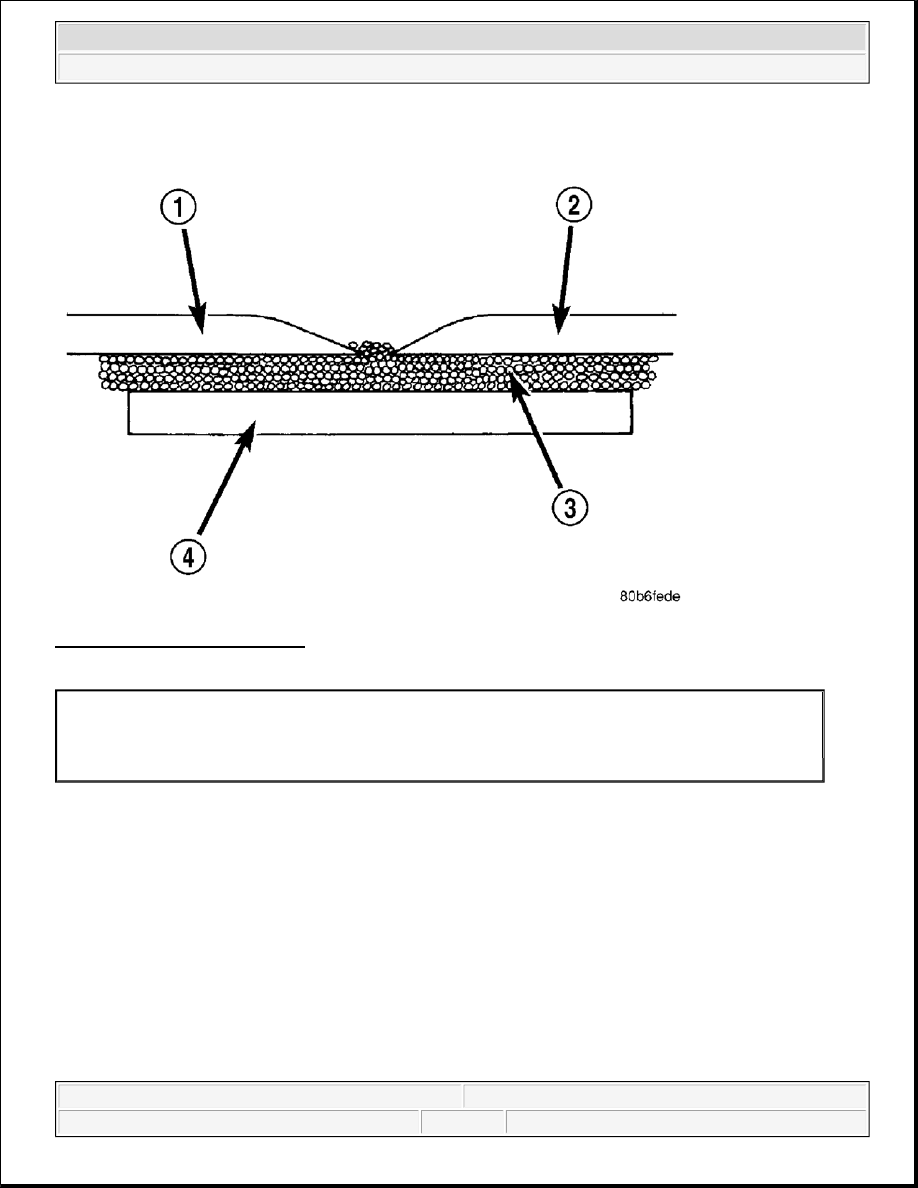

1 - EXISTING PANEL
2 - NEW PANEL
3 - PANEL ADHESIVE
4 - BONDING STRIP



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



to dry before moving on with the repair.

PANEL REINFORCEMENT

Fig. 2: Identifying Softened Edges
Courtesy of CHRYSLER LLC

Structural repair procedures for rigid panels with large cracks and holes will require a reinforcement backing.
Reinforcements can be made with several applications of glass cloth saturated with structural adhesive. Semi-
rigid or flexible repair materials should be used for semi-rigid or flexible backing reinforcement and open
meshed fiberglass dry wall tape can be used to form a reinforcement. The dry wall tape allows the resin to
penetrate through and make a good bond between the panel and the adhesive. Structurally, the more dry wall
tape used, the stronger the repair.

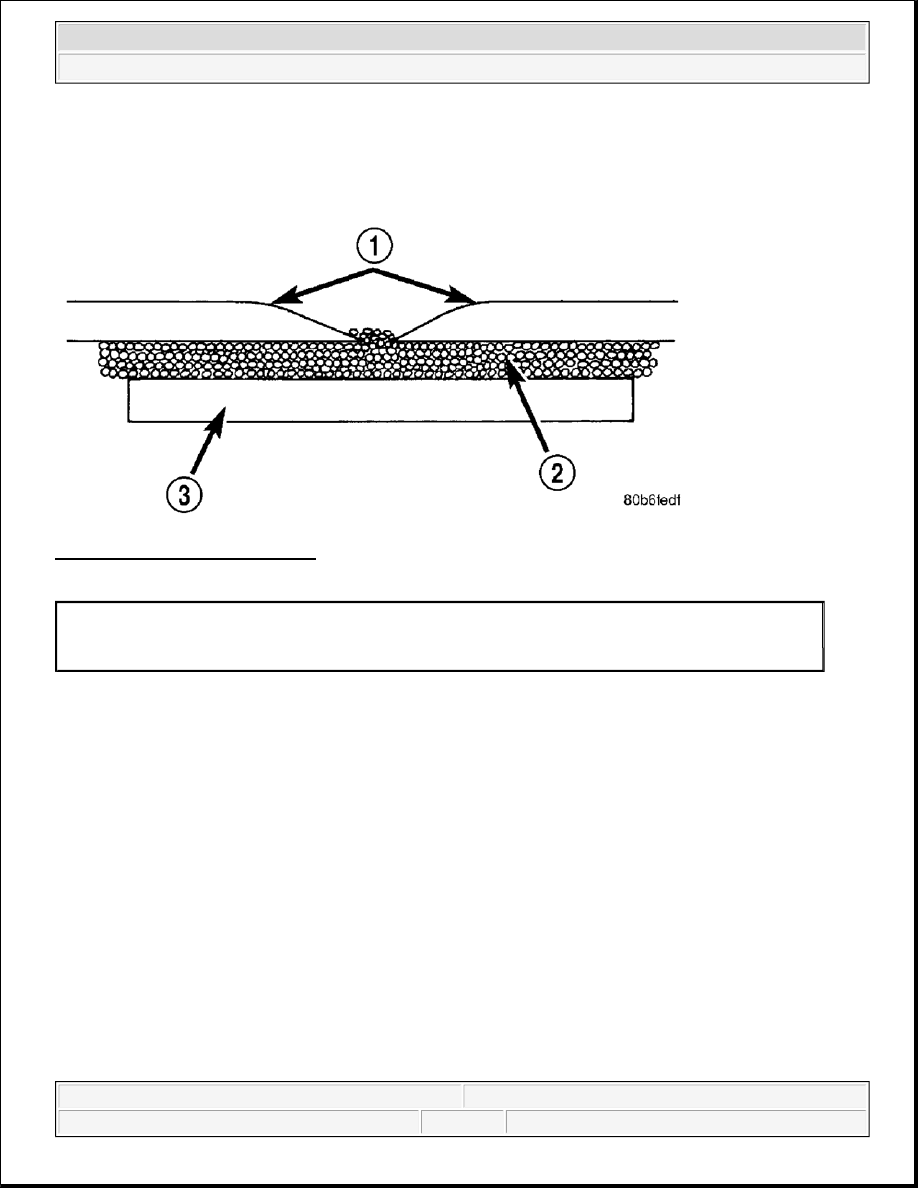

1 - SOFTENED EDGES
2 - PANEL ADHESIVE
3 - BONDING STRIP



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



Fig. 3: Identifying Panel Reinforcement
Courtesy of CHRYSLER LLC

Another kind of repair that can be done to repair large cracks and holes is to use a scrap piece of similar plastic
and bond with structural adhesive. The reinforcement should cover the entire break and should have a generous
amount of overlap on either side of the cracked or broken area.

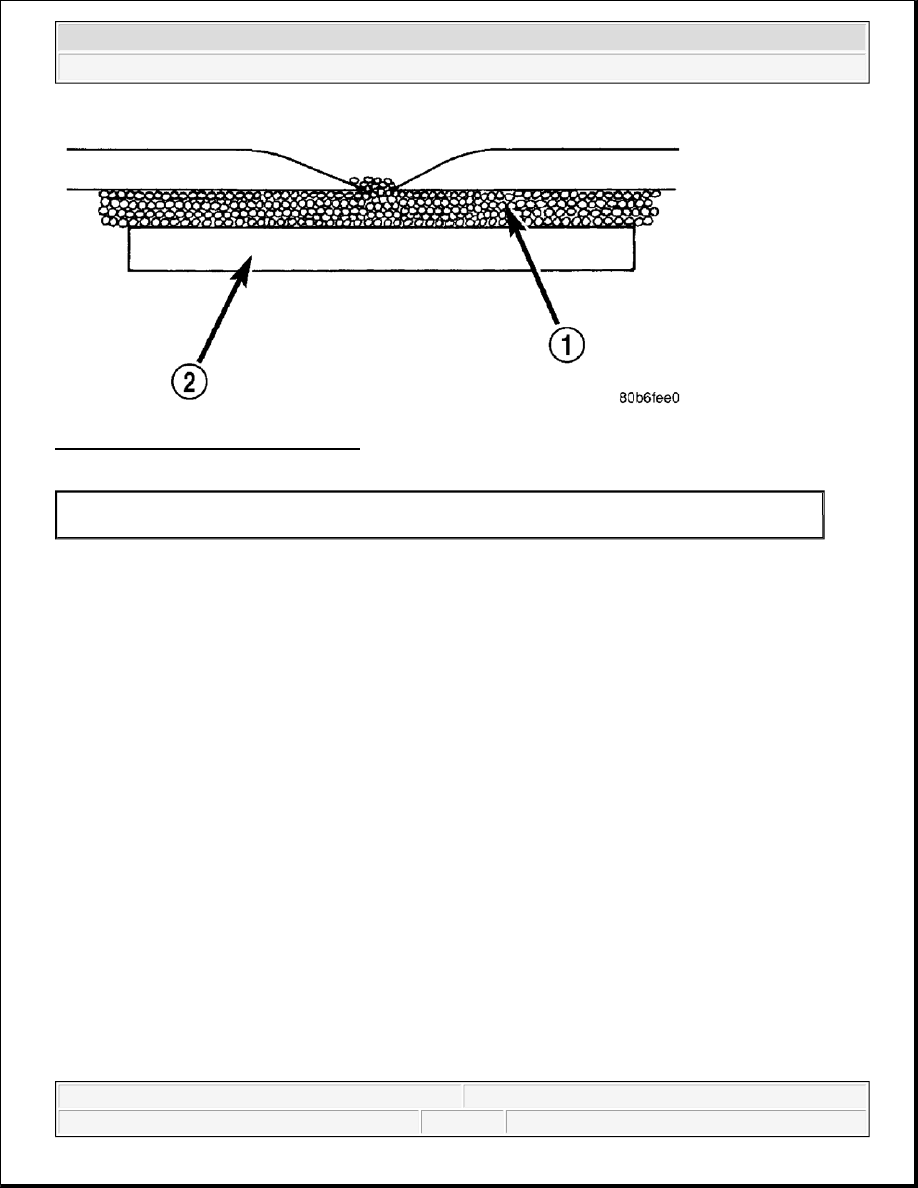

1 - PANEL ADHESIVE
2 - REINFORCEMENT



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro
