3. Install the park brake cable between the stabilizer bar retainer bracket and the mount. Tighten the bolts to

47 N.m (35 ft. lbs.).

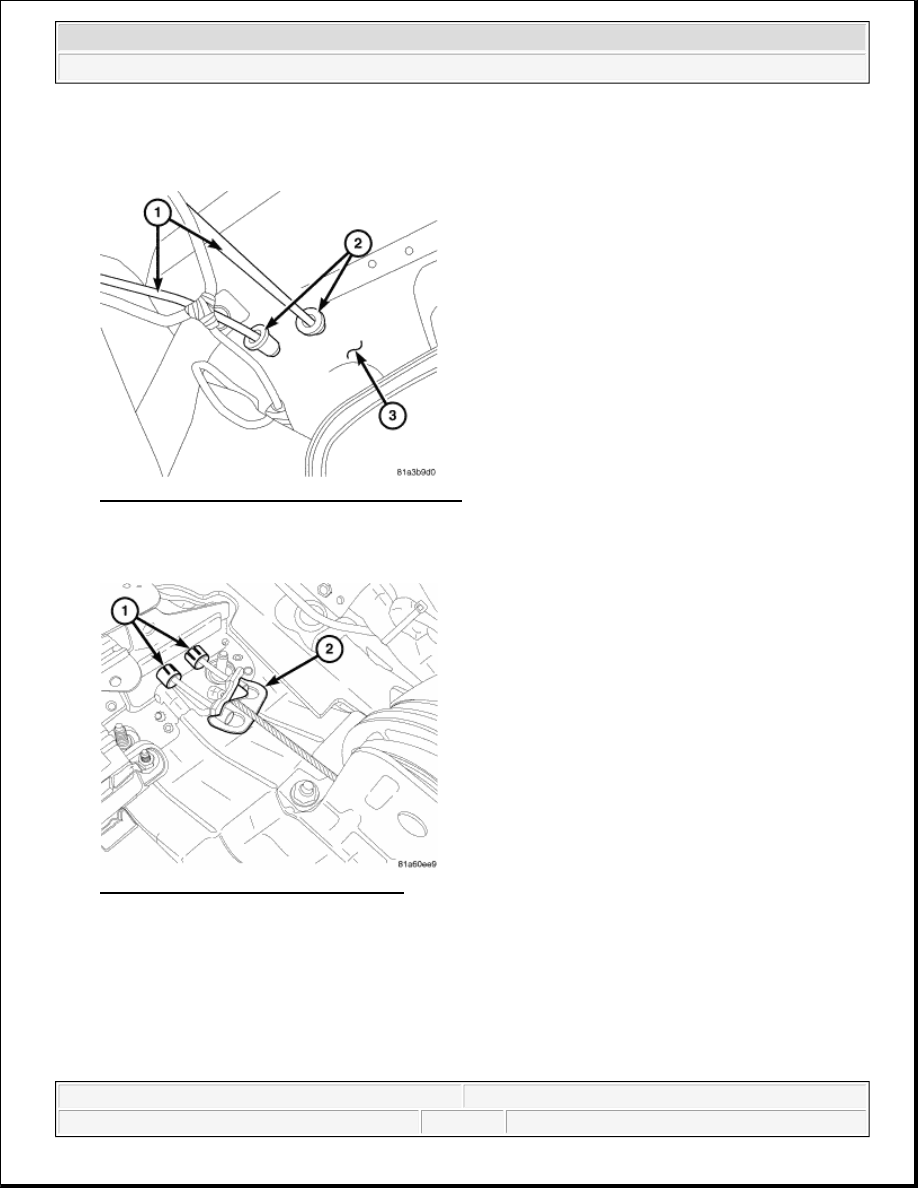

Fig. 87: Identifying Cables, Floor & Grommets
Courtesy of CHRYSLER LLC

4. Push the cables (1) through the floor (3) and seat the grommets (2).

Fig. 88: Identifying Cables & Equalizer
Courtesy of CHRYSLER LLC

5. Reconnect the two cables (1) to the front mount and then to the equalizer (2).



2007 Dodge Nitro R/T

2007 BRAKES Base - Service Information - Nitro



Fig. 89: Mounting Brackets
Courtesy of CHRYSLER LLC

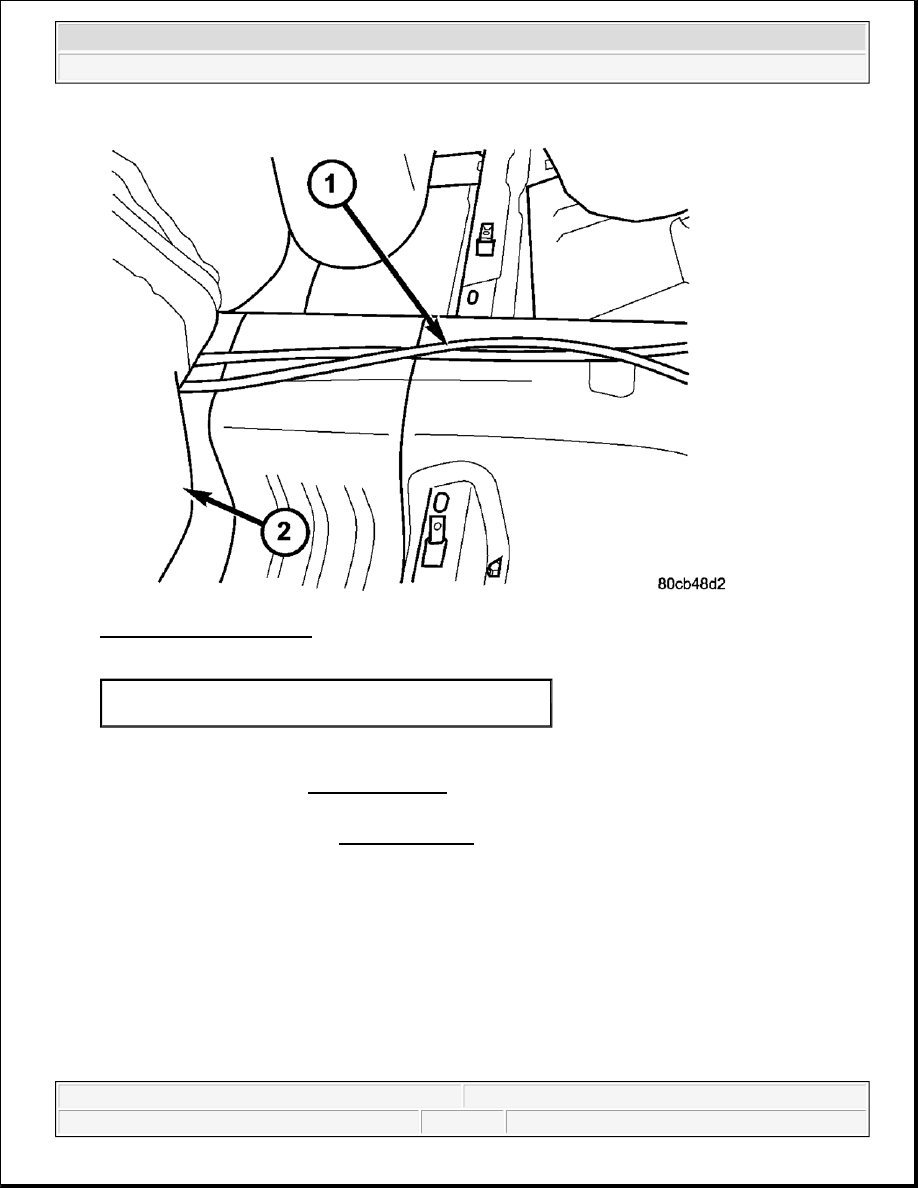

6. Lay the carpet (2) back down in the rear.

7. Install the rear seat. Refer to INSTALLATION .

8. Remove the lock out device on the lever.

9. Adjust the park brake shoes. See ADJUSTMENTS.

10. Test the parking brake.

LEVER

REMOVAL

PARKING BRAKE LEVER

1 - PARK BRAKE CABLES
2 - CARPET



2007 Dodge Nitro R/T

2007 BRAKES Base - Service Information - Nitro



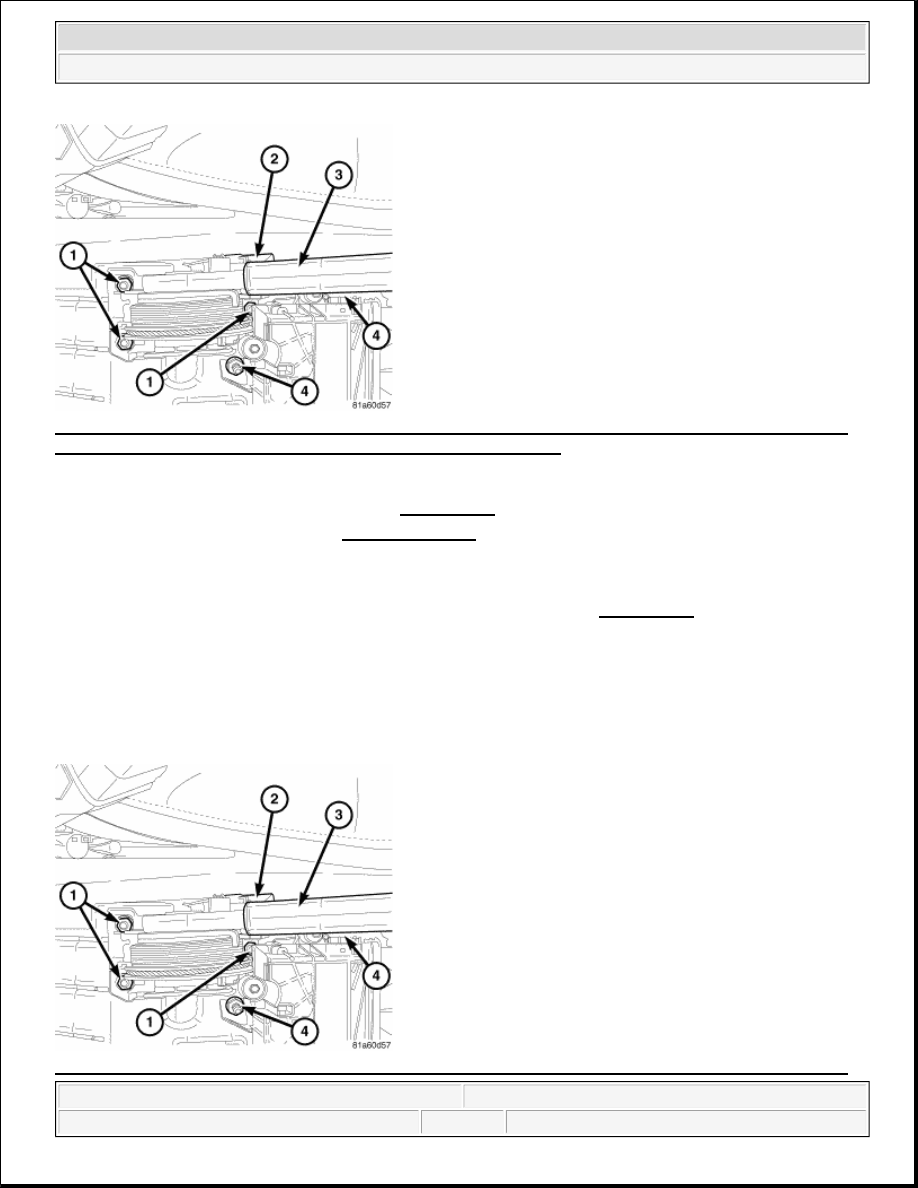

Fig. 90: Identifying Parking Brake Lever Assembly Mounting Nuts, Parking Brake Lamp Switch Wire,
Lever Assembly & Occupant Restraint Controller Mounting Nuts
Courtesy of CHRYSLER LLC

1. Remove the center floor console, refer to REMOVAL .

2. Lock out the parking brakes. See ADJUSTMENTS.

3. Disengage the front cables from the equalizer.

4. Disconnect the parking brake lamp switch wire (2).

5. Remove the occupant restraint controller mounting nuts (4). Refer to REMOVAL .

6. Remove the parking brake lever assembly mounting nuts (1).

7. Remove the lever assembly (3).

INSTALLATION

PARKING BRAKE LEVER

Fig. 91: Identifying Parking Brake Lever Assembly Mounting Nuts, Parking Brake Lamp Switch Wire,



2007 Dodge Nitro R/T

2007 BRAKES Base - Service Information - Nitro



Lever Assembly & Occupant Restraint Controller Mounting Nuts
Courtesy of CHRYSLER LLC

1. Install the parking brake lever assembly (3).

2. Install the parking brake lever assembly (3) to the mounting bolts and tighten the nuts (1) to 16 N.m (140

in. lbs.).

3. Engage the front cables to the equalizer.

4. Reconnect the parking brake lamp switch wire (2).

5. If installing a new parking brake lever remove the pin that comes on the lever when shipped.

6. If you are reinstalling the original park brake lever remove the lock out device at this time.

7. Install the occupant restraint controller. Refer to INSTALLATION .

8. Test the parking brake lever.

9. Install the center floor console, refer to INSTALLATION .

SHOES

DESCRIPTION

DRUM IN HAT PARK BRAKES

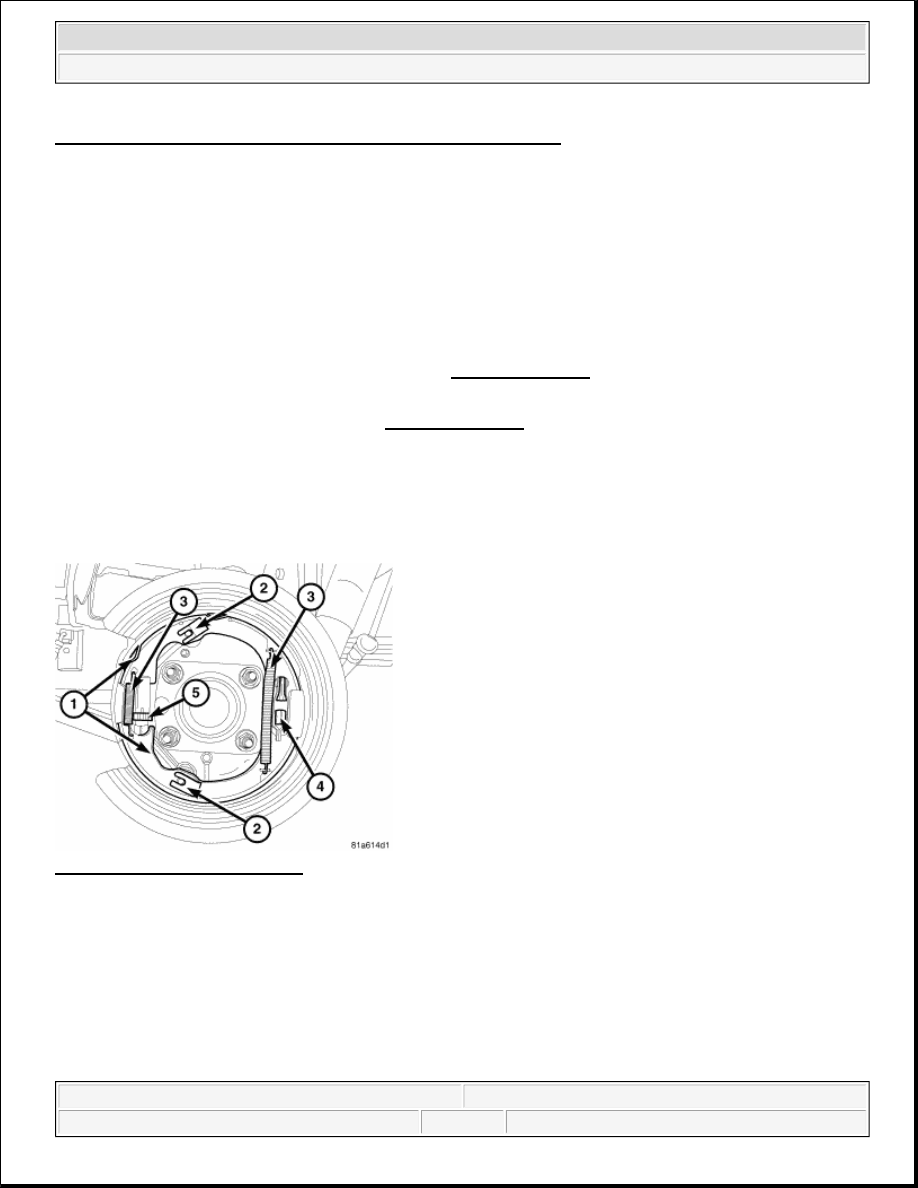

Fig. 92: Identifying Brake Shoes
Courtesy of CHRYSLER LLC

Drum in hat park brakes are dual shoe, internal expanding units with an automatic self adjusting mechanism.

OPERATION

DRUM IN HAT PARK BRAKE

When the parking brake lever is pulled the brake cable pulls the brake shoes outward against the brake drum.
When the brake lever is released the return springs attached to the brake shoes pull the shoes back to their
