The impeller (3) is an integral part of the converter housing. The impeller consists of curved blades placed
radially along the inside of the housing on the transmission side of the converter. As the converter housing is
rotated by the engine, so is the impeller, because they are one and the same and are the driving members of the
system. See Fig. 268.

TURBINE

Fig. 269: Turbine
Courtesy of CHRYSLER LLC

1 - ENGINE FLEXPLATE

4 - ENGINE ROTATION

2 - OIL FLOW FROM IMPELLER SECTION
INTO TURBINE SECTION

5 - ENGINE ROTATION

3 - IMPELLER VANES AND COVER ARE
INTEGRAL

1 - TURBINE VANE

4 - PORTION OF TORQUE CONVERTER
COVER

2 - ENGINE ROTATION

5 - ENGINE ROTATION



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION NAG1 - Service Information - Nitro



The turbine (1) is the output, or driven, member of the converter. The turbine is mounted within the housing
opposite the impeller, but is not attached to the housing. The input shaft is inserted through the center of the
impeller and splined into the turbine. The design of the turbine is similar to the impeller, except the blades of
the turbine are curved in the opposite direction. See Fig. 269.

STATOR

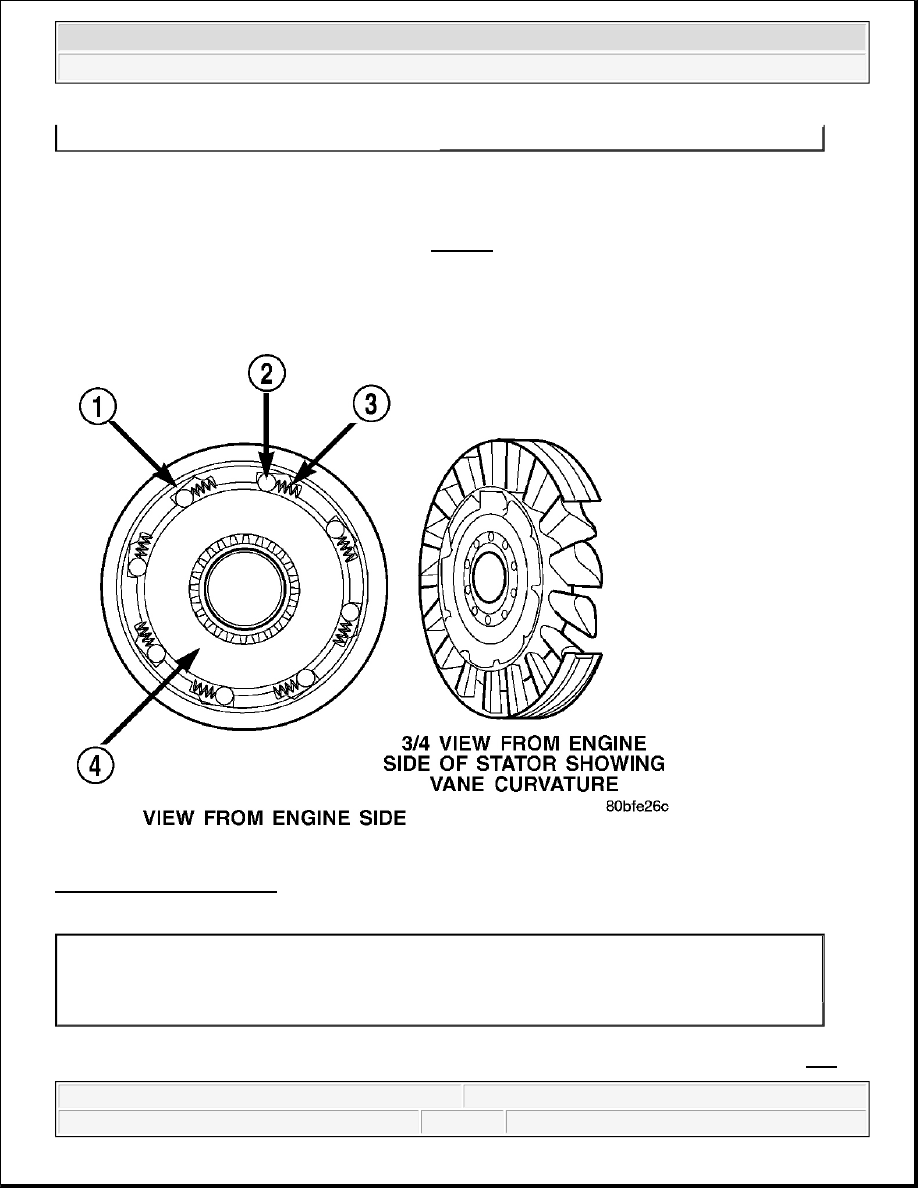

Fig. 270: Stator Components
Courtesy of CHRYSLER LLC

The stator assembly (1-4) is mounted on a stationary shaft which is an integral part of the oil pump. See Fig.

3 - INPUT SHAFT

6 - OIL FLOW WITHIN TURBINE SECTION

1 - CAM (OUTER RACE)
2 - ROLLER
3 - SPRING
4 - INNER RACE



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION NAG1 - Service Information - Nitro



270.

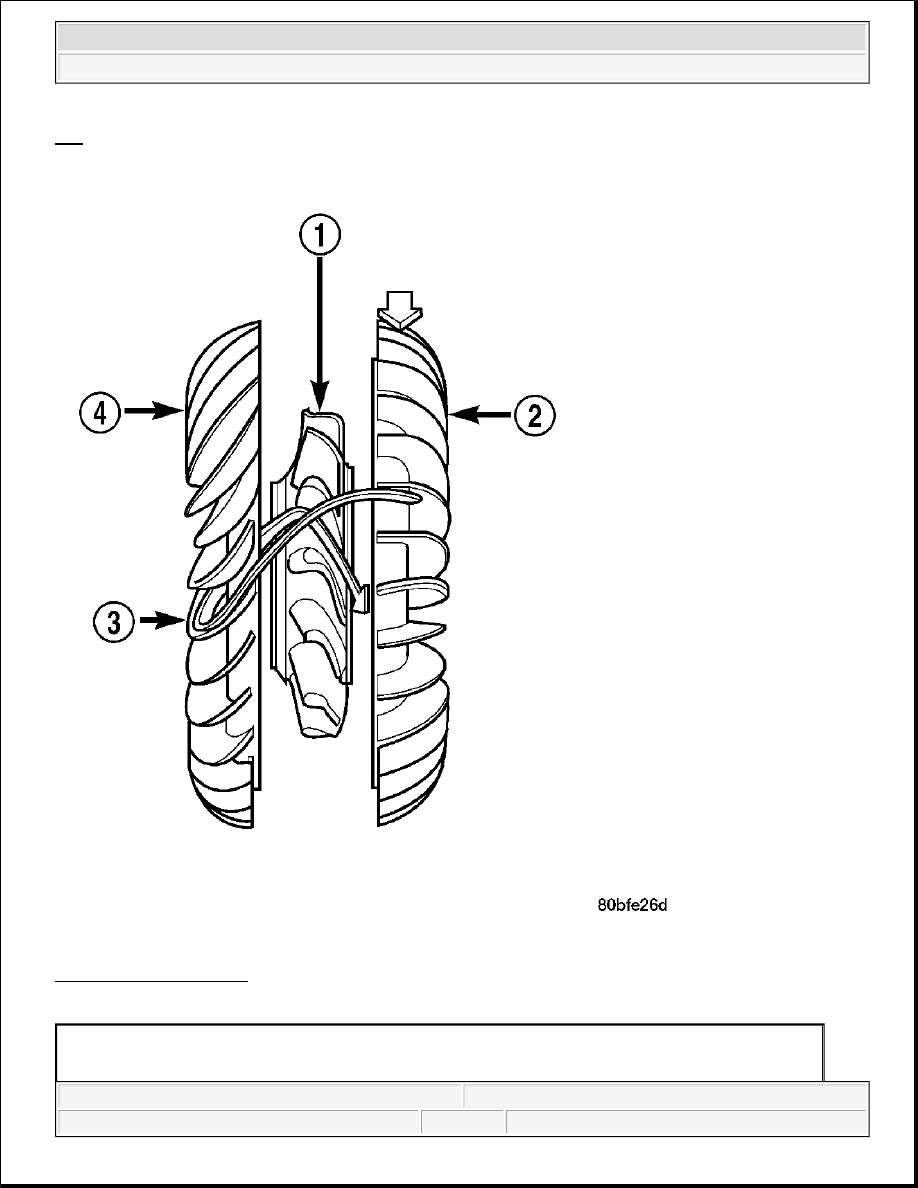

Fig. 271: Stator Location
Courtesy of CHRYSLER LLC

1 - STATOR
2 - IMPELLER



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION NAG1 - Service Information - Nitro



The stator (1) is located between the impeller (2) and turbine (4) within the torque converter case. See Fig. 271.
The stator contains a freewheeling clutch, which allows the stator to rotate only in a clockwise direction. When
the stator is locked against the freewheeling clutch, the torque multiplication feature of the torque converter is
operational.

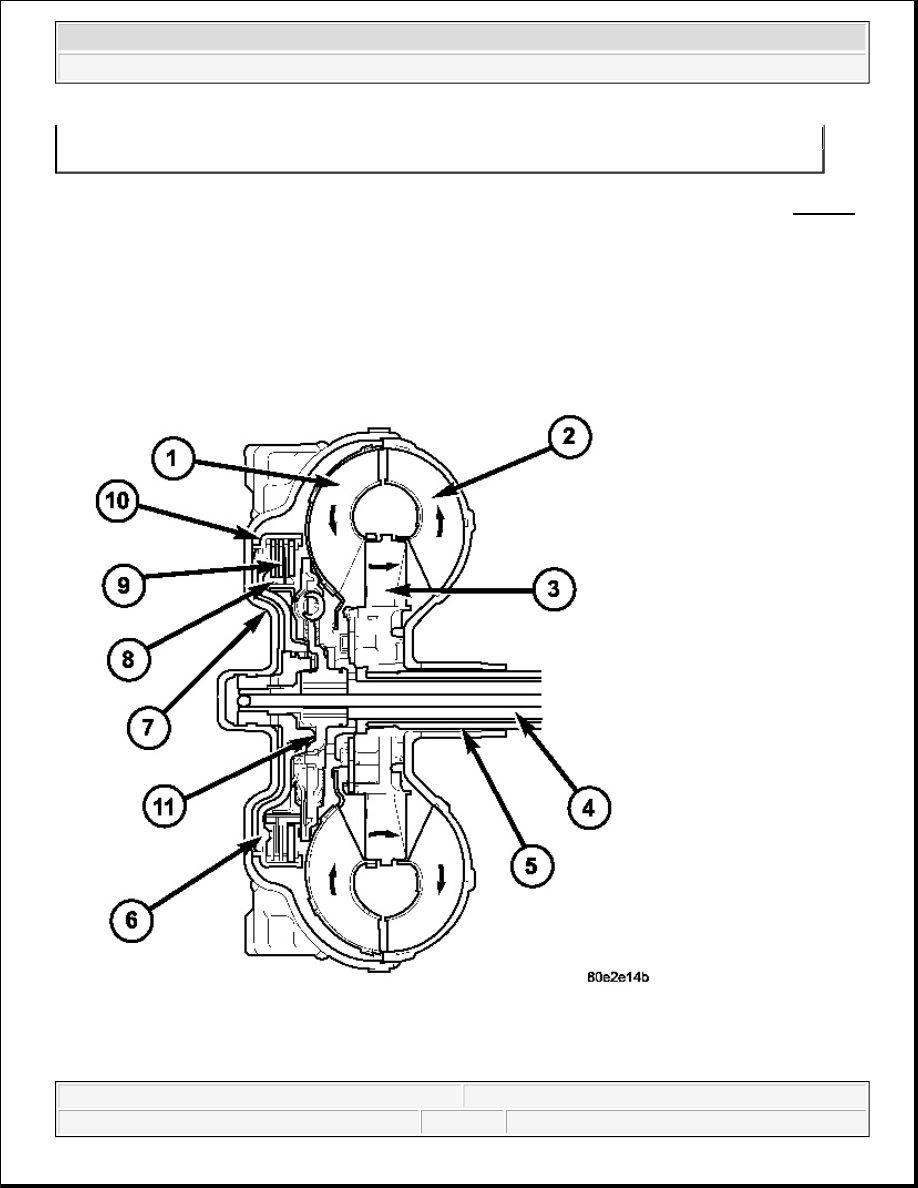

TORQUE CONVERTER CLUTCH (TCC)

3 - FLUID FLOW
4 - TURBINE
