Dodge Nitro. Manual - part 338

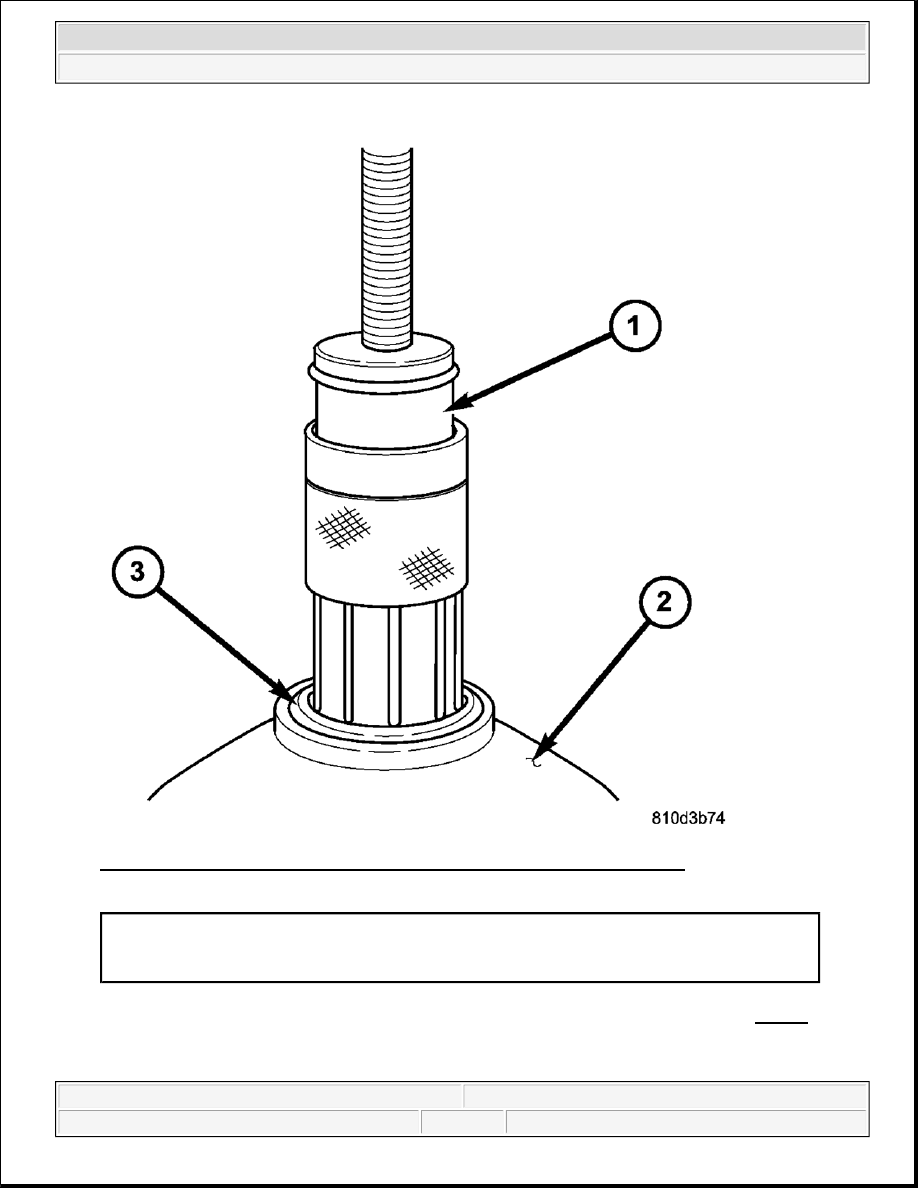

Fig. 41: Bearing Remover 9082, Transmission Case & Output Shaft Bearing
Courtesy of CHRYSLER LLC

14. Position Bearing Remover 9082 (1) over the inner race of the output shaft bearing (3). See Fig. 41.

1 - BEARING REMOVER 9082
2 - TRANSMISSION CASE
3 - OUTPUT SHAFT BEARING



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION NAG1 - Service Information - Nitro



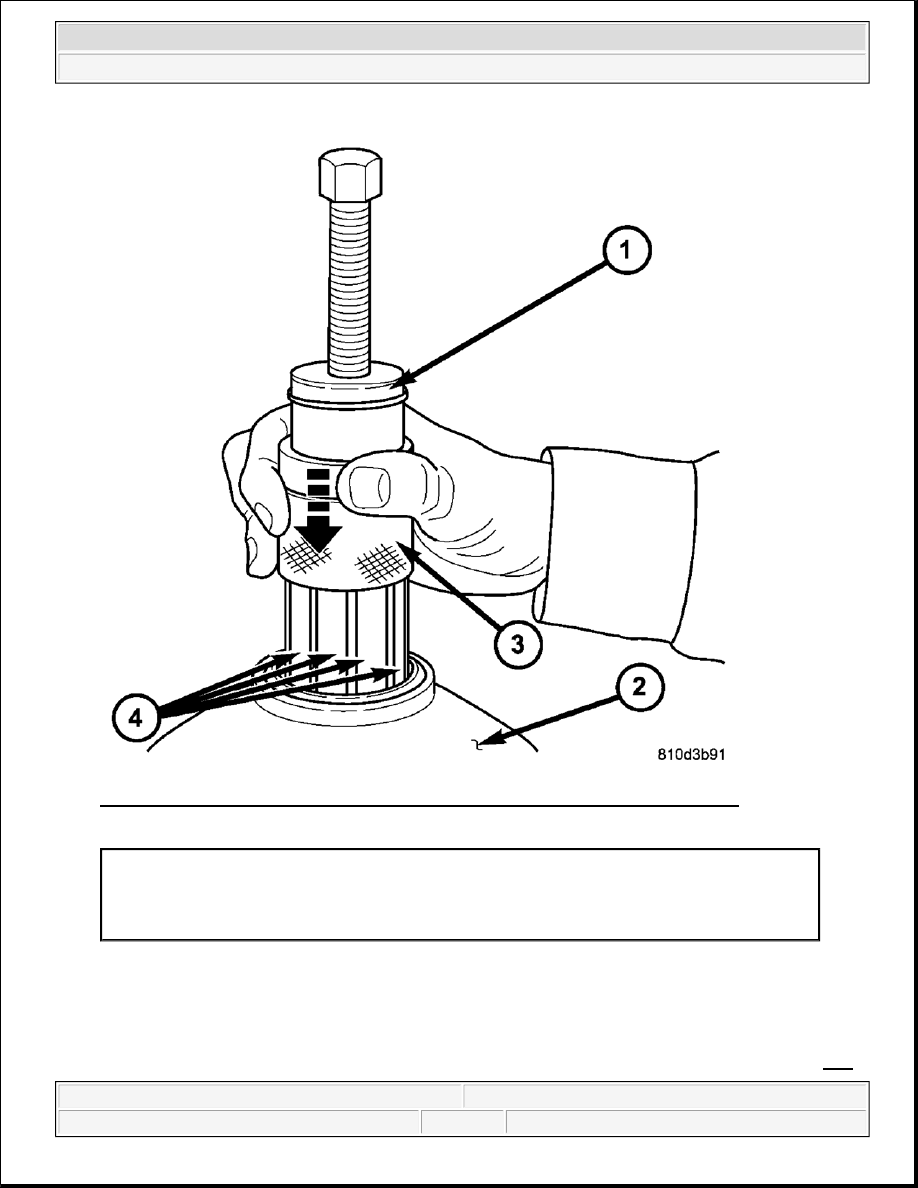

Fig. 42: Sliding Collar On Bearing Remover 9082 Downward Over Fingers Of Tool
Courtesy of CHRYSLER LLC

15. Slide the collar (3) on the Bearing Remover 9082 (1) downward over the fingers (4) of the tool. See Fig.

1 - BEARING REMOVER 9082
2 - TRANSMISSION CASE
3 - COLLAR
4 - FINGERS

NOTE:

Due to production variations in the bearing, it may not be possible to slide
the collar fully downward. It is only necessary to slide the collar down far
enough that the fingers securely grasp the inner bearing race.



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION NAG1 - Service Information - Nitro



42.

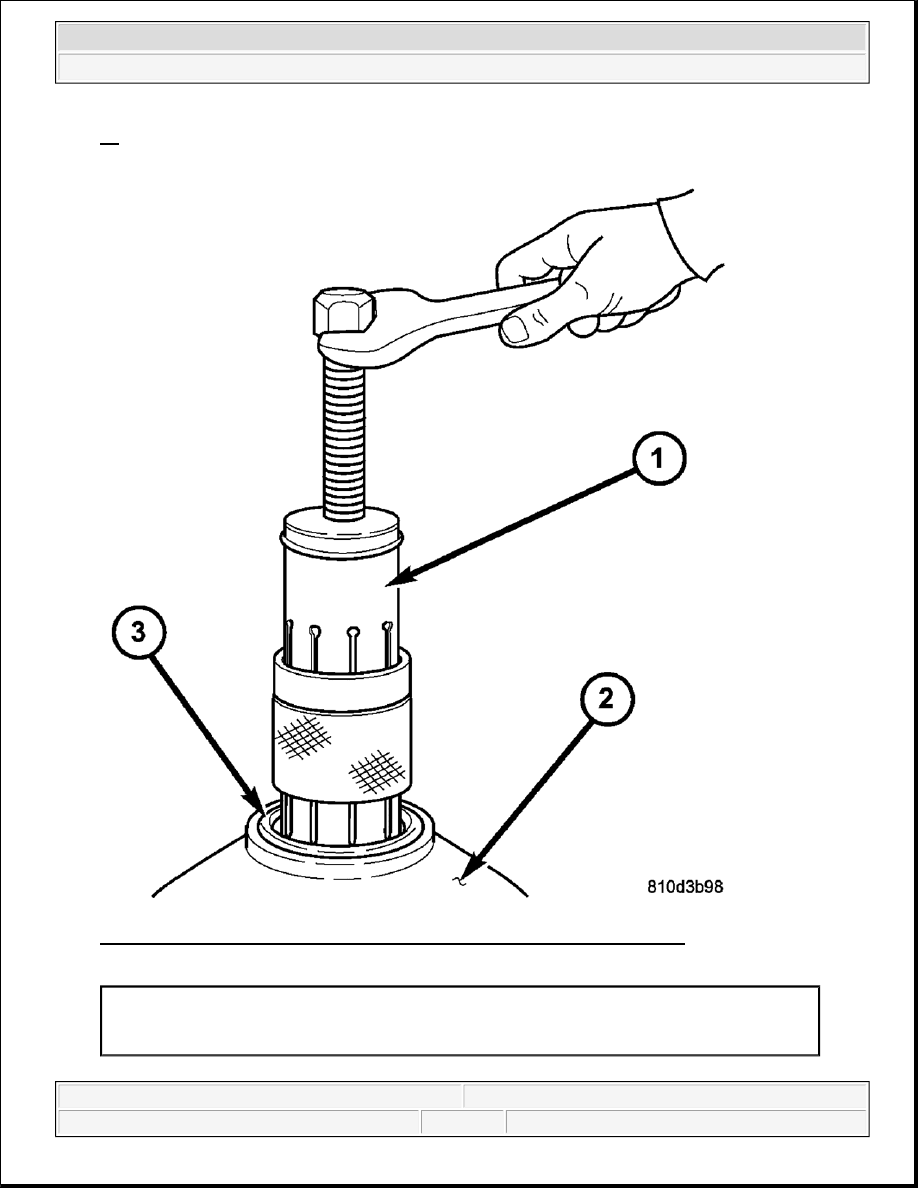

Fig. 43: Bearing Remover 9082, Transmission Case & Output Shaft Bearing
Courtesy of CHRYSLER LLC

1 - BEARING REMOVER 9082
2 - TRANSMISSION CASE
3 - OUTPUT SHAFT BEARING



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION NAG1 - Service Information - Nitro



16. Remove the output shaft bearing (3). See Fig. 43.

17. Remove the geartrain end-play shim from the output shaft. Be sure to tag the shim since it is very similar

to the output shaft washer and they must not be interchanged.

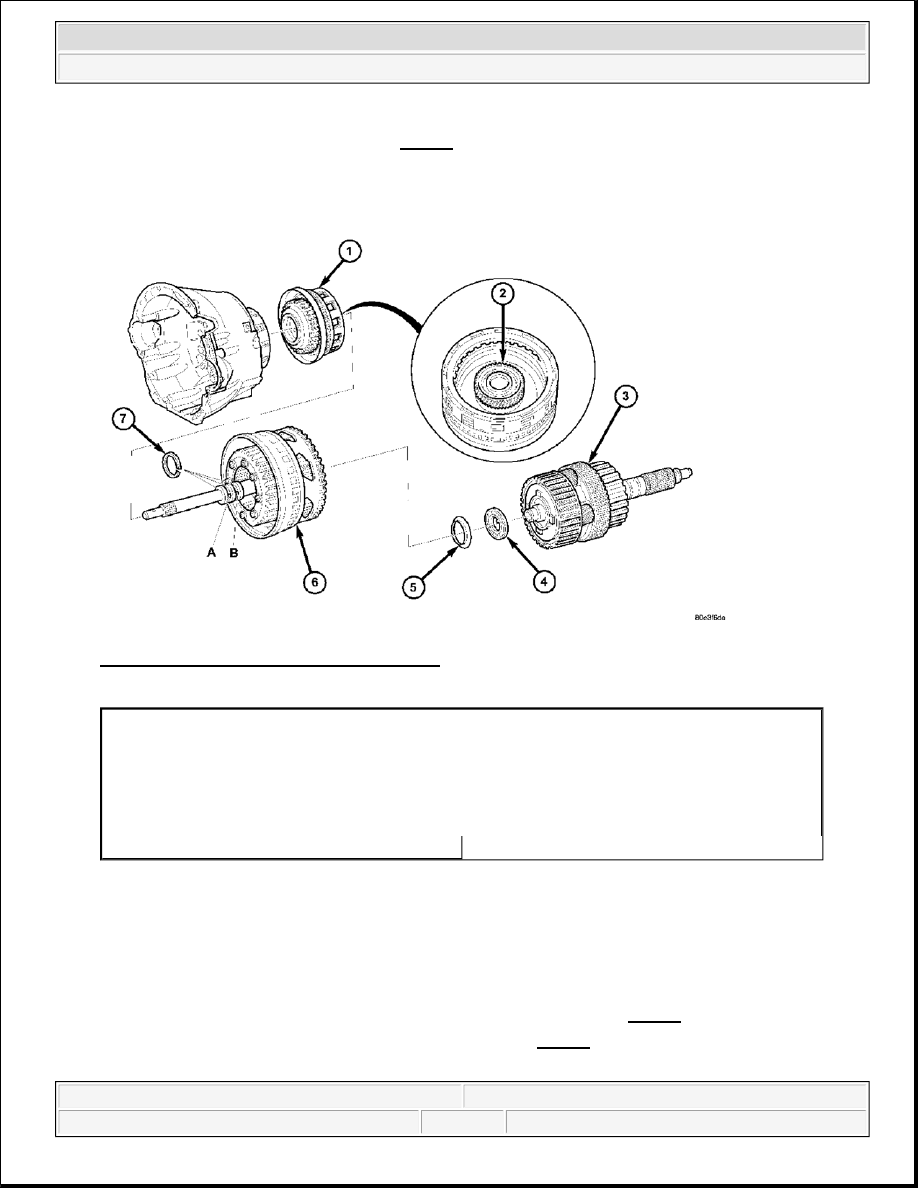

Fig. 44: Identifying K1, K2 and K3 Clutches
Courtesy of CHRYSLER LLC

18. Remove the bolts holding the transmission housing to the converter housing from inside the converter

housing.

19. Stand the transmission upright on the converter housing.

20. Remove the remaining bolts holding the transmission housing to the converter housing.

21. Remove the transmission housing from the converter housing.

22. Remove output shaft with center and rear gear set and clutch K3 (3). See Fig. 44.

23. Remove thrust needle bearing (4) and thrust washer (5). See Fig. 44.

24. Remove input shaft with clutch K2 and front gear set (6).

1 - DRIVING CLUTCH K1

5 - THRUST WASHER

2 - SUN GEAR OF FRONT PLANETARY
GEAR SET

6 - FRONT PLANETARY GEAR SET,
DRIVING CLUTCH K2, AND INPUT SHAFT

3 - DRIVING CLUTCH K3, OUTPUT SHAFT ,
AND CENTER AND REAR PLANETARY
GEAR SETS

7 - SEALING RINGS

4 - THRUST NEEDLE BEARING



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION NAG1 - Service Information - Nitro
