Dodge Nitro. Manual - part 324





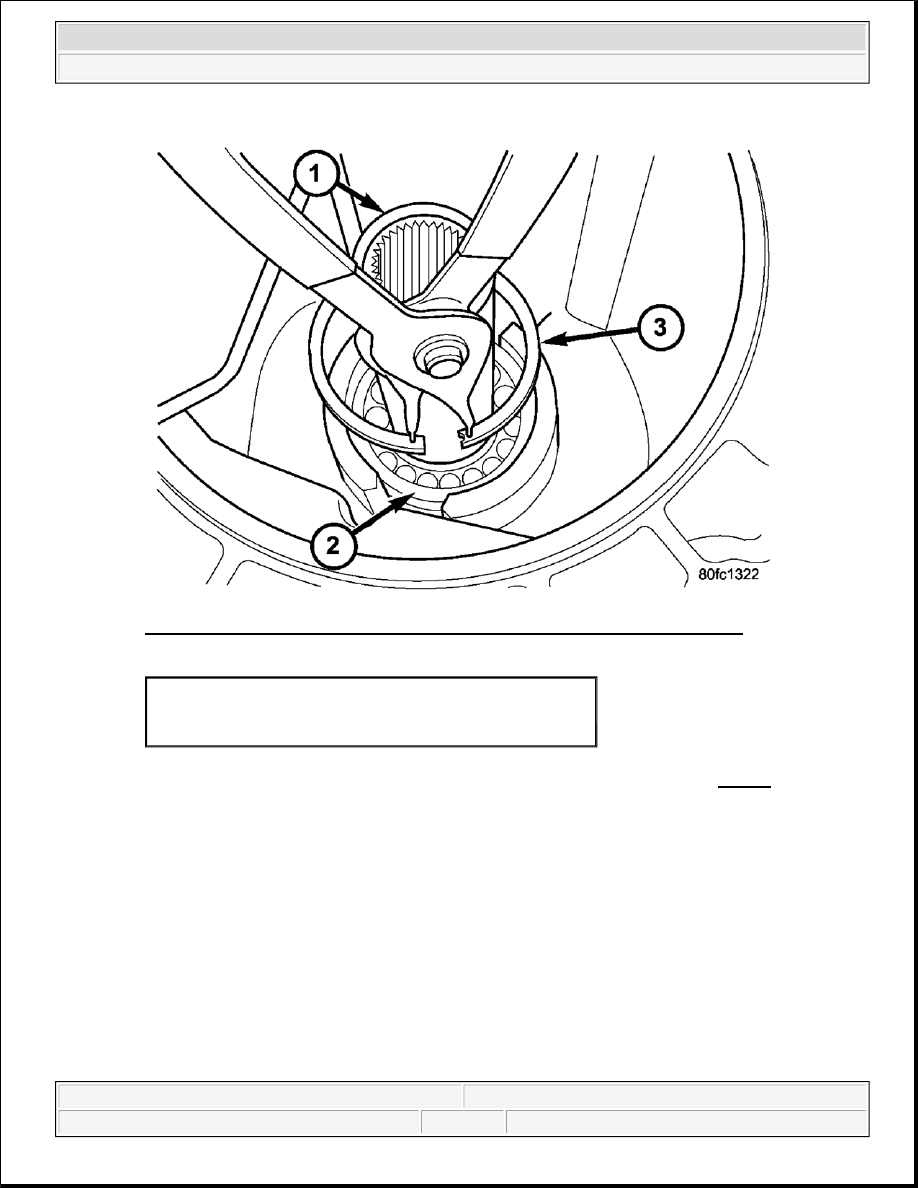

Fig. 76: Installing Extension Shaft Bearing Snap Ring Into Extension Housing
Courtesy of CHRYSLER LLC

Install the extension shaft bearing snap ring (3) into the extension housing. See Fig. 76

1 - EXTENSION SHAFT
2 - BEARING
3 - SNAP RING



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro



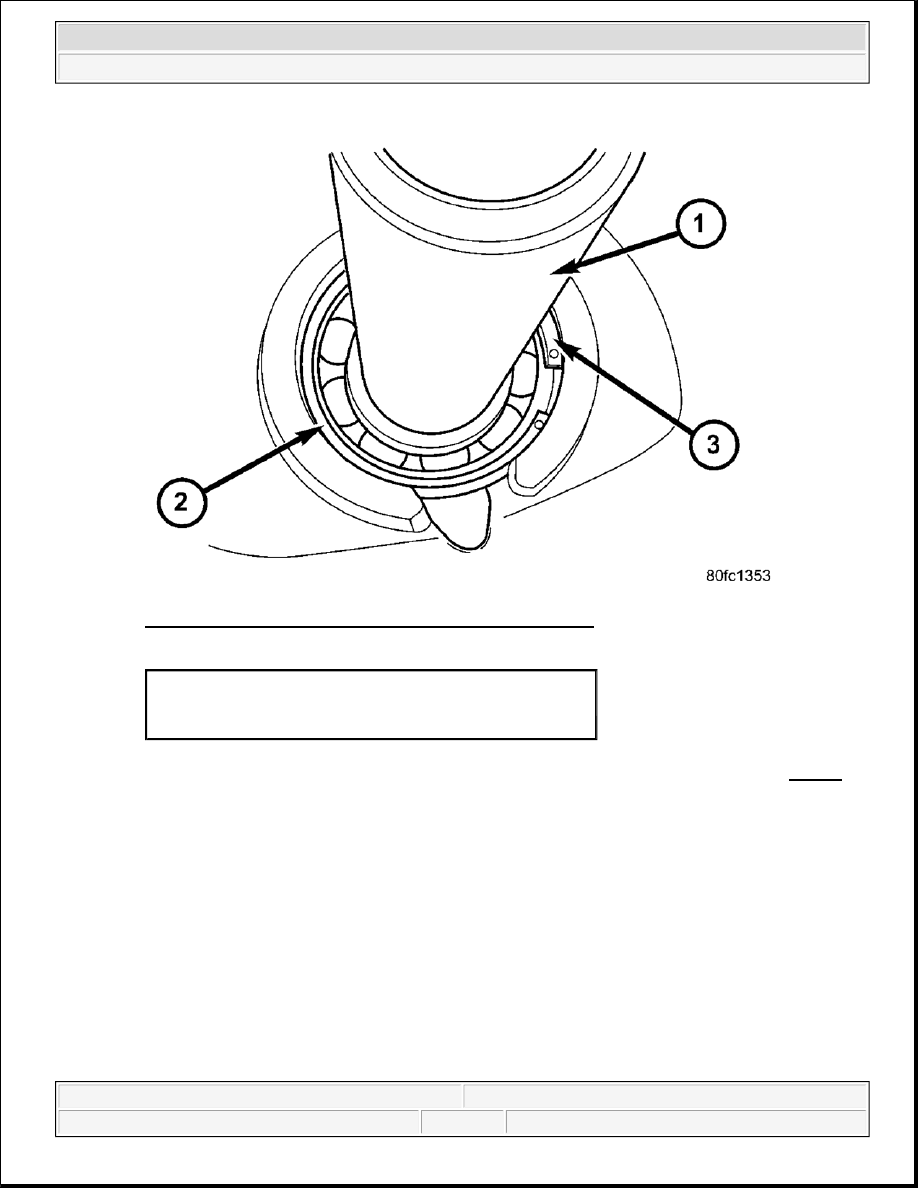

Fig. 77: Identifying Extension Shaft, Bearing & Snap Ring
Courtesy of CHRYSLER LLC

Verify that the extension shaft snap ring (3) is fully engaged in the snap ring groove. See Fig. 77

1 - EXTENSION SHAFT
2 - BEARING
3 - SNAP RING



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro



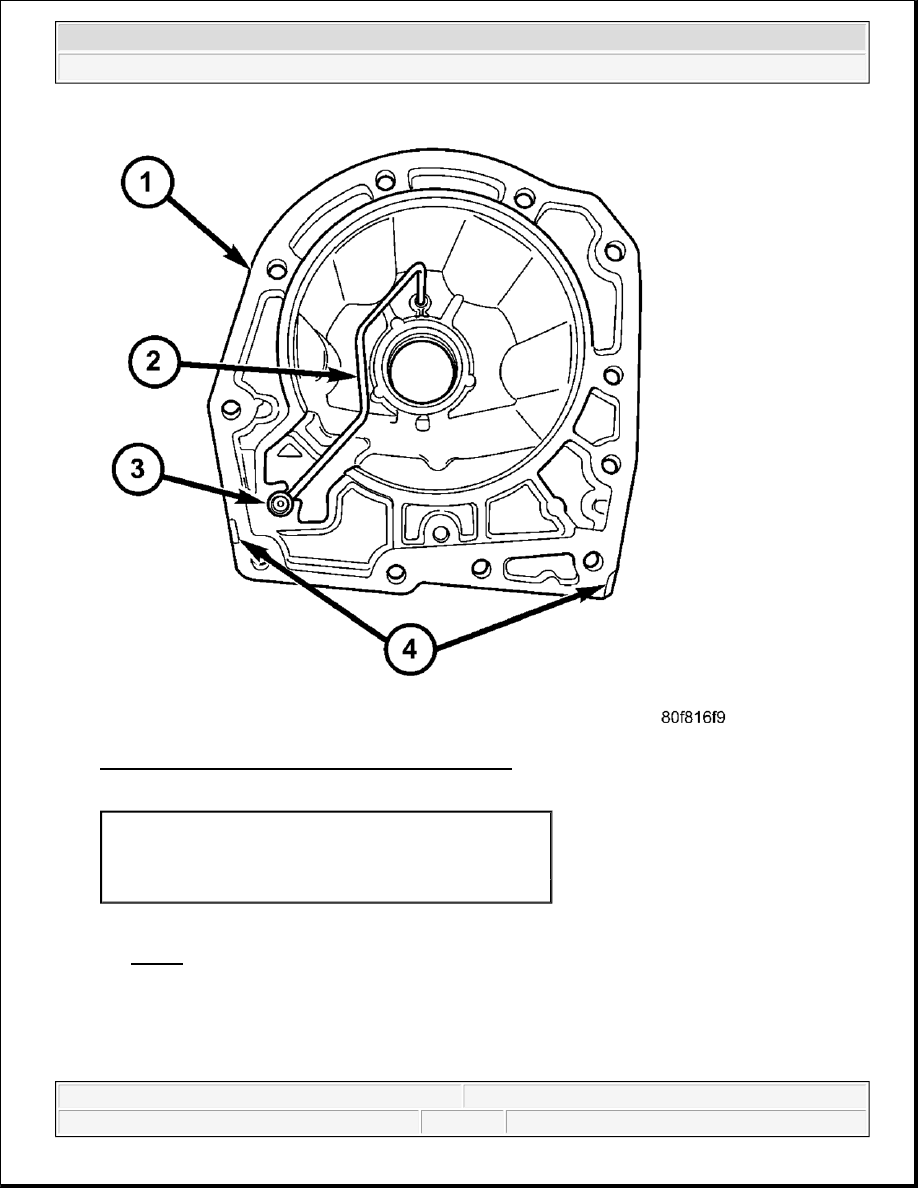

Fig. 78: Inspecting Lube Tube Grommet For Damage
Courtesy of CHRYSLER LLC

64. Inspect the lube tube grommet (2) for damage. If the grommet lip is damaged, it will need to be replaced.

See Fig. 78

1 - HOUSING
2 - LUBE TUBE
3 - GROMMET
4 - PRY SLOTS



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro



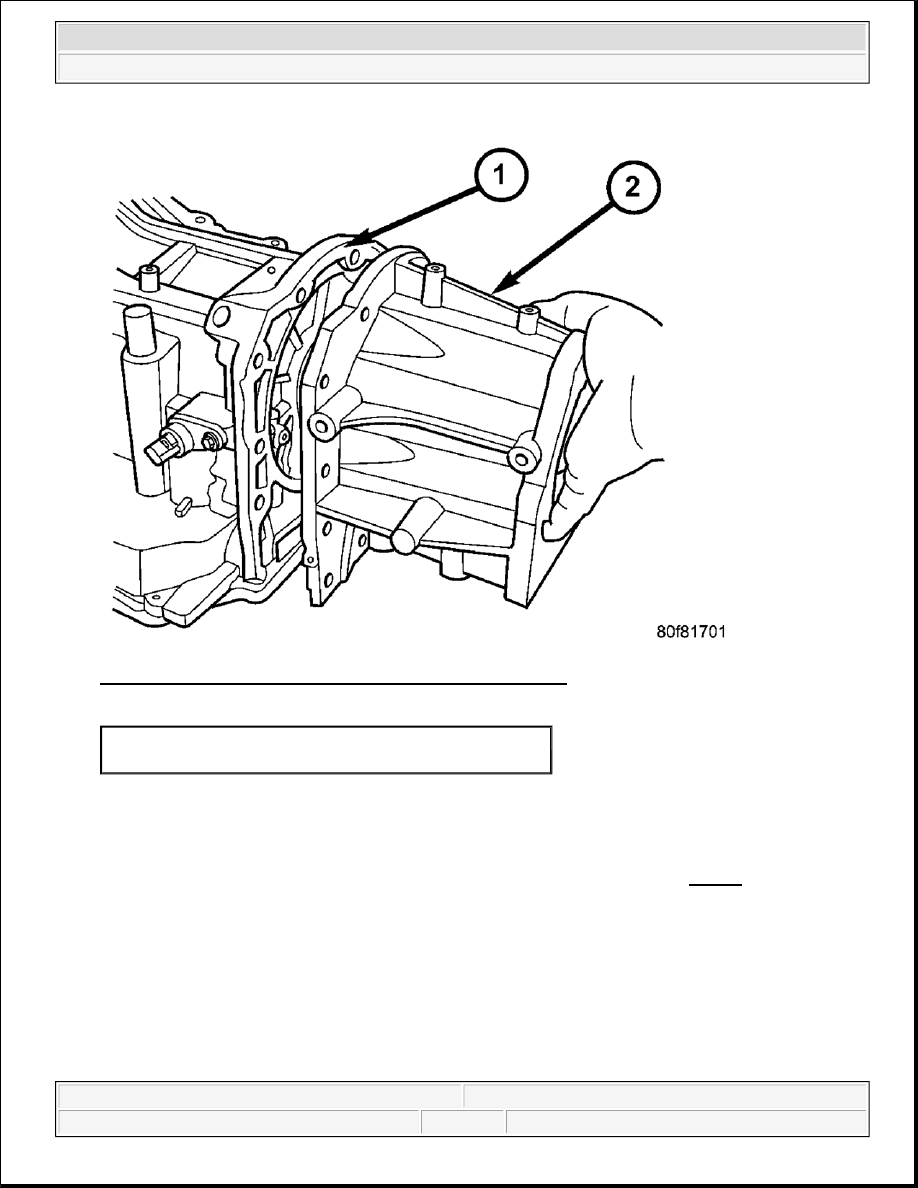

Fig. 79: Installing Adapter Housing Onto Transmission Case
Courtesy of CHRYSLER LLC

65. Install the 4X4 stub shaft onto the transmission output shaft.

66. Place a bead of Mopar® ATF RTV on the rear surface of the transmission case for the adapter/extension

housing.

67. Install the adapter housing (2) onto the transmission case, 4X4 vehicles only. See Fig. 79

1 - TRANSMISSION CASE
2 - ADAPTER HOUSING



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro
