Dodge Nitro. Manual - part 303

mode advance functions.

Refer to the owner's manual for more information on the features, use and operation of each of the available
audio systems.

DIAGNOSIS AND TESTING

AUDIO

AUDIO SYSTEM

Any diagnosis of the Audio system should begin with the use of scan tool. For information on the use of
the scan tool, refer to the appropriate Diagnostic information.

Refer to the appropriate wiring information.

AUDIO SYSTEM DIAGNOSIS TABLE

WARNING:

Disable the airbag system before attempting any steering wheel, steering
column, seat belt tensioner, side airbag, or instrument panel component
diagnosis or service. Disconnect and isolate the battery negative (ground)
cable, then wait two minutes for the airbag system capacitor to discharge
before performing further diagnosis or service. This is the only sure way
to disable the airbag system. Failure to take the proper precautions could
result in accidental airbag deployment and possible personal injury.

CONDITION

POSSIBLE CAUSES

CORRECTION

NO AUDIO

1. Fuse faulty.

1. Check radio fuse and Ignition-Off Draw
(IOD) fuse in Totally Integrated Power
Module (TIPM). Replace fuses, if required.

-

2. Radio connector faulty.

2. Check for loose or corroded radio
connector. Repair, if required.

-

3. Wiring faulty.

3. Check for shorted or open wires. Repair
wiring, if required.

-

4. Radio ground faulty.

4. Check for continuity between radio chassis
and a known good ground. There should be
continuity. Repair ground, if required.

-

5. Speakers faulty.

5. Replace speaker as necessary.

-

6. Radio faulty.

6. Refer to appropriate Diagnostic Service
Information.

NO RADIO DISPLAY

1. Fuse faulty.

1. Check radio fuse and Ignition-Off Draw
(IOD) fuse in Junction Block (JB). Replace
fuses, if required.

-

2. Radio connector faulty.

2. Check for loose or corroded radio
connector. Repair, if required.

-

3. Wiring faulty.

3. Check for battery voltage at radio



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Audio/Video - Service Information - Nitro



MANUAL DISC EJECT-NAVIGATION RADIO

1. Ensure all fuses are installed in the vehicle to operate accessories.

2. Turn ignition to ACC and power on radio.

3. Press OPEN/CLOSE button on radio and verify that disc will not eject automatically.

4. If disc will not eject automatically, use the following combination of buttons to manually eject disc:



With display open press and hold NAV button on right side.



Press SEEK UP and SEEK DOWN at the same time on left side.

5. Remove the disc from the radio.

AMPLIFIER

connector. Repair wiring, if required.

-

4. Radio ground faulty.

4. Check for continuity between radio chassis
and a known good ground. There should be
continuity. Repair ground, if required.

-

5. Radio faulty.

5. Refer to appropriate Diagnostic Service
Information.

POOR RADIO
RECEPTION

1. Antenna faulty.

1. See DIAGNOSIS AND TESTING.

2. Radio ground faulty.

2. Check for continuity between radio chassis
and a known good ground. There should be
continuity. Repair ground, if required.

3. Radio noise suppression
faulty.

3. Repair or replace ground strap as necessary.

4. Radio faulty.

4. Refer to appropriate Diagnostic Service
Information.

SOUND DISTORTION
(VIBRATION FROM
SPEAKER AREA,
BUZZING - HUMMING)

1. Door trim panel loose or
missing fasteners.

1. Inspect door trim panel and correct as
necessary. Replace any missing fasteners.

-

2. Water shield loose or
misaligned.

2. Inspect water shield and adjust as required.

-

3. Items placed in door trim
panel map pockets vibrating
or moving from side to side.

3. Remove items from door trim panel. Ensure
that vibration is no longer present.

NO COMPACT DISC/DVD
OPERATION

1. Faulty CD/DVD.

1. Insert known good CD/DVD and test
operation.

2. Foreign material on
CD/DVD.

2. Clean CD/DVD and test operation.

3. Condensation on
CD/DVD or optics.

3. Allow temperature of vehicle interior to
stabilize and test operation.

4. Faulty CD/DVD player.

4. Refer to appropriate Diagnostic Service
Information.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Audio/Video - Service Information - Nitro



REMOVAL

REMOVAL

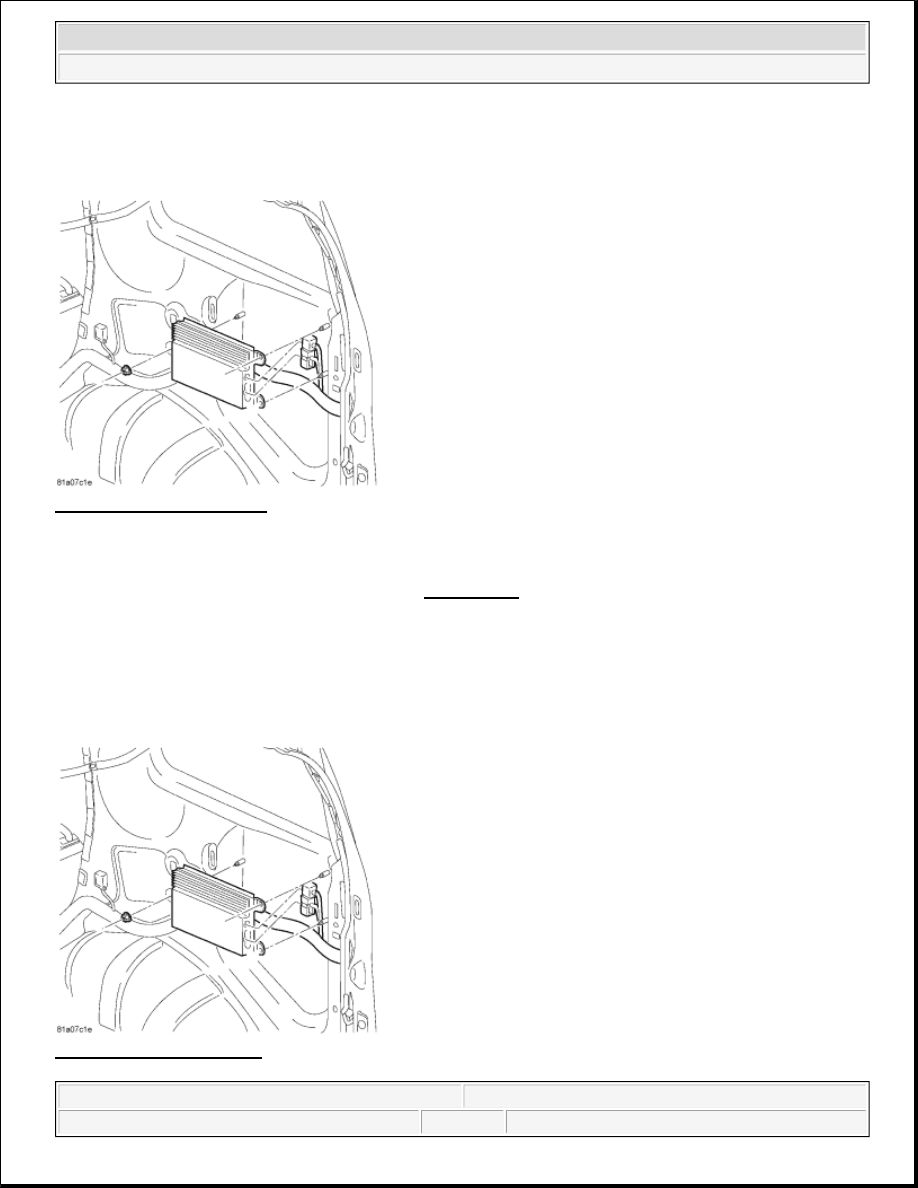

Fig. 1: Removing Amplifier
Courtesy of CHRYSLER LLC

1. Disconnect and isolate the battery negative cable.

2. Remove the rear quarter trim panel. Refer to REMOVAL .

3. Remove the mounting fasteners.

4. Disconnect the electrical connectors and remove the amplifier.

INSTALLATION

INSTALLATION

Fig. 2: Installing Amplifier
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Audio/Video - Service Information - Nitro



1. Connect the electrical connectors and install the amplifier.

2. Install the amplifier mounting fasteners.

3. Install the rear quarter trim panel. Refer to INSTALLATION .

4. Connect the battery negative cable.

ANTENNA BODY & CABLE

DESCRIPTION

ANTENNA BODY AND CABLE

DOMESTIC

All models feature a roof-mounted active mast antenna. This is a combination antenna that receives both
AM/FM and satellite digital audio. The antenna cables are routed along the left side of the under the headliner,
down the A-pillar to the instrument panel. For antenna removal. See REMOVAL. For antenna installation . See
INSTALLATION.

OPERATION

ANTENNA BODY AND CABLE

The antenna body and cable connects the antenna mast to the radio. The radio antenna is an electromagnetic
circuit component used to capture radio frequency signals that are broadcast by local commercial radio stations
in both the Amplitude Modulating (AM) and Frequency Modulating (FM) frequency ranges. These
electromagnetic radio frequency signals induce small electrical modulations into the antenna as they move past
the mast. The antenna body transfers the weak electromagnetic radio waves induced into the antenna into the
center conductor of the flexible primary antenna coaxial cable. The braided outer shield of the antenna coaxial
cable is grounded through both the antenna body and the radio chassis, effectively shielding the radio waves as
they are conducted to the radio. The radio then tunes and amplifies the weak radio signals into stronger
electrical signals in order to operate the audio system speakers.

DIAGNOSIS AND TESTING
