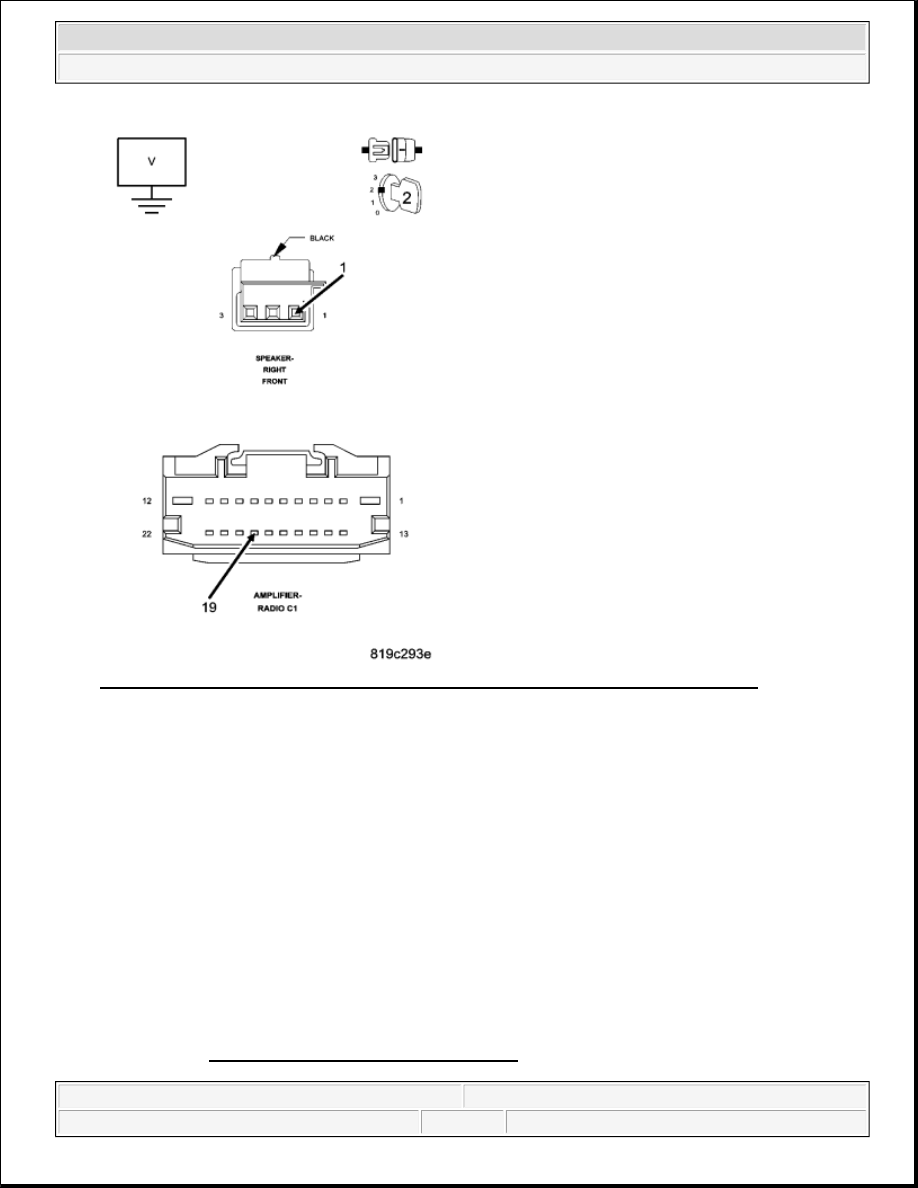

Fig. 80: Measuring For Voltage On (X208) Amplified Right Front Speaker (+) Circuit
Courtesy of CHRYSLER LLC

Turn the ignition off.

Disconnect the Amplifier C1 harness connector.

Disconnect the Amplified Right Front Speaker harness connector.

Turn the ignition on.

Measure for voltage on the (X208) Amplified Right Front Speaker (+) circuit.

Is the voltage above 10.0 volts?

Yes

Repair the (X208) Amplified Right Front Speaker (+) circuit for a short to voltage.

Perform BODY VERIFICATION TEST - VER 1 .



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Audio/Video Systems - Electrical Diagnostics - Nitro



No

Go to 3).

3) CHECK FOR VOLTAGE ON THE (X298) AMPLIFIED RIGHT FRONT SPEAKER (-)
CIRCUIT

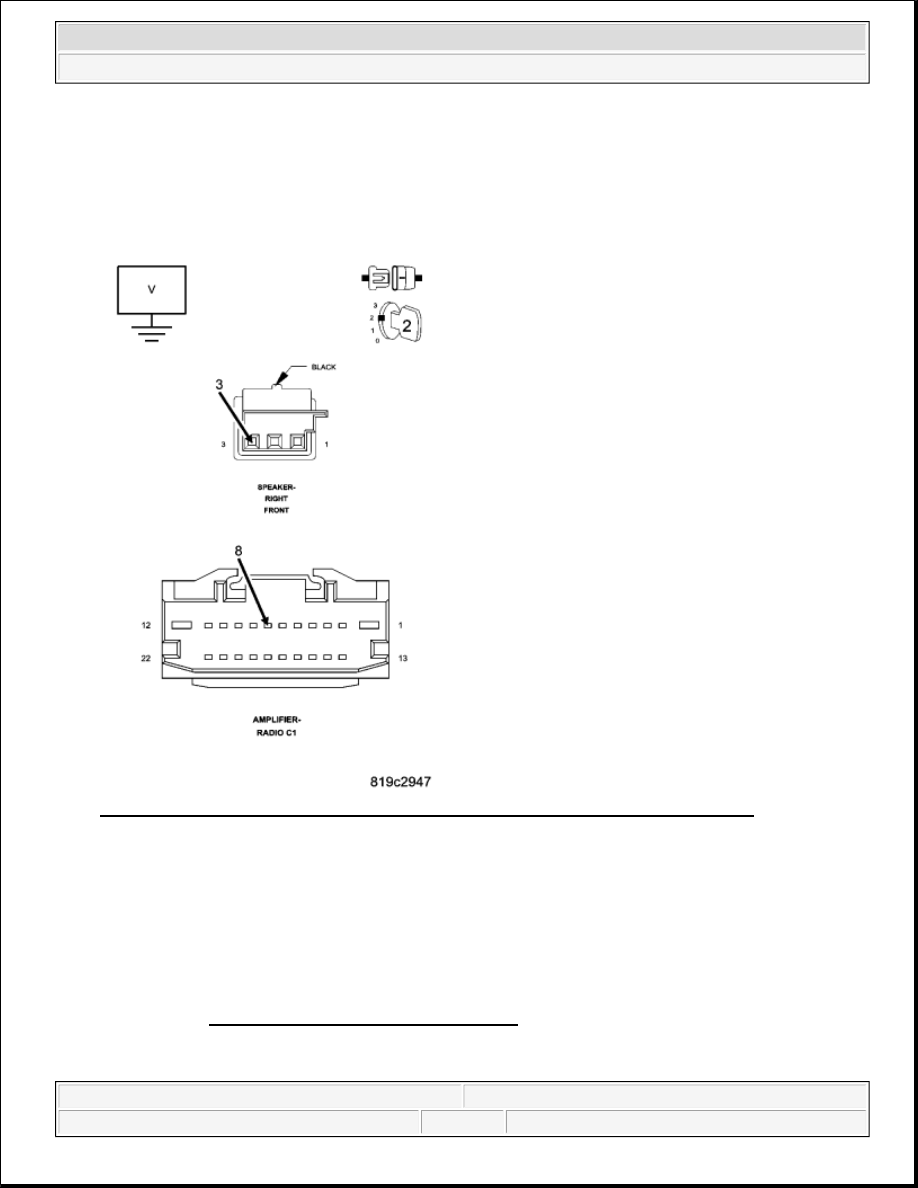

Fig. 81: Measuring For Voltage On (X298) Amplified Right Front Speaker (-) Circuit
Courtesy of CHRYSLER LLC

Measure for voltage on the (X298) Amplified Right Front Speaker (-) circuit.

Is the voltage above 10.0 volts?

Yes

Repair the (X298) Amplified Right Front Speaker (-) circuit for a short to voltage.

Perform BODY VERIFICATION TEST - VER 1 .

No



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Audio/Video Systems - Electrical Diagnostics - Nitro



Replace the amplifier in accordance with the service information.

Perform BODY VERIFICATION TEST - VER 1 .

B1472-CHANNEL 4 AUDIO SPEAKER OUTPUT CIRCUIT OPEN



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Audio/Video Systems - Electrical Diagnostics - Nitro



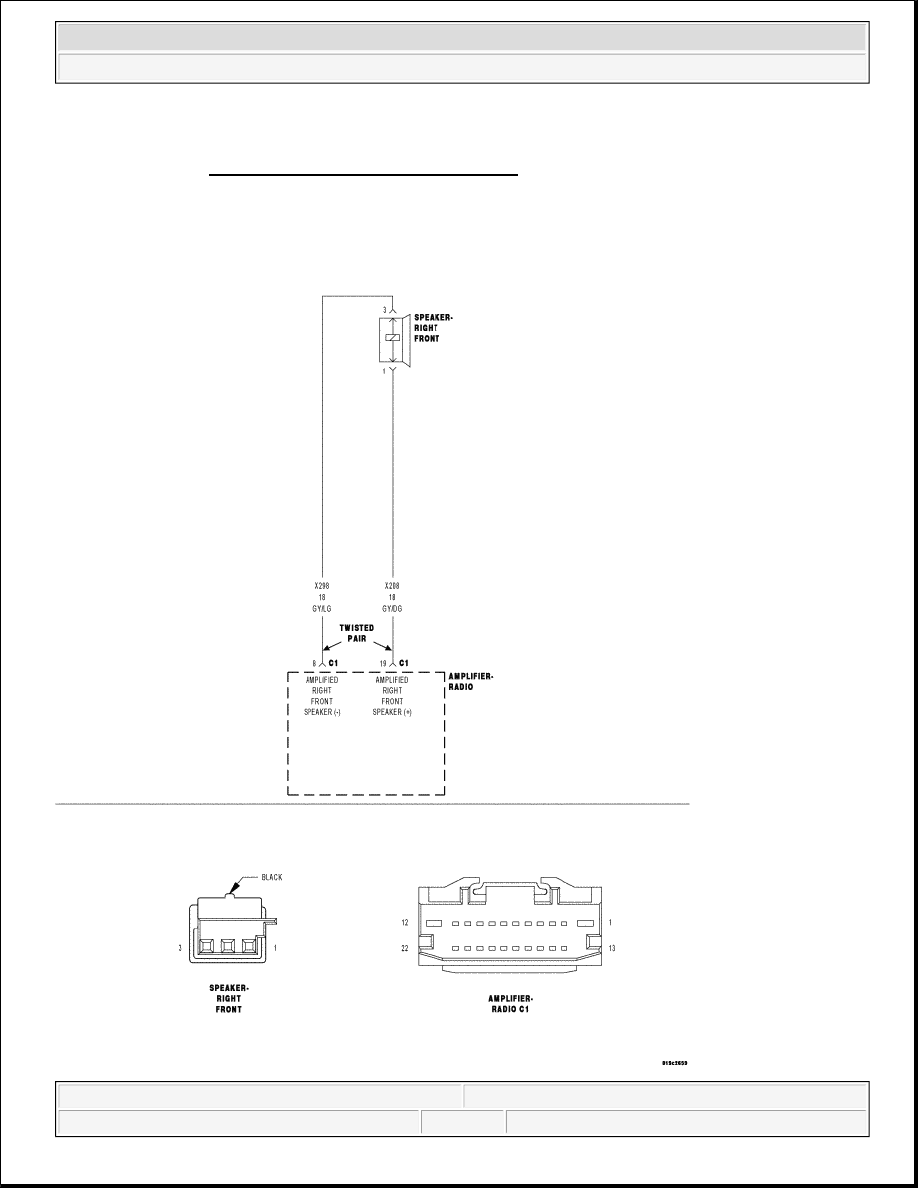

Fig. 82: Channel 4 Audio Speaker Output Circuit Schematic
Courtesy of CHRYSLER LLC

For complete wiring diagrams refer to SYSTEM WIRING DIAGRAMS article.

When Monitored:

Amplifier BUS wake-up. Amplifier reset with scan tool.

Set Condition:

The amplifier detects an open condition on the speaker output circuit.

Diagnostic Test

1) CHECK FOR AN INTERMITTENT CONDITION

Turn the ignition on.

Turn the radio on.

With the scan tool, erase Amplifier DTCs.

With the scan tool, reset the amplifier.

With the scan tool, read Amplifier DTCs.

Does the scan tool display active: B1472-CHANNEL 4 AUDIO SPEAKER OUTPUT CIRCUIT
OPEN?

Yes

Go to 2).

No

The condition that caused this symptom is currently not present. Check for an intermittent
condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken
wires. Also, inspect the related connectors for broken, bent, pushed out, spread, corroded, or
contaminated terminals. Repair as necessary.

Perform BODY VERIFICATION TEST - VER 1 .

2) CHECK THE OPERATION OF THE AMPLIFIED RIGHT FRONT SPEAKER

Possible Causes

(X208) AMPLIFIED RIGHT FRONT SPEAKER (+) CIRCUIT OPEN
(X298) AMPLIFIED RIGHT FRONT SPEAKER (-) CIRCUIT OPEN
AMPLIFIED RIGHT FRONT SPEAKER
AMPLIFIER
