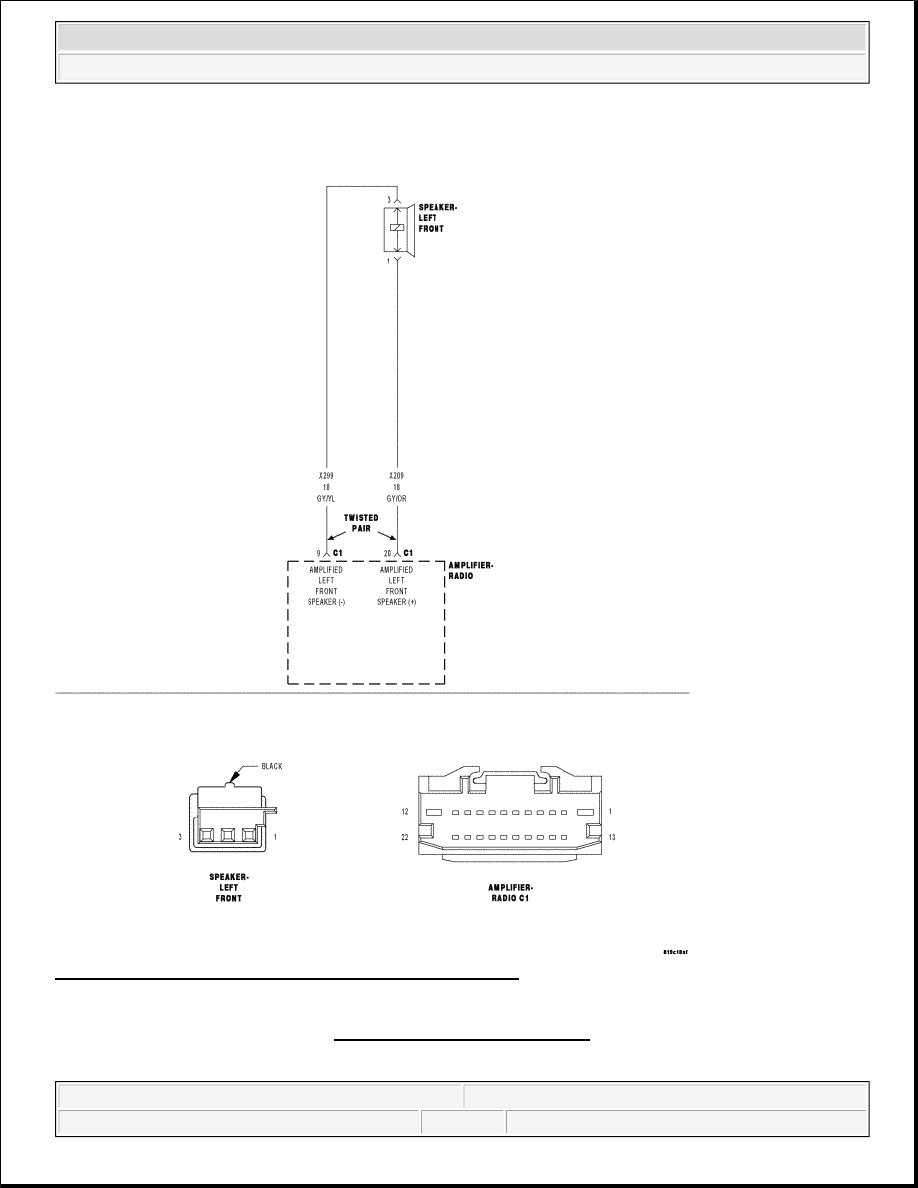

Fig. 61: Measuring Resistance Between (X202) Amplified Right I/P Speaker (+) Circuit And (X292) Disconnect the Amplifier C2 harness connector. Measure the resistance between the (X202) Amplified Right I/P Speaker (+) circuit, and the (X292) Is the resistance below 10K ohms? Yes Repair the (X202) Amplified Right I/P Speaker (+) circuit, and the (X292) Amplified Right I/P Perform BODY VERIFICATION TEST - VER 1 . No Replace the amplifier in accordance with the service information. Perform BODY VERIFICATION TEST - VER 1 . B146A-CHANNEL 3 AUDIO SPEAKER OUTPUT CIRCUIT PERFORMANCE For complete wiring diagrams refer to SYSTEM WIRING DIAGRAMS article. When Monitored: With the ignition on. Set Condition: This DTC will set if a DC offset occurs on the output channel, the amplifier shall set a DTC after a Diagnostic Test 1) CHECK FOR AN INTERMITTENT CONDITION Turn the ignition on, then off, and then on again. With the scan tool, read Amplifier DTCs. Does the scan tool display active: B146A-CHANNEL 3 AUDIO SPEAKER OUTPUT CIRCUIT Possible Causes AMPLIFIER
2007 Dodge Nitro R/T 2007 ACCESSORIES AND EQUIPMENT Audio/Video Systems - Electrical Diagnostics - Nitro
|
