Perform BODY VERIFICATION TEST - VER 1 .

4) SPEAKER

Connect the Radio harness connector.

With the Front Left Audio Speaker still disconnected, turn the ignition on.

Turn the Radio on.

With the scan tool, clear all Radio DTC's.

With the scan tool, read the DTC information.

Does the scan tool read: B1403-FRONT LEFT AUDIO SPEAKER OUTPUT CIRCUIT OPEN?

Yes

Replace the Front Left Audio Speaker in accordance with the service information.

Perform BODY VERIFICATION TEST - VER 1 .

No

Test Complete.

B1405-FRONT RIGHT AUDIO SPEAKER OUTPUT CIRCUIT LOW



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Audio/Video Systems - Electrical Diagnostics - Nitro

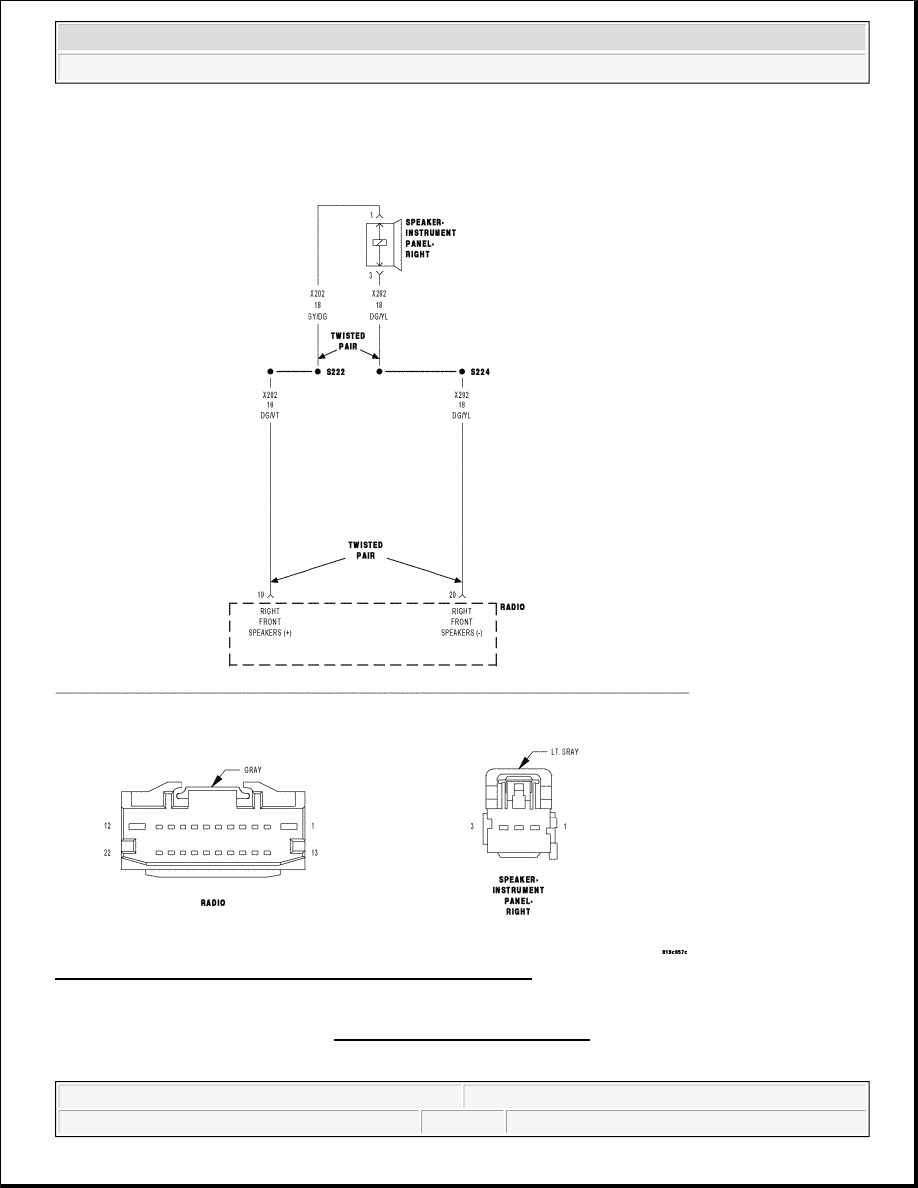

Fig. 10: Front Right Audio Speaker Output Circuit Schematic
Courtesy of CHRYSLER LLC

For complete wiring diagrams refer to SYSTEM WIRING DIAGRAMS article.

When Monitored:



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Audio/Video Systems - Electrical Diagnostics - Nitro



With the radio on.

Set Condition:

When the output circuit is LOW for more than three seconds.

Diagnostic Test

1) INTERMITTENT CONDITION

Turn the ignition on.

With the scan tool, clear all Radio DTC's.

Turn the Radio on.

With the scan tool, read the DTC information.

Does the scan tool read: B1405-FRONT RIGHT AUDIO SPEAKER OUTPUT CIRCUIT LOW?

Yes

Go to 2).

No

The condition that caused this symptom is currently not present. Check for an intermittent
condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken
wires. Also, inspect the related connectors for broken, bent, pushed out, spread, corroded, or
contaminated terminals. Repair as necessary.

Perform BODY VERIFICATION TEST - VER 1 .

2) (X202) RIGHT FRONT SPEAKERS (+) CIRCUIT SHORTED TO GROUND

Possible Causes

(X202) RIGHT FRONT SPEAKERS (+) CIRCUIT SHORTED TO GROUND
(X292) RIGHT FRONT SPEAKERS (-) CIRCUIT SHORTED TO GROUND
SPEAKER



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Audio/Video Systems - Electrical Diagnostics - Nitro



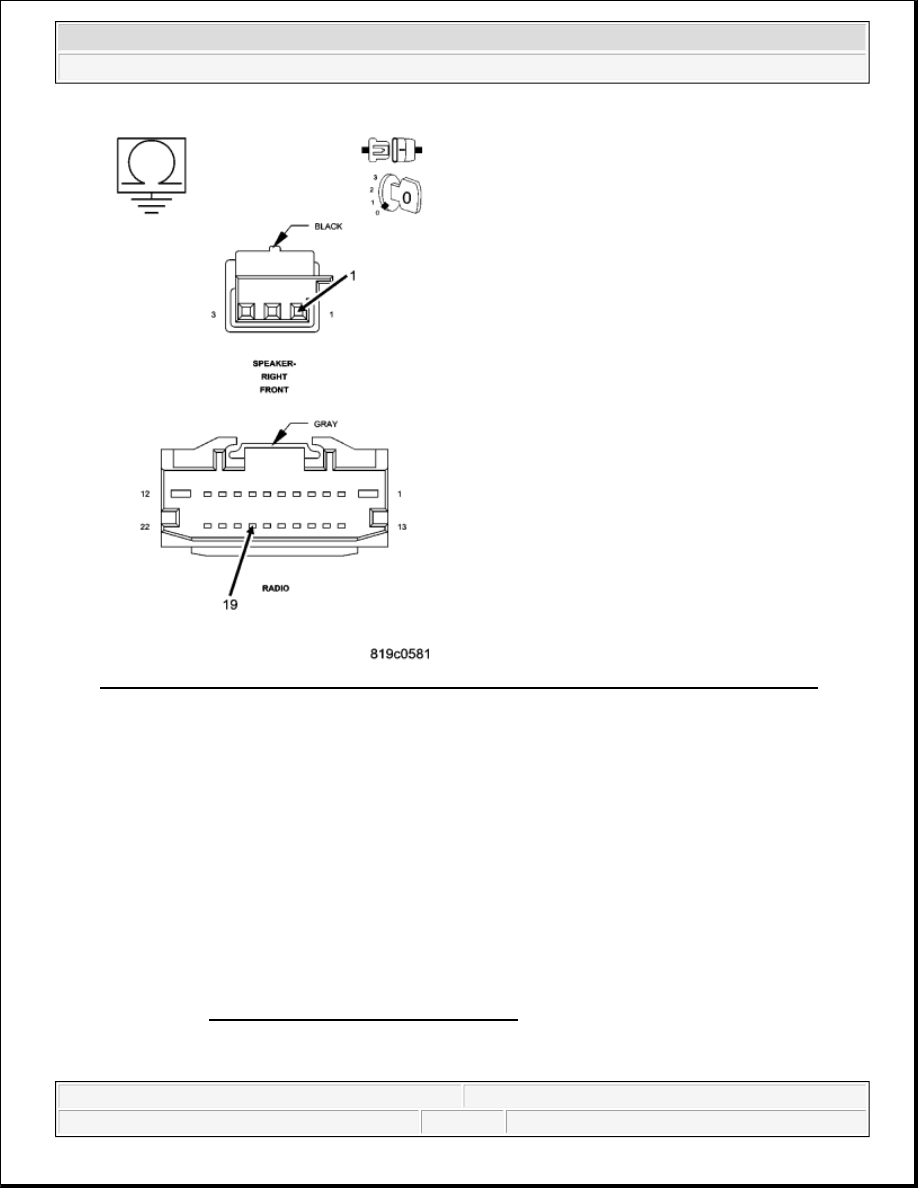

Fig. 11: Measuring Resistance Between Ground And (X202) Right Front Speakers (+) Circuit
Courtesy of CHRYSLER LLC

Turn the ignition off.

Disconnect the Radio harness connector.

Disconnect the Front Right Audio Speaker harness connector.

Measure the resistance between ground and the (X202) Right Front Speakers (+) circuit.

Is the resistance below 1000.0 ohms?

Yes

Repair the (X202) Right Front Speakers (+) circuit for a short to ground condition.

Perform BODY VERIFICATION TEST - VER 1 .

No



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Audio/Video Systems - Electrical Diagnostics - Nitro
