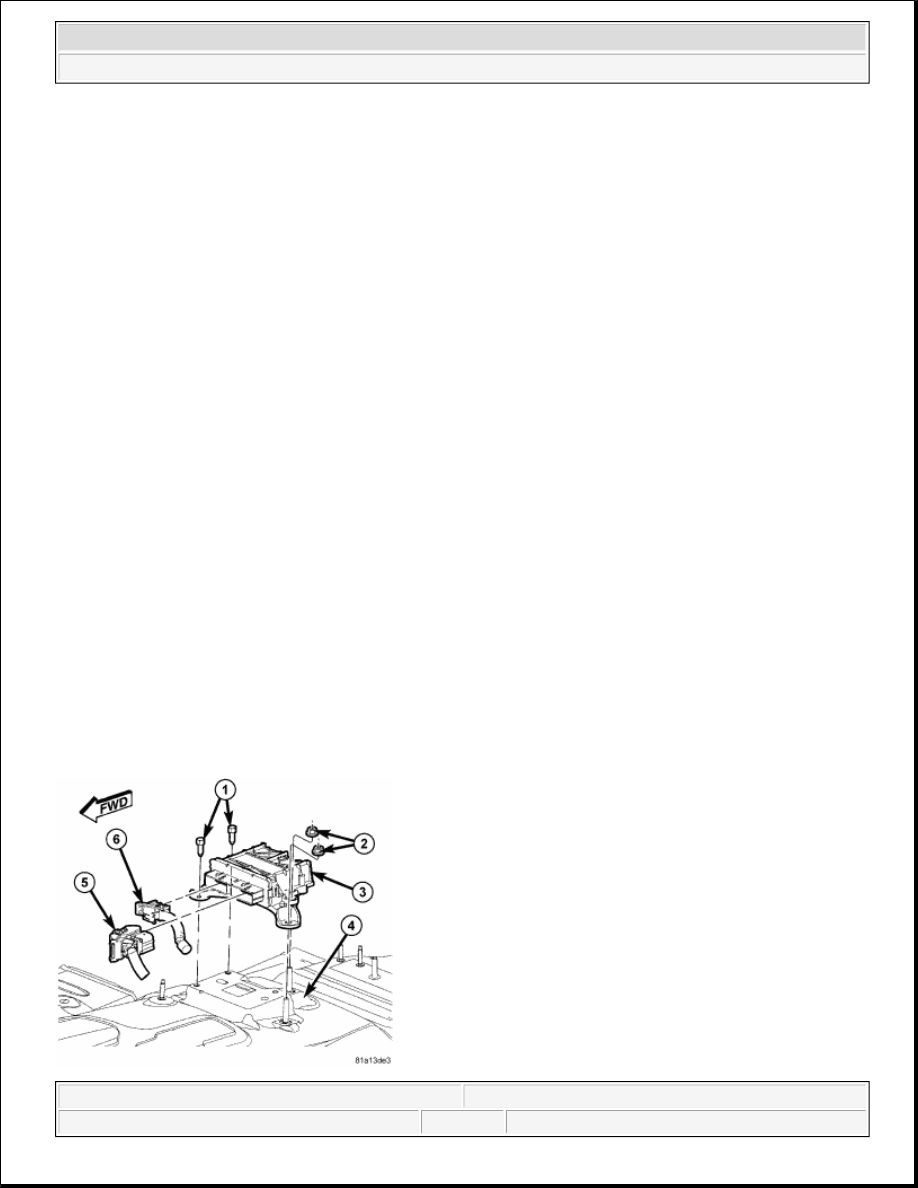

Fig. 50: Identifying Screws, Nuts, Occupant Restraint Controller, ORC Mount, Body Wire Harness
Connector & Instrument Panel Wire Harness Connector
Courtesy of CHRYSLER LLC

1. Disconnect and isolate the battery negative cable. Wait two minutes for the system capacitor to discharge

before further service.

2. Remove the center console from the top of the floor panel transmission tunnel. Refer to REMOVAL .

3. Unlatch and disconnect the body wire harness connector (5) and the instrument panel wire harness

connector (6) from the Occupant Restraint Controller (ORC) (3) connector receptacles located on the
forward-facing side of the module. To disconnect the wire harness connectors from the ORC, depress the
release tab and lift the lever arm on each connector.

4. Remove the two nuts (2) that secure the left side of the ORC mounting bracket to the two studs on the

ORC mount (4) welded onto the top of the floor panel transmission tunnel.

5. Remove the two screws (1) that secure the right side of the ORC mounting bracket to the ORC mount.

6. Remove the ORC and mounting bracket unit from the ORC mount.

INSTALLATION

OCCUPANT RESTRAINT CONTROLLER

WARNING:

To avoid serious or fatal injury on vehicles equipped with side curtain
airbags, disable the Supplemental Restraint System (SRS) before
attempting any Occupant Restraint Controller (ORC) diagnosis or service.
The ORC contains a rollover sensor, which enables the system to deploy
the side airbags in the event of a vehicle rollover event. If an ORC is
accidentally rolled during service while still connected to battery power,
the side curtain airbags will deploy. Disconnect and isolate the battery
negative (ground) cable, then wait two minutes for the system capacitor
to discharge before performing further diagnosis or service. This is the
only sure way to disable the SRS. Failure to take the proper precautions
could result in accidental airbag deployment.



2007 Dodge Nitro R/T

2007 RESTRAINTS Service Information - Nitro



WARNING:

To avoid serious or fatal injury on vehicles equipped with airbags, disable
the Supplemental Restraint System (SRS) before attempting any steering
wheel, steering column, airbag, Occupant Classification System (OCS),
seat belt tensioner, impact sensor, or instrument panel component
diagnosis or service. Disconnect and isolate the battery negative (ground)
cable, then wait two minutes for the system capacitor to discharge before
performing further diagnosis or service. This is the only sure way to
disable the SRS. Failure to take the proper precautions could result in
accidental airbag deployment.

WARNING:

To avoid serious or fatal injury, never strike or drop the Occupant
Restraint Controller (ORC), as it can damage the impact sensor or affect
its calibration. The ORC contains the impact sensor, which enables the
system to deploy the SRS components. If an ORC is accidentally dropped
during service, the module must be scrapped and replaced with a new
unit. Failure to observe this warning could result in accidental,
incomplete, or improper SRS component deployment.

CAUTION: On vehicles equipped with the Occupant Classification System (OCS),

never replace both the Occupant Restraint Controller (ORC) and the
Occupant Classification Module (OCM) at the same time. If both require
replacement, replace one. Then perform the Supplemental Restraint
System (SRS) verification test before replacing the other. Both the ORC
and the OCM store OCS calibration data, which they transfer to one
another when one of them is replaced. If both are replaced at the same
time, an irreversible fault will be set in both modules.

NOTE:

The Occupant Restraint Controller (ORC) should only be removed as a
complete unit with the molded plastic mounting bracket. The service
replacement ORC is supplied already installed on a new bracket.



2007 Dodge Nitro R/T

2007 RESTRAINTS Service Information - Nitro



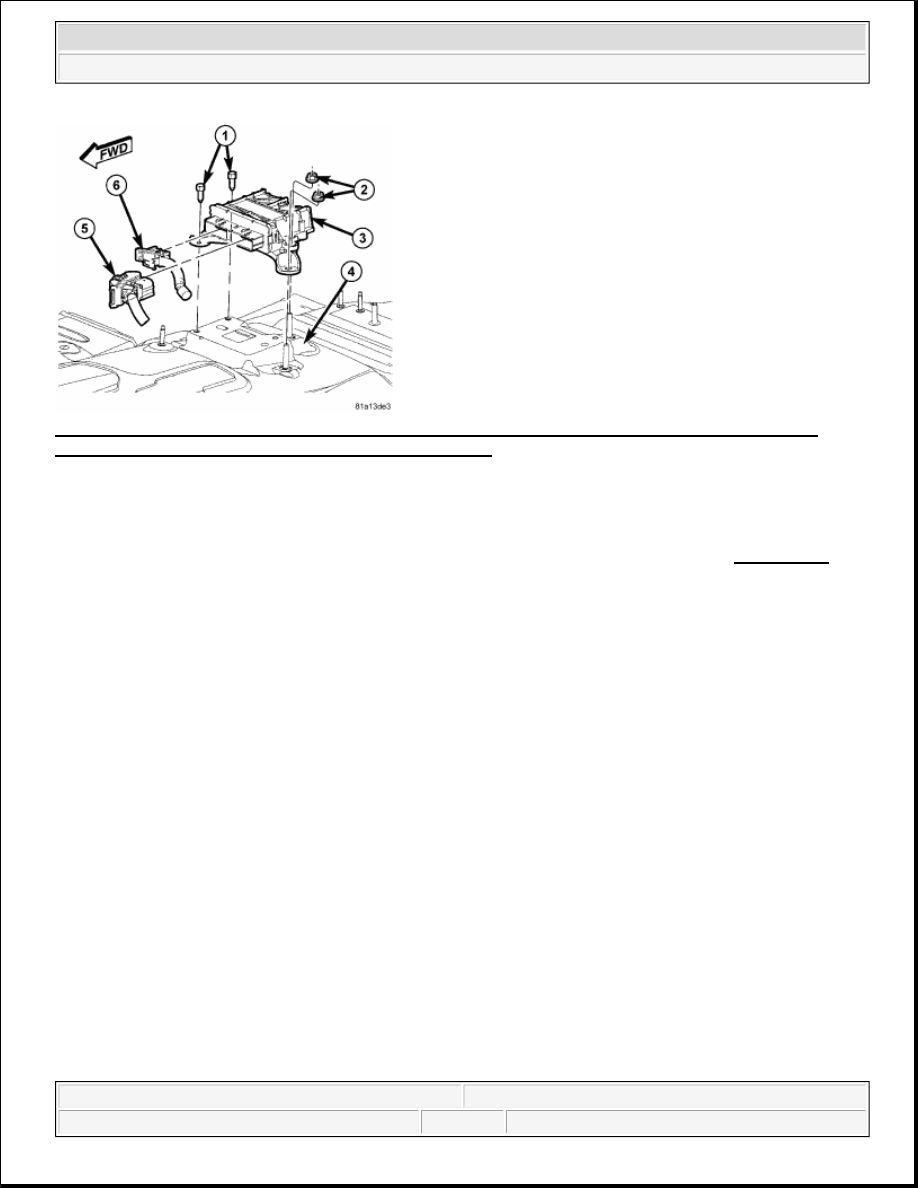

Fig. 51: Identifying Screws, Nuts, Occupant Restraint Controller, ORC Mount, Body Wire Harness
Connector & Instrument Panel Wire Harness Connector
Courtesy of CHRYSLER LLC

1. Carefully position the Occupant Restraint Controller (ORC) and mounting bracket unit (3) onto the two

studs on the left side of the ORC mount (4) on the floor panel transmission tunnel. When the ORC is
correctly positioned, the bracket will fit flush with the mount and the orientation arrow on the label on top
of the housing will be pointed forward in the vehicle.

2. Install and tighten the two screws (1) that secure the right side of the ORC mounting bracket to the ORC

mount. Tighten the screws to 10.5 N.m (95 in. lbs.).

3. Install and tighten the two nuts (2) that secure the left side of the ORC mounting bracket to the two studs

on the ORC mount. Tighten the nuts to 10.5 N.m (95 in. lbs.).

4. Reconnect the instrument panel wire harness connector (6) and the body wire harness connector (5) to the

ORC connector receptacles located on the forward-facing side of the module. Be certain that the latches
on the connectors are each fully engaged.

5. Reinstall the center console onto the top of the floor panel transmission tunnel. Refer to

INSTALLATION .

6. Do not reconnect the battery negative cable at this time. The Supplemental Restraint System (SRS)

verification test procedure should be performed following service of any SRS component. See
VERIFICATION TEST - SUPPLEMENTAL RESTRAINT SYSTEM.

PASSENGER AIRBAG

DESCRIPTION

PASSENGER AIRBAG

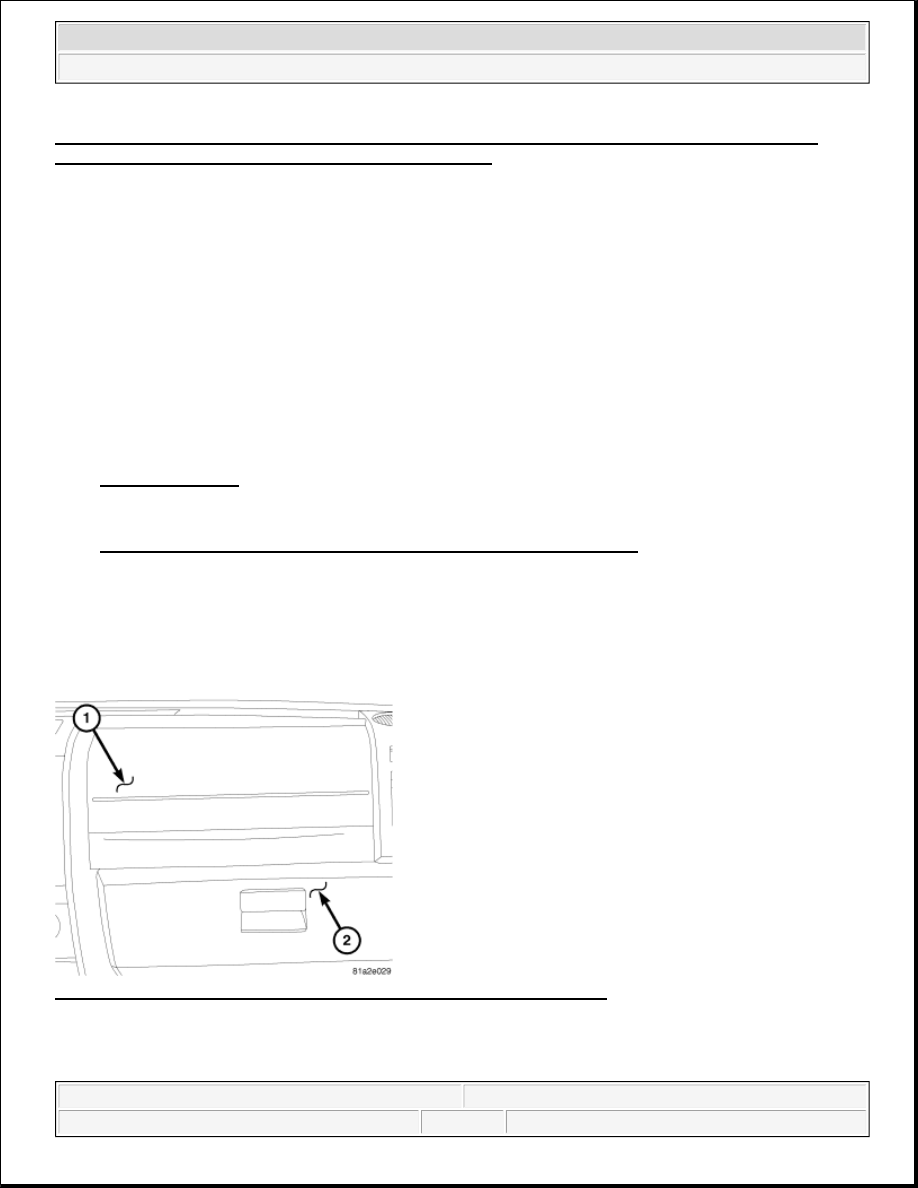

Fig. 52: Identifying Thermoplastic Passenger Airbag Door & Glove Box
Courtesy of CHRYSLER LLC

The rearward facing surface of the injection molded, thermoplastic passenger airbag door (1) is the most visible
part of the passenger airbag. The passenger airbag door is located above the glove box (2) opening on the top



2007 Dodge Nitro R/T

2007 RESTRAINTS Service Information - Nitro



and face of the instrument panel in front of the front seat passenger seating position. The upper and lower edges
of the airbag door are secured with integral snap features to the instrument panel base trim.

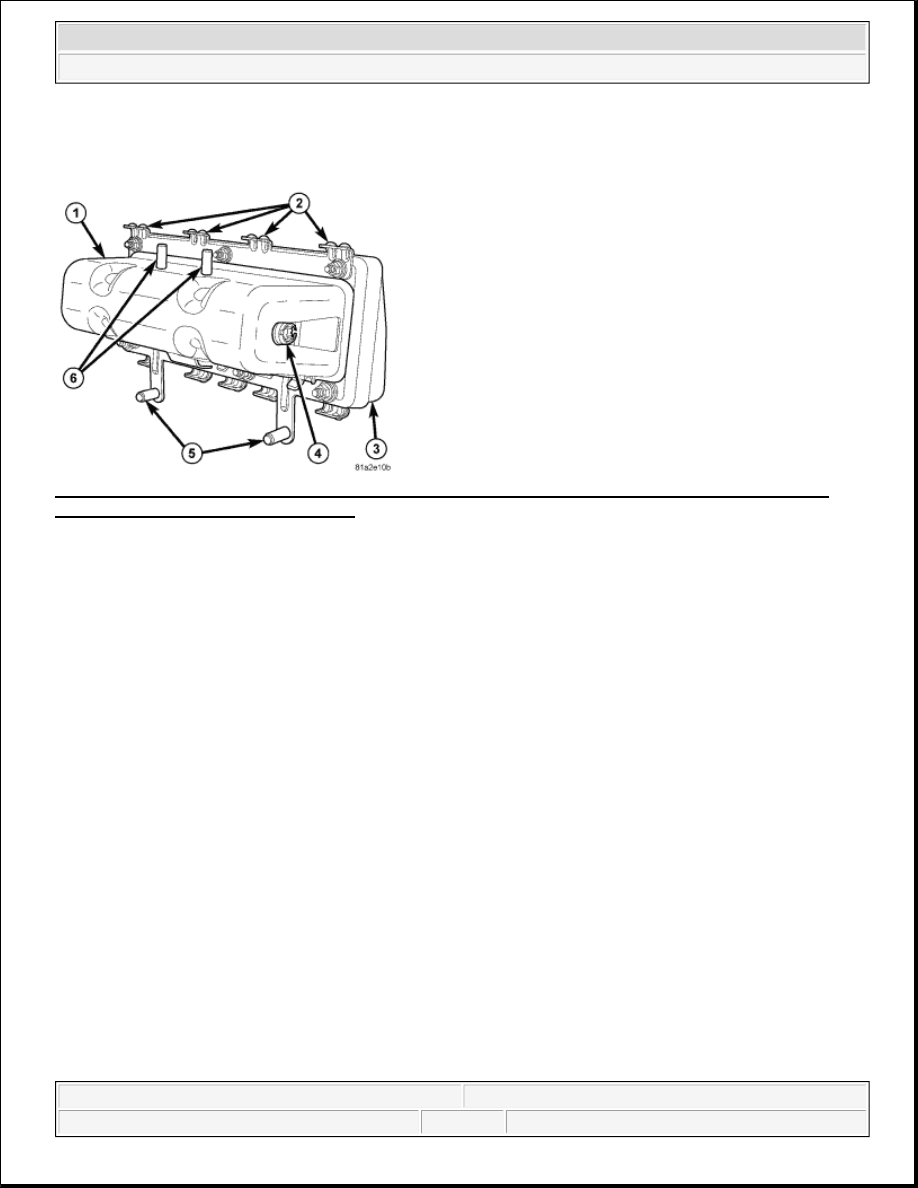

Fig. 53: Identifying Passenger Airbag Housing, Stamped Hook Formations, Airbag Cushion, Inflator
Initiators, Lower Studs & Upper Studs
Courtesy of CHRYSLER LLC

Located behind the passenger airbag door within the instrument panel is the passenger airbag unit. The
passenger airbag unit is secured through two lower studs (5) to the instrument panel structural support armature
above the glove box opening. While the two upper studs (6) are secured to a heavy stamped steel instrument
panel bracket secured to the dash panel near the lower windshield fence line and to the instrument panel
structural duct.

The passenger airbag housing (1) fits into a molded receptacle on the back of the airbag door, where several
stamped hook formations (2) on the upper and lower edges of the airbag housing are engaged in mating small
window openings on the upper and lower flanges of the receptacle to secure the airbag door to the airbag
housing. These airbag door fasteners and mounting provisions are all concealed beneath the instrument panel
base trim.

The passenger airbag unit used in this vehicle is a multistage, Next Generation-type that complies with revised
federal airbag standards to deploy with less force than those used in some prior vehicles. The passenger airbag
unit consists of a stamped metal housing, the airbag cushion (3), and a dual initiator airbag inflator. The airbag
housing contains the airbag inflator and the folded airbag cushion. An approximately 80 centimeter (31.5 inch)
wide by 90 centimeter (35.5 inch) high rectangular fabric cushion with internal tethers is used.

The airbag inflator is a non-azide, hybrid-type unit that is secured to and sealed within the airbag housing. The
two inflator initiators (4) are connected to the vehicle electrical system through dedicated take outs and
connectors of the instrument panel wire harness with connector insulators that connect directly to the two
inflator initiators. The connector insulators are uniquely keyed and color-coded to ensure they can only be
connected to the correct initiator.

A service replacement passenger airbag does not include the airbag door. The passenger airbag door may be
disassembled from the passenger airbag and is available for individual service replacement. The passenger
