Dodge Nitro. Manual - part 230

Mounting Nut

Occupant Classification

Module Mounting Screws

2

-

20

Occupant Restraint

Controller Mounting

Screws

10.5

-

95

Occupant Restraint

Controller Mounting Nuts

10.5

-

95

Passenger Airbag Lower

Instrument Panel Bracket

Nuts

20

15

-

Passenger Airbag Lower

Mounting Nuts

7

-

62

Passenger Airbag Upper

Instrument Panel Bracket

To Structural Duct Screw

2.9

-

25

Passenger Airbag Upper

Instrument Panel Bracket

Mounting Screws

29.5

21

-

Front Seat Belt Buckle

Lower Anchor Mounting

Screw

43

32

-

Second Row Center and

Right Outboard Seat Belt

Buckle Mounting Screw

55

41

-

Second Row Seat

Cushion Leg Mounting

Screws

54

40

-

Second Row Center Seat

Belt Anchor and Left

Outboard Buckle

Mounting Nut

62.5

46

-

Front Seat Belt Retractor

Lower Bracket Mounting

Screw

44.5

33

-

Front Seat Belt Turning

Loop Mounting Screw

44.5

33

-

Front Seat Belt Lower

Anchor Mounting Screw

44.5

33

-

Second Row Center Seat

Belt Retractor Mounting

Screw

55

41

-

Second Row Outboard

Seat Belt Retractor

Lower Bracket Mounting

44.5

33

-



2007 Dodge Nitro R/T

2007 RESTRAINTS Service Information - Nitro



SPECIAL TOOLS

SPECIAL TOOLS

Fig. 7: OCS Seat Weight Tool No. 9077
Courtesy of CHRYSLER LLC

Screw

Second Row Outboard

Seat Belt Turning Loop

Mounting Screw

44.5

33

-

Second Row Outboard

Seat Belt Lower Anchor

Mounting Nut

62.5

46

-

Seat Belt Turning Loop

Adjuster Mounting Screw

44.5

33

-

Seat Weight Sensor to

Seat Adjuster Track

Mounting Nuts

28

21

-

Seat Weight Sensor to

Seat Riser Mounting Nut

44.5

33

-



2007 Dodge Nitro R/T

2007 RESTRAINTS Service Information - Nitro



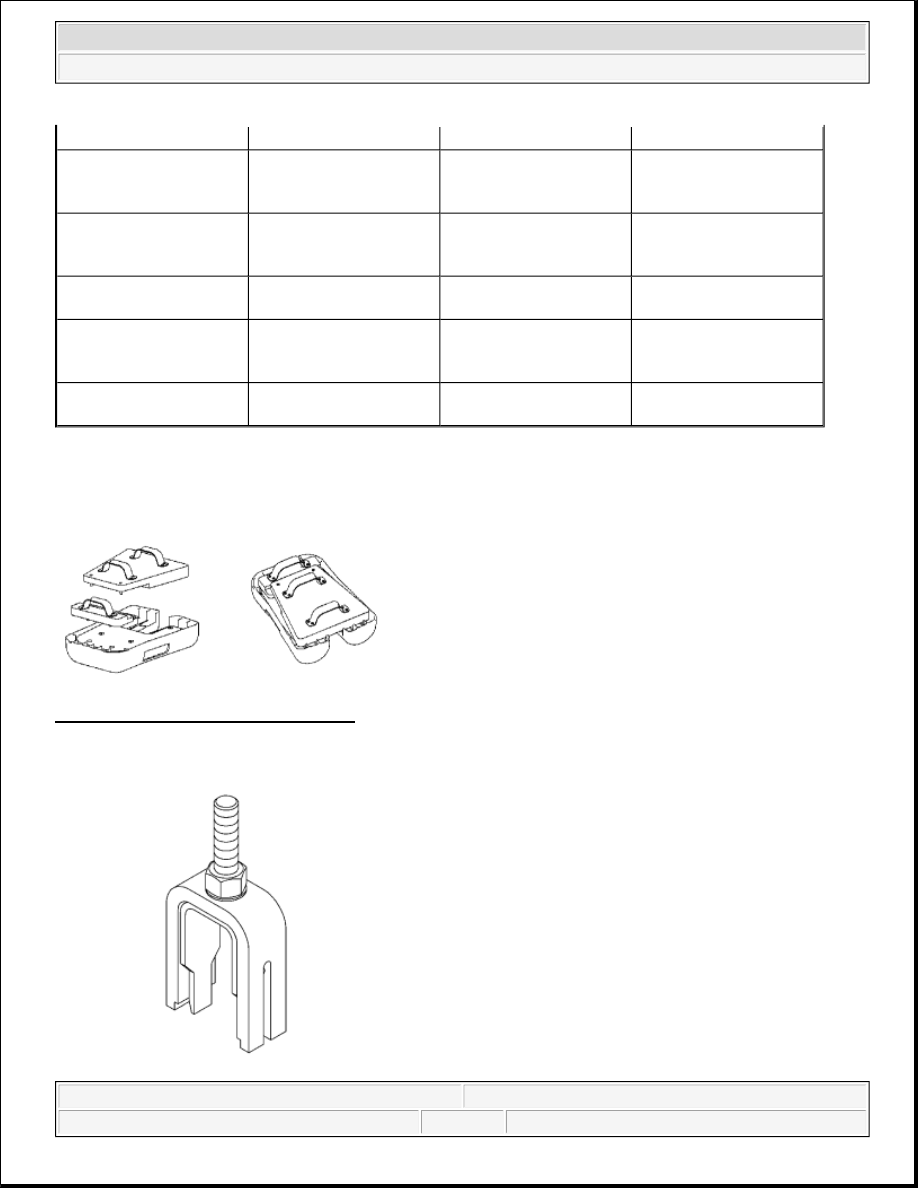

Fig. 8: Strain Gauge Alignment Tool No. 9689
Courtesy of CHRYSLER LLC

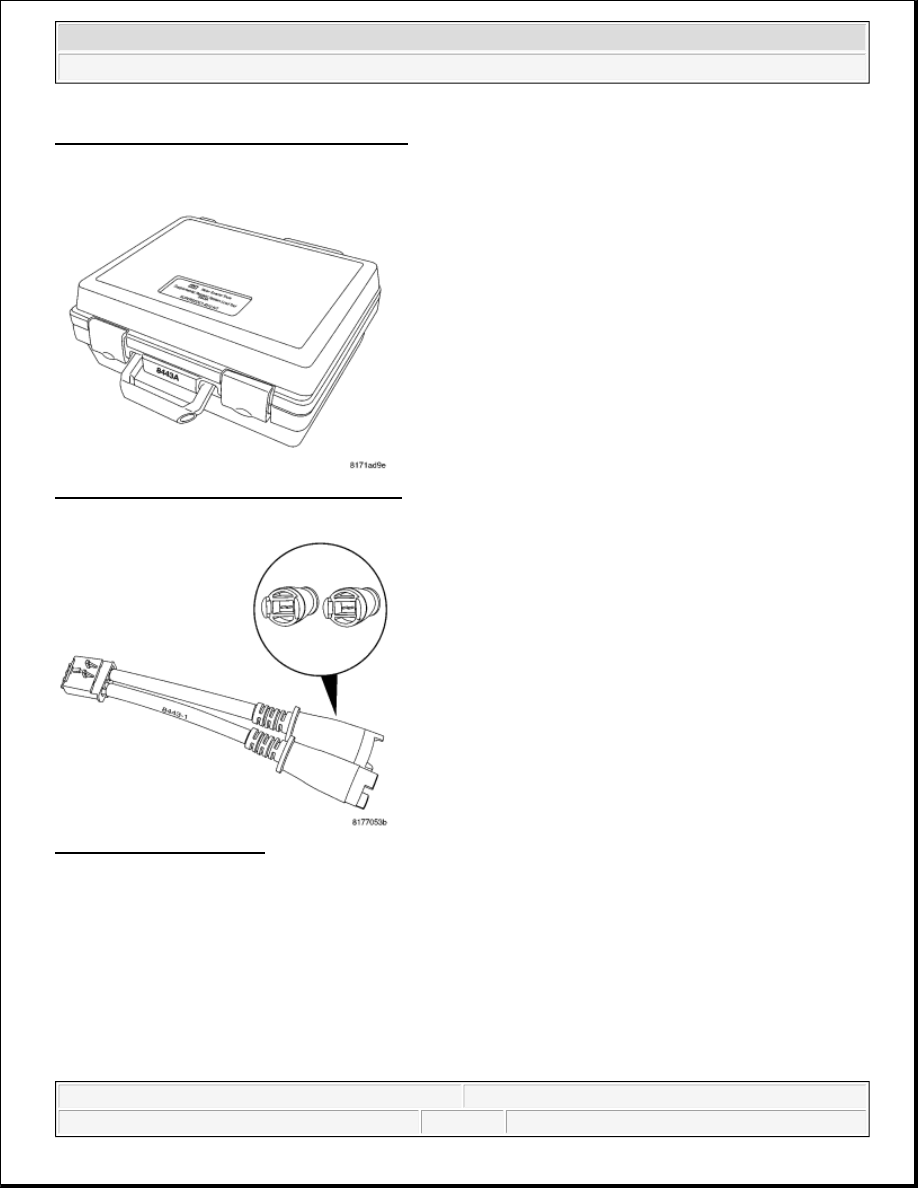

Fig. 9: SRS Load Tool Kit No. 8443 or 8443A
Courtesy of CHRYSLER LLC

Fig. 10: Jumper No. 8443-1
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 RESTRAINTS Service Information - Nitro



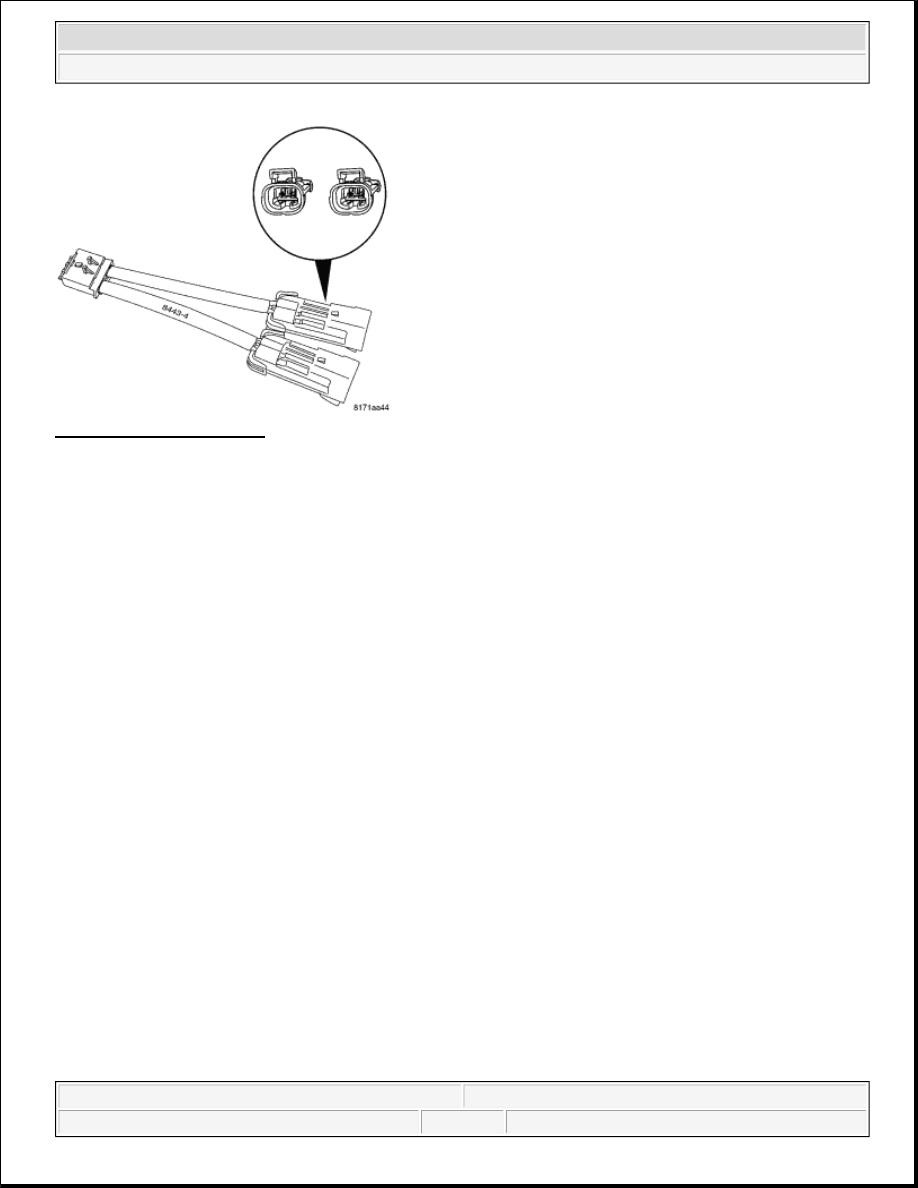

Fig. 11: Jumper No. 8443-4
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T
