If the Anti-Lock Brakes Module detects too many CAN Bus off events on the Dynamics Sensor Data
Link circuits.

Diagnostic Test

1) VERIFY DTC IS ACTIVE

Turn the ignition on.

With the scan tool, read and record ABS DTCs.

With the scan tool, read and record Environmental Data (EV Data).

With the scan tool, erase ABS DTCs.

Cycle the ignition switch.

With the scan tool, read ABS DTCs.

Does this DTC reset?

Yes

Go to 2).

No

The condition that caused the symptom is currently not present. Inspect the related wiring for a
possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.

Refer to the ABS INTERMITTENT CONDITION.

2) INSPECT RELATED WIRING HARNESS, TERMINALS, & CONNECTORS

Visually inspect the related wiring harness. Look for any pinched, chafed, pierced, and partially broken
wires.

Visually inspect the related wiring harness connectors. Look for broken, bent, pushed out, and corroded
terminals.

Possible Causes

WIRING HARNESS, TERMINAL, CONNECTOR DAMAGE
(D52) DYNAMICS SENSOR HIGH DATA LINK CIRCUIT SHORTED TO GROUND, VOLTAGE,
OR OPEN
(D51) DYNAMICS SENSOR LOW DATA LINK CIRCUIT SHORTED TO GROUND, VOLTAGE,
OR OPEN
DYNAMICS SENSOR
ANTI-LOCK BRAKES MODULE



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro



Were any problems found?

Yes

Repair as necessary.

Perform ABS VERIFICATION TEST.

No

Go to 3).

3) CHECK THE (D52) DYNAMICS SENSOR HIGH DATA LINK CIRCUIT FOR A SHORT TO
VOLTAGE

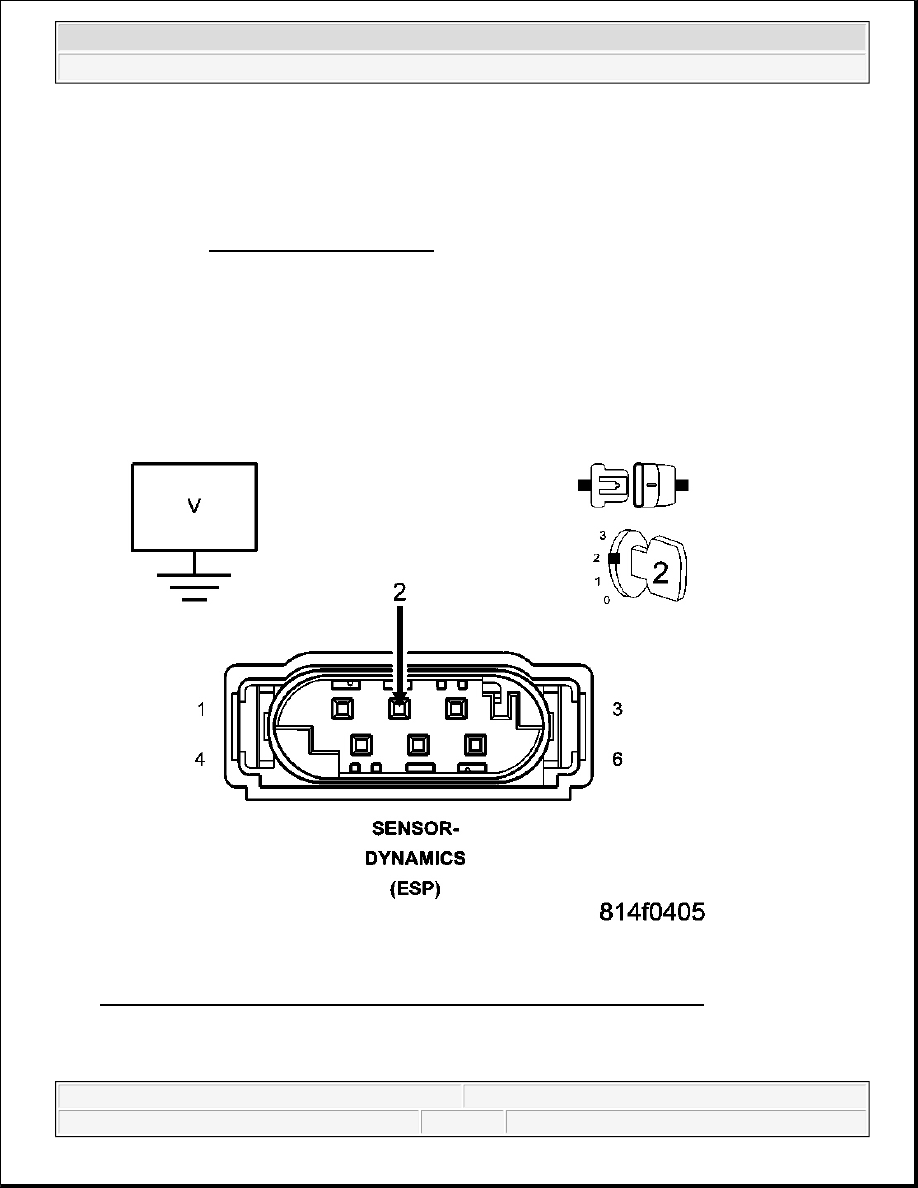

Fig. 74: Measuring Voltage Of (D52) Dynamics Sensor High Data Link Circuit
Courtesy of CHRYSLER LLC

Disconnect the Anti-Lock Brakes Module harness connector.



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro



Disconnect the Dynamics Sensor harness connector.

Turn the ignition on.

Measure the voltage of the (D52) Dynamics Sensor High Data Link circuit.

Is there any voltage present?

Yes

Repair the (D52) Dynamics Sensor High Data Link circuit for a short to voltage.

Perform ABS VERIFICATION TEST.

No

Go to 4).

4) CHECK THE (D52) DYNAMICS SENSOR HIGH DATA LINK CIRCUIT FOR A SHORT TO
GROUND



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro



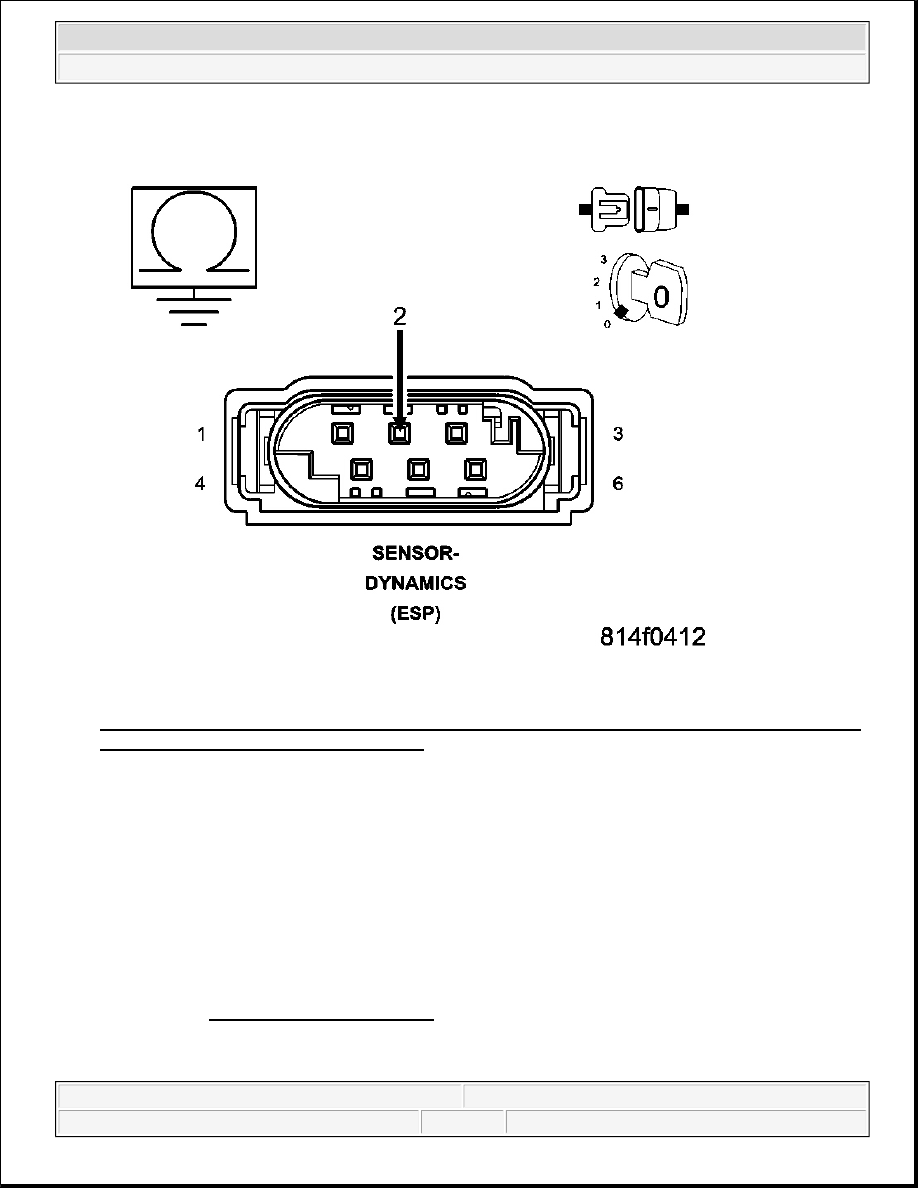

Fig. 75: Measuring Resistance Of (D52) Dynamics Sensor High Data Link Circuit Between Ground
And Dynamics Sensor Harness Connector
Courtesy of CHRYSLER LLC

Turn the ignition off.

Measure the resistance of the (D52) Dynamics Sensor High Data Link circuit between ground and the
Dynamics Sensor harness connector.

Is the resistance below 5.0 ohms?

Yes

Repair the (D52) Dynamics Sensor High Data Link circuit for a short to ground.

Perform ABS VERIFICATION TEST.

No



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro
