Dodge Nitro. Manual - part 189

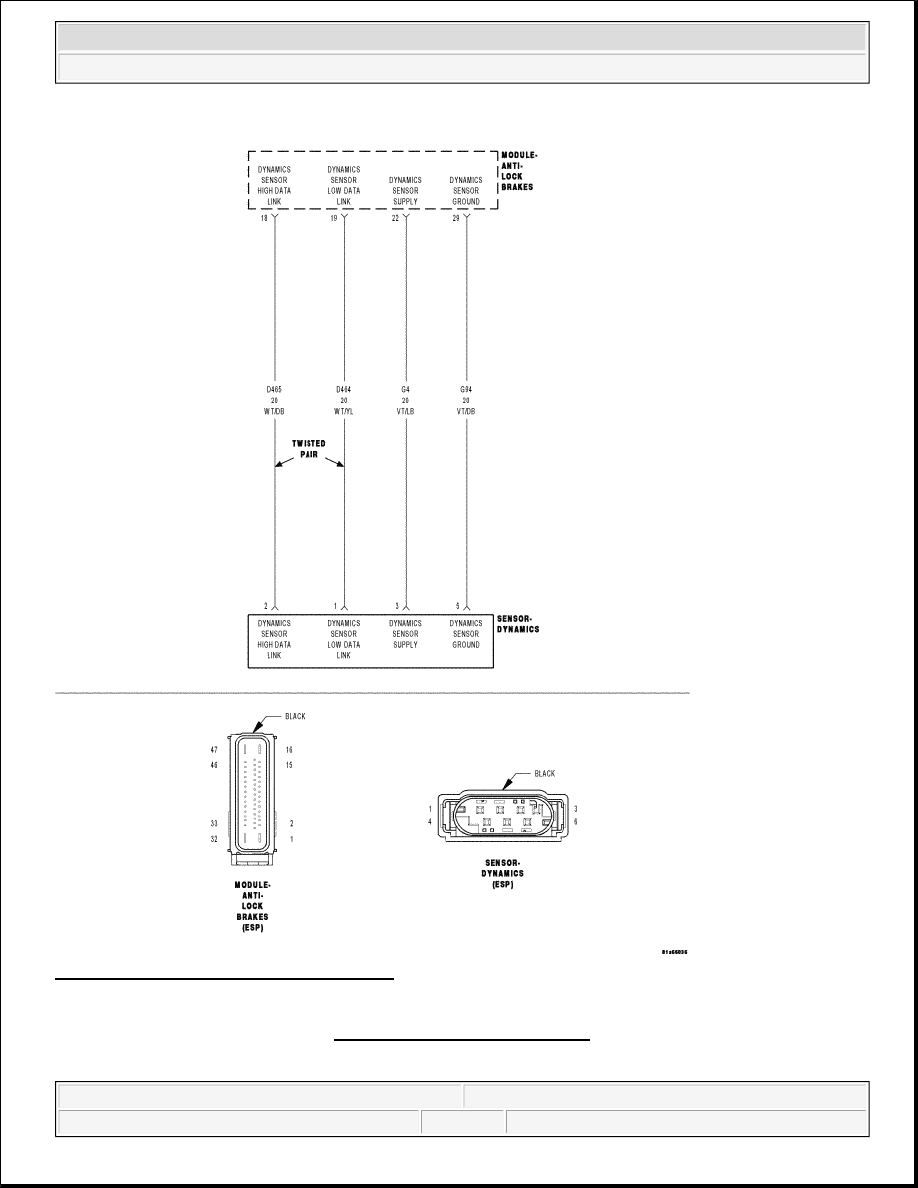

Fig. 48: Dynamics Sensor Circuit Schematic
Courtesy of CHRYSLER LLC

For complete wiring diagrams refer to SYSTEM WIRING DIAGRAMS article.

When Monitored:



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro



With vehicle speed above 11 km/h (7 mph), but not if the sensor signal is invalid.

Or, during skidding.

Or, when driving in reverse.

Set Condition:

If the Anti-Lock Brakes Module detects implausible Dynamics Sensor values.

Diagnostic Test

1) VERIFY DTC IS ACTIVE

Turn the ignition on.

With the scan tool, read and record ABS DTCs.

With the scan tool, read and record Environmental Data (EV Data).

With the scan tool, erase ABS DTCs.

Cycle the ignition switch.

Test drive the vehicle by turning the vehicle left or right in a curving manner at a velocity between 10 and
20 km/h (6 and 12 mph).

Park the vehicle.

With the scan tool, read ABS DTCs.

Does this DTC reset?

Possible Causes

WIRING HARNESS, TERMINAL, CONNECTOR DAMAGE
DYNAMICS SENSOR INSTALLATION
DYNAMICS SENSOR

NOTE:

If present, diagnose and repair DTC C2114-DYNAMICS SENSOR SUPPLY
VOLTAGE LOW or DTC C2115-DYNAMICS SENSOR SUPPLY VOLTAGE
HIGH before diagnosing this DTC.

WARNING:

Ensure brake capability is available before road testing.



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro



Yes

Go to 2).

No

The condition that caused the symptom is currently not present. Inspect the related wiring for a
possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.

Refer to the ABS INTERMITTENT CONDITION.

2) CHECK THE DYNAMICS SENSOR INSTALLATION

Turn the ignition off.

Check the Dynamics Sensor for damaged, modified, and bent mounting brackets.

Check the Dynamics Sensor mounting bolts for a loose or over tightened condition.

Were any problems found?

Yes

Repair as necessary.

Perform ABS VERIFICATION TEST.

No

Go to 3).

3) INSPECT RELATED WIRING HARNESS, TERMINALS, & CONNECTORS

Visually inspect the related wiring harness. Look for any pinched, chafed, pierced, and partially broken
wires.

Visually inspect the related wiring harness connectors. Look for broken, bent, pushed out, and corroded
terminals.

Were any problems found?

Yes

Repair as necessary.

Perform ABS VERIFICATION TEST.

NOTE:

Dynamics Sensor installation and mounting bolt torque is crucial for
proper operation.



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro



No

Replace the Dynamics Sensor in accordance with the Service Information.

Perform ABS VERIFICATION TEST.

C123F-STEERING ANGLE SENSOR COMPARATIVE PERFORMANCE

For complete wiring diagrams refer to SYSTEM WIRING DIAGRAMS article.

When Monitored:

With ignition on, but not if a checksum failure of the stored offset values is detected.

Or, a CAN time-out failure is detected.

Or, a failure is detected by the Steering Angle Sensor.

Set Condition:

If the Anti-Lock Brakes Module detects that either the calculated steering wheel angle offset or the
steering wheel angle signal measured output is out of range.

Diagnostic Test

1) PERFORM TEST DRIVE & VERIFY DTC IS STILL ACTIVE

Turn the ignition on.

With the scan tool, erase ABS DTCs.

Cycle the ignition switch.

Possible Causes

VEHICLE DAMAGE
STEERING COLUMN/INTERMEDIATE SHAFT DAMAGE
STEERING WHEEL ALIGNMENT
STEERING ANGLE SENSOR LOOSE
STEERING ANGLE SENSOR IMPROPERLY INSTALLED (WRONG MOUNTING POSITION)
STEERING ANGLE SENSOR
ANTI-LOCK BRAKE MODULE

NOTE:

If present, diagnose and repair DTC C1219-STEERING ANGLE SENSOR
ERRATIC PERFORMANCE, C121A-STEERING ANGLE SENSOR NOT
INITIALIZED, or C1240-STEERING ANGLE SENSOR OVERTRAVEL
PERFORMANCE before diagnosing this DTC.



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro
