Continuously, with ignition on, until vehicle speed exceeds 20 km/h (12.4 m.p.h.) for the first time, but
not if the sensor voltage is out of range.

Or, during diagnostic mode.

Or, if the monitoring was inhibited by a corresponding diagnostics command.

Set Condition:

If the measured acceleration signal is higher than 0.8 g for longer than the specified detection time.

Diagnostic Test

1) CHECK FOR A DTC C1210-G SENSOR INPUT CIRCUIT PERFORMANCE

Turn the ignition on.

With the scan tool, read and record DTCs.

With the scan tool, read and record Freeze Frame information.

With the scan tool, erase DTCs.

Cycle the ignition switch from off to on.

With the scan tool, read and record DTCs.

Does the scan tool display: C1210-G SENSOR INPUT CIRCUIT PERFORMANCE?

Yes

Go to 2).

No

Possible Causes

WIRING HARNESS, TERMINAL, CONNECTOR DAMAGE
(G4) DYNAMICS SENSOR SUPPLY HIGH RESISTANCE
(G94) GROUND CIRCUIT HIGH RESISTANCE
DYNAMICS SENSOR INSTALLATION
DYNAMICS SENSOR
ANTI-LOCK BRAKES MODULE

NOTE:

This DTC must be active for the results of this test to be valid.



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro



Perform ABS VERIFICATION TEST.

2) CHECK THE TERMINALS/CONNECTORS/WIRING HARNESS FOR DAMAGE

Check the Dynamics Sensor installation.

Check all related wiring for bruised, chafed, pierced, or partially broken wires.

Check all related connectors for broken, bent, pushed out, or corroded terminals.

Were any problems found?

Yes

Repair as necessary.

Perform ABS VERIFICATION TEST.

No

Go to 3).

3) (G4) DYNAMICS SENSOR SUPPLY HIGH RESISTANCE



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro



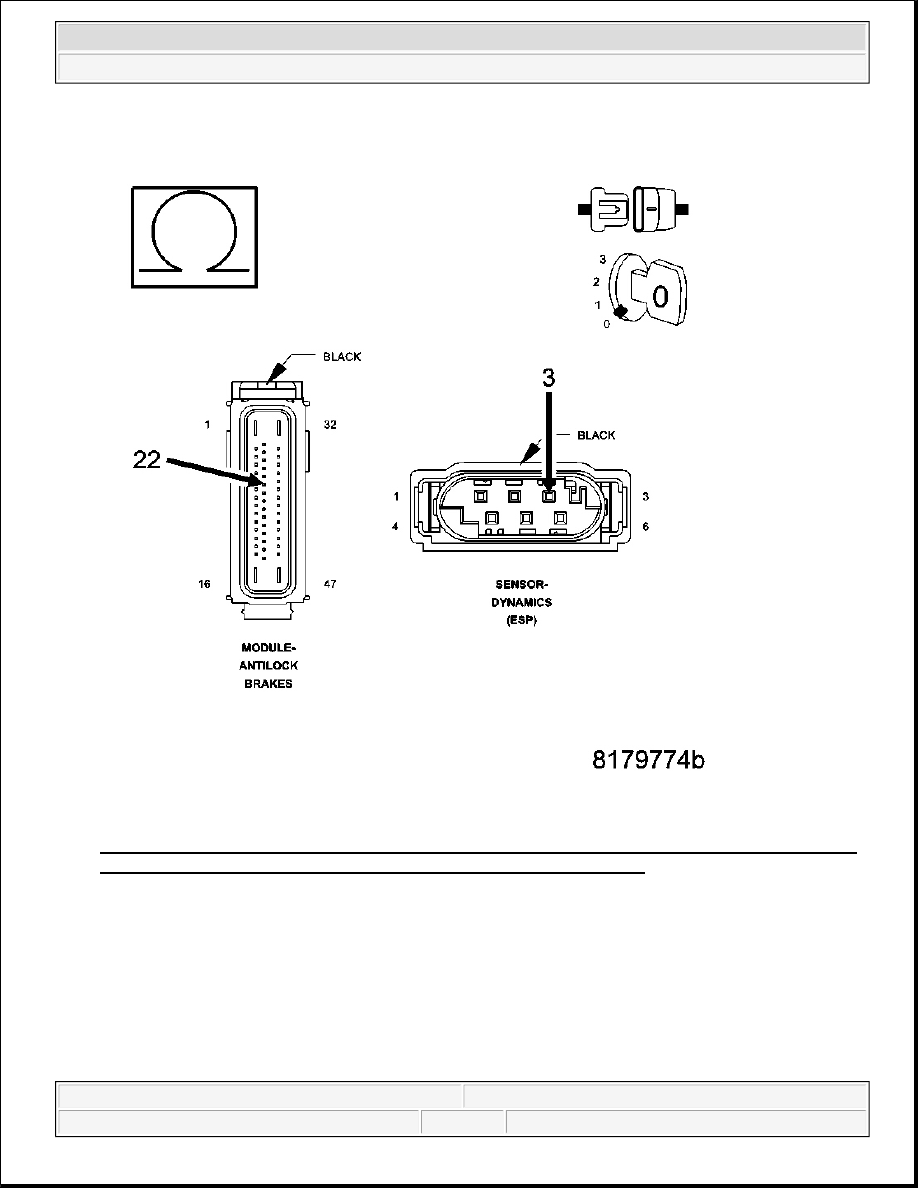

Fig. 40: Measuring Resistance Of (G4) Dynamics Sensor Supply Circuit Between Dynamics Sensor
Harness Connector And Anti-Lock Brakes Module Harness Connector
Courtesy of CHRYSLER LLC

Turn the ignition off.

Disconnect the Dynamics Sensor harness connector.

Disconnect the Anti-Lock Brakes Module harness connector.

Measure the resistance of the (G4) Dynamics Sensor Supply circuit between the Dynamics Sensor
harness connector and the Anti-Lock Brakes Module harness connector.



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro



Is the resistance below 5.0 ohms?

Yes

Go to 4).

No

Repair the (G4) Dynamics Sensor Supply circuit for high resistance.

Perform ABS VERIFICATION TEST.

4) (G94) GROUND CIRCUIT HIGH RESISTANCE
