1. Inspect hydraulic tensioner (2) for fluid loss around the plunger (1) seal. Replace tensioner if leaking. See

Fig. 317.

INSTALLATION

TIMING BELT TENSIONER PULLEY ASSEMBLY

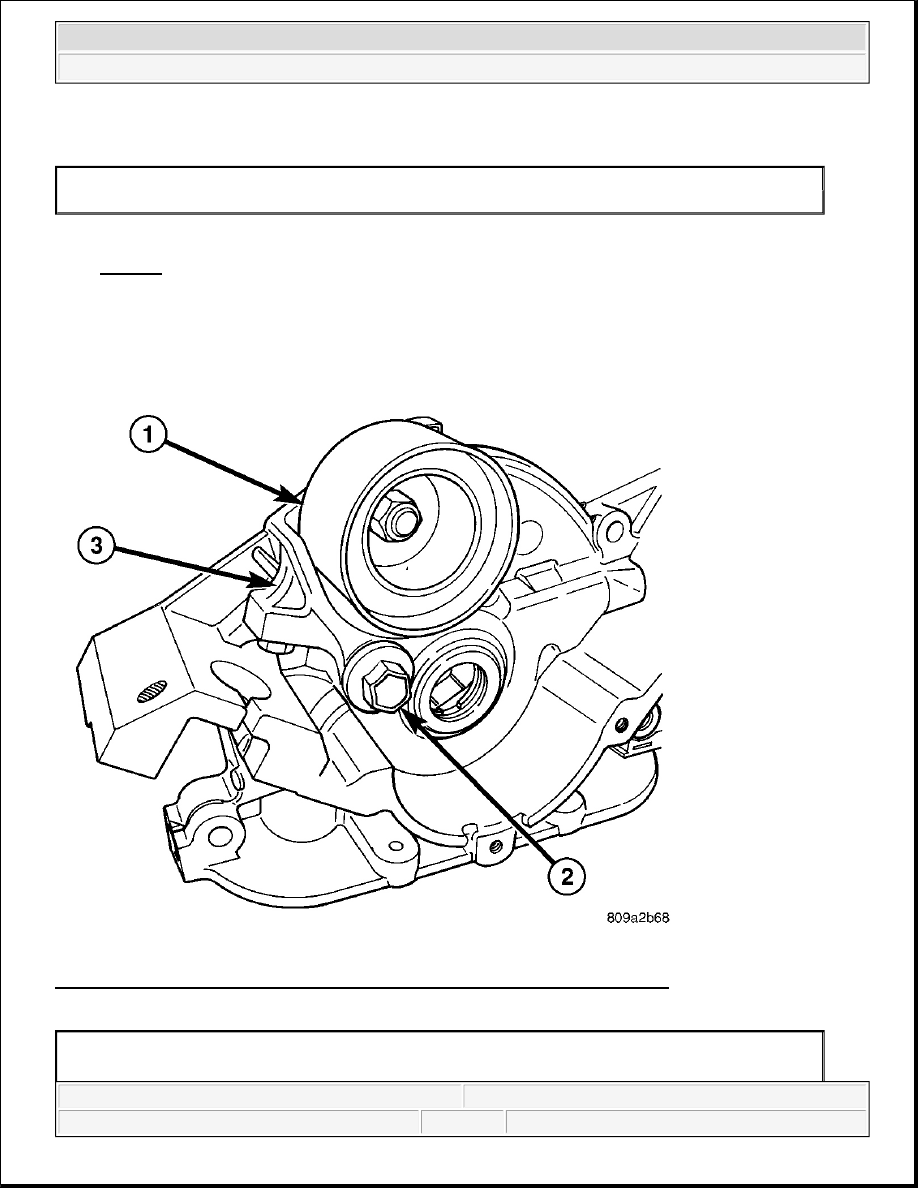

Fig. 318: Removing/Installing Tensioner Pulley, Pivot Bolt & Tensioner Bracket
Courtesy of CHRYSLER LLC

1 - PLUNGER (EXTENDED POSITION)
2 - TENSIONER HOUSING

1 - TENSIONER PULLEY
2 - PIVOT BOLT



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



1. Install the timing belt tensioner pulley (1) assembly. Tighten the pivot bolt (2) to 61 N.m (45 ft. lbs.). See

Fig. 318.

2. Install the timing belt. See TIMING BELT.

TIMING BELT TENSIONER

1. For timing belt tensioner installation procedure. See TIMING BELT.

3 - TENSIONER BRACKET



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



2007 BRAKES

ABS - Electrical Diagnostics - Nitro

DIAGNOSTIC CODE INDEX

DIAGNOSTIC CODE INDEX

DTC

Description

C1008

BRAKE FLUID LEVEL CIRCUIT HIGH

C100A

LEFT FRONT WHEEL SPEED SENSOR CIRCUIT

C1011

LEFT FRONT WHEEL SPEED SENSOR SIGNAL ERRATIC PERFORMANCE

C1014

LEFT FRONT WHEEL SPEED COMPARATIVE PERFORMANCE

C1015

RIGHT FRONT WHEEL SPEED SENSOR CIRCUIT

C101C

RIGHT FRONT WHEEL SPEED SENSOR SIGNAL ERRATIC PERFORMANCE

C101F

RIGHT FRONT WHEEL SPEED COMPARATIVE PERFORMANCE

C1020

LEFT REAR WHEEL SPEED SENSOR CIRCUIT

C1027

LEFT REAR WHEEL SPEED SENSOR SIGNAL ERRATIC PERFORMANCE

C102A

LEFT REAR WHEEL SPEED COMPARATIVE PERFORMANCE

C102B

RIGHT REAR WHEEL SPEED SENSOR CIRCUIT

C1032

RIGHT REAR WHEEL SPEED SENSOR SIGNAL ERRATIC PERFORMANCE

C1035

RIGHT REAR WHEEL SPEED COMPARATIVE PERFORMANCE

C1041

LEFT FRONT TONE WHEEL PERFORMANCE

C1042

RIGHT FRONT TONE WHEEL PERFORMANCE

C1043

LEFT REAR TONE WHEEL PERFORMANCE

C1044

RIGHT REAR TONE WHEEL PERFORMANCE

C1046

LEFT FRONT WHEEL PRESSURE PHASE MONITORING

C1047

RIGHT FRONT WHEEL PRESSURE PHASE MONITORING

C1048

LEFT REAR WHEEL PRESSURE PHASE MONITORING

C1049

RIGHT REAR WHEEL PRESSURE PHASE MONITORING

C1073

ABS PUMP MOTOR CONTROL CIRCUIT

C1078

TIRE REVOLUTIONS RANGE PERFORMANCE

C107C

BRAKE PEDAL SWITCH 1/2 STUCK

C107D

BRAKE PEDAL SWITCH 1/2 CORRELATION

C1210

G SENSOR INPUT CIRCUIT PERFORMANCE

C1219

STEERING ANGLE SENSOR ERRATIC PERFORMANCE

C121A

STEERING ANGLE SENSOR NOT INITIALIZED

C121C

TORQUE REQUEST SIGNAL DENIED

C121D

BRAKE PRESSURE SENSOR CIRCUIT

C121E

BRAKE PRESSURE SENSOR COMPARATIVE PERFORMANCE

C1231

DRIVE TEST: STEERING ANGLE SENSOR

C1232

DRIVE TEST: PRESSURE SENSOR



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro





2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro



ABS - ELECTRICAL DIAGNOSTICS

DIAGNOSIS AND TESTING

C1234

DRIVE TEST: SENSOR CLUSTER INSTALLATION

C1238

DRIVE TEST: UNSUCCESSFUL

C1239

EMISSIONS ROLLS TEST ACTIVE

C123A

ESP SYSTEM SENSORS CALIBRATION

C123B

ESP SYSTEM CONTROL TOO LONG

C123C

DYNAMICS SENSOR MOUNTING/INSTALLATION PERFORMANCE

C123F

STEERING ANGLE SENSOR COMPARATIVE PERFORMANCE

C1240

STEERING ANGLE SENSOR OVERTRAVEL PERFORMANCE

C1242

G SENSOR INPUT SIGNAL PERFORMANCE

C1243

G SENSOR NOT INITIALIZED

C2100

BATTERY VOLTAGE LOW

C2101

BATTERY VOLTAGE HIGH

C2111

SENSOR SUPPLY 1 VOLTAGE CIRCUIT LOW

C2112

SENSOR SUPPLY 1 VOLTAGE CIRCUIT HIGH

C2114

DYNAMICS SENSOR SUPPLY VOLTAGE LOW

C2115

DYNAMICS SENSOR SUPPLY VOLTAGE HIGH

C2116

ABS PUMP MOTOR SUPPLY LOW VOLTAGE

C2200

ANTI-LOCK BRAKE MODULE INTERNAL

C2204

DYNAMICS SENSOR INTERNAL

C2205

STEERING ANGLE SENSOR INTERNAL

C2206

VEHICLE CONFIGURATION MISMATCH

U0002

CAN C BUS OFF PERFORMANCE

U0100

LOST COMMUNICATION WITH ECM/PCM

U0101

LOST COMMUNICATION WITH TCM

U0125

LOST COMMUNICATION WITH DYNAMICS SENSOR

U0126

LOST COMMUNICATION WITH STEERING ANGLE SENSOR

U0141

LOST COMMUNICATION WITH FRONT CONTROL MODULE

U0401

IMPLAUSIBLE DATA RECEIVED FROM ECM/PCM

U0429

IMPLAUSIBLE DATA RECEIVED FROM SCM

U1003

ESP CAN C BUS PERFORMANCE

U1104

CAN C BUS CRC PERFORMANCE

U140E

IMPLAUSIBLE VEHICLE CONFIGURATION DATA RECEIVED

U1501

IMPLAUSIBLE MESSAGE DATA LENGTH RECEIVED FROM ECM/PCM

U1502

IMPLAUSIBLE MESSAGE DATA LENGTH RECEIVED FROM TCM

U1503

IMPLAUSIBLE MESSAGE DATA LENGTH RECEIVED FROM FCM

U1601

MISSING APPLICATION FILE
