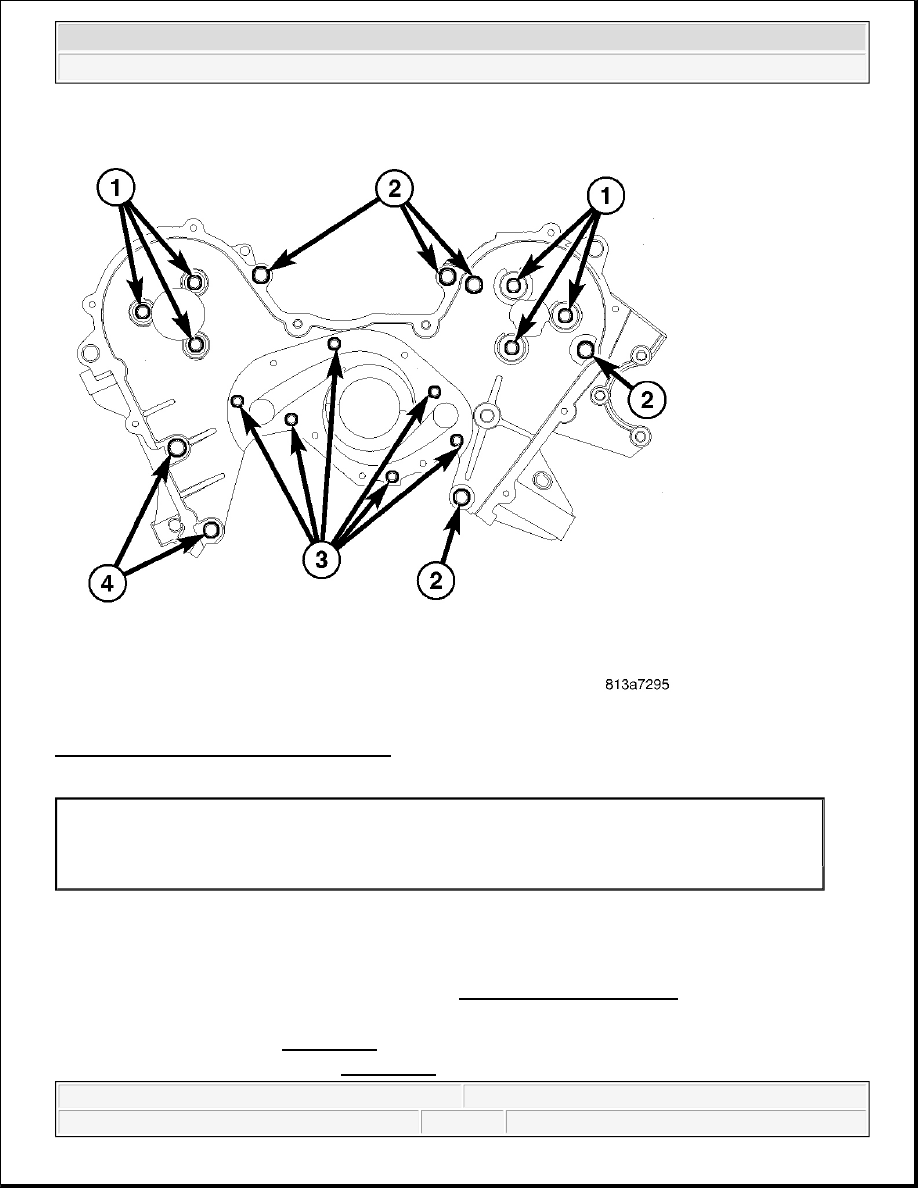

Fig. 300: Timing Belt Rear Cover Fasteners
Courtesy of CHRYSLER LLC

1. Perform fuel pressure release procedure. Refer to STANDARD PROCEDURE .

2. Disconnect the negative battery cable.

3. Remove timing belt. See REMOVAL.

4. Remove camshaft sprockets. See REMOVAL.

1 - M8 FASTENERS (APPLY THREAD SEALANT)
2 - M10 FASTENERS
3 - M6 FASTENERS
4 - M10 FASTENERS (STUD/NUT)

NOTE:

The rear timing belt cover has O-rings to seal the water pump passages to
cylinder block. Do not reuse the O-rings.



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



5. Remove rear timing belt cover bolts (1, 2, 3). See Fig. 300.

6. Remove the rear cover.

INSTALLATION

COVER-REAR TIMING BELT

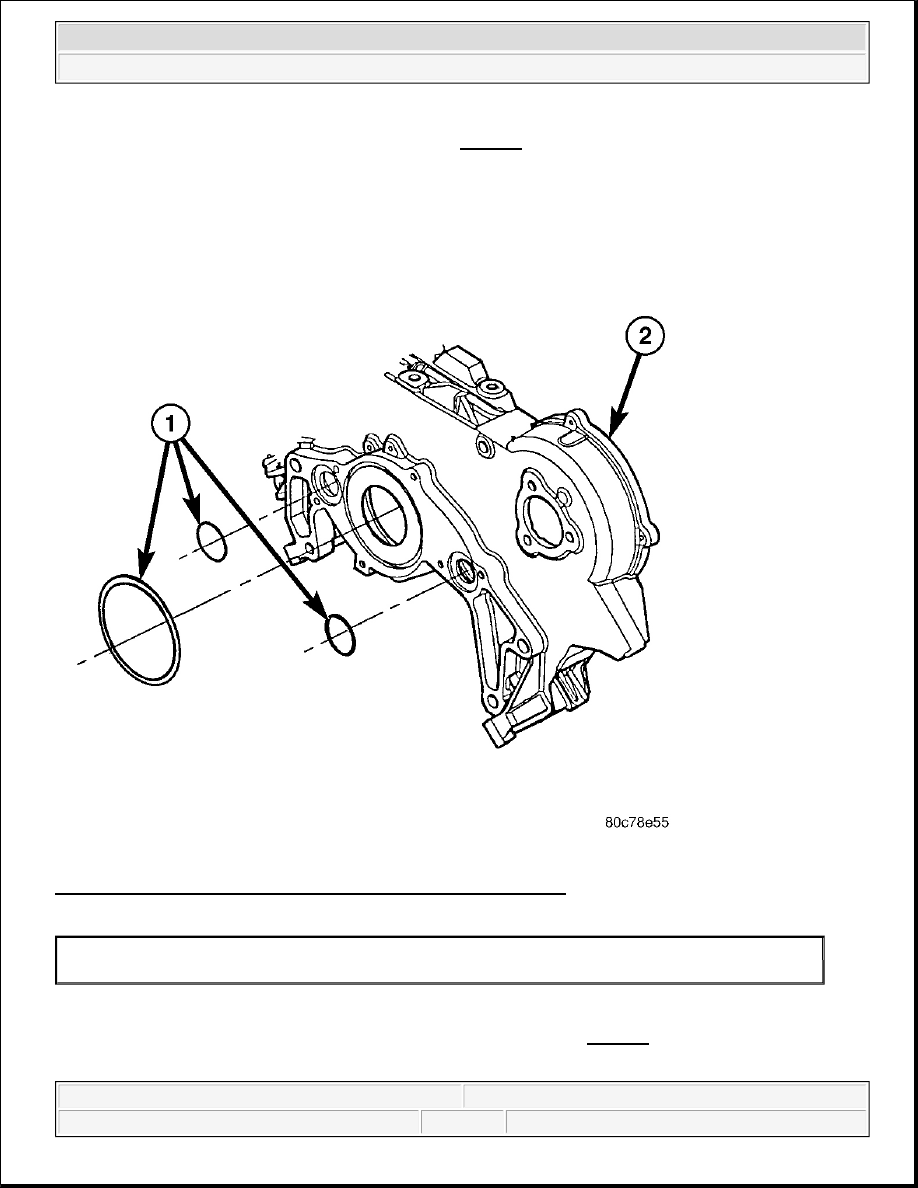

Fig. 301: Rear Timing Belt Cover Seals & Rear Timing Belt Cover
Courtesy of CHRYSLER LLC

1. Clean rear timing belt cover O-ring (1) sealing surfaces and grooves. Lubricate new O-rings with

Mopar® Dielectric Grease or equivalent to facilitate assembly. See Fig. 301.

2. Position NEW O-rings on cover (2).

1 - REAR TIMING BELT COVER SEALS
2 - REAR TIMING BELT COVER



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



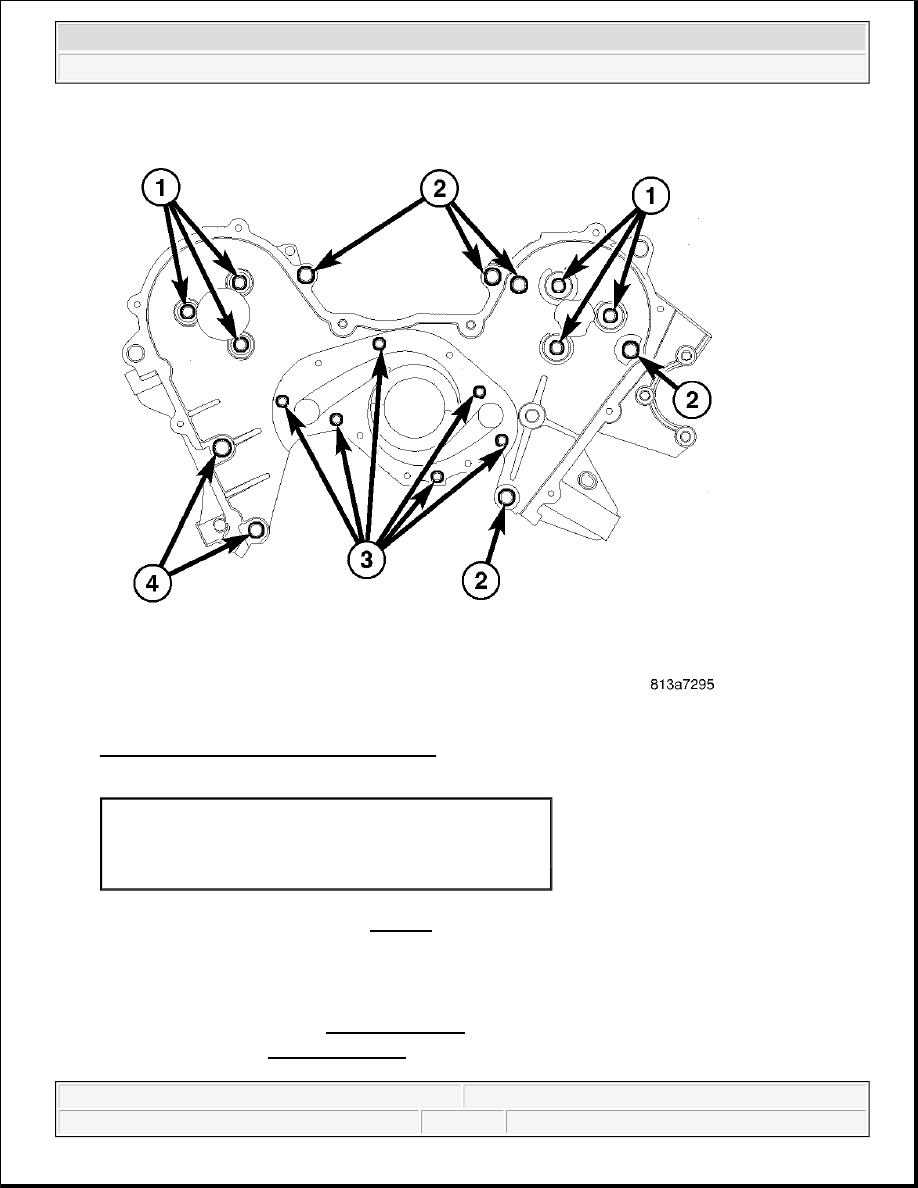

Fig. 302: Timing Belt Rear Cover Fasteners
Courtesy of CHRYSLER LLC

3. Install rear timing belt cover (4). See Fig. 302. Tighten bolts to the following specified torque:

M10 (2, 5) - 54 N.m (40 ft. lbs.)

M8 (1) - 28 N.m (20 ft. lbs.)

M6 (3) - 12 N.m (105 in. lbs.)

4. Install camshaft sprockets. See INSTALLATION.

5. Install timing belt. See INSTALLATION.

1 - M8 FASTENERS (APPLY THREAD SEALANT)
2 - M10 FASTENERS
3 - M6 FASTENERS
4 - M10 FASTENERS (STUD/NUT)



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



BELT-TIMING AND SPROCKETS

REMOVAL

CRANKSHAFT SPROCKET

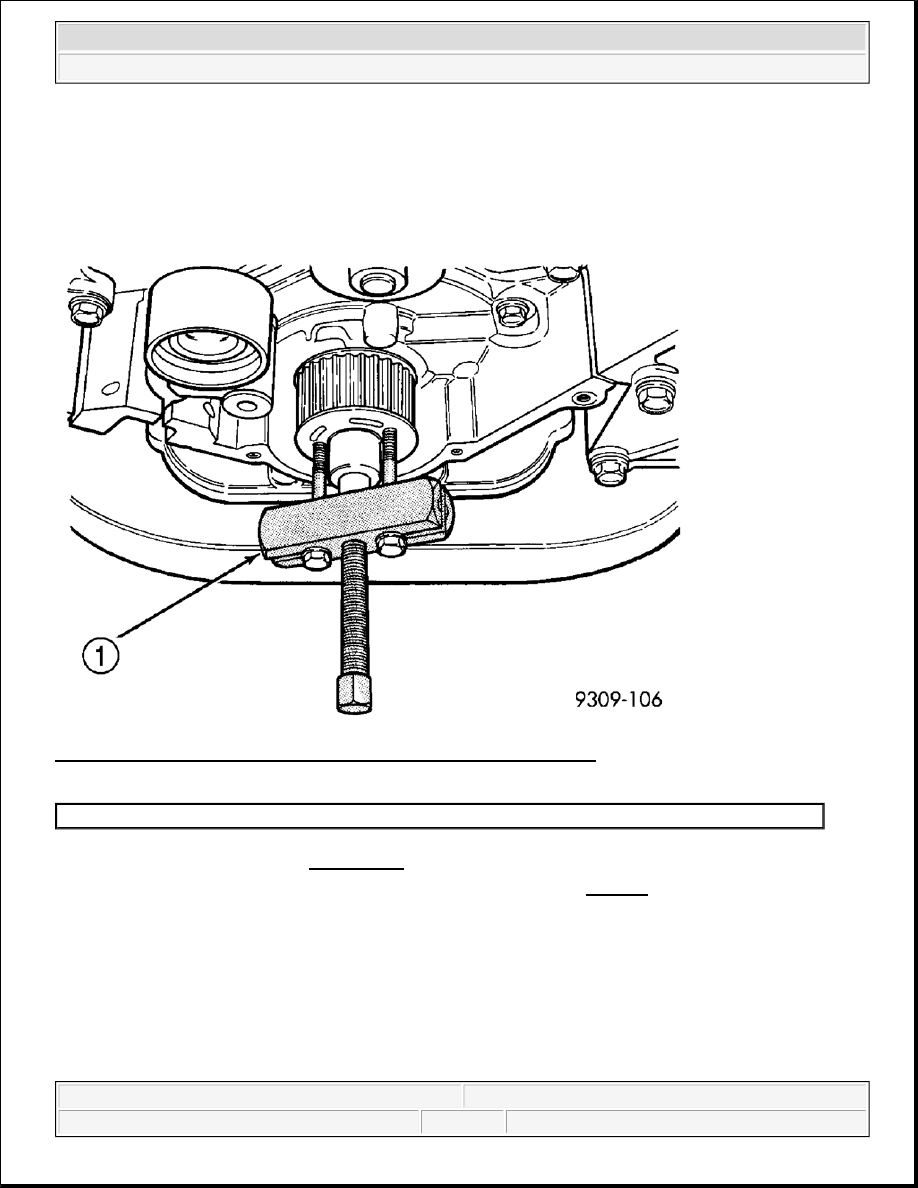

Fig. 303: Removing Crankshaft Sprocket Using Special Tool L-4407-A
Courtesy of CHRYSLER LLC

1. Remove the timing belt. See REMOVAL.

2. Remove crankshaft sprocket using Special Tool L-4407-A (1). See Fig. 303.

TIMING BELT

1 - SPECIAL TOOL L-4407-A
